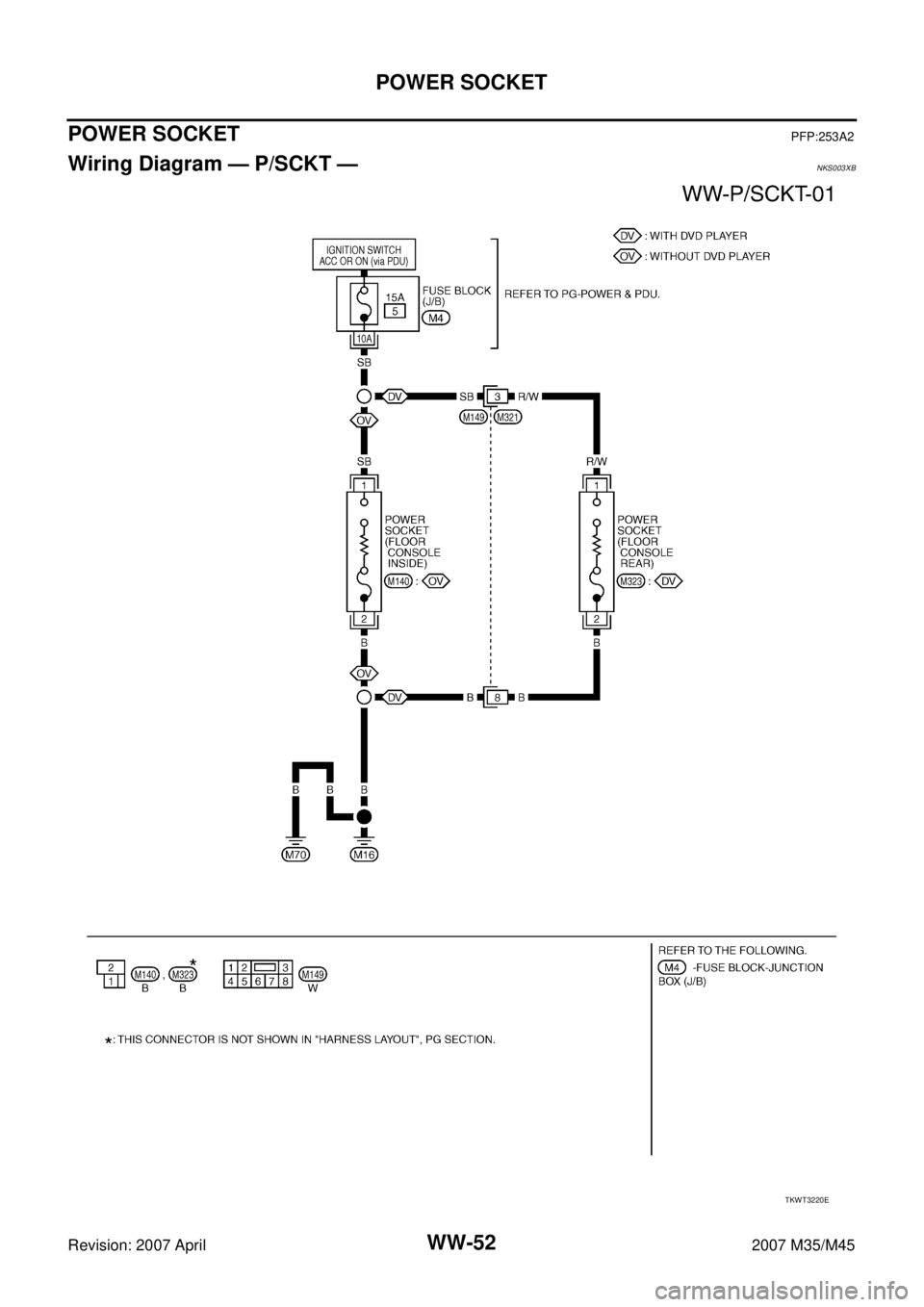

Removal and Installation of Center Console Box Power SocketNKS003XC
REMOVAL
1. Remove console box. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .

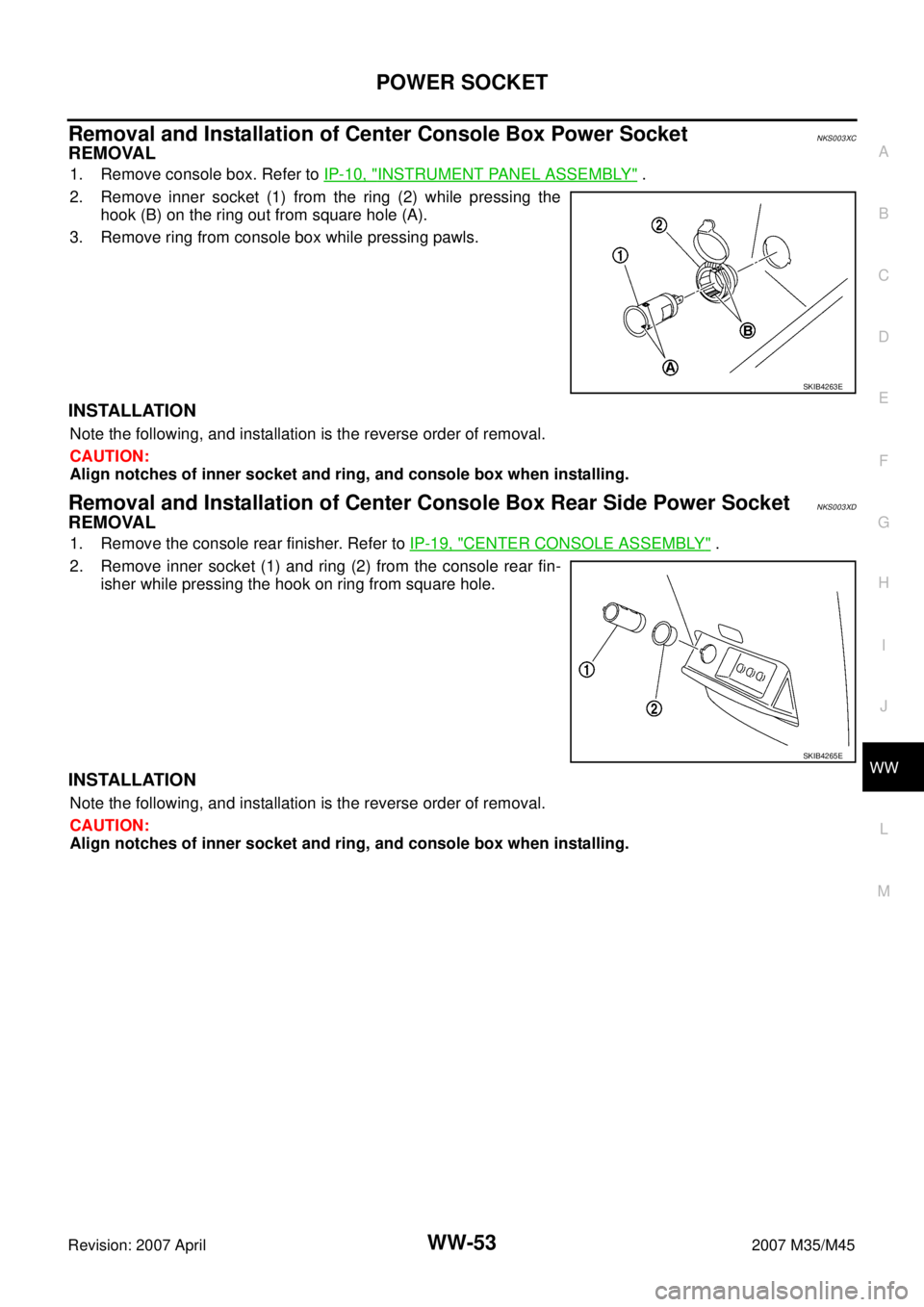

2. Remove inner socket (1) from the ring (2) while pressing the
hook (B) on the ring out from square hole (A).
3. Remove ring from console box while pressing pawls.
INSTALLATION
Note the following, and installation is the reverse order of removal.
CAUTION:
Align notches of inner socket and ring, and console box when installing.
Removal and Installation of Center Console Box Rear Side Power SocketNKS003XD
REMOVAL
1. Remove the console rear finisher. Refer to IP-19, "CENTER CONSOLE ASSEMBLY" .
2. Remove inner socket (1) and ring (2) from the console rear fin-
isher while pressing the hook on ring from square hole.
INSTALLATION
Note the following, and installation is the reverse order of removal.
CAUTION:
Align notches of inner socket and ring, and console box when installing.
SKIB4263E
SKIB4265E
