COMBINATION METERS
DI-19
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2007 April2007 M35/M45
Power Supply and Ground Circuit InspectionNKS003U6
Symptom : When any power supply circuit is malfunction, the following function is not operative.

BAT : Meter face illumination, Dot matrix LCD, Ring illumination, Turn signal/hazard indicator lights

ACC : Meter face illumination, Dot matrix LCD, Pointer illumination, Speedometer, Tachometer

IGN : Meter face illumination, Dot matrix LCD, Pointer illumination, Speedometer, Tachometer, Engine
coolant temperature, Fuel gauge
1. CHECK FUSE
Check for blown fuses.
OK or NG
OK >> GO TO 2.
NG >> Be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-3, "
POWER
SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
Check voltage between combination meter harness connector and
ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness between combination meter and fuse.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect combination meter connector.
3. Check continuity between combination meter harness connector
and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Power source Fuse No.
Battery 21
Ignition switch ACC or ON 6
Ignition switch ON or START 14
Terminals Ignition switch position
(+)
(–) OFF ACC ON
Combination meter
connectorTerminal
M5223
GroundBattery
voltageBattery
voltageBattery
voltage
20 VBattery
voltageBattery
voltage
12 0 V 0 VBattery
voltage
PKIB7637E
Combination meter
connectorTerminal
GroundContinuity
M529
Ye s 10
11
PKIB7638E

DI-20
COMBINATION METERS
Revision: 2007 April2007 M35/M45
Vehicle Speed Signal InspectionNKS003U7
Symptom: Odo/trip meter indication is malfunction.
1. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Connect CONSULT-II, and start engine.
2. Compare the value in “SPEED METER” of “DATA MONITOR” in
“METER A/C AMP” to that in speedometer in the combination
meter during driving.
Is the value in speedometer almost same as that in the monitor?
YES >> Preform self-diagnosis of ABS actuator and electric unit
(control unit). Refer to BRC-23, "
CONSULT-II Functions
(ABS)" .
NO >> GO TO 2.
2. CHECK UNIFIED METER AND A/C AMP. OUTPUT SIGNAL
1. Start engine and drive vehicle at approximately 40 km/h (25
MPH).
2. Check voltage signal between unified meter and A/C amp. har-
ness connector and ground.
NOTE:
Maximum voltage may be 5 V due to specifications (connected units).
OK or NG
OK >> GO TO 3.
NG-1 >> If monitor indicates “0 V” constantly, perform the following.
1. Check each unit inputting vehicle speed signal (8 pulse). Malfunction is caused by short circuit
between each unit and unified meter and A/C amp.
2. Repair or replace malfunctioning parts.
NG-2 >> If monitor indicates “5 V” or “12 V” constantly, replace unified meter and A/C amp.
PKIB7639E
Terminals
Voltage (Approx.) (+)
(–)
Unified meter and
A/C amp.connectorTerminal
M64 28 Ground
PKIB7640E
PKIA1935E

COMBINATION METERS
DI-21
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2007 April2007 M35/M45
3. CHECK CONTINUITY BETWEEN COMBINATION METER AND UNIFIED METER AND A/C AMP.
1. Turn ignition switch OFF.
2. Disconnect combination meter connector and unified meter and
A/C amp. connector.
3. Check continuity between combination meter harness connector
(A) and unified meter and A/C amp. harness connector (B).
OK or NG
OK >> Replace combination meter.
NG >> Repair harness or connector.
Engine Speed Signal Inspection NKS003U8
Symptom: Tachometer indication is malfunction.
1. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Start engine and select “METER A/C AMP” on CONSULT-II.
2. Using “TACHO METER” on “DATA MONITOR”, compare the
value of “DATA MONITOR” to that of tachometer of combination
meter.
Is the value in tachometer almost same as the value in the monitor?
OK >> GO TO 2.
NG >> Replace combination meter. (Perform self-diagnosis of
ECM when the value in the monitor indicates 8191.875
rpm. Then repair or replace the malfunction part.)
2. CHECK ECM OUTPUT SIGNAL
1. Select “ENGINE” on CONSULT-II.
2. Using “ENG SPEED” on “DATA MONITOR”, print out the CON-
SULT-II screen when the engine is idling.
3. Select “METER A/C AMP” on CONSULT-II.
4. Using “TACHO METER” on “DATA MONITOR”, compare the
value of “DATA MONITOR” of the idling speed to that of the
“ENG SPEED”.
OK or NG
OK >> Perform self-diagnosis of ECM. Refer to EC-123, "CON-
SULT-II Function (ENGINE)" (for VQ35DE) or EC-826,
"CONSULT-II Function (ENGINE)" (for VK45DE).
NG >> Replace unified meter and A/C amp.
AB
Continuity
Connector Terminal Connector Terminal
M52 1 M64 28 Yes
PKIB7641E
PKIA2090E
SKIA4367E

DI-22
COMBINATION METERS
Revision: 2007 April2007 M35/M45
Engine Coolant Temperature Signal InspectionNKS003U9
Symptom: Water temperature gauge indication is malfunction.
1. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Start engine and select “METER A/C AMP” on CONSULT-II.
2. Using “W TEMP METER” on “DATA MONITOR”, compare the
value of “DATA MONITOR” to the indication of water tempera-
ture gauge of combination meter.
Is the indication of water temperature gauge same as the value in
the monitor?
OK >> GO TO 2.
NG >> Replace combination meter. [Perform self-diagnosis of ECM when the value in the monitor indi-
cates 215°C (419°F). Then repair or replace the malfunction part.]
2. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Select “ENGINE” on CONSULT-II.
2. Using “COOLAN TEMP/S” on “DATA MONITOR”, print out the
CONSULT-II screen.
3. Select “METER A/C AMP” on CONSULT-II.
4. Using “W TEMP METER” on “DATA MONITOR”, compare the
value of “DATA MONITOR” to that of the “COOLAN TEMP/S”.
OK or NG
OK >> Perform self-diagnosis of ECM. Refer to EC-123, "CON-
SULT-II Function (ENGINE)" (for VQ35DE) or EC-826,
"CONSULT-II Function (ENGINE)" (for VK45DE).
NG >> Replace unified meter and A/C amp.
Fuel Level Sensor Signal InspectionNKS003UA
Symptom:

Fuel gauge indication is malfunction.

Low-fuel warning lamp indication is irregular.
NOTE:
The following symptoms are not malfunction.
Fuel level sensor unit

Depending on vehicle position or driving circumstance, the fuel level in the tank varies, and the pointer
may fluctuate.

If the vehicle is fueled with the ignition switch ON, the pointer will move slowly.
Low-fuel warning lamp

Depending on vehicle position or driving circumstance, the fuel in the tank flows and the warning lamp ON
timing may change.
Water temperature gauge pointer Reference value of data monitor °C (°F)
Hot Approx. 130 (266)
Middle Approx. 70 - 105 (158 - 221)
Cold Approx. 50 (122)
PKIA2091E
SKIA4368E

DI-28
UNIFIED METER AND A/C AMP
Revision: 2007 April2007 M35/M45
UNIFIED METER AND A/C AMPPFP:27760
System DescriptionNKS003UG
For the unified meter and A/C amp., the signal required for controlling the combination meter are integrated in
the A/C auto amp.
COMBINATION METER CONTROL FUNCTION

Unified meter and A/C amp. inputs necessary information for combination meter from each unit with CAN
communication and so on.

Unified meter and A/C amp. outputs signals with communication line (TX, RX) between unified meter and
A/C amp. and combination meter.

Unified meter and A/C amp. corresponds a CONSULT-II function (self-diagnostic results, CAN diagnostic
support monitor and data monitor).
Input/output Signals
Between unified meter and A/C amp. and combination meter.
Unit Input from combination meter Output to combination meter
Unified meter and A/C amp.

Refuel status signal

Low-fuel warning lamp condition signal

Delivery destination data signal

Combination meter receive error signal

Combination meter specifications signal

Odo date signal

Vehicle speed signal

Turn indicator signal

High beam request signal

Ring illumination request signal

Position light request signal

Front fog lamp request signal

SET indicator lamp signal

CRUISE indicator lamp signal

Engine speed signal

Fuel level sensor signal (resistance value)

Engine coolant temperature signal

CAN communication condition signal of A/T

A/T position indicator signal

Manual mode indicator signal

A/T CHECK warning lamp signal

AWD warning lamp signal

Low tire pressure warning lamp signal

VDC OFF indicator lamp signal

SLIP indicator lamp signal

ABS warning lamp signal

Brake warning lamp signal

Malfunction indicator lamp signal

Oil pressure switch signal

Door switch signal

Buzzer request signal

ICC warning lamp signal

Meter display signal

AFS OFF indicator signal

DI-32
UNIFIED METER AND A/C AMP
Revision: 2007 April2007 M35/M45
DATA MONITOR
Operation Procedure
1. Touch “METER A/C AMP” on “SELECT SYSTEM” screen.
2. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen.
3. Touch either “MAIN SIGNALS” or “SELECTION FROM MENU” on the “DATA MONITOR” screen.
4. When “SELECTION FROM MENU” is selected, touch individual items to be monitored. When “MAIN SIG-
NALS” is selected, main items will be monitored.
5. Touch “START”.
6. Touch “RECORD” while monitoring, then the status of the moni-
tored item can be recorded. To stop recording, touch “STOP”.
Display Item List
X: Applicable MAIN SIGNALS Monitors main signals.
SELECTION FROM MENU Selects and monitors individual signal.
SKIA4957E
Display item [Unit]MAIN
SIGNALSSELECTION
FROM MENUDescription
SPEED METER [km/h] or [mph] X XDisplays the value of vehicle speed signal, which is input from ABS
actuator and electric unit (control unit).
SPEED OUTPUT [km/h] or [mph] X XDisplays the value of vehicle speed signal, which is transmitted to
each unit with CAN communication.
TACHO METER [rpm] X X Displays the value of engine speed signal, which is input from ECM.
W TEMP METER [°C] or [°F] X XDisplays the value of engine coolant temperature signal, which is
input from ECM.
FUEL METER [lit.] X XDisplays the value, which processes a resistance signal from fuel
gauge.
DISTANCE [km] or [mile] X XDisplays the value, which is calculated by vehicle speed signal from
ABS actuator and electric unit (control unit), fuel gauge and fuel
consumption from ECM.
FUEL W/L [ON/OFF] X X Displays [ON/OFF] condition of low-fuel warning lamp.
MIL [ON/OFF] X Displays [ON/OFF] condition of malfunction indicator lamp.
AIR PRES W/L [ON/OFF] X Displays [ON/OFF] condition of low tire pressure warning lamp.
SEAT BELT W/L [ON/OFF] X Displays [ON/OFF] condition of seat belt warning lamp.
BUZZER [ON/OFF] X X Displays [ON/OFF] condition of buzzer.
DOOR W/L [ON/OFF] X Displays [ON/OFF] condition of door warning lamp.
HI-BEAM IND [ON/OFF] X Displays [ON/OFF] condition of high beam indicator.
TURN IND [ON/OFF] X Displays [ON/OFF] condition of turn indicator.
FR FOG IND [ON/OFF] X Displays [ON/OFF] condition of front fog indicator.
OIL W/L [ON/OFF] X Displays [ON/OFF] condition of oil pressure warning lamp.
VDC/TCS IND [ON/OFF] X Displays [ON/OFF] condition of VDC/TCS OFF indicator lamp.
ABS W/L [ON/OFF] X Displays [ON/OFF] condition of ABS warning lamp.
SLIP IND [ON/OFF] X Displays [ON/OFF] condition of SLIP indicator lamp.
BRAKE W/L [ON/OFF] X Displays [ON/OFF] condition of brake warning lamp. *

WARNING LAMPS
DI-39
C
D
E
F
G
H
I
J
L
MA
B
DI
Revision: 2007 April2007 M35/M45
WARNING LAMPSPFP:24814
System DescriptionNKS003UO

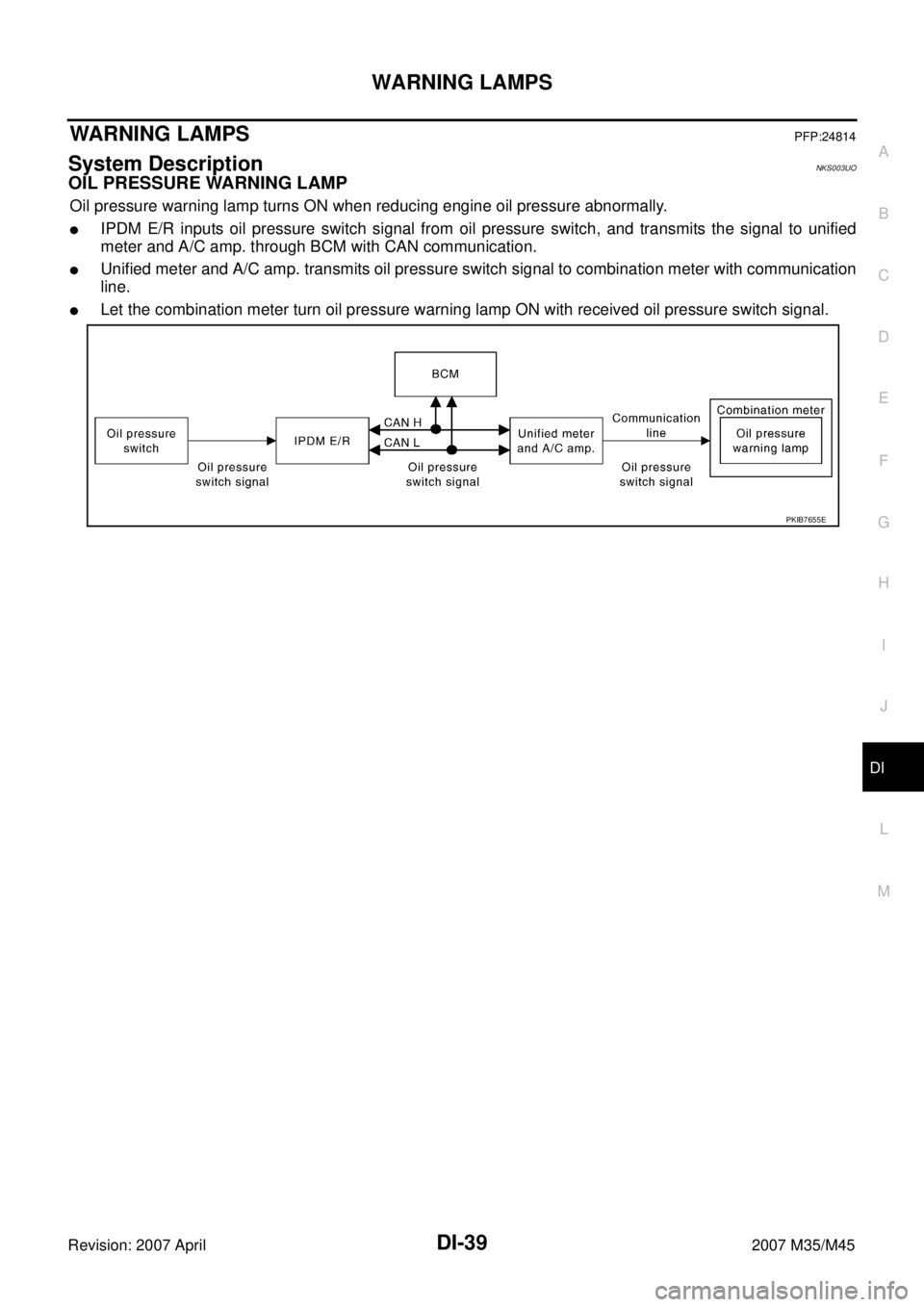

OIL PRESSURE WARNING LAMP
Oil pressure warning lamp turns ON when reducing engine oil pressure abnormally.

IPDM E/R inputs oil pressure switch signal from oil pressure switch, and transmits the signal to unified
meter and A/C amp. through BCM with CAN communication.

Unified meter and A/C amp. transmits oil pressure switch signal to combination meter with communication
line.

Let the combination meter turn oil pressure warning lamp ON with received oil pressure switch signal.
PKIB7655E

DI-52
WARNING LAMPS
Revision: 2007 April2007 M35/M45
Oil Pressure Warning Lamp Stays Off (Ignition Switch ON)NKS003US
1. CHECK OPERATION OF OIL PRESSURE WARNING LAMP
Activate IPDM E/R auto active test. Refer to PG-23, "
Auto Active Test" .
Does oil pressure warning lamp is blinking?
YES >> GO TO 2.
NO >> GO TO 4.
2. CHECK OIL PRESSURE SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and oil pressure switch con-
nector.
3. Check continuity between IPDM E/R harness connector (A) and
oil pressure switch harness connector (B).
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK OIL PRESSURE SWITCH
Check oil pressure switch. Refer to DI-54, "
OIL PRESSURE SWITCH" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-31, "Removal and Installation of IPDM E/R" .
NG >> Replace oil pressure switch.
4. CHECK UNIFIED METER AND A/C AMP. (CONSULT-II)
Perform self-diagnosis of unified meter and A/C amp. Refer to DI-31, "
CONSULT-II Function (METER A/C
AMP)" .
Self
-diagnostic results content
No malfunction detected>> GO TO 5.
Malfunction detected>> Check applicable parts, and repair or replace corresponding parts.
5. CHECK UNIFIED METER AND A/C AMP. INPUT SIGNAL
1. Select “METER A/C AMP” on CONSULT-II.
2. Operate ignition switch with “OIL W/L” of “DATA MONITOR” and
check operation status.
OK or NG
OK >> Replace combination meter.
NG >> GO TO 6.
AB
Continuity
Connector Terminal Connector Terminal
E9 52 F21 1 Yes
PKIB7657E
“OIL W/L”
When ignition switch is in ON
position (Engine stopped): ON
When engine running : OFF
PKIA2064E
