EC-14Revision: 2007 April2007 M35/M45 On Board Diagnosis Logic ...................................1302
DTC Confirmation Procedure ..............................1302
Wiring Diagram ....................................................1303
Diagnostic Procedure ..........................................1304
Component Inspection .........................................1305
Removal and Installation .....................................1306
DTC P1805 BRAKE SWITCH ................................1307
Component Description .......................................1307
CONSULT-II Reference Value in Data Monitor Mode
1307
On Board Diagnosis Logic ...................................1307
DTC Confirmation Procedure ..............................1308
Wiring Diagram ....................................................1309
Diagnostic Procedure ..........................................1310
Component Inspection .........................................1315
DTC P2100, P2103 THROTTLE CONTROL MOTOR
RELAY ....................................................................1316
Component Description .......................................1316
CONSULT-II Reference Value in Data Monitor Mode
1316
On Board Diagnosis Logic ...................................1316
DTC Confirmation Procedure ..............................1316
Wiring Diagram ....................................................1318
Diagnostic Procedure ..........................................1319
DTC P2101 ELECTRIC THROTTLE CONTROL
FUNCTION .............................................................1322
Description ...........................................................1322
On Board Diagnosis Logic ...................................1322
DTC Confirmation Procedure ..............................1322
Wiring Diagram ....................................................1323
Diagnostic Procedure ..........................................1324
Component Inspection .........................................1328
Removal and Installation .....................................1328
DTC P2118 THROTTLE CONTROL MOTOR ........1329
Component Description .......................................1329
On Board Diagnosis Logic ...................................1329
DTC Confirmation Procedure ..............................1329
Wiring Diagram ....................................................1330
Diagnostic Procedure ..........................................1331
Component Inspection .........................................1332
Removal and Installation .....................................1333
DTC P2119 ELECTRIC THROTTLE CONTROL
ACTUATOR ............................................................1334
Component Description .......................................1334
On Board Diagnosis Logic ...................................1334
DTC Confirmation Procedure ..............................1334
Diagnostic Procedure ..........................................1335
DTC P2122, P2123 APP SENSOR ........................1336
Component Description .......................................1336
CONSULT-II Reference Value in Data Monitor Mode
1336
On Board Diagnosis Logic ...................................1336
DTC Confirmation Procedure ..............................1337
Wiring Diagram ....................................................1338
Diagnostic Procedure ..........................................1339
Component Inspection .........................................1341
Removal and Installation .....................................1342
DTC P2127, P2128 APP SENSOR ........................1343
Component Description .......................................1343CONSULT-II Reference Value in Data Monitor Mode
1343
On Board Diagnosis Logic ...................................1343
DTC Confirmation Procedure ...............................1344
Wiring Diagram ....................................................1345
Diagnostic Procedure ...........................................1346
Component Inspection .........................................1349
Removal and Installation ......................................1349
DTC P2135 TP SENSOR .......................................1350
Component Description .......................................1350
CONSULT-II Reference Value in Data Monitor Mode
1350
On Board Diagnosis Logic ...................................1350
DTC Confirmation Procedure ...............................1351
Wiring Diagram ....................................................1352
Diagnostic Procedure ...........................................1353
Component Inspection .........................................1356
Removal and Installation ......................................1356
DTC P2138 APP SENSOR .....................................1357
Component Description .......................................1357
CONSULT-II Reference Value in Data Monitor Mode
1357
On Board Diagnosis Logic ...................................1357
DTC Confirmation Procedure ...............................1358
Wiring Diagram ....................................................1359
Diagnostic Procedure ...........................................1360
Component Inspection .........................................1364
Removal and Installation ......................................1364
DTC P2A00, P2A03 A/F SENSOR 1 ......................1365
Component Description .......................................1365
CONSULT-II Reference Value in Data Monitor Mode
1365
On Board Diagnosis Logic ...................................1365
DTC Confirmation Procedure ...............................1365
Wiring Diagram ....................................................1367
Diagnostic Procedure ...........................................1370
Removal and Installation ......................................1376
ASCD BRAKE SWITCH .........................................1377
Component Description .......................................1377
CONSULT-II Reference Value in Data Monitor Mode
1377
Wiring Diagram ....................................................1378
Diagnostic Procedure ...........................................1379
Component Inspection .........................................1383
ASCD INDICATOR .................................................1384
Component Description .......................................1384
CONSULT-II Reference Value in Data Monitor Mode
1384
Wiring Diagram ....................................................1385
Diagnostic Procedure ...........................................1386
ELECTRICAL LOAD SIGNAL ...............................1387
Description ...........................................................1387
CONSULT-II Reference Value in Data Monitor Mode
1387
Diagnostic Procedure ...........................................1387
FUEL INJECTOR ....................................................1389
Component Description .......................................1389
CONSULT-II Reference Value in Data Monitor Mode
1389

EC-15
C
D
E
F
G
H
I
J
K
L
M
ECA
Revision: 2007 April2007 M35/M45 Wiring Diagram ...................................................1390
Diagnostic Procedure ..........................................1391
Component Inspection ........................................1394
Removal and Installation .....................................1394
FUEL PUMP ..........................................................1395
Description ..........................................................1395
CONSULT-II Reference Value in Data Monitor Mode
1395
Wiring Diagram ...................................................1396
Diagnostic Procedure ..........................................1397
Component Inspection ........................................1401
Removal and Installation .....................................1402
ICC BRAKE SWITCH ............................................1403
Component Description .......................................1403
CONSULT-II Reference Value in Data Monitor Mode
1403
Wiring Diagram ...................................................1404
Diagnostic Procedure ..........................................1405
Component Inspection ........................................1410
IGNITION SIGNAL .................................................1411
Component Description .......................................1411
Wiring Diagram ...................................................1412
Diagnostic Procedure ..........................................1417
Component Inspection ........................................1421
Removal and Installation .....................................1423
REFRIGERANT PRESSURE SENSOR ................1424
Component Description .......................................1424
Wiring Diagram ...................................................1425Diagnostic Procedure ..........................................1426
Removal and Installation .....................................1428
VIAS .......................................................................1429
Description ...........................................................1429
CONSULT-II Reference Value in Data Monitor Mode
1430
Wiring Diagram ....................................................1431
Diagnostic Procedure ..........................................1433
Component Inspection .........................................1436
Removal and Installation .....................................1437
MIL AND DATA LINK CONNECTOR .....................1438
Wiring Diagram ....................................................1438
SERVICE DATA AND SPECIFICATIONS (SDS) ...1440
Fuel Pressure ......................................................1440
Idle Speed and Ignition Timing ............................1440
Calculated Load Value .........................................1440
Mass Air Flow Sensor ..........................................1440
Intake Air Temperature Sensor ............................1440
Engine Coolant Temperature Sensor ..................1440
Fuel Tank Temperature Sensor ...........................1440
Crankshaft Position Sensor (POS) ......................1440
Camshaft Position Sensor (PHASE) ...................1440
A/F Sensor 1 Heater ............................................1440
Heated Oxygen Sensor 2 Heater ........................1441
Throttle Control Motor ..........................................1441
Fuel Injector .........................................................1441
Fuel Pump ...........................................................1441

EC-30
[VQ35DE]
ENGINE CONTROL SYSTEM
Revision: 2007 April2007 M35/M45
ENGINE CONTROL SYSTEMPFP:23710
System DiagramNBS004S2
PBIB2778E

TROUBLE DIAGNOSIS
EC-111
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

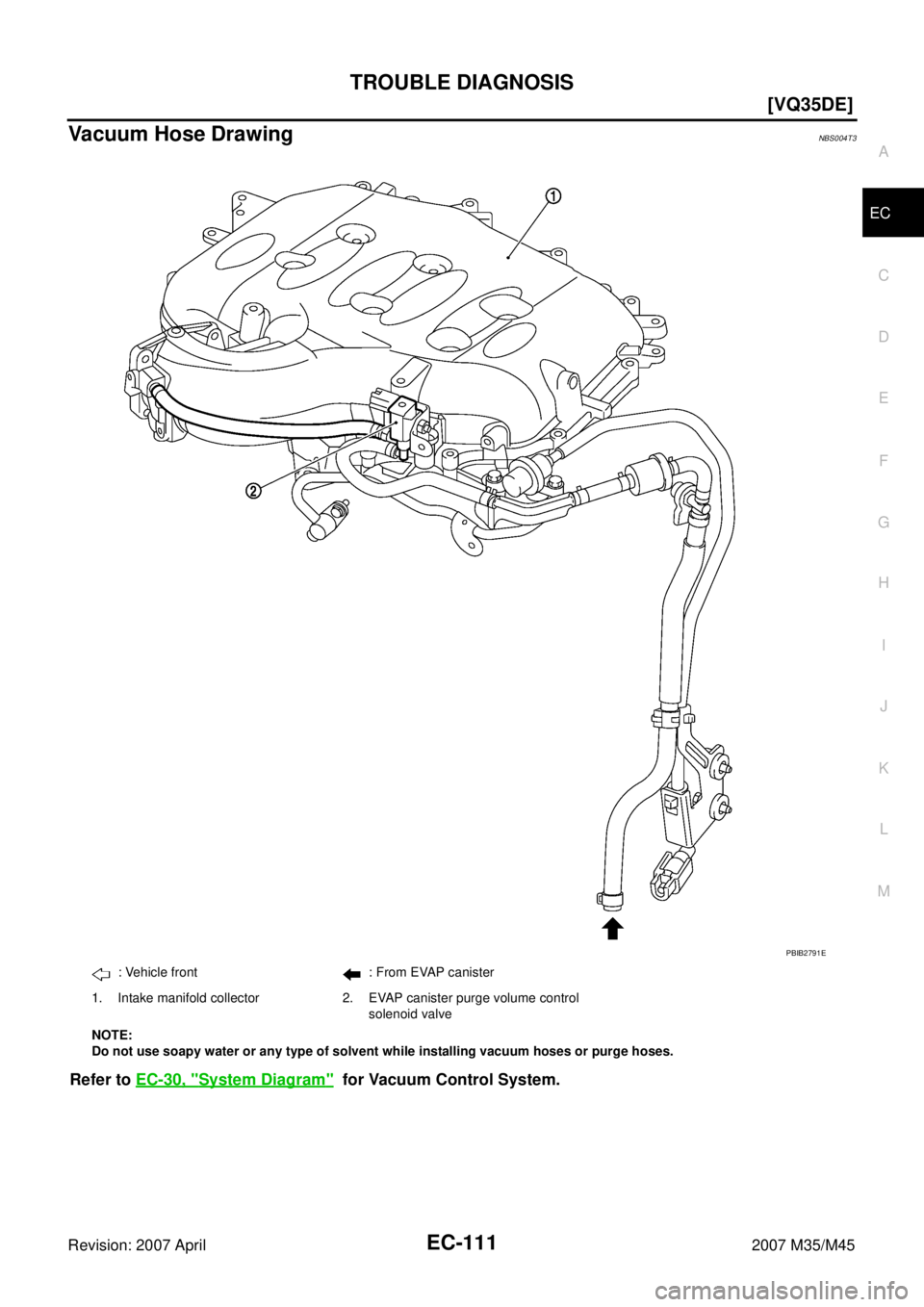

Vacuum Hose DrawingNBS004T3
Refer to EC-30, "System Diagram" for Vacuum Control System.
: Vehicle front : From EVAP canister
1. Intake manifold collector 2. EVAP canister purge volume control
solenoid valve
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.
PBIB2791E

EC-112
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
Circuit DiagramNBS004T4
TBWT1468E

EC-154
[VQ35DE]
POWER SUPPLY AND GROUND CIRCUIT
Revision: 2007 April2007 M35/M45
POWER SUPPLY AND GROUND CIRCUITPFP:24110
Wiring DiagramNBS004TH
TBWT0946E

EC-156
[VQ35DE]
POWER SUPPLY AND GROUND CIRCUIT
Revision: 2007 April2007 M35/M45
4. CHECK GROUND CONNECTIONS-I
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-160, "
Ground Inspection" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace ground connections.
5. CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-I
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 1, 115, 116 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F102, M72

Harness for open or short between ECM and ground
>> Repair open circuit or short to power in harness or connectors.
7. CHECK ECM POWER SUPPLY CIRCUIT-II
1. Reconnect ECM harness connector.
2. Turn ignition switch ON.
3. Check voltage between IPDM E/R terminal 17 and ground with
CONSULT-II or tester.
OK or NG
OK >> Go to EC-691, "IGNITION SIGNAL" .
NG >> GO TO 8.
1. Body ground M70 2. Body ground M16
PBIB2782E
Continuity should exist.
Voltage: Battery voltage
PBIB1514E

POWER SUPPLY AND GROUND CIRCUIT
EC-157
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
8. CHECK ECM POWER SUPPLY CIRCUIT-III
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Check voltage between ECM terminals 119, 120 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 15.
NG (Battery voltage does not exist.)>>GO TO 9.
NG (Battery voltage exists for more than a few seconds.)>>GO TO
12.
9. CHECK ECM POWER SUPPLY CIRCUIT-IV
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Check voltage between ECM terminal 111 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 12.
10. CHECK ECM POWER SUPPLY CIRCUIT-V
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E7.
3. Check harness continuity between ECM terminals 119, 120 and IPDM E/R terminal 18.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 18.
NG >> GO TO 11.
11 . DETECT MALFUNCTIONING PART
Check the following.

Harness or connectors E108, M15

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors. Voltage: After turning ignition switch OFF, battery
voltage will exist for a few seconds, then
drop approximately 0V.
PBIB1630E
Voltage: Battery voltage
PBIB1191E
Continuity should exist.
