2007 INFINITI FX35 headlamp

HEADLAMP - XENON TYPE - LT-23
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45

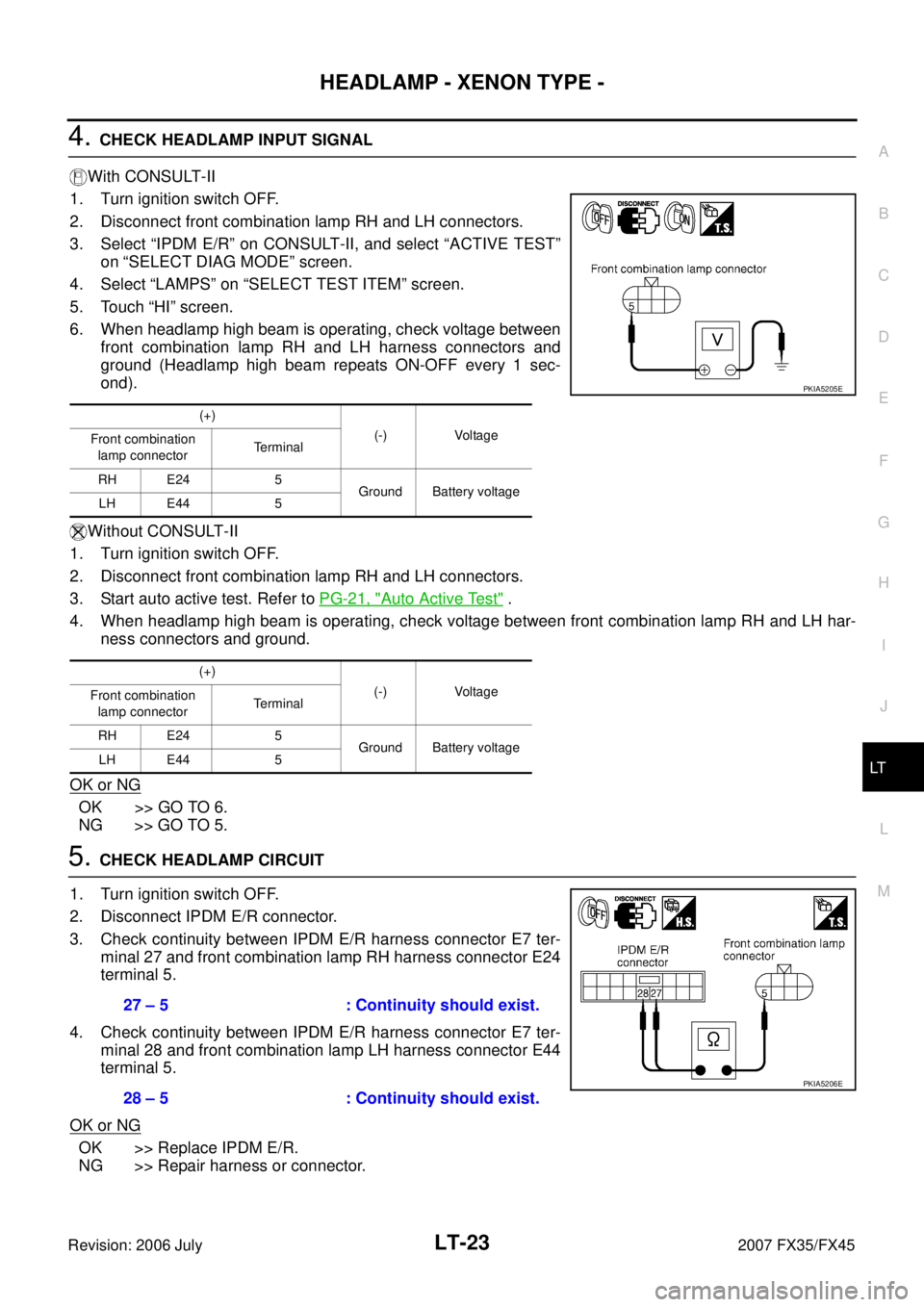

4. CHECK HEADLAMP INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH and LH connectors.
3. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “LAMPS” on “SELECT TEST ITEM” screen.
5. Touch “HI” screen.
6. When headlamp high beam is operating, check voltage between front combination lamp RH and LH harness connectors and
ground (Headlamp high beam repeats ON-OFF every 1 sec-
ond).
Without CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH and LH connectors.
3. Start auto active test. Refer to PG-21, "
Auto Active Test" .
4. When headlamp high beam is operating, check voltage between front combination lamp RH and LH har- ness connectors and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.

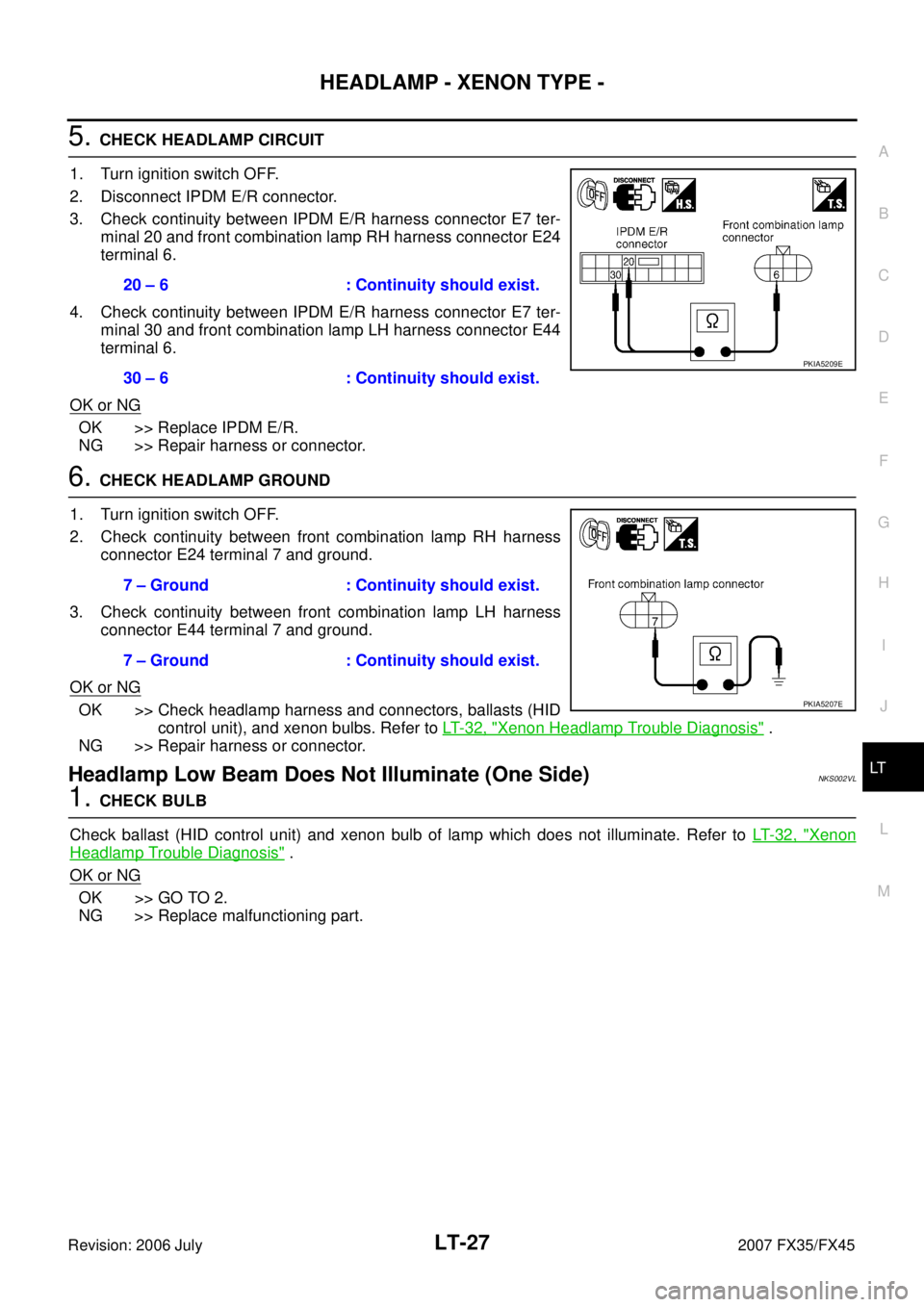

5. CHECK HEADLAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector E7 ter- minal 27 and front combination lamp RH harness connector E24
terminal 5.
4. Check continuity between IPDM E/R harness connector E7 ter- minal 28 and front combination lamp LH harness connector E44
terminal 5.
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
(+)
(-) Voltage
Front combination
lamp connector Terminal
RH E24 5 Ground Battery voltage
LH E44 5
(+) (-) Voltage
Front combination
lamp connector Terminal
RH E24 5 Ground Battery voltage
LH E44 5
PKIA5205E
27 – 5 : Continuity should exist.
28 – 5 : Continuity should exist.
PKIA5206E

LT-24
HEADLAMP - XENON TYPE -
Revision: 2006 July 2007 FX35/FX45

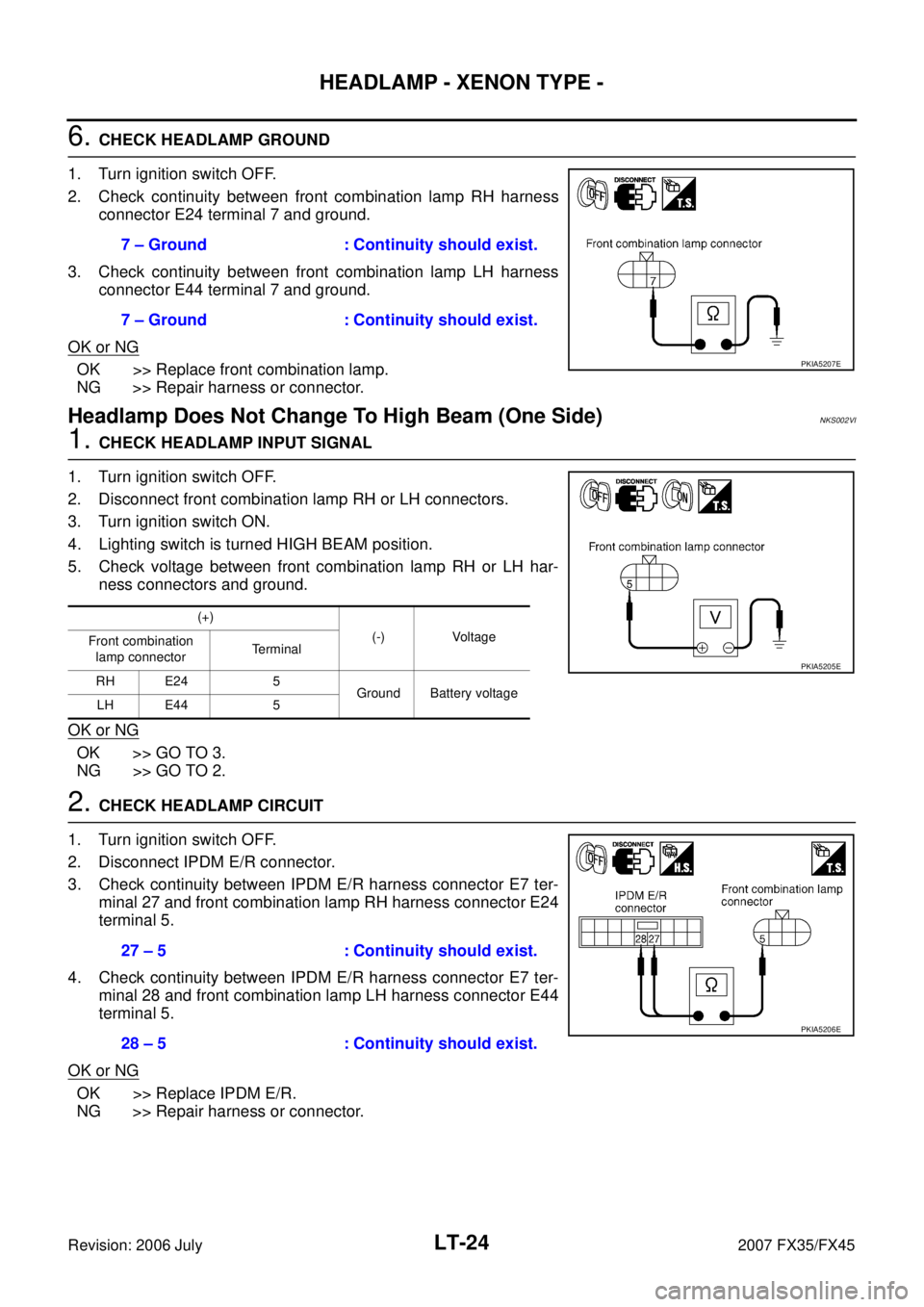

6. CHECK HEADLAMP GROUND
1. Turn ignition switch OFF.
2. Check continuity between front combination lamp RH harness connector E24 terminal 7 and ground.
3. Check continuity between front combination lamp LH harness connector E44 terminal 7 and ground.
OK or NG
OK >> Replace front combination lamp.
NG >> Repair harness or connector.
Headlamp Does Not Change To High Beam (One Side)NKS002VI
1. CHECK HEADLAMP INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH or LH connectors.
3. Turn ignition switch ON.
4. Lighting switch is turned HIGH BEAM position.
5. Check voltage between front combination lamp RH or LH har- ness connectors and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. CHECK HEADLAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector E7 ter- minal 27 and front combination lamp RH harness connector E24
terminal 5.
4. Check continuity between IPDM E/R harness connector E7 ter- minal 28 and front combination lamp LH harness connector E44
terminal 5.
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector. 7 – Ground : Continuity should exist.
7 – Ground : Continuity should exist.
PKIA5207E
(+) (-) Voltage
Front combination
lamp connector Terminal
RH E24 5 Ground Battery voltage
LH E44 5
PKIA5205E
27 – 5 : Continuity should exist.
28 – 5 : Continuity should exist.
PKIA5206E

HEADLAMP - XENON TYPE - LT-25
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45

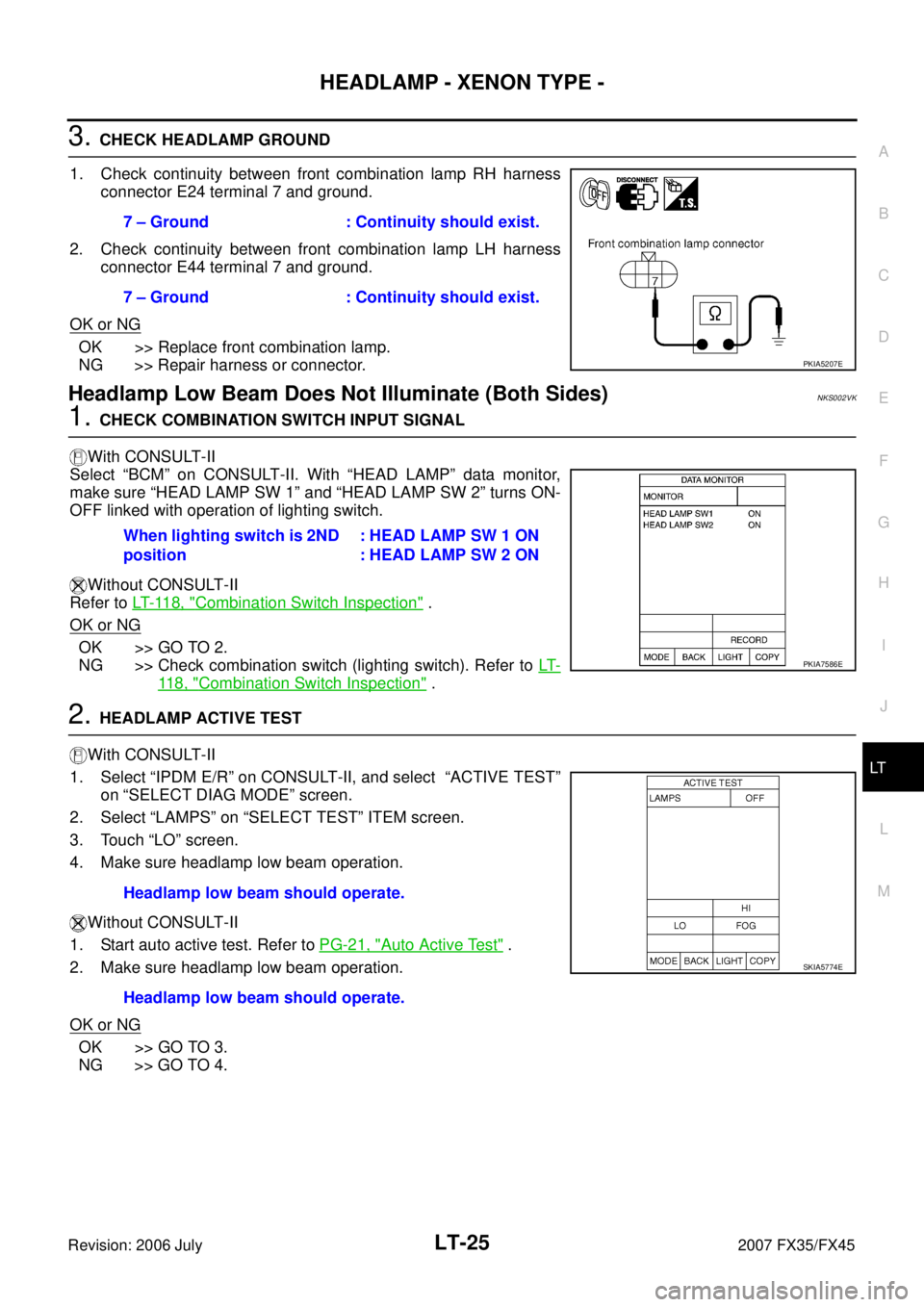

3. CHECK HEADLAMP GROUND
1. Check continuity between front combination lamp RH harness connector E24 terminal 7 and ground.
2. Check continuity between front combination lamp LH harness connector E44 terminal 7 and ground.
OK or NG
OK >> Replace front combination lamp.
NG >> Repair harness or connector.
Headlamp Low Beam Does Not Illuminate (Both Sides)NKS002VK
1. CHECK COMBINATION SWITCH INPUT SIGNAL
With CONSULT-II
Select “BCM” on CONSULT-II. With “HEAD LAMP” data monitor,
make sure “HEAD LAMP SW 1” and “HEAD LAMP SW 2” turns ON-
OFF linked with operation of lighting switch.
Without CONSULT-II
Refer to LT- 11 8 , "
Combination Switch Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Check combination switch (lighting switch). Refer to LT-
11 8 , "Combination Switch Inspection" .
2. HEADLAMP ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “LAMPS” on “SELECT TEST” ITEM screen.
3. Touch “LO” screen.
4. Make sure headlamp low beam operation.
Without CONSULT-II
1. Start auto active test. Refer to PG-21, "
Auto Active Test" .
2. Make sure headlamp low beam operation.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4. 7 – Ground : Continuity should exist.
7 – Ground : Continuity should exist.
PKIA5207E
When lighting switch is 2ND
position : HEAD LAMP SW 1 ON
: HEAD LAMP SW 2 ON
PKIA7586E
Headlamp low beam should operate.
Headlamp low beam should operate.
SKIA5774E

LT-26
HEADLAMP - XENON TYPE -
Revision: 2006 July 2007 FX35/FX45

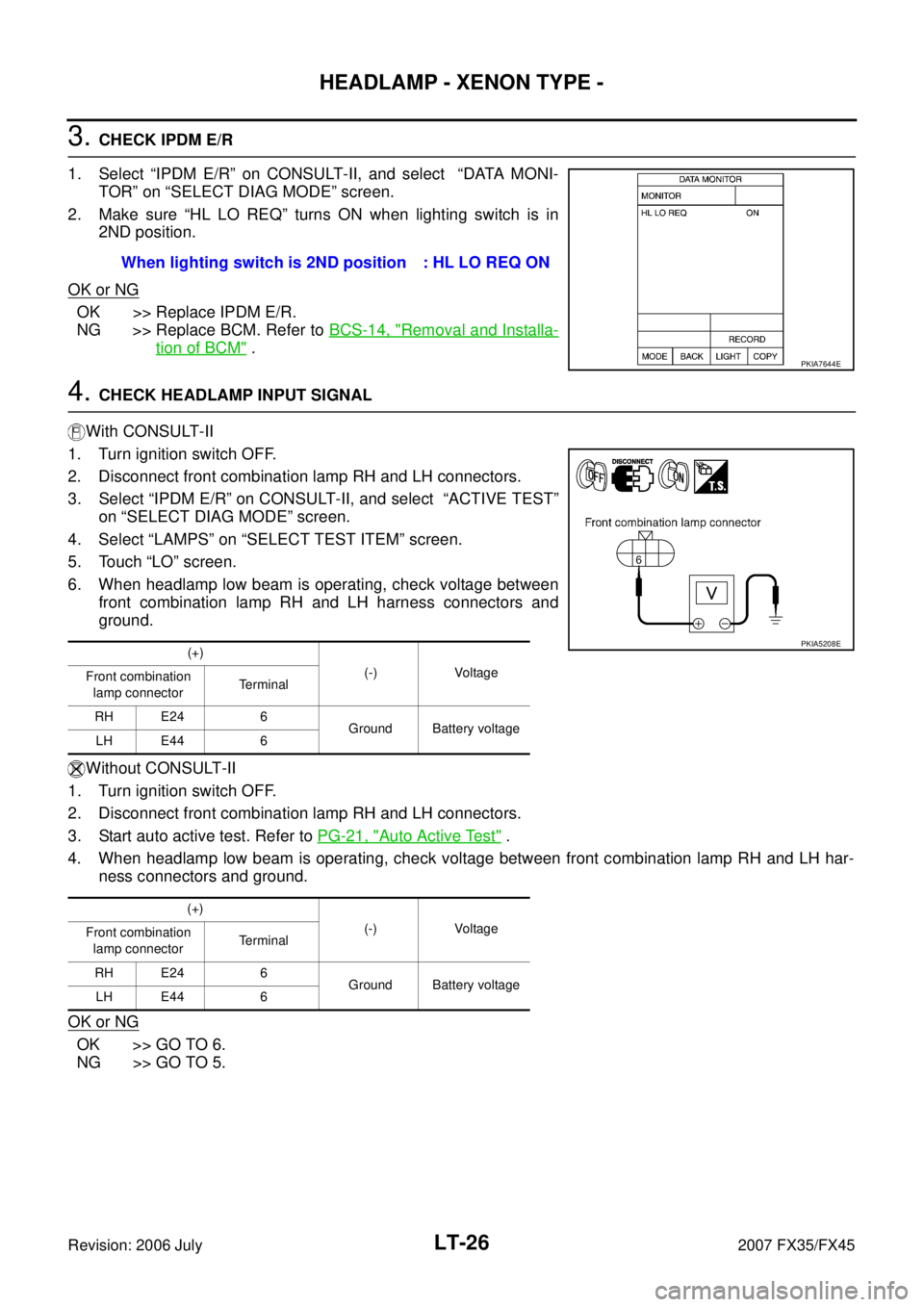

3. CHECK IPDM E/R
1. Select “IPDM E/R” on CONSULT-II, and select “DATA MONI- TOR” on “SELECT DIAG MODE” screen.
2. Make sure “HL LO REQ” turns ON when lighting switch is in 2ND position.
OK or NG
OK >> Replace IPDM E/R.
NG >> Replace BCM. Refer to BCS-14, "
Removal and Installa-
tion of BCM" .
4. CHECK HEADLAMP INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH and LH connectors.
3. Select “IPDM E/R” on CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “LAMPS” on “SELECT TEST ITEM” screen.
5. Touch “LO” screen.
6. When headlamp low beam is operating, check voltage between front combination lamp RH and LH harness connectors and
ground.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH and LH connectors.
3. Start auto active test. Refer to PG-21, "
Auto Active Test" .
4. When headlamp low beam is operating, check voltage between front combination lamp RH and LH har- ness connectors and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5. When lighting switch is 2ND position : HL LO REQ ON
PKIA7644E
(+)
(-) Voltage
Front combination
lamp connector Terminal
RH E24 6 Ground Battery voltage
LH E44 6
(+) (-) Voltage
Front combination
lamp connector Terminal
RH E24 6 Ground Battery voltage
LH E44 6PKIA5208E

HEADLAMP - XENON TYPE - LT-27
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
5. CHECK HEADLAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector E7 ter- minal 20 and front combination lamp RH harness connector E24
terminal 6.
4. Check continuity between IPDM E/R harness connector E7 ter- minal 30 and front combination lamp LH harness connector E44
terminal 6.
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
6. CHECK HEADLAMP GROUND
1. Turn ignition switch OFF.
2. Check continuity between front combination lamp RH harness connector E24 terminal 7 and ground.
3. Check continuity between front combination lamp LH harness connector E44 terminal 7 and ground.
OK or NG
OK >> Check headlamp harness and connectors, ballasts (HID control unit), and xenon bulbs. Refer to LT- 3 2 , "
Xenon Headlamp Trouble Diagnosis" .
NG >> Repair harness or connector.
Headlamp Low Beam Does Not Illuminate (One Side)NKS002VL
1. CHECK BULB
Check ballast (HID control unit) and xenon bulb of lamp which does not illuminate. Refer to LT- 3 2 , "
Xenon
Headlamp Trouble Diagnosis" .
OK or NG
OK >> GO TO 2.
NG >> Replace malfunctioning part. 20 – 6 : Continuity should exist.
30 – 6 : Continuity should exist.
PKIA5209E
7 – Ground : Continuity should exist.
7 – Ground : Continuity should exist.
PKIA5207E

LT-28
HEADLAMP - XENON TYPE -
Revision: 2006 July 2007 FX35/FX45
2. CHECK HEADLAMP INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH or LH connector.
3. Turn ignition switch ON.
4. Lighting switch is turned 2ND position.
5. Check voltage between front combination lamp RH or LH har- ness connector and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. CHECK HEADLAMP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector E7 ter- minal 20 and front combination lamp RH harness connector E24
terminal 6.
4. Check continuity between IPDM E/R harness connector E7 ter- minal 30 and front combination lamp LH harness connector E44
terminal 6.
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
4. CHECK HEADLAMP GROUND
1. Check continuity between front combination lamp RH harness connector E24 terminal 7 and ground.
2. Check continuity between front combination lamp LH harness connector E44 terminal 7 and ground.
OK or NG
OK >> Check headlamp harness and connector.
NG >> Repair harness or connector.
(+)
(-) Voltage
Front combination
lamp connector Terminal
RH E24 6 Ground Battery voltage
LH E44 6
PKIA5208E
20 – 6 : Continuity should exist.
30 – 6 : Continuity should exist.
PKIA5209E
7 – Ground : Continuity should exist.
7 – Ground : Continuity should exist.
PKIA5207E

HEADLAMP - XENON TYPE - LT-29
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45

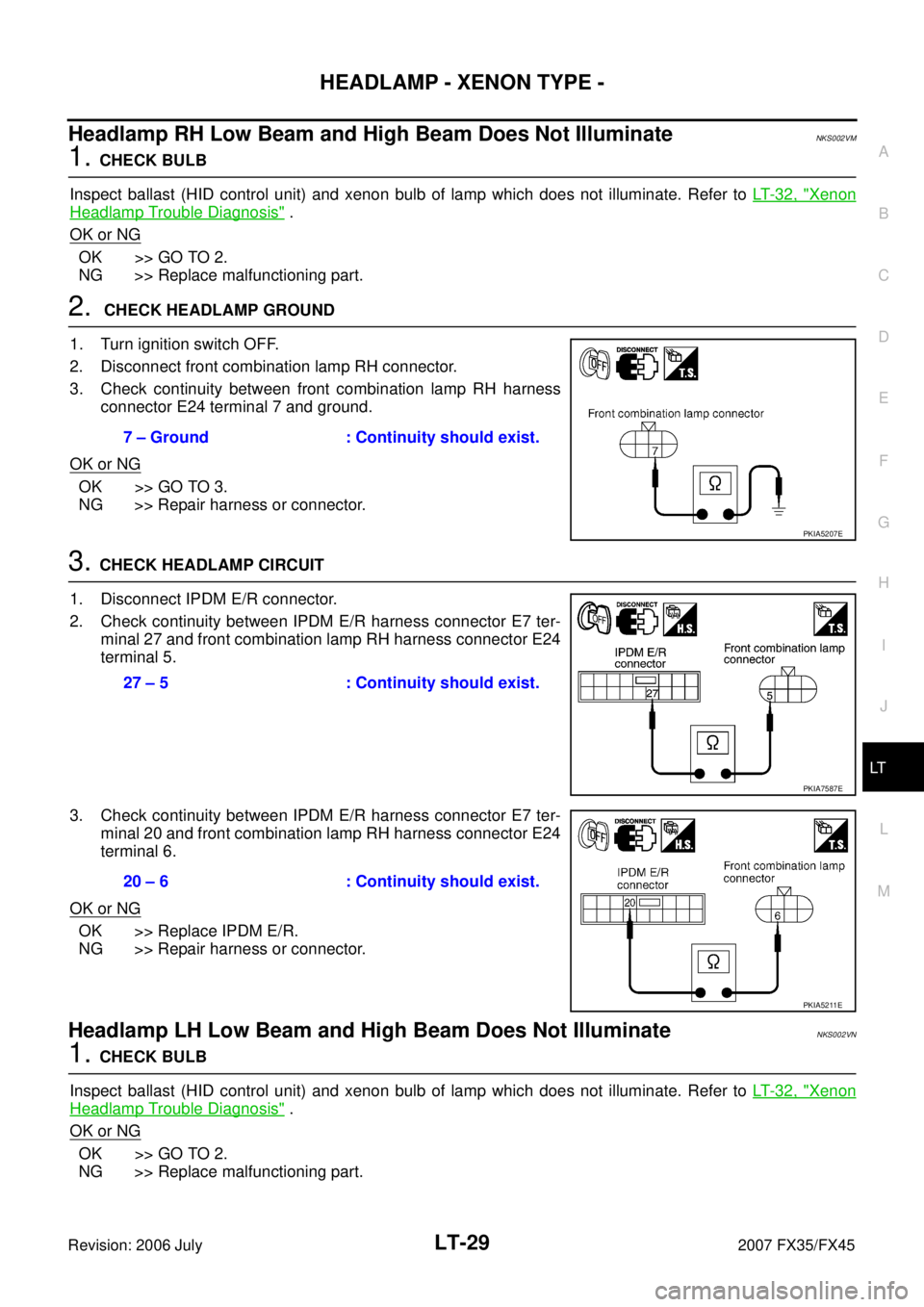

Headlamp RH Low Beam and High Beam Does Not Illuminate NKS002VM
1. CHECK BULB
Inspect ballast (HID control unit) and xenon bulb of lamp which does not illuminate. Refer to LT- 3 2 , "
Xenon
Headlamp Trouble Diagnosis" .
OK or NG
OK >> GO TO 2.
NG >> Replace malfunctioning part.

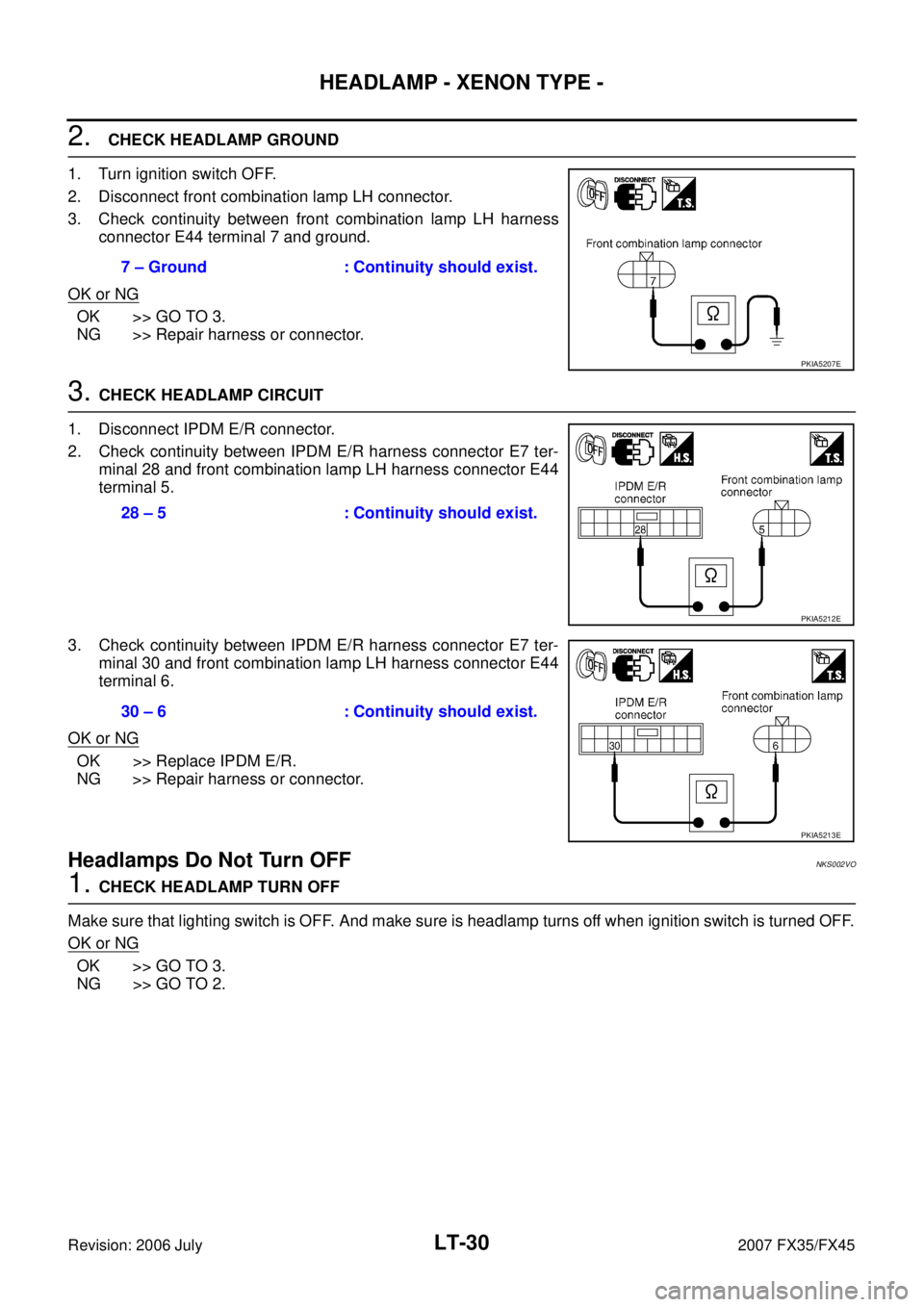

2. CHECK HEADLAMP GROUND
1. Turn ignition switch OFF.
2. Disconnect front combination lamp RH connector.
3. Check continuity between front combination lamp RH harness connector E24 terminal 7 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK HEADLAMP CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector E7 ter- minal 27 and front combination lamp RH harness connector E24
terminal 5.
3. Check continuity between IPDM E/R harness connector E7 ter- minal 20 and front combination lamp RH harness connector E24
terminal 6.
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
Headlamp LH Low Beam and High Beam Does Not Illuminate NKS002VN
1. CHECK BULB
Inspect ballast (HID control unit) and xenon bulb of lamp which does not illuminate. Refer to LT- 3 2 , "
Xenon
Headlamp Trouble Diagnosis" .
OK or NG
OK >> GO TO 2.
NG >> Replace malfunctioning part. 7 – Ground : Continuity should exist.
PKIA5207E
27 – 5 : Continuity should exist.
PKIA7587E
20 – 6 : Continuity should exist.
PKIA5211E

LT-30
HEADLAMP - XENON TYPE -
Revision: 2006 July 2007 FX35/FX45
2. CHECK HEADLAMP GROUND
1. Turn ignition switch OFF.
2. Disconnect front combination lamp LH connector.
3. Check continuity between front combination lamp LH harness connector E44 terminal 7 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK HEADLAMP CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector E7 ter- minal 28 and front combination lamp LH harness connector E44
terminal 5.
3. Check continuity between IPDM E/R harness connector E7 ter- minal 30 and front combination lamp LH harness connector E44
terminal 6.
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
Headlamps Do Not Turn OFFNKS002VO
1. CHECK HEADLAMP TURN OFF
Make sure that lighting switch is OFF. And make sure is headlamp turns off when ignition switch is turned OFF.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2. 7 – Ground : Continuity should exist.
PKIA5207E
28 – 5 : Continuity should exist.
PKIA5212E
30 – 6 : Continuity should exist.
PKIA5213E
