All Signals, Main Signals, Selection From Menu
NOTE:
Perform monitoring of IPDM E/R data with ignition switch ON. When ignition switch is at ACC, the display may
not be correct.
ACTIVE TEST
Operation Procedure
1. Touch “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Touch item to be tested, and check operation.
3. Touch “START”.
4. Touch “OFF” while testing to stop the operation.
Symptom ChartNKS002WO
Item name CONSULT-II
screen display Display
or unit Monitor item selection
Description
ALL
SIGNALS MAIN
SIGNALS SELECTION
FROM MENU
Position lights request TAIL & CLR REQ ON/OFF ×× ×Signal status input from BCM
Headlamp low beam request HL LO REQ ON/OFF ×× ×Signal status input from BCM
Headlamp high beam request HL HI REQ ON/OFF ×× ×Signal status input from BCM
Front fog lights request FR FOG REQ ON/OFF ×× ×Signal status input from BCM
Te s t i t e m CONSULT-II
screen display Description
Headlamp relay (HI, LO) output LAMPS Allows headlamp relay (HI, LO) to operate by switching operation (OFF, HI ON,
LO ON) at your option (Head lamp high beam repeats ON-OFF every 1 second).
Front fog lamp relay output Allows fog lamp relay to operate by switching operation ON-OFF at your option.
Tail lamp relay output TAIL LAMP Allows tail lamp relay to operate by switching operation ON-OFF at your option.
Trouble phenomenon Malfunction system and reference

Parking, license plate, side marker and tail lamps and
headlamps will not illuminate when outside of the vehicle
becomes dark. (Lighting switch 1ST position and 2ND posi-
tion operate normally.)

Parking, license plate, side marker and tail lamps and
headlamp will not go out when outside of the vehicle
becomes light. (Lighting switch 1ST position and 2nd posi-
tion operate normally.)

Headlamps go out when outside of the vehicle becomes
light, but parking lamps stay on.

Refer to LT- 6 6 , "WORK SUPPORT" .

Refer to LT- 7 0 , "Lighting Switch Inspection" .

Refer to LT- 7 0 , "Optical sensor System Inspection" .
If above systems are normal, replace BCM.
Shut off delay feature will not operate.

CAN communication line inspection between BCM and combina-
tion meter. Refer to BCS-13, "
CAN Communication Inspection
Using CONSULT-II (Self-Diagnosis)" .

Refer to BL-40, "Check Door Switch" .
If above system is normal, replace BCM.

HEADLAMP AIMING CONTROL LT-73
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
HEADLAMP AIMING CONTROLPFP:26010
SchematicNKS002WS
TKWH0337E

LT-74
HEADLAMP AIMING CONTROL
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram — H/AIM —NKS002WT

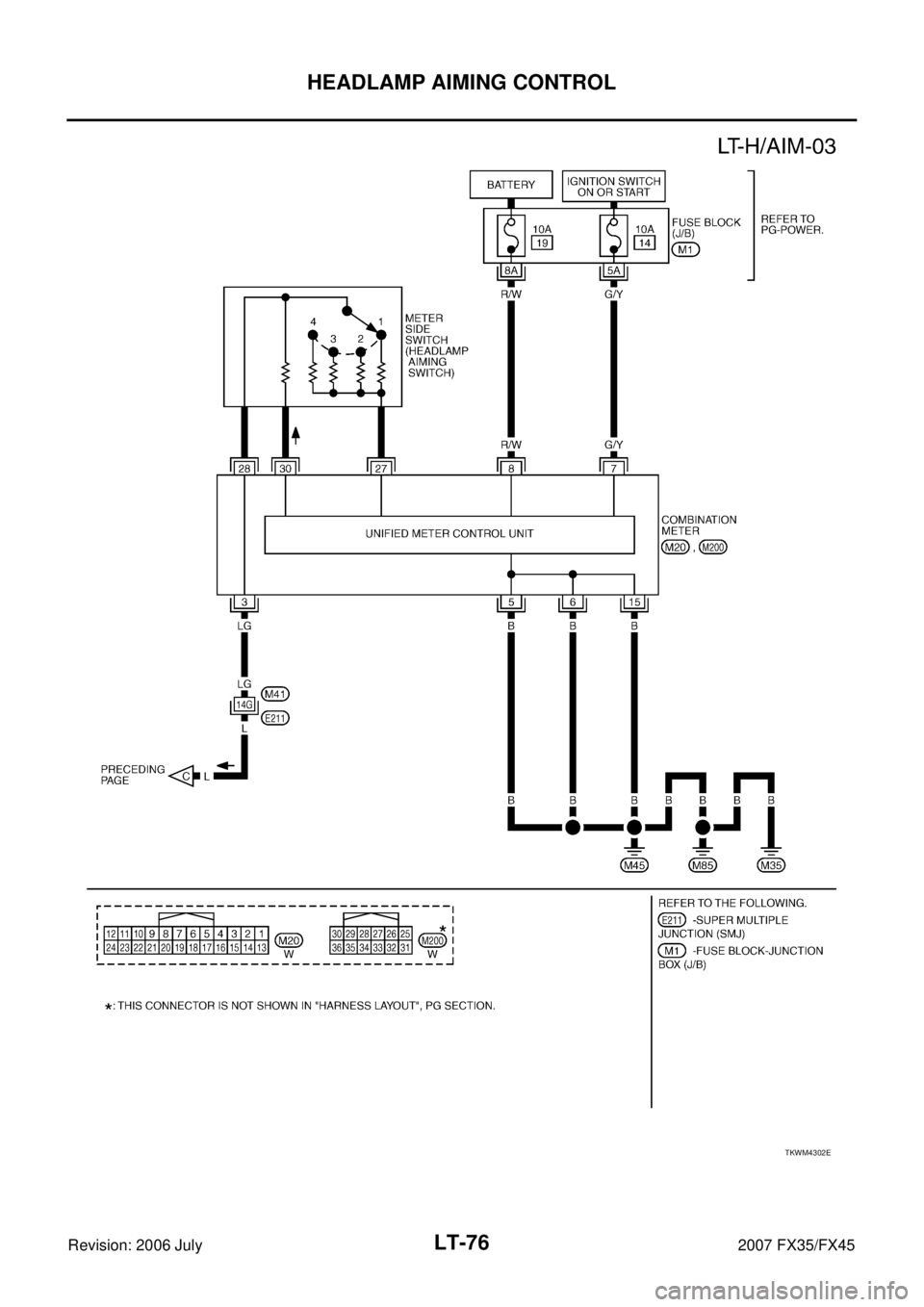

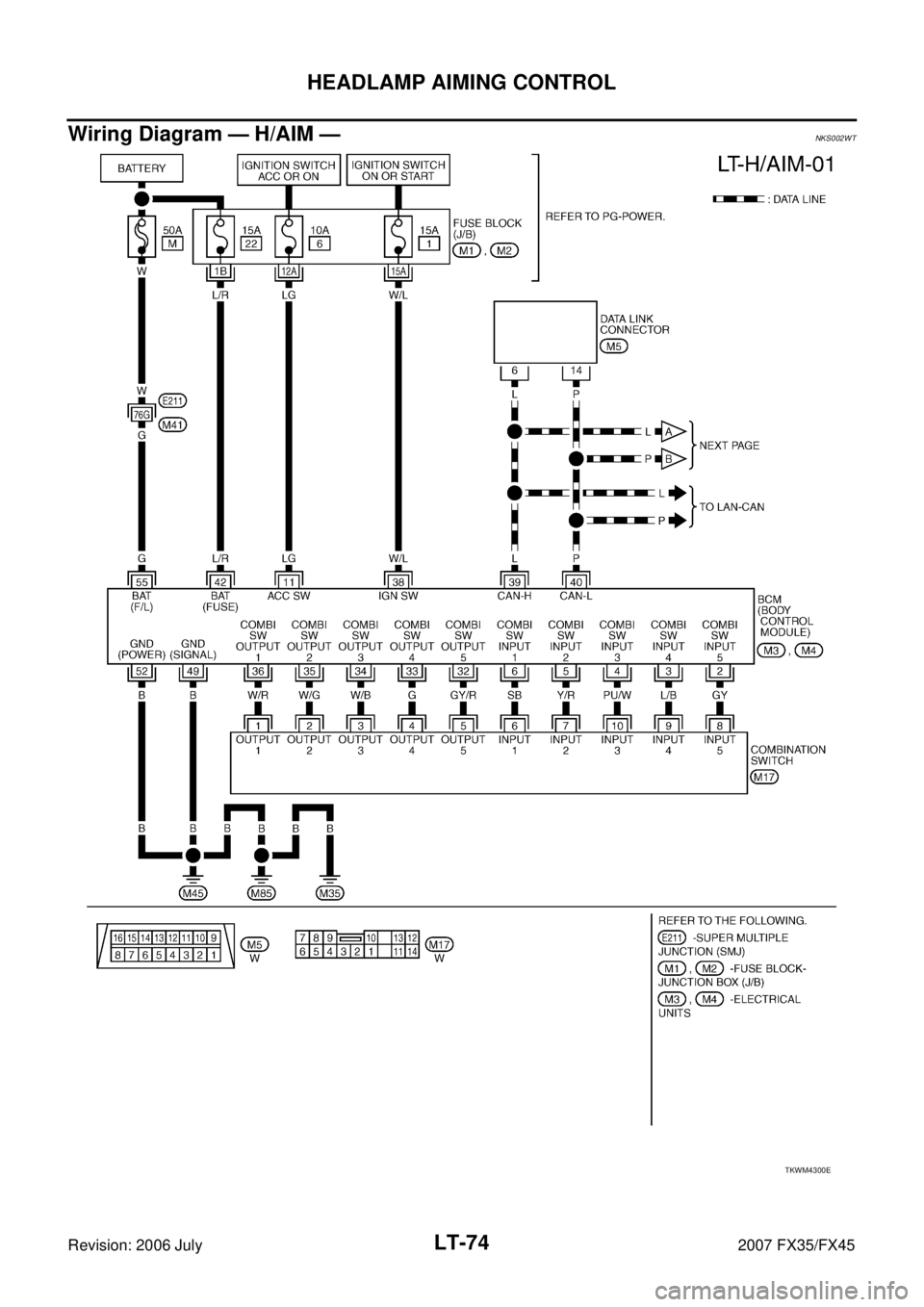

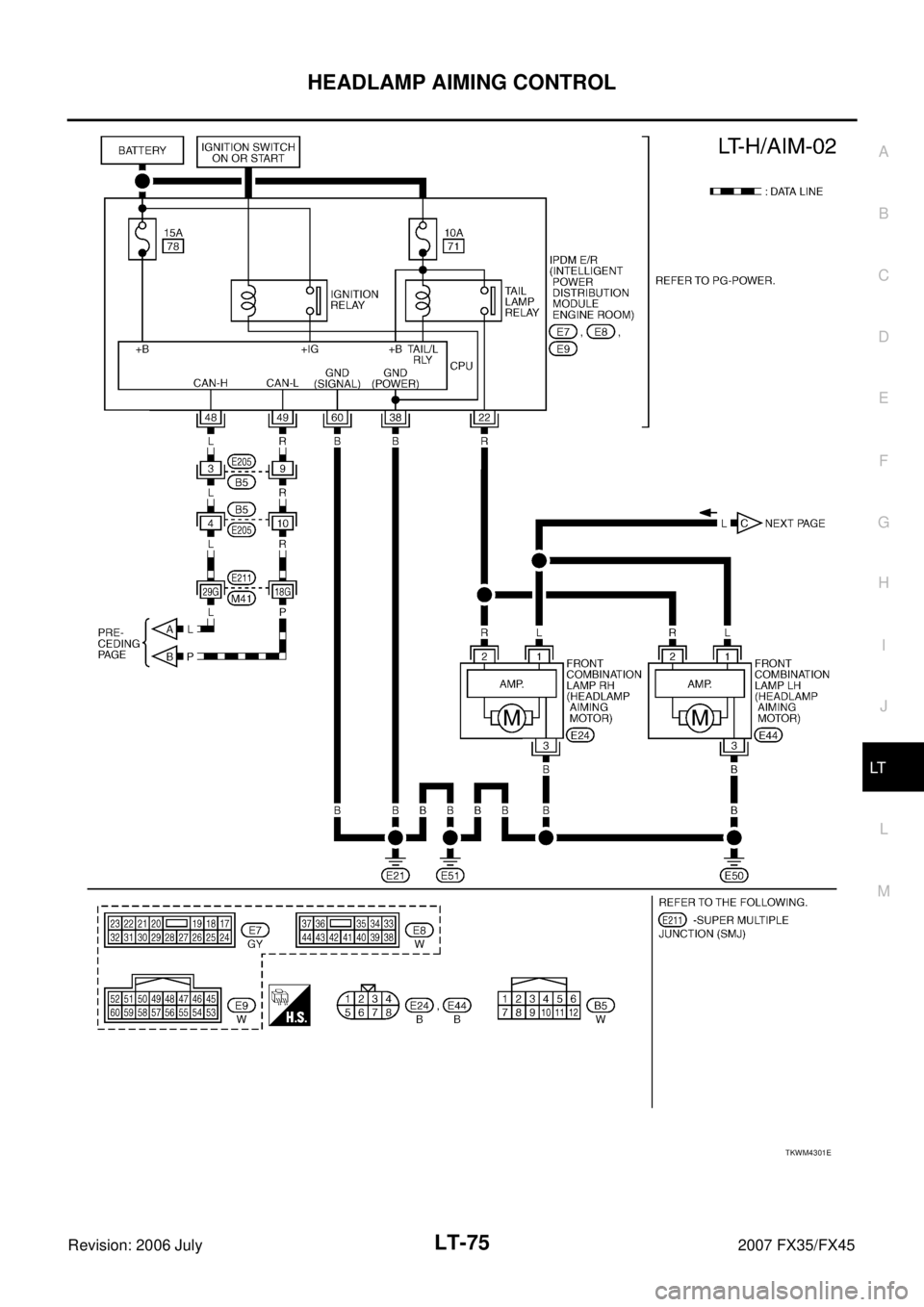

TKWM4300E

HEADLAMP AIMING CONTROL LT-75
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
TKWM4301E

LT-76
HEADLAMP AIMING CONTROL
Revision: 2006 July 2007 FX35/FX45
TKWM4302E

HEADLAMP AIMING CONTROL LT-77
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
Removal and InstallationNKS002WU
REMOVAL
1. Remove combination meter. Refer to DI-25, "Removal and
Installation of Combination Meter" .
2. Remove screws for removing headlamp aiming switch from meter housing.
3. Remove screws and then remove headlamp aiming switch.
INSTALLATION
Installation is the reverse order of removal.
Switch Circuit InspectionNKS002WV
Using a circuit tester, check resistance between the headlamp aim-
ing switch connector terminals in each operation status of the aiming
switch.
PKIB3630E
PKIC1215E

LT-78
FRONT FOG LAMP
Revision: 2006 July 2007 FX35/FX45
FRONT FOG LAMPPFP:26150
Component Parts and Harness Connector LocationNKS002WW
System DescriptionNKS002WX
Control of the front fog lamps is dependent upon the position of the combination switch (lighting switch). The
lighting switch must be in the 2ND position or AUTO position (headlamp is ON) for front fog lamp opera-
tion.When the lighting switch is placed in the front fog lamp on position the BCM (body control module)
receives input signal requesting the front fog lamps to illuminate. When the headlamps are illuminated, this
input signal is communicated to the IPDM E/R (intelligent power distribution module engine room) through the
CAN communication lines. The CPU (central processing unit) located in the IPDM E/R controls the front fog
lamp relay coil. When activated, this relay directs power to the front fog lamps.
OUTLINE
Power is supplied at all times

to ignition relay, located in IPDM E/R, from battery direct,

through 15A fuse (No. 88, located in IPDM E/R)

to front fog lamp relay, located in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU located in IPDM E/R,

through 10A fuse (No. 71, located in IPDM E/R)

to CPU located in IPDM E/R.

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM terminal 42.
When ignition switch is in ON or START position, power is supplied

to ignition relay (located IPDM E/R)

through 15A fuse [No. 1, located in fuse block (J/B)]
PKIB3475E

FRONT FOG LAMP LT-79
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45

to BCM terminal 38.
When ignition switch is in ACC or ON position, power is supplied

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminals 49 and 52

through grounds M35, M45 and M85,

to IPDM E/R terminals 38 and 60

through grounds E21, E50 and E51.
FRONT FOG LAMP OPERATION
The front fog lamp switch is built into combination switch. The lighting switch must be in the 2ND position or
AUTO position (headlamp is ON) and the front fog lamp switch must be ON for front fog lamp operation.
With the front fog lamp switch in the ON position, the CPU located in the IPDM E/R grounds the coil side of the
front fog lamp relay. The front fog lamp relay then directs power

through IPDM E/R terminal 36

to front fog lamp RH terminal 1,

through IPDM E/R terminal 37

to front fog lamp LH terminal 1.
Ground is supplied

to front fog lamp RH and LH terminals 2

through grounds E21, E50 and E51.
With power and grounds supplied, front fog lamps illuminate.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
EXTERIOR LAMP BATTERY SAVER CONTROL
When the combination switch (lighting switch) is in the 2ND position (ON), the front fog lamp switch is ON, and
the ignition switch is turned from ON or ACC to OFF, the battery saver control feature is activated.
Under this condition, the front fog lamps (and headlamps) remain illuminated for 5 minutes, then the front fog
lamps (and headlamps) are turned off.
Exterior lamp battery saver control mode can be changed by the function setting of CONSULT-II.
CAN Communication System DescriptionNKS002WY
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNKS002WZ
Refer to LAN-49, "CAN System Specification Chart" .
