2007 INFINITI FX35 ECO mode

TROUBLE DIAGNOSIS FOR SYMPTOMS AT-189
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
TCM terminals and data are reference value. Measured between each terminal and ground.
A/T CHECK Indicator Lamp Does Not Come OnNCS001HJ
SYMPTOM:
A/T CHECK indicator lamp does not come on for about 2 seconds when turning ignition switch to
“ON”.
DIAGNOSTIC PROCEDURE
1. CHECK CAN COMMUNICATION LINE
Perform self-diagnosis. Refer to AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 2 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 1 0 4 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
2. CHECK A/T CHECK INDICATOR LAMP CIRCUIT
Check the combination meter. Refer to DI-5, "
COMBINATION METERS" .
OK or NG
OK >> GO TO 3
NG >> Repair or replace damaged parts.
3. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 7 9 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Terminal Wire
color Item Condition Data (Approx.)
3 L CAN-H – –
4PU K-line (CONSULT-
II signal) The terminal is connected to the data link connector for CONSULT-II. –
7OR Back-up lamp
relay Selector lever in “R” position. 0 V
Selector lever in other positions. Battery voltage
8 P CAN-L – –

TROUBLE DIAGNOSIS FOR SYMPTOMS AT-215
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
9. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 8 9 , "
TCM Input/Output Signal Reference Values" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
10. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.24).
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
A/T Does Not Hold Lock-up ConditionNCS001HW
SYMPTOM:
The lock-up condition cannot be maintained for more than 30 seconds.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 2 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)" .
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning system. Refer to AT- 9 2 , "SELF-DIAGNOSTIC RESULT MODE" , AT-
103, "Judgement Self-diagnosis Code" .
NO >> GO TO 2.
2. CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to AT- 1 3 , "
Checking A/T Fluid" .
OK or NG
OK >> GO TO 3.
NG >> Refill ATF.
SAT638A

AT-250
ON-VEHICLE SERVICE
Revision: 2006 July 2007 FX35/FX45

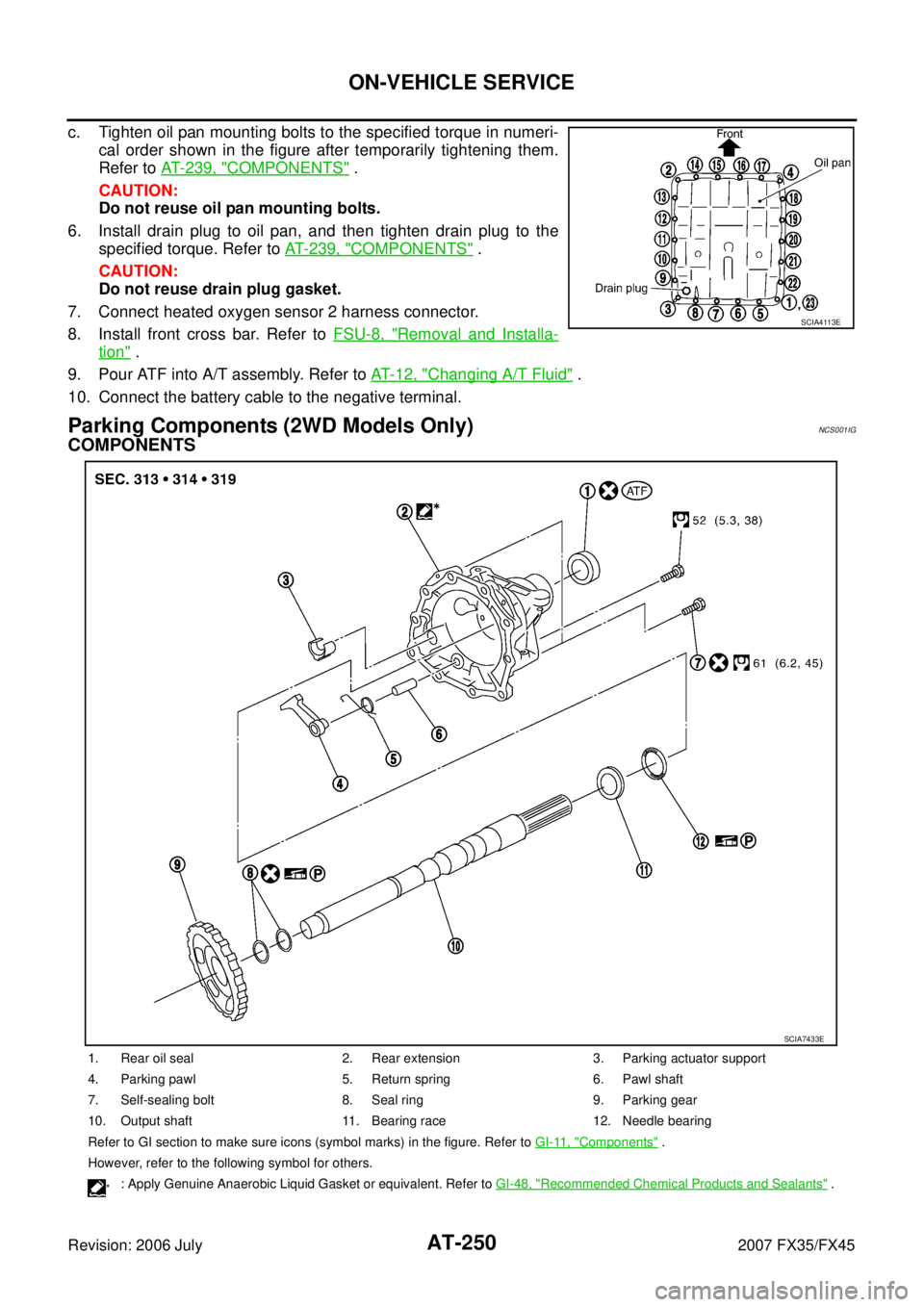

c. Tighten oil pan mounting bolts to the specified torque in numeri-
cal order shown in the figure after temporarily tightening them.
Refer to AT- 2 3 9 , "
COMPONENTS" .
CAUTION:
Do not reuse oil pan mounting bolts.
6. Install drain plug to oil pan, and then tighten drain plug to the specified torque. Refer to AT- 2 3 9 , "
COMPONENTS" .
CAUTION:
Do not reuse drain plug gasket.
7. Connect heated oxygen sensor 2 harness connector.
8. Install front cross bar. Refer to FSU-8, "
Removal and Installa-
tion" .
9. Pour ATF into A/T assembly. Refer to AT- 1 2 , "
Changing A/T Fluid" .
10. Connect the battery cable to the negative terminal.
Parking Components (2WD Models Only)NCS001IG
COMPONENTS
SCIA4113E
1. Rear oil seal 2. Rear extension 3. Parking actuator support
4. Parking pawl 5. Return spring 6. Pawl shaft
7. Self-sealing bolt 8. Seal ring 9. Parking gear
10. Output shaft 11. Bearing race 12. Needle bearing
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .
However, refer to the following symbol for others.
*: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-48, "Recommended Chemical Products and Sealants" .
SCIA7433E

ON-VEHICLE SERVICE AT-257
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
10. Apply recommended sealant (Genuine Anaerobic Liquid Gasket
or equivalent. Refer to GI-48, "
Recommended Chemical Prod-
ucts and Sealants" .) to rear extension assembly as shown in
the figure.
CAUTION:
Completely remove all moisture, oil and old sealant, etc.
from the transmission case and rear extension assembly
mounting surfaces.
11. Install rear extension assembly to transmission case. (With nee- dle bearing.)
CAUTION:
Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the rear
extension assembly.
12. Tighten rear extension assembly mounting bolts to specified torque. Refer to AT- 2 5 0 , "
COMPONENTS" .
CAUTION:
Do not reuse self-sealing bolts.
13. Install engine mounting insulator (rear). Refer to AT- 2 6 6 , "
Removal and Installation (2WD Models)" .
14. Install rear engine mounting member. Refer to AT- 2 6 6 , "
Removal and Installation (2WD Models)" .
15. Install control rod. Refer to AT- 2 3 0 , "
Control Rod Removal and Installation" .
16. Install rear propeller shaft. Refer to PR-9, "
Removal and Installation" .
17. Install exhaust front tube and center muffler. Refer to EX-3, "
Components" .
18. Install drain plug in oil pan, and then tighten drain plug to the specified torque. Refer to AT- 2 3 9 , "
COMPO-
NENTS" .
CAUTION:
Do not reuse drain plug gasket.
19. Pour ATF into A/T assembly. Refer to AT- 1 2 , "
Changing A/T Fluid" .
SCIA8228E
SCIA3431E
SCIA6941E

ON-VEHICLE SERVICE AT-259
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
Revolution Sensor Components (2WD Models Only)NCS001II
COMPONENTS
REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Drain ATF through drain plug.
3. Remove front cross bar. Refer to FSU-8, "
Removal and Installation" .
4. Remove exhaust front tube and center muffler with power tool. Refer to EX-3, "
Components" .
5. Remove rear propeller shaft. Refer to PR-9, "
Removal and Installation" .
6. Remove control rod. Refer to AT- 2 3 0 , "
Control Rod Removal and Installation" .
1. Rear extension 2. A/T 3. Oil pan gasket
4. Clip 5. Oil pan mounting bolt 6. Oil pan
7. Drain plug 8. Drain plug gasket 9. Revolution sensor
10. Self-sealing bolt
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .
However, refer to the following symbol for others.
*: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-48, "Recommended Chemical Products and Sealants"
SCIA8043E

ASSEMBLY AT-343
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
31. Install parking gear to output shaft.
32. Install output shaft in transmission case. CAUTION:
Be careful not to mistake front for rear because both sides
looks similar. (Thinner end is front side.)
33. Install bearing race to output shaft.
34. Install rear extension assembly (2WD models) or adapter case assembly (AWD models) according to the following procedures.
a. 2WD models
i. Apply recommended sealant (Genuine Anaerobic Liquid Gasket or equivalent. Refer to GI-48, "
Recommended Chemical Prod-
ucts and Sealants" .) to rear extension assembly as shown in
the figure.
CAUTION:
Completely remove all moisture, oil and old sealant, etc.
from the transmission case and rear extension assembly
mounting surfaces.
SCIA5247E
SCIA5030E
SCIA5245E
SCIA8228E

SERVICE DATA AND SPECIFICATIONS (SDS) AT-359
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 July 2007 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsNCS001IZ
*1: Refer to MA-12, "Fluids and Lubricants" .
Vehicle Speed at Which Gear Shifting OccursNCS001J0
2WD MODELS

At half throttle, the accelerator opening is 4/8 of the full opening.
AWD MODELS

At half throttle, the accelerator opening is 4/8 of the full opening.

At half throttle, the accelerator opening is 4/8 of the full opening.
Applied model
VQ35DE engine VK45DE engine
2WD AWD
Automatic transmission model RE5R05A
Transmission model code number 91X0E 91X1A 95X8C
Stall torque ratio 2.0 : 1 1.85 : 1
Transmission gear ratio 1st 3.540 3.827
2nd 2.264 2.368
3rd 1.471 1.520
4th 1.000 1.000
5th 0.834 0.834
Reverse 2.370 2.613
Recommended fluid Genuine NISSAN Matic J ATF*1
Fluid capacity 10.3 liter (10-7/8 US qt, 9-1/8 Imp qt)
CAUTION:

Use only Genuine NISSAN Matic J ATF. Do not mix with other ATF.

Using ATF other than Genuine NISSAN Matic J ATF will deteriorate in driveability and A/T durability, and may damage the
A/T, which is not covered by the warranty.
Engine model VQ35DE
Throttle position Vehicle speed km/h (MPH)
D
1 → D2D2 → D3D3 → D4D4 → D5D5 → D4D4 → D3D3 → D2D2 → D1
Full throttle 68 - 72
(42 - 45) 106 - 114
(66 - 71) 164 - 174
(102 - 108) 235 - 245
(146 - 152) 231 - 241
(144 - 150) 144 - 154
(89 - 96) 89 - 97
(55 - 60) 43 - 47
(27 - 29)
Half throttle 54 - 58
(34 - 36) 84 - 90
(52 - 56) 127 - 135
(79 - 84) 159 - 167
(99 - 104) 104 - 112
(65 - 70) 75 - 83
(47 - 52) 35 - 41
(22 - 25) 11 - 1 5
(7 - 9)
Engine model VQ35DE
Throttle position Vehicle speed km/h (MPH)
D
1 → D2D2 → D3D3 → D4D4 → D5D5 → D4D4 → D3D3 → D2D2 → D1
Full throttle 62 - 66
(39 - 41) 96 - 104
(60 - 65) 149 - 159
(93 - 99) 213 - 223
(132 - 139) 209 - 219
(130 - 136) 131 - 141
(81 - 88) 81 - 89
(50 - 55) 39 - 43
(24 - 27)
Half throttle 49 - 53
(30 - 33) 76 - 82
(47 - 51) 115 - 123
(71 - 76) 144 - 152
(89 - 94) 95 - 103
(59 - 64) 67 - 75
(42 - 47) 32 - 38
(20 - 24) 11 - 1 5
(7 - 9)
Engine model VK45DE
Throttle position Vehicle speed km/h (MPH)
D
1 → D2D2 → D3D3 → D4D4 → D5D5 → D4D4 → D3D3 → D2D2 → D1
Full throttle 59 - 63
(37 - 39) 93 - 101
(58 - 63) 147 - 157
(92 - 98) 219 - 229
(137 - 143) 215 - 225
(134 - 141) 130 - 140
(81 - 88) 79 - 87
(49 - 54) 35 - 39
(22 - 24)
Half throttle 48 - 52
(30 - 33) 78 - 84
(48 - 52) 122 - 130
(76 - 81) 154 - 162
(96 - 101) 122 - 130
(76 - 81) 68 - 76
(42 - 47) 40 - 46
(25 - 29) 9 - 13
(6 - 8)

ATC-1
AUTOMATIC AIR CONDITIONER
J AIR CONDITIONER
CONTENTS
C
D E
F
G H
I
K L
M
SECTION
A
B
AT C
Revision: 2006 July 2007 FX35/FX45
AUTOMATIC AIR CONDITIONER
PRECAUTIONS .......................................................... 5
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 5
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect ..................................... ..... 5
OPERATION PROCEDURE ............................ ..... 5
Precautions for Procedures without Cowl Top Cover ..... 6
Precautions for Working with HFC-134a (R-134a) ..... 6
CONTAMINATED REFRIGERANT .................. ..... 7
General Refrigerant Precautions ......................... ..... 7
Precautions for Refrigerant Connection .............. ..... 8
ABOUT ONE-TOUCH JOINT ........................... ..... 8
FEATURES OF NEW TYPE REFRIGERANT
CONNECTION ................................................. ... 10
O-RING AND REFRIGERANT CONNECTION .... 11
Precautions for Servicing Compressor ................ ... 13
Precautions for Service Equipment ..................... ... 13
RECOVERY/RECYCLING EQUIPMENT ......... ... 13
ELECTRICAL LEAK DETECTOR .................... ... 13
VACUUM PUMP .............................................. ... 14
MANIFOLD GAUGE SET ................................. ... 14
SERVICE HOSES ............................................ ... 14
SERVICE COUPLERS ..................................... ... 15
REFRIGERANT WEIGHT SCALE ................... ... 15
CHARGING CYLINDER ................................... ... 15
Precautions for Leak Detection Dye .................... ... 16
IDENTIFICATION ............................................. ... 16
IDENTIFICATION LABEL FOR VEHICLE ........ ... 16
PREPARATION ...................................................... ... 17
Special Service Tools .......................................... ... 17
HFC-134a (R-134a) Service Tools and Equipment ... 18
Commercial Service Tools ................................... ... 20
REFRIGERATION SYSTEM .................................. ... 21
Refrigerant Cycle ................................................ ... 21
REFRIGERANT FLOW .................................... ... 21
FREEZE PROTECTION .................................. ... 21
Refrigerant System Protection ............................ ... 21
REFRIGERANT PRESSURE SENSOR .......... ... 21
PRESSURE RELIEF VALVE ............................ ... 21 V-6 Variable Displacement Compressor ..............
... 22
GENERAL INFORMATION .............................. ... 22
DESCRIPTION ................................................. ... 23
Component Layout .............................................. ... 26
LUBRICANT ........................................................... ... 27
Maintenance of Lubricant Quantity in Compressor ... 27
LUBRICANT ..................................................... ... 27
LUBRICANT RETURN OPERATION ............... ... 27
LUBRICANT ADJUSTING PROCEDURE FOR
COMPONENTS REPLACEMENT EXCEPT
COMPRESSOR ............................................... ... 28
LUBRICANT ADJUSTING PROCEDURE FOR
COMPRESSOR REPLACEMENT .................... ... 29
AIR CONDITIONER CONTROL ............................ ... 30
Description of Air Conditioner LAN Control System ... 30
System Construction ........................................... ... 30
OPERATION ..................................................... ... 30
TRANSMISSION DATA AND TRANSMISSION
ORDER ............................................................ ... 31
AIR MIX DOOR CONTROL (AUTOMATIC TEM-
PERATURE CONTROL) .................................. ... 32
FAN SPEED CONTROL ................................... ... 32
INTAKE DOOR CONTROL .............................. ... 32
MODE DOOR CONTROL ................................ ... 32
MAGNET CLUTCH CONTROL ........................ ... 33
SELF-DIAGNOSIS SYSTEM ........................... ... 33
Description of Control System ............................. ... 34
Control Operation ................................................ ... 34
DISPLAY SCREEN ........................................... ... 35
AUTO SWITCH ................................................ ... 35
TEMPERATURE CONTROL SWITCH (POTEN-
TIO TEMPERATURE CONTROL) (DRIVER
SIDE) ................................................................ ... 35
TEMPERATURE CONTROL SWITCH (POTEN-
TIO TEMPERATURE CONTROL) (PASSEN-
GER SIDE) ....................................................... ... 35
INTAKE SWITCH .............................................. ... 35
DEFROSTER (DEF) SWITCH .......................... ... 35
REAR WINDOW DEFOGGER SWITCH .......... ... 35
OFF SWITCH ................................................... ... 35
