CYLINDER HEAD EM-105
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
e. Turn all cylinder head bolts 90 degrees clockwise (angle tighten-
ing).
CAUTION:
Check the tightening angle by using the angle wrench
(SST). Avoid judgment by visual inspection without SST.

Check tightening angle indicated on the angle wrench indica-
tor plate.
f. Turn all cylinder head bolts 90 degrees clockwise again (angle tightening).
4. After installing cylinder head, measure distance between front end faces of cylinder block and cylinder head (left and right
banks).

If measured value is out of the standard, re-install cylinder
head.
5. Install in the reverse order of removal after this step.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc.
PBIC0888E
Standard : 14.1 - 14.9 mm (0.555 - 0.587 in)
EMQ0662D
Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —

ENGINE ASSEMBLY EM-117
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45

When installing engine mounting bracket (RH and LH) on cylin-
der block, tighten two upper bolts (shown as “A” in the figure)
first. Then tighten two lower bolts (shown as “B” in the figure).

Make sure all engine mounting insulators are seated properly, then tighten mounting nuts.

Tighten rear engine mounting member bolts in numerical order
as shown in the figure.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc.
PBIC2062E
PBIC3040E
Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —

ENGINE ASSEMBLY EM-121
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45
3. Remove front suspension member mounting nuts. Refer to FSU-6, "FRONT SUSPENSION ASSEMBLY" .
4. Carefully lower jack, or raise lift to remove the engine, transmission assembly, transfer, front final drive assembly and front suspension member. When performing work, observe the following caution:
CAUTION:

Confirm there is no interference with the vehicle.

Make sure that all connection points have been disconnected.

Keep in mind the center of the vehicle gravity changes. If necessary, use jack(s) to support the
vehicle at rear jacking point(s) to prevent it from falling it off the lift.
Separation Work

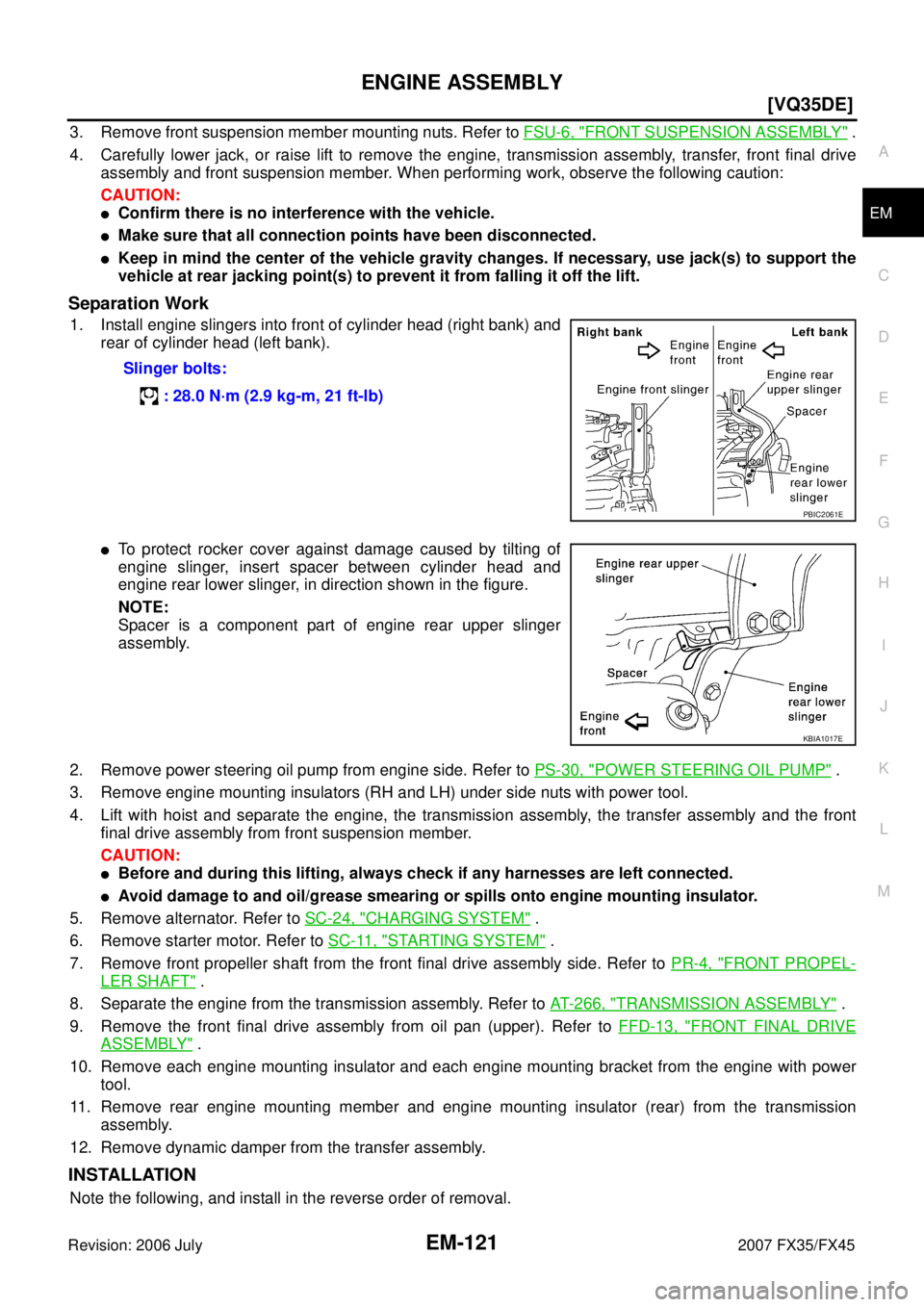

1. Install engine slingers into front of cylinder head (right bank) and
rear of cylinder head (left bank).

To protect rocker cover against damage caused by tilting of
engine slinger, insert spacer between cylinder head and
engine rear lower slinger, in direction shown in the figure.
NOTE:
Spacer is a component part of engine rear upper slinger
assembly.
2. Remove power steering oil pump from engine side. Refer to PS-30, "
POWER STEERING OIL PUMP" .
3. Remove engine mounting insulators (RH and LH) under side nuts with power tool.
4. Lift with hoist and separate the engine, the transmission assembly, the transfer assembly and the front final drive assembly from front suspension member.
CAUTION:

Before and during this lifting, always check if any harnesses are left connected.

Avoid damage to and oil/grease smearing or spills onto engine mounting insulator.
5. Remove alternator. Refer to SC-24, "
CHARGING SYSTEM" .
6. Remove starter motor. Refer to SC-11, "
STARTING SYSTEM" .
7. Remove front propeller shaft from the front final drive assembly side. Refer to PR-4, "
FRONT PROPEL-
LER SHAFT" .
8. Separate the engine from the transmission assembly. Refer to AT- 2 6 6 , "
TRANSMISSION ASSEMBLY" .
9. Remove the front final drive assembly from oil pan (upper). Refer to FFD-13, "
FRONT FINAL DRIVE
ASSEMBLY" .
10. Remove each engine mounting insulator and each engine mounting bracket from the engine with power tool.
11. Remove rear engine mounting member and engine mounting insulator (rear) from the transmission assembly.
12. Remove dynamic damper from the transfer assembly.
INSTALLATION
Note the following, and install in the reverse order of removal. Slinger bolts:
: 28.0 N·m (2.9 kg-m, 21 ft-lb)
PBIC2061E
KBIA1017E

EM-122
[VQ35DE]
ENGINE ASSEMBLY
Revision: 2006 July 2007 FX35/FX45

Do not allow engine mounting insulator to be damage and careful no engine oil gets on it.

For a location with a positioning pin, insert it securely into hole of mating part.

For a part with a specified installation orientation, refer to component figure in EM-118, "Components
(AWD Models)" .

When installing engine mounting bracket (RH and LH) on cylin-
der block, tighten two upper bolts (shown as “A” in the figure)
first. Then tighten two lower bolts (shown as “B” in the figure).

Install engine mounting bracket (RH) (lower) as follows:
–Temporarily tighten mounting bolts (shown as “C”, “D” and “E” in
the figure).
–Tighten mounting bolts to the specified torque with following
mounting surfaces touched.
 Engine mounting bracket (RH) to engine mounting bracket (RH) (lower) (shown as “C” and “D” in figure).
 Front final drive to engine mounting bracket (RH) (lower) (shown as “E” in figure).

Make sure all engine mounting insulators are seated properly,
then tighten mounting nuts.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak and exhaust gases leak.

Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS" .

Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.

Run engine to check for unusual noise and vibration.

Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gases, or any oil/fluids
including engine oil and engine coolant.

Bleed air from lines and hoses of applicable lines, such as in cooling system.

After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc.
PBIC3042E
Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —

EM-130
[VQ35DE]
CYLINDER BLOCK
Revision: 2006 July 2007 FX35/FX45

Tighten each plug as specified below.

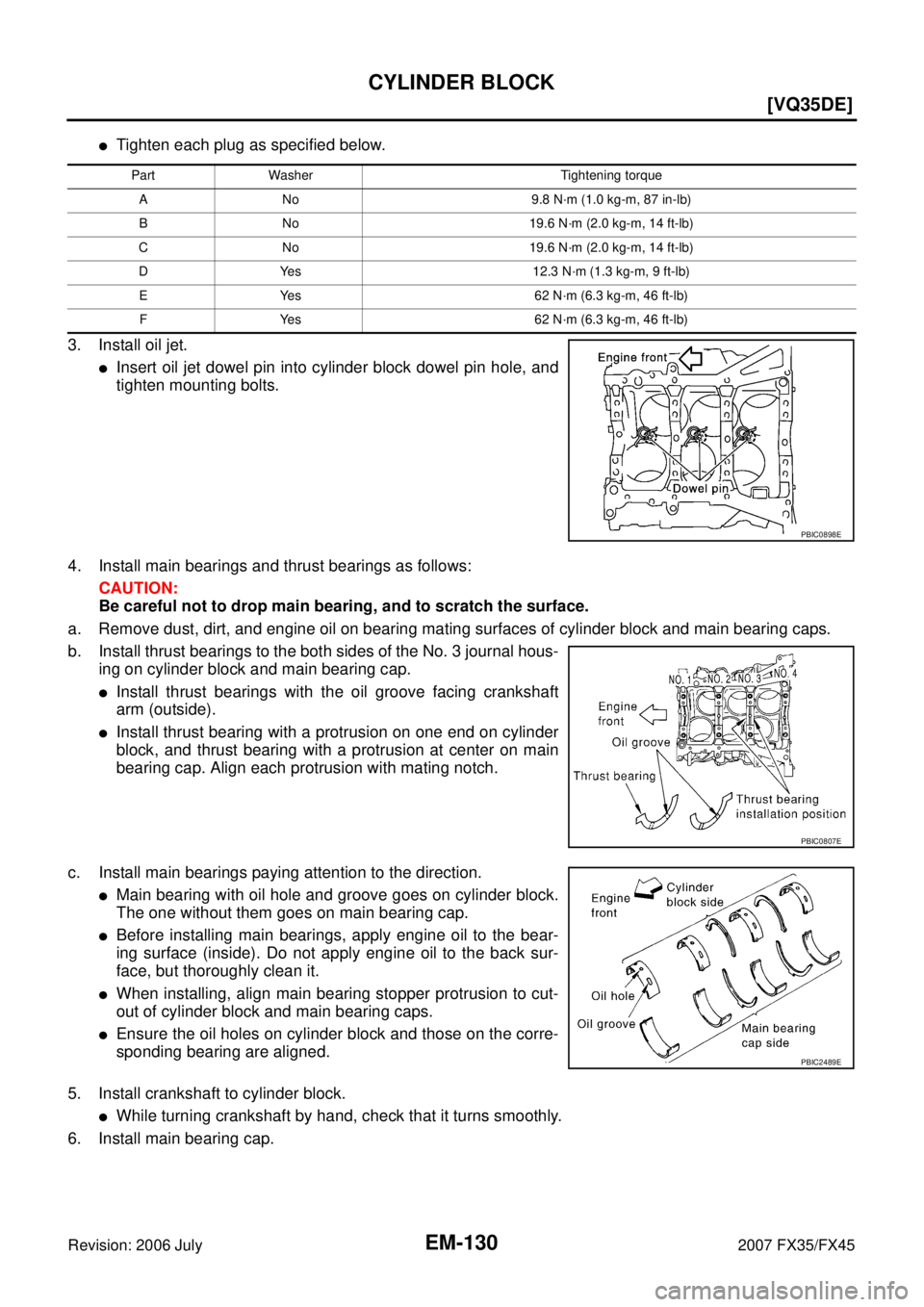

3. Install oil jet.

Insert oil jet dowel pin into cylinder block dowel pin hole, and
tighten mounting bolts.
4. Install main bearings and thrust bearings as follows: CAUTION:
Be careful not to drop main bearing, and to scratch the surface.
a. Remove dust, dirt, and engine oil on bearing mating surfaces of cylinder block and main bearing caps.
b. Install thrust bearings to the both sides of the No. 3 journal hous- ing on cylinder block and main bearing cap.

Install thrust bearings with the oil groove facing crankshaft
arm (outside).

Install thrust bearing with a protrusion on one end on cylinder
block, and thrust bearing with a protrusion at center on main
bearing cap. Align each protrusion with mating notch.
c. Install main bearings paying attention to the direction.

Main bearing with oil hole and groove goes on cylinder block.
The one without them goes on main bearing cap.

Before installing main bearings, apply engine oil to the bear-
ing surface (inside). Do not apply engine oil to the back sur-
face, but thoroughly clean it.

When installing, align main bearing stopper protrusion to cut-
out of cylinder block and main bearing caps.

Ensure the oil holes on cylinder block and those on the corre-
sponding bearing are aligned.
5. Install crankshaft to cylinder block.

While turning crankshaft by hand, check that it turns smoothly.
6. Install main bearing cap.
Part Washer Tightening torque
A No 9.8 N·m (1.0 kg-m, 87 in-lb)
B No 19.6 N·m (2.0 kg-m, 14 ft-lb)
C No 19.6 N·m (2.0 kg-m, 14 ft-lb)
D Yes 12.3 N·m (1.3 kg-m, 9 ft-lb) E Yes 62 N·m (6.3 kg-m, 46 ft-lb) F Yes 62 N·m (6.3 kg-m, 46 ft-lb)
PBIC0898E
PBIC0807E
PBIC2489E

CYLINDER BLOCK EM-131
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2006 July 2007 FX35/FX45

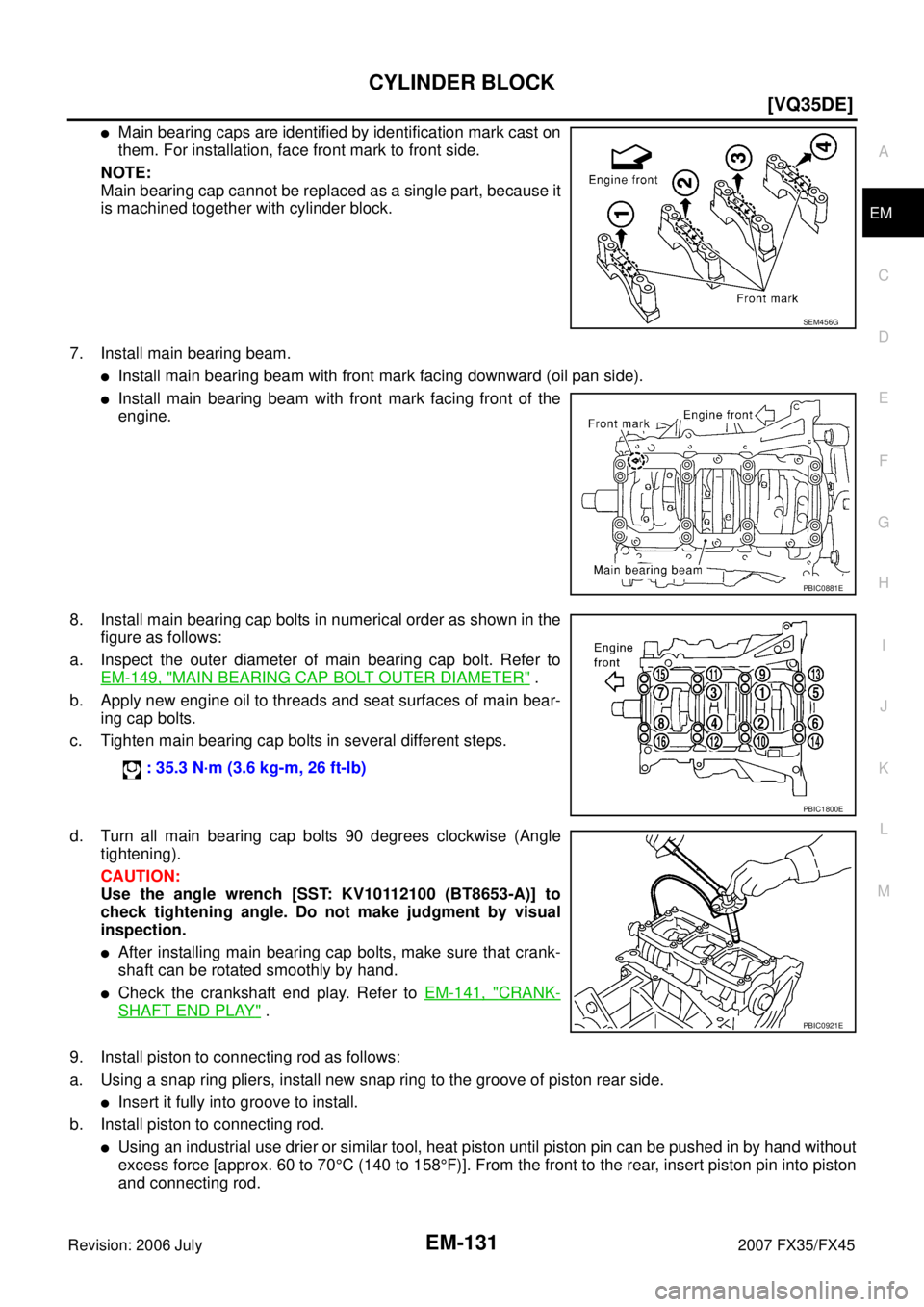

Main bearing caps are identified by identification mark cast on
them. For installation, face front mark to front side.
NOTE:
Main bearing cap cannot be replaced as a single part, because it
is machined together with cylinder block.
7. Install main bearing beam.

Install main bearing beam with front mark facing downward (oil pan side).

Install main bearing beam with front mark facing front of the
engine.
8. Install main bearing cap bolts in numerical order as shown in the figure as follows:
a. Inspect the outer diameter of main bearing cap bolt. Refer to EM-149, "
MAIN BEARING CAP BOLT OUTER DIAMETER" .
b. Apply new engine oil to threads and seat surfaces of main bear- ing cap bolts.
c. Tighten main bearing cap bolts in several different steps.
d. Turn all main bearing cap bolts 90 degrees clockwise (Angle tightening).
CAUTION:
Use the angle wrench [SST: KV10112100 (BT8653-A)] to
check tightening angle. Do not make judgment by visual
inspection.

After installing main bearing cap bolts, make sure that crank-
shaft can be rotated smoothly by hand.

Check the crankshaft end play. Refer to EM-141, "CRANK-
SHAFT END PLAY" .

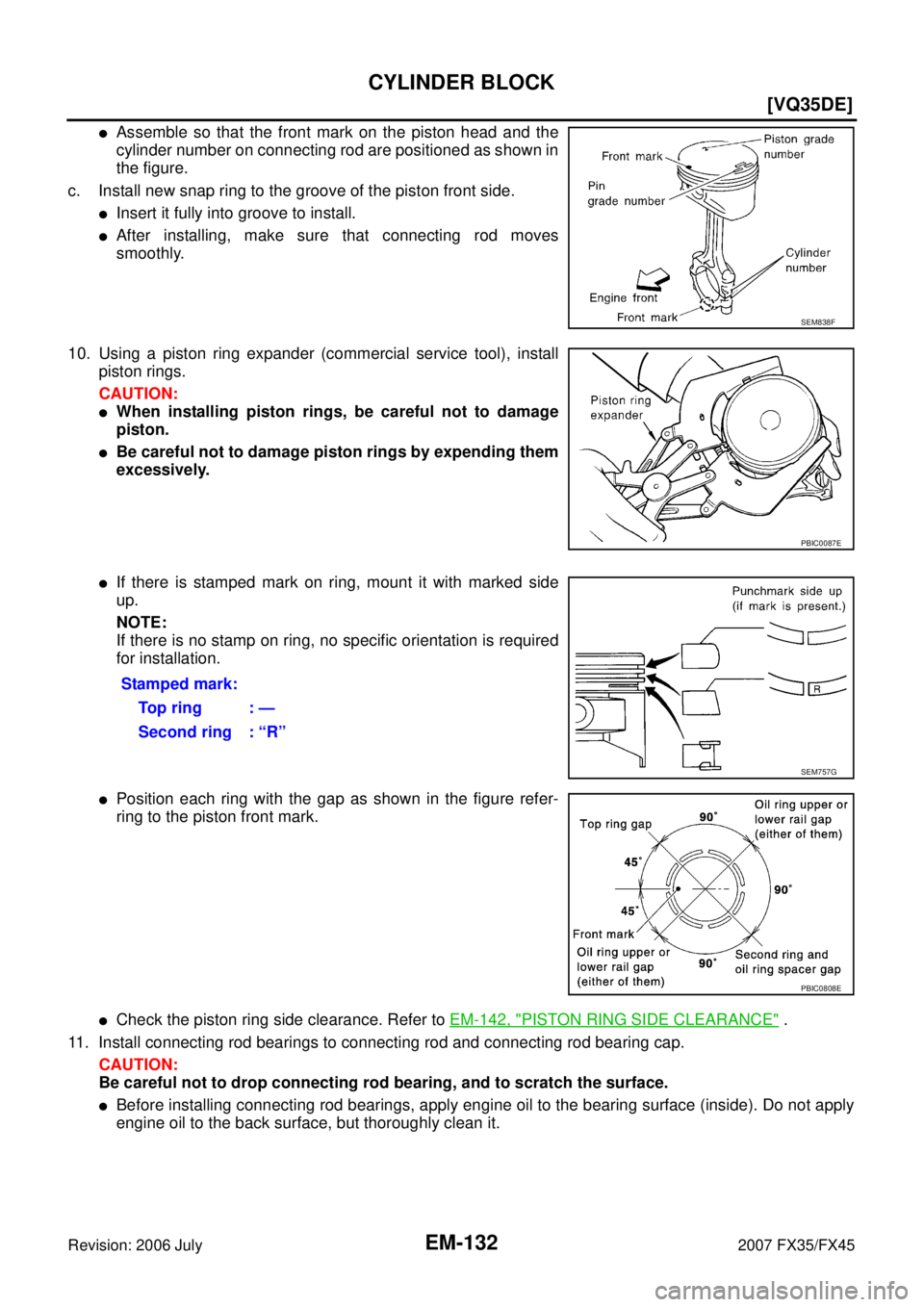

9. Install piston to connecting rod as follows:
a. Using a snap ring pliers, install new snap ring to the groove of piston rear side.

Insert it fully into groove to install.
b. Install piston to connecting rod.

Using an industrial use drier or similar tool, heat piston until piston pin can be pushed in by hand without
excess force [approx. 60 to 70 °C (140 to 158 °F)]. From the front to the rear, insert piston pin into piston
and connecting rod.
SEM456G
PBIC0881E
: 35.3 N·m (3.6 kg-m, 26 ft-lb)
PBIC1800E
PBIC0921E

EM-132
[VQ35DE]
CYLINDER BLOCK
Revision: 2006 July 2007 FX35/FX45

Assemble so that the front mark on the piston head and the
cylinder number on connecting rod are positioned as shown in
the figure.
c. Install new snap ring to the groove of the piston front side.

Insert it fully into groove to install.

After installing, make sure that connecting rod moves
smoothly.
10. Using a piston ring expander (commercial service tool), install piston rings.
CAUTION:

When installing piston rings, be careful not to damage
piston.

Be careful not to damage piston rings by expending them
excessively.

If there is stamped mark on ring, mount it with marked side
up.
NOTE:
If there is no stamp on ring, no specific orientation is required
for installation.

Position each ring with the gap as shown in the figure refer-
ring to the piston front mark.

Check the piston ring side clearance. Refer to EM-142, "PISTON RING SIDE CLEARANCE" .
11. Install connecting rod bearings to connecting rod and connecting rod bearing cap. CAUTION:
Be careful not to drop connecting rod bearing, and to scratch the surface.

Before installing connecting rod bearings, apply engine oil to the bearing surface (inside). Do not apply
engine oil to the back surface, but thoroughly clean it.
SEM838F
PBIC0087E
Stamped mark:
Top ring : —
Second ring : “R”
SEM757G
PBIC0808E

EM-134
[VQ35DE]
CYLINDER BLOCK
Revision: 2006 July 2007 FX35/FX45
d. Then tighten all connecting rod bolts 90 degrees clockwise
(Angle tightening).
CAUTION:
Always use the angle wrench [SST: KV10112100 (BT8653-
A)]. Avoid tightening based on visual check alone.

After tightening connecting rod bolts, make sure that crank-
shaft rotates smoothly.

Check the connecting rod side clearance. Refer to EM-141,
"CONNECTING ROD SIDE CLEARANCE" .
15. Install baffle plate to main bearing beam (2WD models).
16. Install new rear oil seal retainer to cylinder block.

Apply new engine oil to both oil seal lip and dust seal lip.

Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( — )] to rear oil seal retainer as
shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
CAUTION:

Replace with a new parts.

Attaching should be done within 5 minutes after coating.

Make sure the garter spring is in position and seal lips
not inverted.
NOTE:
Regard both rear oil seal and retainer as an assembly.
17. Install pilot converter.

With a drift [outer diameter: approx. 33 mm (1.30 in)], press-fit
as far as it will go.

Press-fit pilot converter with its chamfer facing crankshaft as
shown in the figure.
SEM953E
PBIC2661E
PBIC0899E
SEM537E
