2007 INFINITI FX35 diagram

PARKING, LICENSE PLATE AND TAIL LAMPS LT-135
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram — TAIL/L —NKS003H4
TKWM4322E

PARKING, LICENSE PLATE AND TAIL LAMPS LT-141
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Values for IPDM E/RNKS003H6
Terminals and Reference Value for Rear Combination Lamp Control UnitNKS003NA
Refer to LT- 9 8 , "Terminals and Reference Value for Rear Combination Lamp Control Unit" .
How to Proceed With Trouble DiagnosisNKS003H7
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 1 3 1 , "
System Description" .
3. Perform Preliminary Check. Refer to LT- 1 4 1 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Do parking, license plate, side marker and tail lamps operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckNKS003H8
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES
Check for blown fuses.
Refer to LT-135, "Wiring Diagram — TAIL/L —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
Terminal
No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
22 R Parking, license plate,
side marker, and tail
lamps ON
Lighting switch
1ST position OFF Approx. 0 V
ON Battery voltage
38 B Ground ON — Approx. 0 V
48 L CAN − H— — —
49 R CAN − L— — —
60 B Ground ON — Approx. 0 V
Unit Power source Fuse and fusible link No.
BCM Battery
M
22
Ignition switch ON or START position 1 Ignition switch ACC or ON position 6
IPDM E/R Battery 71
Rear combination lamp control unit Battery 20

LT-160
INTERIOR ROOM LAMP
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram — ROOM/L —NKS002YP
TKWM4314E

LT-170
INTERIOR ROOM LAMP
Revision: 2006 July 2007 FX35/FX45
Preliminary CheckNKS002YS
CHECK FOR POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES
Check for blown fuses.
Refer to LT-160, "Wiring Diagram — ROOM/L —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Unit Power source Fuse and fusible link No.
BCM Battery
M
22
Ignition switch ON or START position 1
(+) (-) Ignition switch position
BCM con- nector Terminal OFF ON
M3 38 Ground Approx. 0 V Battery voltage
M4 42 Battery voltage Battery voltage
55 Battery voltage Battery voltage
PKIA7520E
BCM connector Terminal Ground Continuity
M4 49
Ye s
52
SKIA5294E

ILLUMINATION LT-191
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2006 July 2007 FX35/FX45

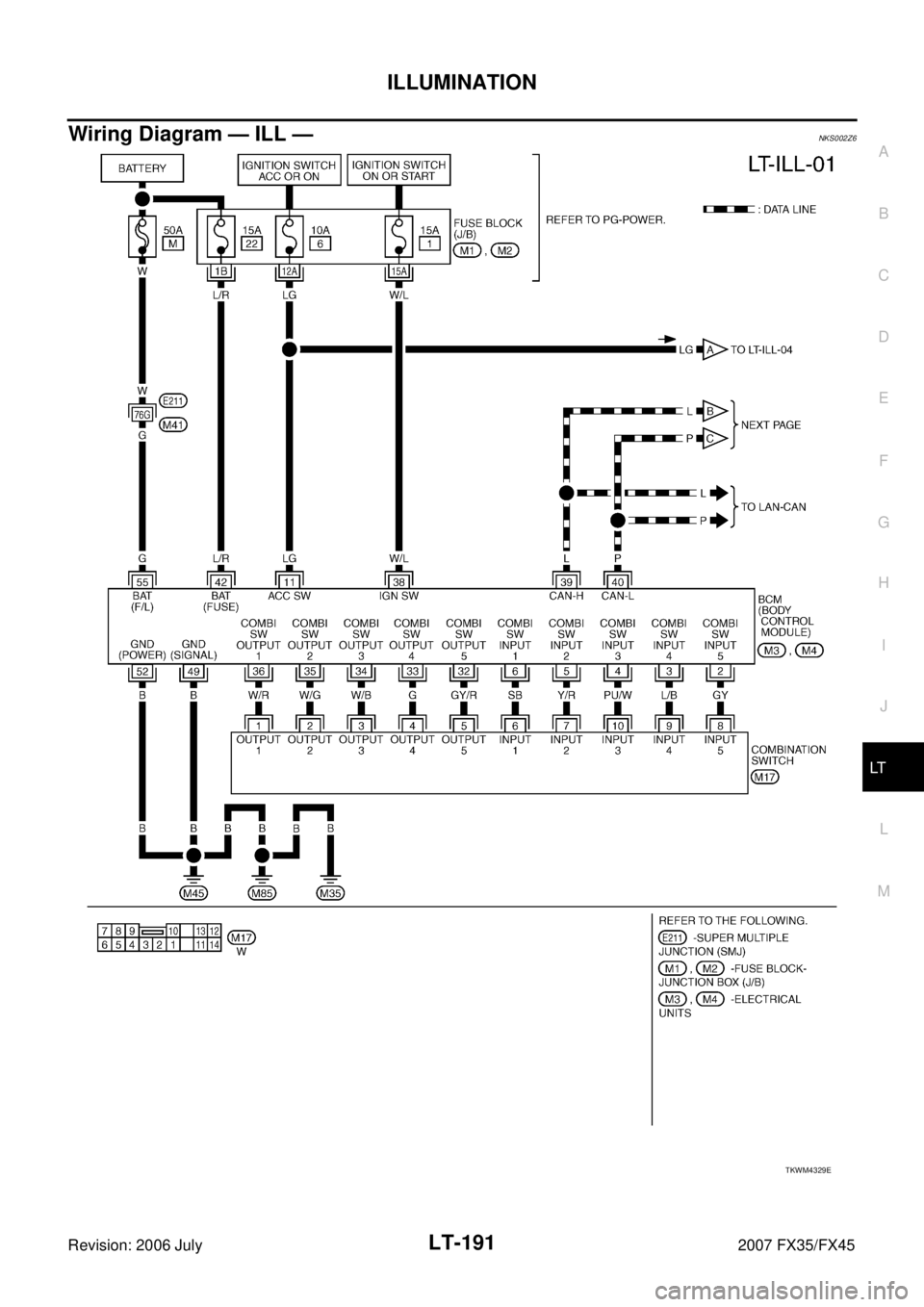

Wiring Diagram — ILL —NKS002Z6
TKWM4329E

PG-1
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
K ELECTRICAL
CONTENTS
C
D E
F
G H
I
J
L
M
SECTION
A
B
PG
Revision: 2006 July 2007 FX35/FX45
POWER SUPPLY, GROUND & CIRCUIT ELEMENTS
POWER SUPPLY ROUTING CIRCUIT ...................... 3
Schematic ........................................................... ..... 3
Wiring Diagram — POWER — ............................ ..... 4
BATTERY POWER SUPPLY — IGNITION SW.
IN ANY POSITION ........................................... ..... 4
ACCESSORY POWER SUPPLY — IGNITION
SW. IN “ACC” OR “ON” .................................... ... 10
IGNITION POWER SUPPLY — IGNITION SW.
IN “ON” AND/OR “START” ............................... ... 12
Fuse .................................................................... ... 16
Fusible Link ......................................................... ... 16
Circuit Breaker .................................................... ... 16
IPDM E/R (INTELLIGENT POWER DISTRIBUTION
MODULE ENGINE ROOM) ................................... ... 17
System Description ............................................. ... 17
SYSTEMS CONTROLLED BY IPDM E/R ........ ... 17
CAN COMMUNICATION LINE CONTROL ...... ... 17
IPDM E/R STATUS CONTROL ........................ ... 18
CAN Communication System Description ........... ... 18
CAN Communication Unit ................................... ... 18
Function of Detecting Ignition Relay Malfunction ... 18
CONSULT-II Function (IPDM E/R) ...................... ... 19
CONSULT-II INSPECTION PROCEDURE ...... ... 19
SELF-DIAG RESULTS ..................................... ... 19
DATA MONITOR .............................................. ... 19
ACTIVE TEST .................................................. ... 20
Auto Active Test .................................................. ... 21
DESCRIPTION ................................................. ... 21
OPERATION PROCEDURE ............................ ... 21
INSPECTION IN AUTO ACTIVE TEST MODE ... 22
Schematic ........................................................... ... 24
IPDM E/R Terminal Arrangement ........................ ... 25
IPDM E/R Power/Ground Circuit Inspection ....... ... 26
Inspection With CONSULT-II (Self-Diagnosis) .... ... 27
Removal and Installation of IPDM E/R ................ ... 28
REMOVAL ........................................................ ... 28
INSTALLATION ................................................ ... 28 GROUND ................................................................
... 29
Ground Distribution .............................................. ... 29
MAIN HARNESS .............................................. ... 29
ENGINE ROOM HARNESS ............................. ... 32
ENGINE HARNESS/VK ENGINE MODELS ..... ... 35
ENGINE HARNESS/VQ ENGINE MODELS .... ... 36
ENGINE CONTROL HARNESS/VK ENGINE
MODELS .......................................................... ... 37
ENGINE CONTROL HARNESS/VQ ENGINE
MODELS .......................................................... ... 38
BODY HARNESS ............................................. ... 39
BODY NO. 2 HARNESS .................................. ... 41
ROOM LAMP HARNESS ................................. ... 42
HARNESS .............................................................. ... 43
Harness Layout ................................................... ... 43
HOW TO READ HARNESS LAYOUT .............. ... 43
OUTLINE .......................................................... ... 44
MAIN HARNESS .............................................. ... 45
ENGINE ROOM HARNESS ............................. ... 48
ENGINE HARNESS/VK ENGINE MODELS ..... ... 51
ENGINE HARNESS/VQ ENGINE MODELS .... ... 52
ENGINE CONTROL HARNESS/VK ENGINE
MODELS .......................................................... ... 53
ENGINE CONTROL HARNESS/VQ ENGINE
MODELS .......................................................... ... 55
BODY HARNESS ............................................. ... 57
BODY NO. 2 HARNESS .................................. ... 59
ROOM LAMP HARNESS ................................. ... 60
FRONT DOOR HARNESS ............................... ... 61
REAR DOOR HARNESS ................................. ... 62
BACK DOOR HARNESS ................................. ... 63
Wiring Diagram Codes (Cell Codes) ................... ... 64
ELECTRICAL UNITS LOCATION ......................... ... 67
Electrical Units Location ...................................... ... 67
ENGINE COMPARTMENT ............................... ... 67
PASSENGER COMPARTMENT ...................... ... 68
LUGGAGE COMPARTMENT ........................... ... 70
HARNESS CONNECTOR ...................................... ... 71
Description ........................................................... ... 71
HARNESS CONNECTOR (TAB-LOCKING

PG-4
POWER SUPPLY ROUTING CIRCUIT
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram — POWER —NKS003G7
BATTERY POWER SUPPLY — IGNITION SW. IN ANY POSITION
TKWM4458E

PG-64
HARNESS
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram Codes (Cell Codes) NKS003GO
Use the chart below to find out what each wiring diagram code stands for.
Refer to the wiring diagram code in the alphabetical index to find the location (page number) of each wiring
diagram.
Code Section Wiring Diagram Name
A/C ATC Air Conditioner
AF1B1 EC Air Fuel Ratio Sensor 1 Bank 1
AF1B2 EC Air Fuel Ratio Sensor 1 Bank 2
AF1HB1 EC Air Fuel Ratio Sensor 1 Heater Bank 1
AF1HB2 EC Air Fuel Ratio Sensor 1 Heater Bank 2
APPS1 EC Accelerator Pedal Position Sensor
APPS2 EC Accelerator Pedal Position Sensor
APPS3 EC Accelerator Pedal Position Sensor
ASC/BS EC Automatic Speed Control Device (ASCD) Brake Switch
ASC/SW EC Automatic Speed Control Device (ASCD) Steering Switch
ASCBOF EC Automatic Speed Control Device (ASCD) Brake Switch
ASCIND EC Automatic Speed Control Device (ASCD) Indicator
AT/IND DI A/T Indicator Lamp
AUDIO AV Audio
AUT/DP SE Automatic Drive Positioner
AUTO/L LT Automatic Light System
AWD TF AWD Control System
B/CLOS BL Back Door Closure System
BACK/L LT Back-Up Lamp
BRK/SW EC Brake Switch
CAN AT CAN Communication Line
CAN EC CAN Communication Line
CAN LAN CAN System
CHARGE SC Charging System
CHIME DI Warning Chime
CLOCK DI Clock
COMBSW LT Combination Switch
COMM AV Audio Visual Communication Line
COMPAS DI Compass
COOL/F EC Cooling Fan Control
D/LOCK BL Power Door Lock
DEF GW Rear Window Defogger
DTRL LT Headlamp - With Daytime Light System
ECM/PW EC ECM Power Supply for Back-Up
ECTS EC Engine Coolant Temperature Sensor
ETC1 EC Electric Throttle Control Function
ETC2 EC Electric Throttle Control Motor Relay
ETC3 EC Electric Throttle Control Motor
F/FOG LT Front Fog Lamp
F/PUMP EC Fuel Pump
FTS AT A/T Fluid Temperature Sensor Circuit
