2007 INFINITI FX35 diagram

TF-1
TRANSFER
D DRIVELINE/AXLE
CONTENTS
C E F
G H
I
J
K L
M
SECTION
A
B
TF
Revision: 2006 July 2007 FX35/FX45
TRANSFER
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions ......................................................... ..... 3
Service Notice or Precautions ............................. ..... 4
PREPARATION ...................................................... ..... 5
Special Service Tools .......................................... ..... 5
Commercial Service Tools ................................... ..... 7
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 8
NVH Troubleshooting Chart ................................ ..... 8
TRANSFER FLUID ................................................ ..... 9
Replacement ....................................................... ..... 9
DRAINING ........................................................ ..... 9
FILLING ............................................................ ..... 9
Inspection ............................................................ ..... 9
FLUID LEAKAGE AND FLUID LEVEL ............. ..... 9
AWD SYSTEM ....................................................... ... 10
Power Transfer Diagram ..................................... ... 10
System Description ............................................. ... 10
DESCRIPTION ................................................. ... 10
ELECTRIC CONTROLLED COUPLING .......... .... 11
AWD CONTROL UNIT ..................................... .... 11
AWD WARNING LAMP .................................... ... 12
System Diagram .................................................. ... 12
COMPONENTS FUNCTION DESCRIPTION .. ... 13
CAN Communication ........................................... ... 13
SYSTEM DESCRIPTION ................................. ... 13
TROUBLE DIAGNOSIS ......................................... ... 14
Fail-Safe Function ............................................... ... 14
How to Perform Trouble Diagnosis ..................... ... 14
BASIC CONCEPT ............................................ ... 14
Location of Electrical Parts .................................. ... 15
Circuit Diagram ................................................... ... 16
Wiring Diagram — AWD — ................................. ... 17
Trouble Diagnosis Chart for Symptoms .............. ... 20
AWD Control Unit Input/Output Signal Reference
Values ................................................................. ... 21 AWD CONTROL UNIT INSPECTION TABLE ..
... 21
CONSULT-II Function (ALL MODE AWD/4WD) .. ... 22
FUNCTION ....................................................... ... 22
CONSULT-II SETTING PROCEDURE ............. ... 22
SELF-DIAG RESULT MODE ............................ ... 22
DATA MONITOR MODE ................................... ... 24
ACTIVE TEST MODE ...................................... ... 25
AWD CONTROL UNIT PART NUMBER .......... ... 25
TROUBLE DIAGNOSIS FOR SYSTEM ................. ... 26
Power Supply Circuit for AWD Control Unit ......... ... 26
CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ............................................. ... 26
DIAGNOSTIC PROCEDURE ........................... ... 26
AWD Control Unit ................................................ ... 27
DIAGNOSTIC PROCEDURE ........................... ... 27
ABS System ........................................................ ... 27
DIAGNOSTIC PROCEDURE ........................... ... 27
AWD Solenoid ..................................................... ... 28
CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ............................................. ... 28
DIAGNOSTIC PROCEDURE ........................... ... 28
COMPONENT INSPECTION ........................... ... 30
AWD Actuator Relay ............................................ ... 31
CONSULT-II REFERENCE VALUE IN DATA
MONITOR MODE ............................................. ... 31
DIAGNOSTIC PROCEDURE ........................... ... 31
Engine Control Signal .......................................... ... 32
DIAGNOSTIC PROCEDURE ........................... ... 32
CAN Communication Line ................................... ... 32
DIAGNOSTIC PROCEDURE ........................... ... 32
TROUBLE DIAGNOSIS FOR SYMPTOMS ........... ... 33
AWD Warning Lamp Does Not Turn ON When The
Ignition Switch Is Turned to ON ........................... ... 33
DIAGNOSTIC PROCEDURE ........................... ... 33
AWD Warning Lamp Does Not Turn OFF Several
Seconds after Engine Started .............................. ... 33
DIAGNOSTIC PROCEDURE ........................... ... 33
Heavy Tight-Corner Braking Symptom Occurs
When The Vehicle Is Driven and The Steering Wheel
Is Turned Fully to Either Side after The Engine Is

TF-10
AWD SYSTEM
Revision: 2006 July 2007 FX35/FX45
AWD SYSTEMPFP:41650
Power Transfer DiagramNDS0009U
System DescriptionNDS0009V
DESCRIPTION

Electronic control allows optimal distribution of torque to front/rear wheels to match road conditions.

Makes possible stable driving, with no wheel spin, on snowy roads or other slippery surfaces.

On roads which do not require AWD, it contributes to improved fuel economy by driving in conditions close
to rear-wheel drive.

Sensor inputs determine the vehicle's turning condition, and in response tight cornering/braking are con-
trolled by distributing optimum torque to front wheels.
NOTE:

When driving, if there is a large difference between front and rear wheel speed which continues for a long
time, fluid temperature of drive system parts becomes too high and AWD warning lamp flashes rapidly.
(When AWD warning lamp flashes, vehicle changes to rear-wheel drive conditions.) Also, optional distri-
bution of torque sometimes becomes rigid before lamp flashes rapidly, but it is not malfunction.

If AWD warning lamp is flashing rapidly, stop vehicle and allow it to idle for some time. Flashing will stop
and AWD system will be restored.

When driving, AWD warning lamp may flash slowly if there is a significant difference in diameter of the
tires. At this time, vehicle performance is not fully available and cautious driving is required. (Continues
until engine is turned OFF.)

If the warning lamp flashes slowly during driving but remains OFF after engine is restarted, the system is
normal. If it again flashes slowly after driving for some time, vehicle must be inspected.

When the difference of revolution speed between the front and rear wheel mode the shift occasionally
changes to direct 4-wheel driving conditions automatically. This is not malfunction.
SDIA1611E

TF-12
AWD SYSTEM
Revision: 2006 July 2007 FX35/FX45
AWD WARNING LAMP
Turns ON when there is a malfunction in AWD system. It indicates that fail-safe mode is engaged and vehicle
change to rear-wheel drive or shifting driving force-AWD (Front-wheels still have some driving torque).
Also turns ON when ignition switch is turned ON, for purpose of lamp check. Turns OFF approximately for 1
seconds after the engine starts if system is normal.
AWD Warning Lamp Indication
System DiagramNDS0009W
Condition AWD warning lamp
Lamp check Turns ON when ignition switch is turned ON. Turns OFF
approx. 1 second after engine start.
AWD system malfunction ON
Protection function is activated due to heavy load to electric con-
trolled coupling. (AWD system is not malfunctioning and AWD system
changes to 2WD mode.) Rapid flashing: 2 times/second
(Flashing in approx. 1 minute and then turning OFF.)
Large difference in diameter of front/rear tires Slow flashing: 1 time/2 seconds
(Continuing to flash until turning ignition switch OFF)
Other than above (system normal) OFF
SDIA2160E

TF-16
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
Circuit DiagramNDS000A1
TDWM0055E

TROUBLE DIAGNOSIS TF-17
C E F
G H
I
J
K L
M A
B
TF
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram — AWD —NDS000A2
TDWM0056E

WT-1
ROAD WHEELS & TIRES
E SUSPENSION
CONTENTS
C
D
F
G H
I
J
K L
M
SECTION
A
B
WT
Revision: 2006 July 2007 FX35/FX45
ROAD WHEELS & TIRES
INDEX FOR DTC ........................................................ 3
DTC No. Index .................................................... ..... 3
PRECAUTIONS ..................................................... ..... 4
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 4
Precautions ......................................................... ..... 4
Service Notice or Precautions ............................. ..... 5
PREPARATION ...................................................... ..... 6
Special Service Tools .......................................... ..... 6
Commercial Service Tools ................................... ..... 6
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 7
NVH Troubleshooting Chart ................................ ..... 7
ROAD WHEEL ....................................................... ..... 8
Inspection ............................................................ ..... 8
ALUMINUM WHEEL ........................................ ..... 8
STEEL WHEEL (FOR EMERGENCY USE) .... ..... 8
ROAD WHEEL TIRE ASSEMBLY ......................... ..... 9
Balancing Wheels (Bonding Weight Type) .......... ..... 9
REMOVAL ........................................................ ..... 9
WHEEL BALANCE ADJUSTMENT ................. ..... 9
Tire Rotation ........................................................ ... 10
TIRE PRESSURE MONITORING SYSTEM .......... ....11
System Components ........................................... .... 11
System Description ............................................. .... 11
TRANSMITTER ................................................ .... 11
REMOTE KEYLESS ENTRY RECEIVER ........ .... 11
BCM (BODY CONTROL MODULE) ................. ... 12
LOW TIRE PRESSURE WARNING LAMP ...... ... 12
RUN-FLAT TIRE WARNING LAMP ................. ... 12
DISPLAY UNIT ................................................. ... 13
CAN COMMUNICATION ....................................... ... 14
System Description ............................................. ... 14
TROUBLE DIAGNOSES ....................................... ... 15
Schematic ........................................................... ... 15

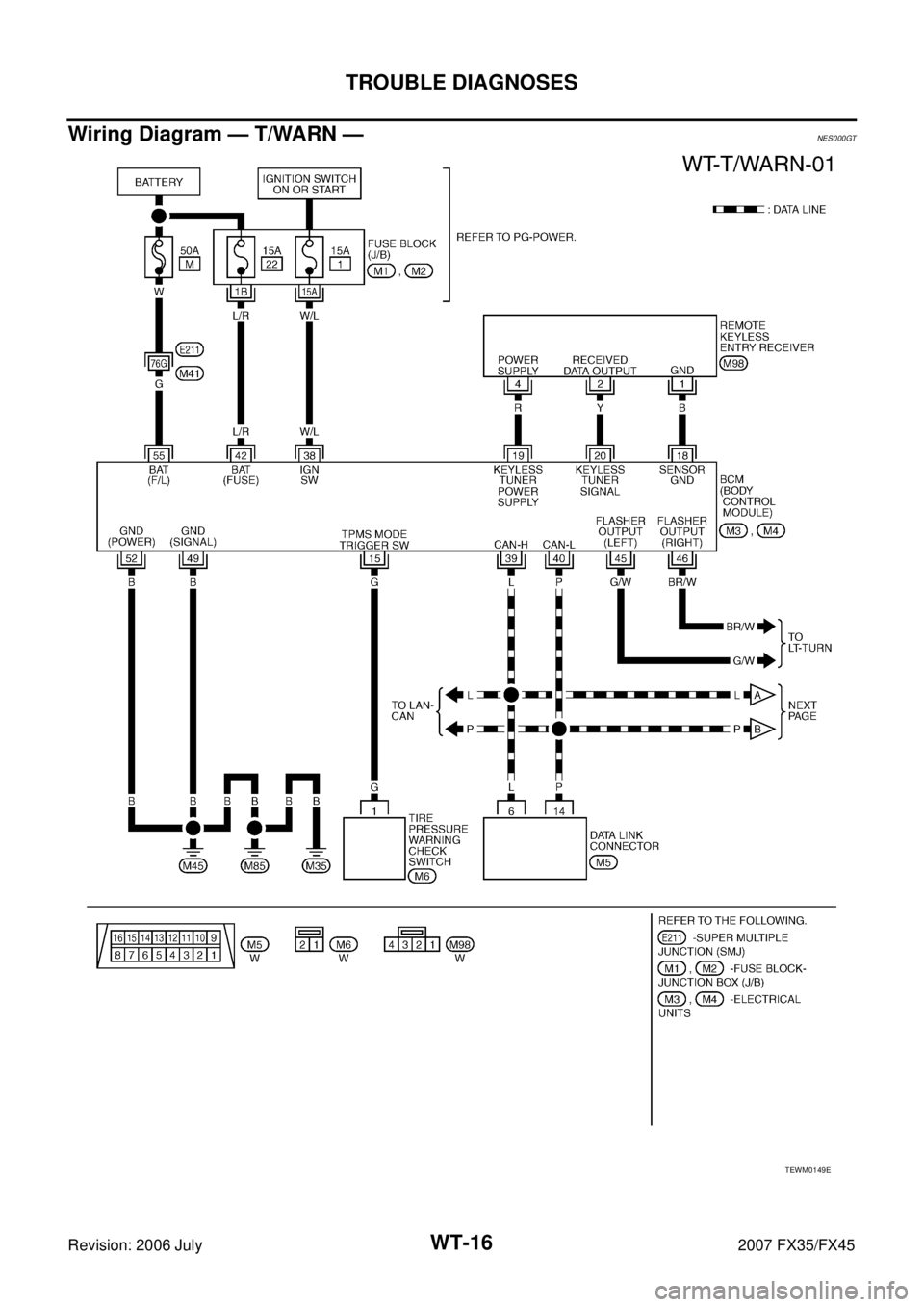

Wiring Diagram — T/WARN — ........................... ... 16
Control Unit Input/Output Signal Standard .......... ... 19
ID Registration Procedure ................................... ... 20
ID REGISTRATION WITH ACTIVATION TOOL ... 20 ID REGISTRATION WITHOUT TRANSMITTER
ACTIVATION TOOL ......................................... ... 21
Transmitter Wake Up Operation .......................... ... 22
WITH ACTIVATION TOOL ............................... ... 22
Self-Diagnosis ..................................................... ... 23
DESCRIPTION ................................................. ... 23
FUNCTION ....................................................... ... 23
LOW TIRE PRESSURE WARNING LAMP DIAG-
NOSTIC CHART ............................................... ... 23
RUN-FLAT TIRE WARNING LAMP DIAGNOS-
TIC CHART ...................................................... ... 24
CONSULT-II Function (BCM) .............................. ... 25
FUNCTION ....................................................... ... 25
CONSULT-II SETTING PROCEDURE ............. ... 25
WORK SUPPORT MODE ................................ ... 25
SELF-DIAGNOSTIC RESULTS MODE ............ ... 26
DATA MONITOR MODE ................................... ... 27
ACTIVE TEST MODE ...................................... ... 27
How to Perform Trouble Diagnosis for Quick and
Accurate Repair ................................................... ... 30
INTRODUCTION .............................................. ... 30
WORK FLOW ................................................... ... 30
Preliminary Check ............................................... ... 31
Malfunction Code/Symptom Chart ....................... ... 32
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC
ITEMS ..................................................................... ... 33
Transmitter or Control Unit (BCM) ....................... ... 33
MALFUNCTION CODE NO. 21, 22, 23 OR 24 ... 33
Transmitter - 1 ..................................................... ... 33
MALFUNCTION CODE NO. 31, 32, 33, 34, 41,
42, 43, 44, 45, 46, 47 OR 48 ............................ ... 33
Transmitter - 2 ..................................................... ... 34
MALFUNCTION CODE NO. 35, 36, 37 OR 38 ... 34
Vehicle Speed Signal ........................................... ... 35
MALFUNCTION CODE NO. 52 ........................ ... 35
TROUBLE DIAGNOSIS FOR SYMPTOMS ........... ... 36
Low Tire Pressure Warning Lamp Does Not Come
On When Ignition Switch Is Turned On ............... ... 36
Low Tire Pressure Warning Lamp Stays On When
Ignition Switch Is Turned On ............................... ... 36

WT-16
TROUBLE DIAGNOSES
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram — T/WARN —NES000GT
TEWM0149E

WT-22
TROUBLE DIAGNOSES
Revision: 2006 July 2007 FX35/FX45
Transmitter Wake Up OperationNES000GW
WITH ACTIVATION TOOL
1. With the transmitter activation tool (J-45295) pushed against the
front-left transmitter, press the button for 5 seconds.

When ignition switch ON, as the low tire pressure warning
lamp blinks per the following diagram, the respective transmit-
ter then must be woken up.
2. Register the ID of wheel that low tire pressure warning lamp flashes. When wake up of registered wheel has been completed, turn signal lamp flashes two times.
3. After completing wake up all transmitters, make sure low tire pressure warning lamp goes out.
SEIA0460E
SEIA0794E
