COOLING FAN CO-21
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 July 2007 FX35/FX45

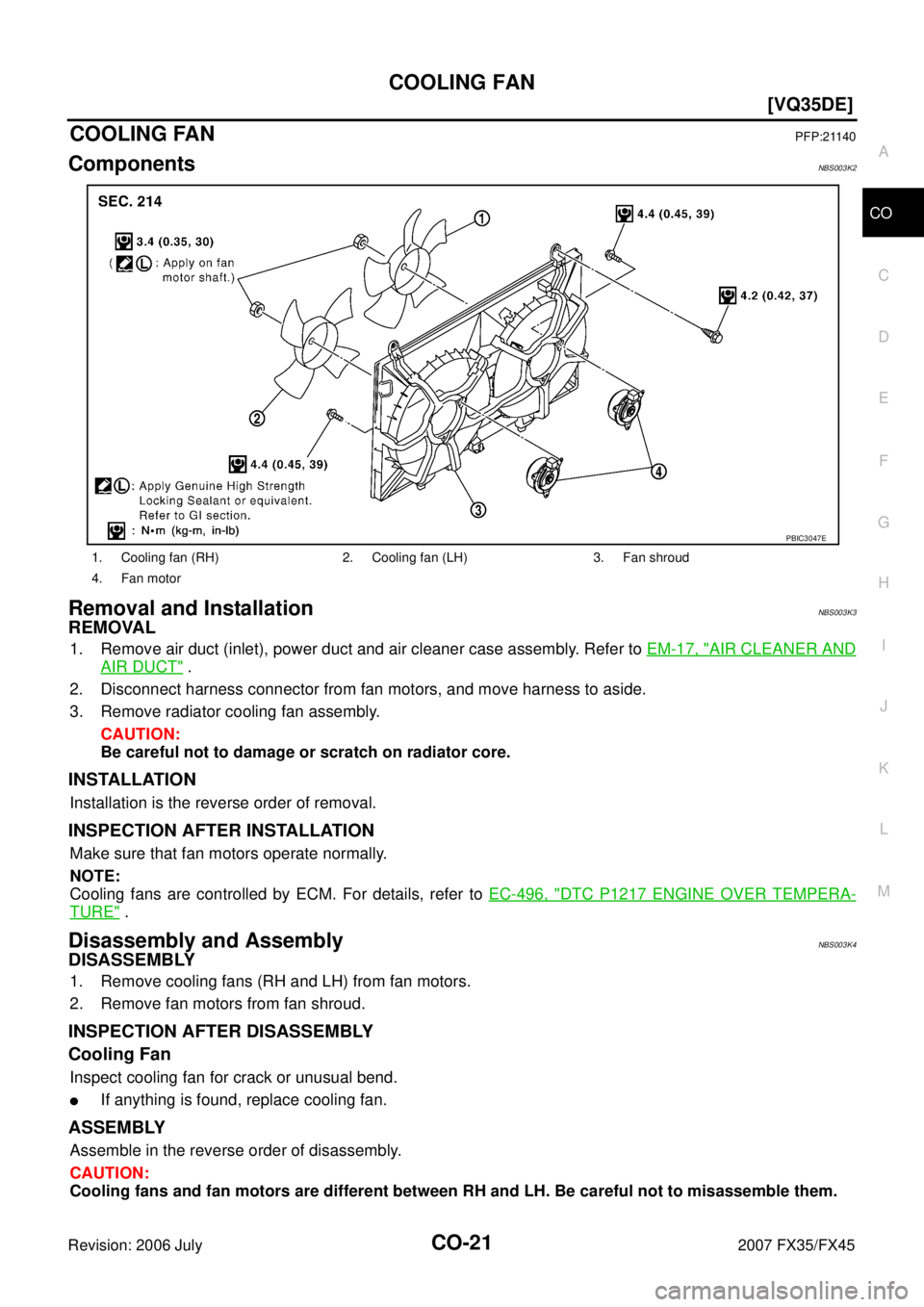

COOLING FANPFP:21140
ComponentsNBS003K2
Removal and Installation NBS003K3
REMOVAL
1. Remove air duct (inlet), power duct and air cleaner case assembly. Refer to EM-17, "AIR CLEANER AND
AIR DUCT" .
2. Disconnect harness connector from fan motors, and move harness to aside.
3. Remove radiator cooling fan assembly.
CAUTION:
Be careful not to damage or scratch on radiator core.
INSTALLATION
Installation is the reverse order of removal.
INSPECTION AFTER INSTALLATION
Make sure that fan motors operate normally.
NOTE:
Cooling fans are controlled by ECM. For details, refer to EC-496, "
DTC P1217 ENGINE OVER TEMPERA-
TURE" .
Disassembly and Assembly NBS003K4
DISASSEMBLY
1. Remove cooling fans (RH and LH) from fan motors.
2. Remove fan motors from fan shroud.
INSPECTION AFTER DISASSEMBLY
Cooling Fan
Inspect cooling fan for crack or unusual bend.

If anything is found, replace cooling fan.
ASSEMBLY
Assemble in the reverse order of disassembly.
CAUTION:
Cooling fans and fan motors are different between RH and LH. Be careful not to misassemble them.
1. Cooling fan (RH) 2. Cooling fan (LH) 3. Fan shroud
4. Fan motor
PBIC3047E

CO-22
[VQ35DE]
WATER PUMP
Revision: 2006 July 2007 FX35/FX45
WATE R P U M PPFP:21020
ComponentsNBS003K5
Removal and InstallationNBS003K6
CAUTION:

When removing water pump assembly, be careful not to get engine coolant on drive belts.

Water pump cannot be disassembled and should be replaced as a unit.

After installing water pump, connect hose and clamp securely, then check for leaks using the radi-
ator cap tester (commercial service tool) and the radiator cap tester adapter [SST: EG17650301
(J33984-A)].
REMOVAL
1. Remove front engine undercover with power tool.
2. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
3. Drain engine coolant from radiator. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:

Perform this step when the engine is cold.

Do not spill engine coolant on drive belts.
4. Remove air duct (inlet), power duct and air cleaner case assembly. Refer to EM-17, "
AIR CLEANER AND
AIR DUCT" .
5. Remove water drain plug (front) on water pump side of cylinder block to drain engine coolant from engine inside.
6. Remove chain tensioner cover and water pump cover from front timing chain case.

U s e t h e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] t o c u t l i q u i d g a s k e t f o r r e m o v a l .
1. Timing chain tensioner (primary) 2. Chain tensioner cover 3. Water pump cover
4. Water pump 5. O-rings 6. Water drain plug (front)
SBIA0482E
PBIC2662E

CO-26
[VQ35DE]
WATER PUMP
Revision: 2006 July 2007 FX35/FX45
b. Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( — )] to mating surface of chain ten-
sioner cover and water pump cover.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
CAUTION:
Attaching should be done within 5 minutes after coating.
c. Tighten mounting bolts.
5. Install water drain plug (front) on water pump side of cylinder block.

Apply liquid gasket to the thread of water drain plug (front).
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
6. Install in the reverse order of removal for remaining parts.

After starting engine, let idle for three minutes, then rev engine up to 3,000 rpm under no load to
purge air from the high-pressure chamber of chain tensioner. Engine may produce a rattling
noise. This indicates that air still remains in the chamber and is not a matter of concern.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using the radiator cap tester adapter [SST: EG17650301 (J33984-A)]
and the radiator cap tester (commercial service tool). Refer to CO-11, "
LEAK CHECK" .

Start and warm up the engine. Visually make sure that there is no leaks of engine coolant.
PBIC2663E

WATER INLET AND THERMOSTAT ASSEMBLY CO-27
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 July 2007 FX35/FX45
WATER INLET AND THERMOSTAT ASSEMBLYPFP:21200
ComponentsNBS003K7
Removal and InstallationNBS003K8
REMOVAL
1. Remove front engine undercover using power tool.
2. Drain engine coolant from radiator drain plug at the bottom of radiator, and from water drain plug at the front of cylinder block. Refer to CO-11, "
Changing Engine Coolant" and CO-22, "WATER PUMP" .
CAUTION:

Perform this step when the engine is cold.

Do not spill engine coolant on drive belts.
3. Remove air duct (inlet). Refer to EM-17, "
AIR CLEANER AND AIR DUCT" .
4. Disconnect radiator hose (lower) and oil cooler water hose from water inlet and thermostat assembly.
5. Remove water inlet and thermostat assembly. CAUTION:
Do not disassemble water inlet and thermostat assembly.
Replace them as a unit, if necessary.
1. Water inlet and thermostat assembly 2. Gasket
SBIA0483E
SLC962AB

CO-28
[VQ35DE]
WATER INLET AND THERMOSTAT ASSEMBLY
Revision: 2006 July 2007 FX35/FX45
INSPECTION AFTER REMOVAL
1. Check valve seating condition at ordinary room temperatures. It should seat tightly.
2. Check valve operation.

If the malfunctioning condition, when valve seating at ordinary
room temperature, or measured values are out of the standard,
replace water inlet and thermostat assembly.
INSTALLATION
Note the following, and install in the reverse order of removal.

Be careful not to spill engine coolant over engine room. Use rag to absorb engine coolant.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using the radiator cap tester adapter [SST: EG17650301 (J33984-A)]
and the radiator cap tester (commercial service tool). Refer to CO-11, "
LEAK CHECK" .

Start and warm up the engine. Visually make sure that there is no leaks of engine coolant.
Thermostat
Valve opening temperature 76 - 79 °C (169 - 174 °F)
Maximum valve lift 8.6 mm / 90 °C (0.339 in / 194 °F)
Valve closing temperature 71 °C (160 °F)
SLC949A

WATER OUTLET AND WATER PIPING CO-29
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 July 2007 FX35/FX45
WATER OUTLET AND WATER PIPINGPFP:11060
ComponentsNBS003K9
Removal and InstallationNBS003KA
REMOVAL
1. Remove front engine undercover with power tool.
2. Drain engine coolant from radiator drain plug at the bottom of radiator, and from water drain plug at the front of cylinder block. Refer to CO-11, "
Changing Engine Coolant" and CO-22, "WATER PUMP" .
CAUTION:

Perform this step when the engine is cold.

Do not spill engine coolant on drive belts.
3. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
4. Remove air duct (inlet), air duct and air cleaner case assembly. Refer to EM-17, "
AIR CLEANER AND AIR
DUCT" .
5. Remove radiator hose (upper) and heater hose.
6. Remove the following parts, when remove water outlet.

A/T fluid charging pipe; Refer to AT- 2 6 6 , "TRANSMISSION ASSEMBLY" .

Intake manifold collectors (upper and lower). Refer to EM-19, "INTAKE MANIFOLD COLLECTOR" .

Rocker cover (right bank). Refer to EM-51, "ROCKER COVER" .
7. Remove engine coolant temperature sensor as necessary. CAUTION:
Be careful not to damage engine coolant temperature sensor.
8. Remove water outlet, heater pipe, water bypass hoses and water pipe.
1. Harness bracket 2. Water hose 3. Water bypass hose
4. Engine coolant temperature sensor 5. Gasket 6. Water outlet
7. Heater hose 8. Water pipe 9. Radiator hose (upper)
10. Heater pipe 11. Washer 12. O-ring
SBIA0484E

CO-30
[VQ35DE]
WATER OUTLET AND WATER PIPING
Revision: 2006 July 2007 FX35/FX45
INSTALLATION
Note the following, and install in the reverse order of removal.

Securely insert each hose, and install clamp at a position where it does not interfere with the pipe bulge.

When inserting water pipe into water outlet, apply neutral detergent to O-ring.
INSPECTION AFTER INSTALLATION

Check for leaks of engine coolant using the radiator cap tester adapter [SST: EG17650301 (J33984-A)]
and the radiator cap tester (commercial service tool). Refer to CO-11, "
LEAK CHECK" .

Start and warm up the engine. Visually make sure that there is no leaks of engine coolant.

SERVICE DATA AND SPECIFICATIONS (SDS) CO-31
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
CO
Revision: 2006 July 2007 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00100
Standard and LimitNBS003KB
ENGINE COOLANT CAPACITY (APPROXIMATE)
Unit: (US qt, Imp qt)
RADIATOR
Unit: kPa (kg/cm2 , psi)
THERMOSTAT
Engine coolant capacity [With reservoir tank (“MAX” level)] 8.6 (9-1/8, 7- 5/8)
Reservoir tank engine coolant capacity (At “MAX” level) 0.8 (7/8, 3/4)
Cap relief pressure Standard 78 - 98 (0.8 - 1.0, 11 - 14)
Limit 59 (0.6, 9)
Leakage testing pressure 157 (1.6, 23)
Valve opening temperature 76 - 79 °C (169 - 174 °F)
Maximum valve lift 8.6 mm / 90 °C (0.339 in / 194 °F)
Valve closing temperature 71 °C (160 °F)
