2007 INFINITI FX35 sensor

TROUBLE DIAGNOSIS FOR SYSTEM BRC-39
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC

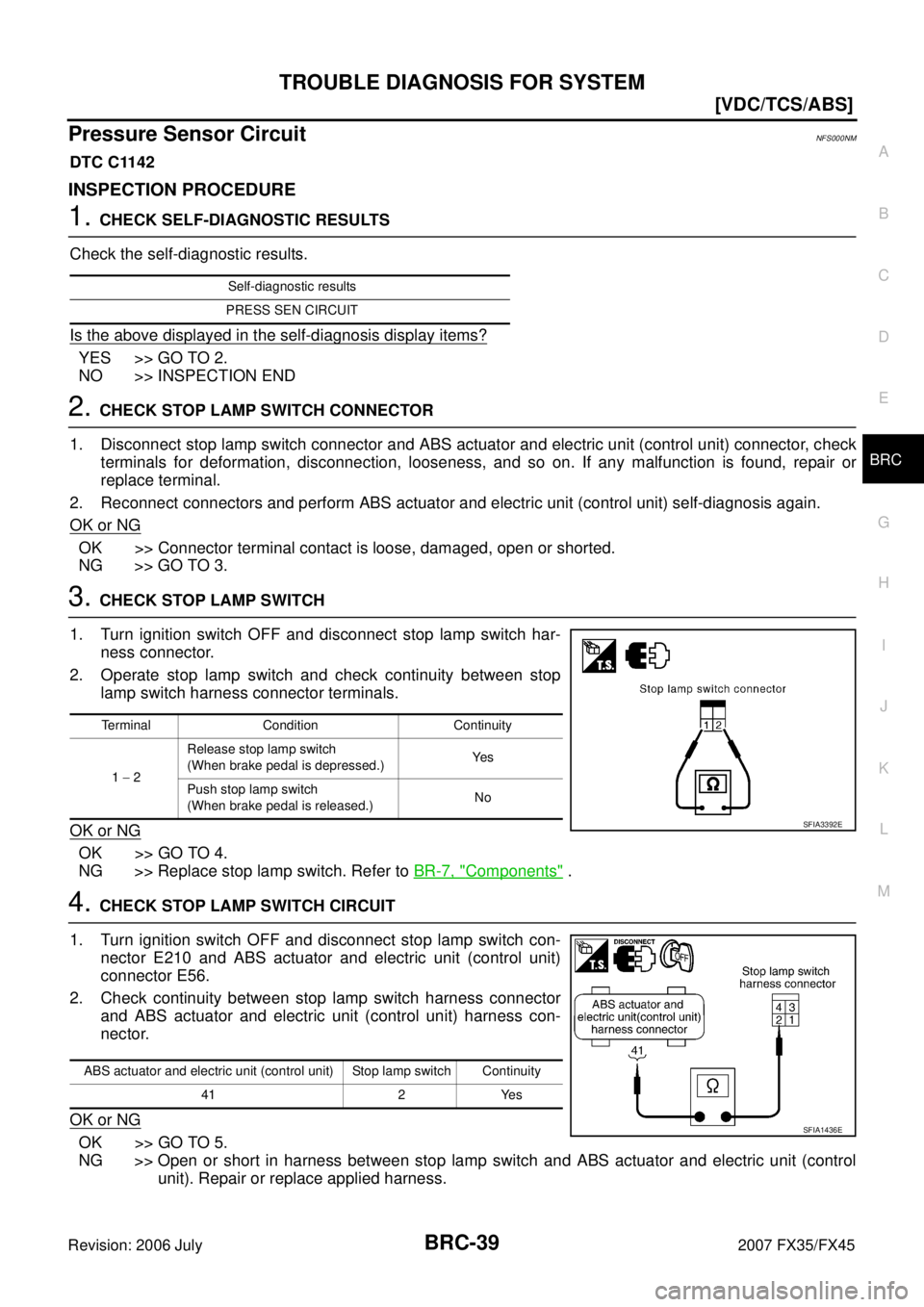

Revision: 2006 July 2007 FX35/FX45
Pressure Sensor CircuitNFS000NM
DTC C1142
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagnostic results.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK STOP LAMP SWITCH CONNECTOR
1. Disconnect stop lamp switch connector and ABS actuator and electric unit (control unit) connector, check terminals for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.
2. Reconnect connectors and perform ABS actuator and electric unit (control unit) self-diagnosis again.
OK or NG
OK >> Connector terminal contact is loose, damaged, open or shorted.
NG >> GO TO 3.
3. CHECK STOP LAMP SWITCH
1. Turn ignition switch OFF and disconnect stop lamp switch har- ness connector.
2. Operate stop lamp switch and check continuity between stop lamp switch harness connector terminals.
OK or NG
OK >> GO TO 4.
NG >> Replace stop lamp switch. Refer to BR-7, "
Components" .
4. CHECK STOP LAMP SWITCH CIRCUIT
1. Turn ignition switch OFF and disconnect stop lamp switch con- nector E210 and ABS actuator and electric unit (control unit)
connector E56.
2. Check continuity between stop lamp switch harness connector and ABS actuator and electric unit (control unit) harness con-
nector.
OK or NG
OK >> GO TO 5.
NG >> Open or short in harness between stop lamp switch and ABS actuator and electric unit (control unit). Repair or replace applied harness.
Self-diagnostic results
PRESS SEN CIRCUIT
Terminal Condition Continuity
1 − 2 Release stop lamp switch
(When brake pedal is depressed.) Ye s
Push stop lamp switch
(When brake pedal is released.) No
SFIA3392E
ABS actuator and electric unit (control unit) Stop lamp switch Continuity
41 2 Yes
SFIA1436E

BRC-40
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2006 July 2007 FX35/FX45
5. CHECK PRESSURE SENSOR CONNECTOR
1. Disconnect pressure sensor connector and ABS actuator and electric unit (control unit) connector, check terminals for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.
2. Reconnect connectors and perform ABS actuator and electric unit (control unit) self-diagnosis again.
OK or NG
OK >> Connector terminal contact is loose, damaged, open or shorted.
NG >> GO TO 6.
6. CHECK PRESSURE SENSOR HARNESS
1. Turn ignition switch OFF and disconnect pressure sensor con- nector E53 and ABS actuator and electric unit (control unit) con-
nector E56.
2. Check continuity between ABS actuator and electric unit (control unit) harness connector and pressure sensor harness connec-
tor.
OK or NG
OK >> GO TO 7.
NG >> If the open or short in harness, repair or replace harness.
7. CHECK PRESSURE SENSOR
1. Connect pressure sensor connector and ABS actuator and electric unit (control unit) connector.
2. Perform “DATA MONITOR” of the “PRESS SENSOR” to check if the status is normal.
OK or NG
OK >> INSPECTION END
NG >> Pressure sensor is damaged or malfunctioning, replace pressure sensor.
ABS actuator and electric unit (control unit) Pressure sensor Continuity
19 1 Ye s
20 2
18 3
SFIA1188E
Condition Data monitor display
When brake pedal is depressed. 0 to 170 bar
When brake pedal is released. Approx. 0 bar

TROUBLE DIAGNOSIS FOR SYSTEM BRC-41
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
Steering Angle Sensor CircuitNFS000NN
DTC C1143, C1156
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagnostic results.
Is the above displayed in the self-diagnosis item?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK CONNECTOR
1. Disconnect steering angle sensor connector and ABS actuator and electric unit (control unit) connector and check terminals for deformation, disconnection, looseness, and so on. If any malfunction is found,
repair or replace terminal.
2. Reconnect connectors and perform an ABS actuator and electric unit (control unit) self-diagnosis again.
OK or NG
OK >> Connector terminal contact is loose, damaged, open or shorted.
NG >> GO TO 3.
3. CHECK STEERING ANGLE SENSOR HARNESS
1. Check CAN communication circuit. Refer to BRC-52, "
CAN Communication Circuit" .
2. Turn ignition switch OFF and disconnect steering angle sensor connector M14.
3. Check continuity between steering angle sensor harness con- nector and ground.
4. Check voltage between steering angle sensor harness connec- tor and ground.
OK or NG
OK >> GO TO 4.
NG >> If the open or short in harness, repair or replace har- ness.
Self-diagnostic results
ST ANG SEN CIRCUIT
ST ANG SEN COM CIR
Steering angle sensor Ground Continuity 2—Yes
SFIA1189E
Steering angle sensor Ground Voltage
3— Battery voltage
(Approx. 12 V)
SFIA1190E

BRC-42
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2006 July 2007 FX35/FX45
4. CHECK STEERING WHEEL PLAY
Check steering wheel play. Refer to PS-10, "
CHECKING STEERING WHEEL PLAY" .
OK or NG
OK >> GO TO 5
NG >> Adjust steering wheel play.
5. PERFORM DATA MONITOR
1. Connect steering angle sensor and ABS actuator and electric unit (control unit) connectors.
2. Perform “DATA MONITOR” of the “STEERING ANGLE SIGNAL” to check if the status is normal.
OK or NG
OK >> Perform ABS actuator and electric unit (control unit) self-diagnosis again.
NG >> Replace steering angle sensor and adjust neutral position of steering angle sensor. Refer to BRC-
6, "Adjustment of Steering Angle Sensor Neutral Position" .
Yaw Rate/Side G Sensor (2WD Models), Yaw Rate/Side/Decel G Sensor (AWD
Models) Circuit
NFS000NO
DTC C1113, C1145, C1146
CAUTION:
Sudden turns (such as spin turns, acceleration turns), drifting, etc. may cause the G sensor circuit
indicate a malfunction. However, this is not a malfunction, if normal operation can be resumed after
restarting engine.
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Check the self-diagnostic results.
CAUTION:
When on a turntable, such as at a parking structure entrance, or when on a moving object with engine
running, VDC OFF indicator lamp might turn on and self-diagnosis using CONSULT-II the yaw rate sen-
sor system might be displayed, but in this case there is no malfunction in yaw rate sensor circuit. As
soon as vehicle leaves turntable or moving object, restart engine to return the system to normal.
Is the above displayed in the self-diagnosis display items?
YES >> GO TO 2.
NO >> INSPECTION END
Steering condition Data monitor display
Straight-ahead -3.5 deg - +3.5 deg
Turn wheel to the right by 90 °. Approx. -90 deg
Turn wheel to the left by 90 °. Approx. +90 deg
Self-diagnostic results
YAW RATE SENSOR
SIDE G-SEN CIRCUIT
G-SENSOR (AWD models)

TROUBLE DIAGNOSIS FOR SYSTEM BRC-43
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
2. CHECK CONNECTOR
1. Disconnect G sensor connector and ABS actuator and electric unit (control unit) connector and check ter- minals for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or replace
terminal.
2. Reconnect connectors and perform a ABS actuator and electric unit (control unit) self-diagnosis again.
OK or NG
OK >> Connector terminal contact is loose, damaged, open or shorted.
NG >> GO TO 3.
3. CHECK G SENSOR HARNESS
1. Turn ignition switch OFF and disconnect G sensor connector M79 (2WD models) or M71 (AWD models) and ABS actuator
and electric unit (control unit) connector E56.
2. Check continuity between ABS actuator and electric unit (control unit) harness connector and G sensor harness connector.
OK or NG
OK >> GO TO 4.
NG >> If the open or short in harness, repair or replace harness.
4. CHECK G SENSOR
1. Connect G sensor connector and ABS actuator and electric unit (control unit) connector.
2. Use CONSULT-II “DATA MONITOR” to check if G sensor are normal.
OK or NG
OK >> Perform ABS actuator and electric unit (control unit) self-diagnosis again.
NG >> Replace malfunctioning G sensor, and then perform self-diagnosis for ABS actuator and electric unit (control unit) again.
ABS actuator and electric unit (control unit) G sensor Continuity
63
Ye s
24 5
25 1
29 2
SFIA1192E
Vehicle status Yaw rate sensor
(Data monitor standard) Side G sensor
(Data monitor standard) Decel G sensor (AWD models)
(Data monitor standard)
When stopped − 4 to + 4 deg/s
− 1.1 to + 1.1 m/s
2− 0.11 to + 0.11G
Right turn Negative value Negative value —
Left turn Positive value Positive value —
Speed up — — Negative value
Speed down — — Positive value

TROUBLE DIAGNOSIS FOR SYSTEM BRC-51
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
When “ST ANG SEN SIGNAL” Appears on Self-diagnosis Results DisplayNFS000NU
DTC C1144
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS (1)
Check self-diagnostic results.
Does anything besides
“ST ANG SEN SIGNAL” appear on self-diagnostic results display?
YES >> Inspect and repair the indicated items. Then perform self-diagnosis again.
NO >> Perform adjustment of steering angle sensor neutral position. Then GO TO 2.
2. CHECK SELF DIAGNOSIS RESULTS (2)
Turn ignition switch OFF and ON to erase self-diagnostic results, and perform ABS actuator and electric unit
(control unit) self-diagnosis again.
Does anything appear on self-diagnostic results display?
YES >> Replace steering angle sensor. Then perform adjustment of neutral position and perform self- diagnosis again.
NO >> INSPECTION END
When “DECEL G SEN SET” Appears on Self-diagnostic Results Display (AWD
Models)
NFS000NV
DTC C1160
INSPECTION PROCEDURE
1. CHECK SELF- DIAGNOSTIC RESULTS (1)
Check self-diagnostic results.
Does anything besides
“DECEL G SEN SET” appear on self-diagnostic results display?
YES >> Inspect and repair the indicated items. Then perform self-diagnosis again.
NO >> Perform calibration of decel G sensor. Then GO TO 2.
2. CHECK SELF-DIAGNOSIS RESULTS (2)
Turn ignition switch OFF and ON to erase self-diagnostic results, and perform ABS actuator and electric unit
(control unit) self-diagnosis again.
Does anything appear on self-diagnostic results display?
YES >> Replace yaw rate/side/decel G sensor. Then perform calibration of decel G sensor and perform self-diagnosis again.
NO >> INSPECTION END
Self-diagnostic results
ST ANG SEN SIGNAL
Self-diagnostic results
DECEL G SEN SET

TROUBLE DIAGNOSIS FOR SYMPTOMS BRC-53
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
TROUBLE DIAGNOSIS FOR SYMPTOMSPFP:00007
Excessive ABS Function Operation FrequencyNFS000NY
1. CHECK FRONT AND REAR AXLE
Make sure there is no excessive looseness in the front and rear axles.
OK or NG
OK >> GO TO 2.
NG >> Check front or rear axle system.
2. CHECK WHEEL SENSOR
Perform following inspection for wheel sensor:

Sensor mount and damage inspection

Sensor rotor mount and damage inspection

Sensor connector connection inspection

Sensor harness inspection
OK or NG
OK >> GO TO 3.
NG >> Replace sensor or sensor rotor.
3. CHECK ABS WARNING LAMP DISPLAY
Make sure warning lamp turns off approximately 2 seconds after the ignition switch is turned ON or when driv-
ing.
OK or NG
OK >> Normal
NG >> Perform self-diagnosis. Refer to BRC-25, "
Self-Diagnosis" .
Unexpected Pedal ReactionNFS000NZ
1. CHECK BRAKE PEDAL STROKE
Check brake pedal stroke.
Is the stroke too long?
YES >>
Bleed air from brake piping.

Check brake pedal, brake booster, and master cylinder mount for play, looseness, and brake
system for fluid leaks, etc. If any malfunctions are found, make repair.
NO >> GO TO 2.
2. CHECK FUNCTION
Disconnect ABS actuator and electric unit (control unit) connector E56 and make sure that braking force is suf-
ficient when ABS in not operating. After the inspection, reconnect connector.
OK or NG
OK >> GO TO 2. CHECK WHEEL SENSOR. Refer to BRC-53, "Excessive ABS Function Operation Fre-
quency" .
NG >> Check brake system.

BRC-54
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 July 2007 FX35/FX45
The Braking Distance is LongNFS000O0
CAUTION:
On slippery road surfaces, the stopping distance might be longer with the ABS operating than when
the ABS is not operating.
1. CHECK FUNCTION
Disconnect ABS actuator and electric unit (control unit) connector E56 to deactivate ABS. In this condition,
check stopping distance. After inspection, connect connector.
OK or NG
OK >>
Bleed air from brake piping.

Check brake system.
NG >> GO TO 2. CHECK WHEEL SENSOR. Refer to BRC-53, "
Excessive ABS Function Operation Fre-
quency" .
The ABS Function Does Not OperateNFS000O1
CAUTION:
The ABS does not operate when the speed is 10 km/h (6 MPH) or less.
1. CHECK ABS WARNING LAMP DISPLAY
Make sure warning lamp turns off approximately 2 seconds after the ignition switch is turned ON or when driv-
ing.
OK or NG
OK >> GO TO 2. CHECK WHEEL SENSOR. Refer to BRC-53, "Excessive ABS Function Operation Fre-
quency" .
NG >> Perform self-diagnosis. Refer to BRC-25, "
Self-Diagnosis" .
Pedal Vibration or ABS Operation Sound OccursNFS000O2
CAUTION:
Under the following conditions, when brake pedal is lightly depressed (just place a foot on it), ABS is
activated and vibration is felt. However, this is normal.

When shifting gears

When driving on slippery road

During cornering at high speed

When passing over bumps or grooves

When pulling away just after starting engine [at approximately 10 km/h (6 MPH) or higher]
1. SYMPTOM CHECK 1
Check if pedal vibration or operation sound occurs when engine is started.
OK or NG
OK >> Perform self-diagnosis. Refer to BRC-25, "Self-Diagnosis" .
NG >> GO TO 2.
2. SYMPTOM CHECK 2
Check symptom when electrical component (headlamps, etc.) switches are operated.
Does the symptom occur when the electrical component (head lamp, etc.) switches are operated?
YES >> Check if there is a radio, antenna, antenna lead wire, or wiring close to ABS actuator and electric unit (control unit) (or its wiring), and if there is, move it farther away.
NO >> GO TO 2. CHECK WHEEL SENSOR. Refer to BRC-53, "
Excessive ABS Function Operation Fre-
quency" .
