4. CHECK BCM FUNCTION
1. Connect security indicator lamp connector.
2. Disconnect BCM connector M3.

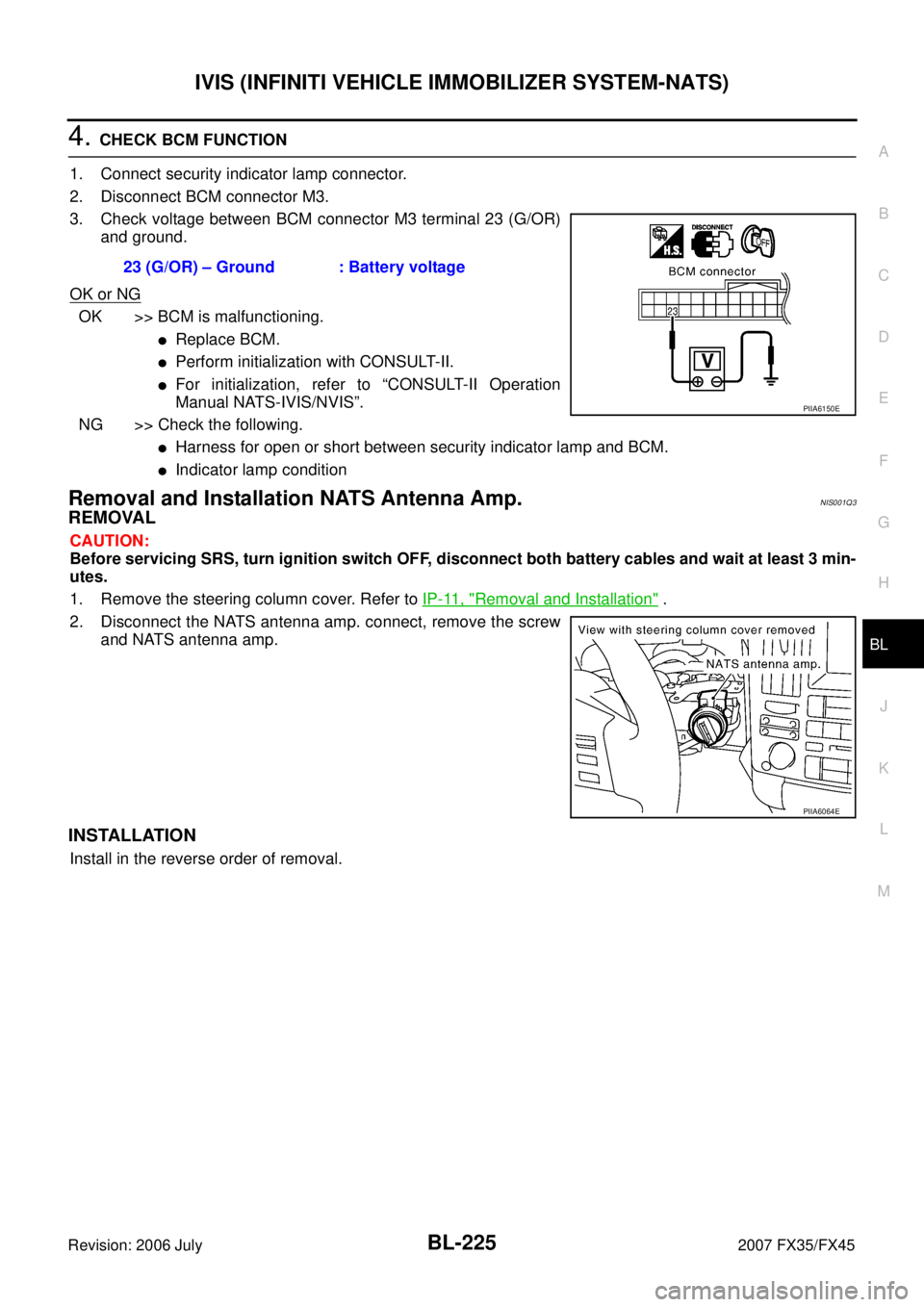

3. Check voltage between BCM connector M3 terminal 23 (G/OR) and ground.
OK or NG
OK >> BCM is malfunctioning.

Replace BCM.

Perform initialization with CONSULT-II.

For initialization, refer to “CONSULT-II Operation
Manual NATS-IVIS/NVIS”.
NG >> Check the following.

Harness for open or short between security indicator lamp and BCM.

Indicator lamp condition
Removal and Installation NATS Antenna Amp.NIS001Q3
REMOVAL
CAUTION:
Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait at least 3 min-
utes.
1. Remove the steering column cover. Refer to IP-11, "
Removal and Installation" .
2. Disconnect the NATS antenna amp. connect, remove the screw and NATS antenna amp.
INSTALLATION
Install in the reverse order of removal. 23 (G/OR) – Ground : Battery voltage
PIIA6150E
PIIA6064E

BR-1
BRAKE SYSTEM
F BRAKES
CONTENTS
C
D E
G H
I
J
K L
M
SECTION
A
B
BR
Revision: 2006 July 2007 FX35/FX45
BRAKE SYSTEM
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for Procedures without Cowl Top Cover ..... 3
Precautions for Brake System ............................. ..... 3
PREPARATION ...................................................... ..... 4
Commercial Service Tools ................................... ..... 4
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING ........................................... ..... 5
NVH Troubleshooting Chart ................................ ..... 5
BRAKE PEDAL ..................................................... ..... 6
Inspection and Adjustment .................................. ..... 6
ADJUSTMENT ................................................. ..... 6
Components ........................................................ ..... 7
Removal and Installation ..................................... ..... 7
REMOVAL ........................................................ ..... 7
INSPECTION AFTER REMOVAL .................... ..... 8
INSTALLATION ................................................ ..... 8
BRAKE FLUID ....................................................... ..... 9
On-Board Inspection ........................................... ..... 9
LEVEL CHECK ................................................ ..... 9
Drain and Refill .................................................... ..... 9
Bleeding Brake System ....................................... ... 10
BRAKE TUBE AND HOSE .................................... ....11
Hydraulic Circuit .................................................. .... 11
Removal and Installation of Front Brake Tube and
Brake Hose ......................................................... .... 11
REMOVAL ........................................................ .... 11
INSTALLATION ................................................ .... 11
Removal and Installation of Rear Brake Piping and
Brake Hose ......................................................... ... 12
REMOVAL ........................................................ ... 12
INSTALLATION ................................................ ... 12
Inspection After Installation ................................. ... 12
BRAKE MASTER CYLINDER ............................... ... 13
On-Board Inspection ........................................... ... 13
LEAK INSPECTION ......................................... ... 13
Components ........................................................ ... 13
Removal and Installation ..................................... ... 13 REMOVAL ........................................................
... 13
INSTALLATION ................................................ ... 14
Disassembly and Assembly ................................. ... 14
DISASSEMBLY ................................................ ... 14
ASSEMBLY ...................................................... ... 14
BRAKE BOOSTER ................................................ ... 15
On-Vehicle Service .............................................. ... 15
OPERATING CHECK ....................................... ... 15
AIRTIGHT CHECK ........................................... ... 15
Components ........................................................ ... 15
Removal and Installation ..................................... ... 16
REMOVAL ........................................................ ... 16
INSPECTION AFTER REMOVAL .................... ... 16
INSTALLATION ................................................ ... 16
VACUUM LINES .................................................... ... 17
Components ........................................................ ... 17
Removal and Installation ..................................... ... 17
Inspection ............................................................ ... 18
VISUAL INSPECTION ...................................... ... 18
CHECK VALVE INSPECTION .......................... ... 18
FRONT DISC BRAKE ............................................ ... 19
On-Vehicle Inspection .......................................... ... 19
PAD WEAR INSPECTION ................................ ... 19
Components ........................................................ ... 19
Removal and Installation of Brake Pad ............... ... 20
REMOVAL ........................................................ ... 20
INSTALLATION ................................................ ... 20
Removal and Installation of Brake Caliper Assembly ... 20
REMOVAL ........................................................ ... 20
INSTALLATION ................................................ ... 21
Disassembly and Assembly of Brake Caliper
Assembly ............................................................. ... 21
DISASSEMBLY ................................................ ... 21
INSPECTION AFTER DISASSEMBLY ............. ... 22
ASSEMBLY ...................................................... ... 22
DISC ROTOR INSPECTION ............................ ... 24
Brake Burnishing Procedure ................................ ... 24
REAR DISC BRAKE .............................................. ... 25
On-Vehicle Inspection .......................................... ... 25

PRECAUTIONS BR-3
C
D E
G H
I
J
K L
M A
B
BR
Revision: 2006 July 2007 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NFS000LN
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Procedures without Cowl Top CoverNFS000LO
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
Precautions for Brake SystemNFS000TE

Clean dust on front brake and rear brake with a vacuum dust collector. Do not blow with compressed air.

Recommended fluid is brake fluid “DOT 3”. MA-12, "Fluids and Lubricants" .

Do not reuse drained brake fluid.

Be careful not to splash brake fluid on painted areas.

To clean or wash all parts of master cylinder, disc brake caliper and wheel cylinder, use new brake fluid.

Do not use mineral oils such as gasoline or kerosene. They will ruin rubber parts of the hydraulic system.

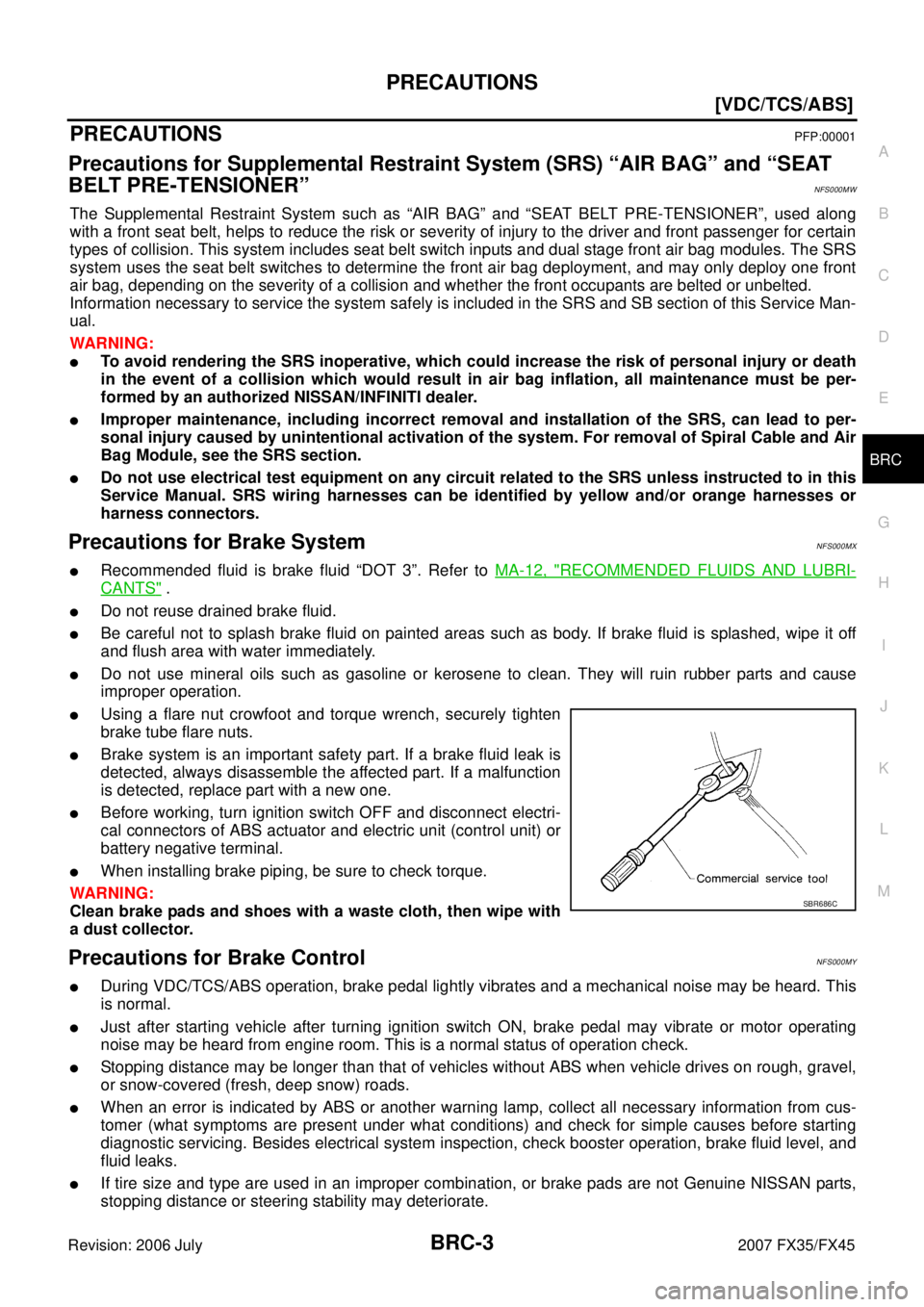

Use a flare nut crowfoot and torque wrench when installing
brake tube.

When installing brake piping, be sure to check torque.

Before working, turn ignition switch OFF and disconnect con-
nectors for ABS actuator and electric unit (control unit) or battery
negative terminal.

Burnish the brake contact surfaces after refinishing or replacing
drums or rotors, after replacing pads or linings, or if a soft pedal
occurs at very low mileage.
Refer to BR-24, "
Brake Burnishing Procedure" (Front disc
brake), BR-30, "
Brake Burnishing Procedure" (Rear disc brake).
WARNING:

Clean brake pads and shoes with a waste cloth, then clean with a dust collector.
PIIB3706J
SBR686C

BRC-1
BRAKE CONTROL SYSTEM
F BRAKES
CONTENTS
C
D E
G H
I
J
K L
M
SECTION
A
B
BRC
Revision: 2006 July 2007 FX35/FX45
BRAKE CONTROL SYSTEM
VDC/TCS/ABS
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for Brake System ............................. ..... 3
Precautions for Brake Control ............................. ..... 3
PREPARATION ...................................................... ..... 5
Special Service Tools .......................................... ..... 5
Commercial Service Tools ................................... ..... 5
ON-VEHICLE SERVICE ........................................ ..... 6
Adjustment of Steering Angle Sensor Neutral Posi-
tion ...................................................................... ..... 6
Calibration of Decel G Sensor (AWD Models) .... ..... 7
SYSTEM DESCRIPTION ....................................... ..... 8
System Diagram .................................................. ..... 8
Functions ............................................................. ..... 8
VDC .................................................................. ..... 8
TCS .................................................................. ..... 8
ABS .................................................................. ..... 9
EBD .................................................................. ..... 9
Fail-Safe Function ............................................... ..... 9
VDC / TCS SYSTEM ........................................ ..... 9
ABS, EBD SYSTEM ......................................... ..... 9
Hydraulic Circuit Diagram ................................... ... 10
CAN Communication ........................................... ... 10
SYSTEM DESCRIPTION ................................. ... 10
TROUBLE DIAGNOSIS ......................................... ....11
Fail-Safe Function ............................................... .... 11
VDC/TCS SYSTEM .......................................... .... 11
ABS, EBD SYSTEM ......................................... .... 11
How to Proceed with Diagnosis .......................... .... 11
BASIC CONCEPT ............................................ .... 11
DIAGNOSIS FLOWCHART ............................. ... 12
ASKING COMPLAINTS ................................... ... 13
EXAMPLE OF DIAGNOSIS SHEET ................ ... 13
Component Installation Location ......................... ... 14
Schematic ........................................................... ... 15
Wiring Diagram — VDC — .................................. ... 16
Control Unit Input/Output Signal Standard .......... ... 22 REFERENCE VALUE FROM CONSULT-II ......
... 22
CONSULT-II Functions (ABS) ............................. ... 24
CONSULT-II MAIN FUNCTION ........................ ... 24
CONSULT-II SETTING PROCEDURE ............. ... 24
Self-Diagnosis ..................................................... ... 25
DESCRIPTION ................................................. ... 25
OPERATION PROCEDURE ............................. ... 25
ERASE MEMORY ............................................ ... 25
DISPLAY ITEM LIST ........................................ ... 26
Data Monitor ........................................................ ... 29
OPERATION PROCEDURE ............................. ... 29
DISPLAY ITEM LIST ........................................ ... 29
Active Test ........................................................... ... 31
OPERATION PROCEDURE ............................. ... 31
TEST ITEM ....................................................... ... 32
For Fast and Accurate Diagnosis ........................ ... 33
PRECAUTIONS FOR DIAGNOSIS .................. ... 33
Basic Inspection .................................................. ... 34
BRAKE FLUID AMOUNT, LEAKS, AND BRAKE
PADS INSPECTION ......................................... ... 34
POWER SYSTEM TERMINAL LOOSENESS
AND BATTERY INSPECTION .......................... ... 34
ABS WARNING LAMP, VDC OFF INDICATOR
LAMP, SLIP INDICATOR LAMP AND BRAKE
WARNING LAMP INSPECTION ...................... ... 34
TROUBLE DIAGNOSIS FOR SYSTEM ................. ... 36
Wheel Sensor Circuit ........................................... ... 36
INSPECTION PROCEDURE ........................... ... 36
Engine System .................................................... ... 38
INSPECTION PROCEDURE ........................... ... 38
VDC/TCS/ABS Control Unit Circuit ..................... ... 38
INSPECTION PROCEDURE ........................... ... 38
Pressure Sensor Circuit ....................................... ... 39
INSPECTION PROCEDURE ........................... ... 39
Steering Angle Sensor Circuit .............................. ... 41
INSPECTION PROCEDURE ........................... ... 41
Yaw Rate/Side G Sensor (2WD Models), Yaw Rate/
Side/Decel G Sensor (AWD Models) Circuit ........ ... 42
INSPECTION PROCEDURE ........................... ... 42
Solenoid and VDC Change-Over Valve Circuit ... ... 44

PRECAUTIONS BRC-3
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
[VDC/TCS/ABS]PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NFS000MW
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Brake SystemNFS000MX

Recommended fluid is brake fluid “DOT 3”. Refer to MA-12, "RECOMMENDED FLUIDS AND LUBRI-
CANTS" .

Do not reuse drained brake fluid.

Be careful not to splash brake fluid on painted areas such as body. If brake fluid is splashed, wipe it off
and flush area with water immediately.

Do not use mineral oils such as gasoline or kerosene to clean. They will ruin rubber parts and cause
improper operation.

Using a flare nut crowfoot and torque wrench, securely tighten
brake tube flare nuts.

Brake system is an important safety part. If a brake fluid leak is
detected, always disassemble the affected part. If a malfunction
is detected, replace part with a new one.

Before working, turn ignition switch OFF and disconnect electri-
cal connectors of ABS actuator and electric unit (control unit) or
battery negative terminal.

When installing brake piping, be sure to check torque.
WARNING:
Clean brake pads and shoes with a waste cloth, then wipe with
a dust collector.
Precautions for Brake ControlNFS000MY

During VDC/TCS/ABS operation, brake pedal lightly vibrates and a mechanical noise may be heard. This
is normal.

Just after starting vehicle after turning ignition switch ON, brake pedal may vibrate or motor operating
noise may be heard from engine room. This is a normal status of operation check.

Stopping distance may be longer than that of vehicles without ABS when vehicle drives on rough, gravel,
or snow-covered (fresh, deep snow) roads.

When an error is indicated by ABS or another warning lamp, collect all necessary information from cus-
tomer (what symptoms are present under what conditions) and check for simple causes before starting
diagnostic servicing. Besides electrical system inspection, check booster operation, brake fluid level, and
fluid leaks.

If tire size and type are used in an improper combination, or brake pads are not Genuine NISSAN parts,
stopping distance or steering stability may deteriorate.
SBR686C

STEERING ANGLE SENSOR BRC-63
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
STEERING ANGLE SENSORPFP:25554
Removal and InstallationNFS000O8
REMOVAL
1. Remove spiral cable assembly. Refer to SRS-44, "SPIRAL CABLE" .
2. Remove steering angle sensor from spiral cable assembly.
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
After work, make sure to adjust neutral position of steering angle sensor. Refer to BRC-6, "
Adjustment
of Steering Angle Sensor Neutral Position" .

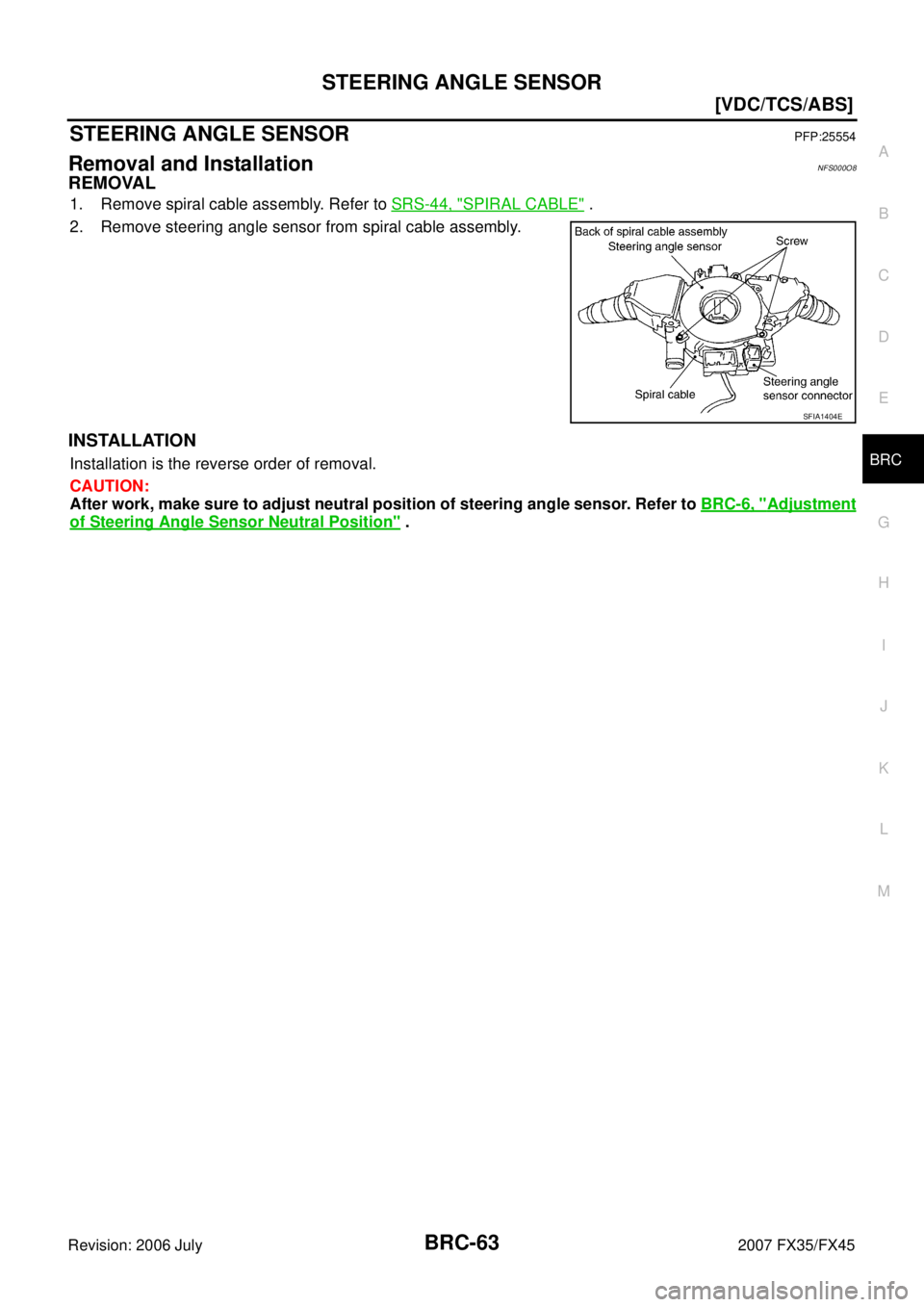

SFIA1404E

CO-1
ENGINE COOLING SYSTEM
B ENGINE
CONTENTS
C
D E
F
G H
I
J
K L
M
SECTION
A
CO
Revision: 2006 July 2007 FX35/FX45
ENGINE COOLING SYSTEM
VQ35DE
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for Liquid Gasket ............................. ..... 3
REMOVAL OF LIQUID GASKET SEALING ..... ..... 3
LIQUID GASKET APPLICATION PROCEDURE ..... 3
PREPARATION ...................................................... ..... 5
Special Service Tools .......................................... ..... 5
Commercial Service Tools ................................... ..... 6
OVERHEATING CAUSE ANALYSIS ..................... ..... 7
Troubleshooting Chart ......................................... ..... 7
COOLING SYSTEM ............................................... ..... 9
Cooling Circuit ..................................................... ..... 9
System Chart ...................................................... ... 10
ENGINE COOLANT ............................................... ....11
Inspection ............................................................ .... 11
LEVEL CHECK ................................................ .... 11
LEAK CHECK .................................................. .... 11
Changing Engine Coolant ................................... .... 11
DRAINING ENGINE COOLANT ...................... .... 11
REFILLING ENGINE COOLANT ..................... ... 12
FLUSHING COOLING SYSTEM ...................... ... 13
RADIATOR ............................................................. ... 14
Components ........................................................ ... 14
Removal and Installation ..................................... ... 14
REMOVAL ........................................................ ... 14
INSTALLATION ................................................ ... 15
INSPECTION AFTER INSTALLATION ............ ... 15
Checking Radiator Cap ....................................... ... 15
Checking Radiator ............................................... ... 16
RADIATOR (ALUMINUM TYPE) ........................... ... 17
Components ........................................................ ... 17
Disassembly and Assembly ................................ ... 17
PREPARATION ................................................ ... 17
DISASSEMBLY ................................................ ... 17
ASSEMBLY ...................................................... ... 18
INSPECTION ................................................... ... 20 COOLING FAN .......................................................
... 21
Components ........................................................ ... 21
Removal and Installation ..................................... ... 21
REMOVAL ........................................................ ... 21
INSTALLATION ................................................ ... 21
INSPECTION AFTER INSTALLATION ............. ... 21
Disassembly and Assembly ................................. ... 21
DISASSEMBLY ................................................ ... 21
INSPECTION AFTER DISASSEMBLY ............. ... 21
ASSEMBLY ...................................................... ... 21
WATER PUMP ....................................................... ... 22
Components ........................................................ ... 22
Removal and Installation ..................................... ... 22
REMOVAL ........................................................ ... 22
INSPECTION AFTER REMOVAL .................... ... 24
INSTALLATION ................................................ ... 24
INSPECTION AFTER INSTALLATION ............. ... 26
WATER INLET AND THERMOSTAT ASSEMBLY . ... 27
Components ........................................................ ... 27
Removal and Installation ..................................... ... 27
REMOVAL ........................................................ ... 27
INSPECTION AFTER REMOVAL .................... ... 28
INSTALLATION ................................................ ... 28
INSPECTION AFTER INSTALLATION ............. ... 28
WATER OUTLET AND WATER PIPING ................ ... 29
Components ........................................................ ... 29
Removal and Installation ..................................... ... 29
REMOVAL ........................................................ ... 29
INSTALLATION ................................................ ... 30
INSPECTION AFTER INSTALLATION ............. ... 30
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 31
Standard and Limit ............................................... ... 31
ENGINE COOLANT CAPACITY (APPROXI-
MATE) ............................................................... ... 31
RADIATOR ....................................................... ... 31
THERMOSTAT ................................................. ... 31

CO-2Revision: 2006 July 2007 FX35/FX45
VK45DE
PRECAUTIONS ......................................................... 32
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .............................................................. ... 32
PREPARATION ...................................................... ... 33
Special Service Tools .......................................... ... 33
Commercial Service Tools ................................... ... 33
OVERHEATING CAUSE ANALYSIS ..................... ... 34
Troubleshooting Chart ......................................... ... 34
COOLING SYSTEM ............................................... ... 36
Cooling Circuit ..................................................... ... 36
System Chart ....................................................... ... 37
ENGINE COOLANT ............................................... ... 38
Inspection ............................................................ ... 38
LEVEL CHECK ................................................. ... 38
LEAK CHECK ................................................... ... 38
Changing Engine Coolant .................................... ... 38
DRAINING ENGINE COOLANT ....................... ... 38
REFILLING ENGINE COOLANT ...................... ... 39
FLUSHING COOLING SYSTEM ...................... ... 40
RADIATOR ............................................................. ... 41
Components ........................................................ ... 41
Removal and Installation ..................................... ... 41
REMOVAL ........................................................ ... 41
INSTALLATION ................................................. ... 43
INSPECTION AFTER INSTALLATION ............. ... 43
Checking Radiator Cap ....................................... ... 43
Checking Radiator ............................................... ... 44
RADIATOR (ALUMINUM TYPE) ............................ ... 45
Components ........................................................ ... 45
Disassembly and Assembly ................................. ... 45
PREPARATION ................................................ ... 45
DISASSEMBLY ................................................ ... 45
ASSEMBLY ...................................................... ... 46
INSPECTION .................................................... ... 48 COOLING FAN .......................................................
... 49
Components (Crankshaft Driven type) ................. ... 49
Removal and Installation ...................................... ... 49
REMOVAL ......................................................... ... 49
INSPECTION AFTER REMOVAL ..................... ... 49
INSTALLATION ................................................. ... 49
Components (Motor Driven Type) ........................ ... 50
Removal and Installation ...................................... ... 50
REMOVAL ......................................................... ... 50
INSTALLATION ................................................. ... 50
Disassembly and Assembly (Motor Driven Type) ... 50 DISASSEMBLY ................................................. ... 50
INSPECTION AFTER DISASSEMBLY ............. ... 50
ASSEMBLY ....................................................... ... 50
WATER PUMP ........................................................ ... 51
Components ......................................................... ... 51
Removal and Installation ...................................... ... 51
REMOVAL ......................................................... ... 51
INSPECTION AFTER REMOVAL ..................... ... 52
INSTALLATION ................................................. ... 52
INSPECTION AFTER INSTALLATION ............. ... 52
THERMOSTAT AND WATER CONTROL VALVE .. ... 53
Components ......................................................... ... 53
Removal and Installation ...................................... ... 54
REMOVAL ......................................................... ... 54
INSPECTION AFTER REMOVAL ..................... ... 54
INSTALLATION ................................................. ... 54
INSPECTION AFTER INSTALLATION ............. ... 55
SERVICE DATA AND SPECIFICATIONS (SDS) ... ... 56
Standard and Limit ............................................... ... 56
ENGINE COOLANT CAPACITY (APPROXI-
MATE) ............................................................... ... 56
RADIATOR ........................................................ ... 56
THERMOSTAT .................................................. ... 56
WATER CONTROL VALVE ............................... ... 56
