GI-18
HOW TO USE THIS MANUAL
Revision: 2006 July 2007 FX35/FX45

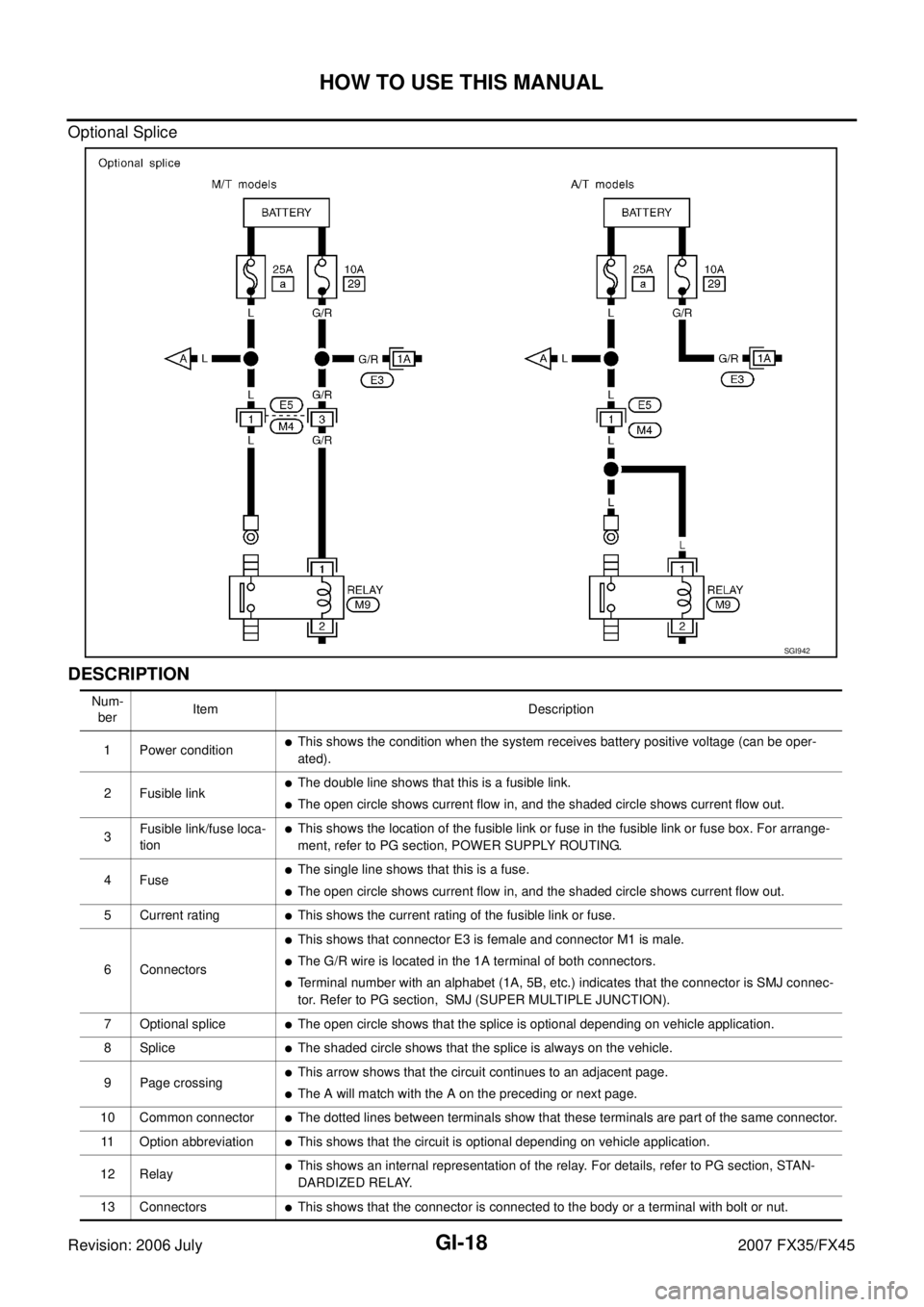

Optional Splice
DESCRIPTION
SGI942
Num-
ber Item Description
1 Power condition

This shows the condition when the system receives battery positive voltage (can be oper-
ated).
2 Fusible link

The double line shows that this is a fusible link.

The open circle shows current flow in, and the shaded circle shows current flow out.
3 Fusible link/fuse loca-
tion

This shows the location of the fusible link or fuse in the fusible link or fuse box. For arrange-
ment, refer to PG section, POWER SUPPLY ROUTING.
4Fuse

The single line shows that this is a fuse.

The open circle shows current flow in, and the shaded circle shows current flow out.
5 Current rating

This shows the current rating of the fusible link or fuse.
6 Connectors

This shows that connector E3 is female and connector M1 is male.

The G/R wire is located in the 1A terminal of both connectors.

Terminal number with an alphabet (1A, 5B, etc.) indicates that the connector is SMJ connec-
tor. Refer to PG section, SMJ (SUPER MULTIPLE JUNCTION).
7 Optional splice

The open circle shows that the splice is optional depending on vehicle application.
8 Splice

The shaded circle shows that the splice is always on the vehicle.
9 Page crossing

This arrow shows that the circuit continues to an adjacent page.

The A will match with the A on the preceding or next page.
10 Common connector

The dotted lines between terminals show that these terminals are part of the same connector.
11 Option abbreviation

This shows that the circuit is optional depending on vehicle application.
12 Relay

This shows an internal representation of the relay. For details, refer to PG section, STAN-
DARDIZED RELAY.
13 Connectors

This shows that the connector is connected to the body or a terminal with bolt or nut.

HOW TO USE THIS MANUAL GI-19
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2006 July 2007 FX35/FX45
14 Wire color

This shows a code for the color of the wire.
B = Black
W = White
R = Red
G = Green
L = Blue
Y = Yellow
LG = Light Green BR = Brown
OR or O = Orange
P = Pink
PU or V (Violet) = Purple
GY or GR = Gray
SB = Sky Blue
CH = Dark Brown
DG = Dark Green
When the wire color is striped, the base color is given first, followed by the stripe color as shown
below:
Example: L/W = Blue with White Stripe
15 Option description

This shows a description of the option abbreviation used on the page.
16 Switch

This shows that continuity exists between terminals 1 and 2 when the switch is in the A posi-
tion. Continuity exists between terminals 1 and 3 when the switch is in the B position.
17 Assembly parts

Connector terminal in component shows that it is a harness incorporated assembly.
18 Cell code

This identifies each page of the wiring diagram by section, system and wiring diagram page
number.
19 Current flow arrow

Arrow indicates electric current flow, especially where the direction of standard flow (vertically
downward or horizontally from left to right) is difficult to follow.

A double arrow “ ” shows that current can flow in either direction depending on cir-
cuit operation.
20 System branch

This shows that the system branches to another system identified by cell code (section and
system).
21 Page crossing

This arrow shows that the circuit continues to another page identified by cell code.

The C will match with the C on another page within the system other than the next or preced-
ing pages.
22 Shielded line

The line enclosed by broken line circle shows shield wire.
23 Component box in
wave line

This shows that another part of the component is also shown on another page (indicated by
wave line) within the system.
24 Component name

This shows the name of a component.
25 Connector number

This shows the connector number.

The letter shows which harness the connector is located in.

Example: M : main harness. For detail and to locate the connector, refer to PG section "Main
Harness", “Harness Layout”. A coordinate grid is included for complex harnesses to aid in
locating connectors.
26 Ground (GND)

The line spliced and grounded under wire color shows that ground line is spliced at the
grounded connector.
27 Ground (GND)

This shows the ground connection. For detailed ground distribution information, refer to
"Ground Distribution" in PG section.
28 Connector views

This area shows the connector faces of the components in the wiring diagram on the page.
29 Common component

Connectors enclosed in broken line show that these connectors belong to the same compo-
nent.
30 Connector color

This shows a code for the color of the connector. For code meaning, refer to wire color codes,
Number 14 of this chart.
31 Fusible link and fuse
box

This shows the arrangement of fusible link(s) and fuse(s), used for connector views of
"POWER SUPPLY ROUTING" in PG section.
The open square shows current flow in, and the shaded square shows current flow out.
32 Reference area

This shows that more information on the Super Multiple Junction (SMJ) and Joint Connectors
(J/C) exists on the PG section. Refer to "Reference Area" for details.
Num-
ber Item Description

GW-16
POWER WINDOW SYSTEM
Revision: 2006 July 2007 FX35/FX45
System DescriptionNIS001QQ
Power is supplied at all time

through 50A fusible link (letter M , located in the fuse and fusible link box)

to BCM terminal 55, and

through BCM terminal 54

to power window main switch terminal 19

to front power window switch (passenger side) terminal 10.

through 15A fuse [No. 22, located in the fuse block (J/B)]

to BCM terminal 42.
With ignition switch in ON or START position,
Power is supplied

through 15A fuse [No. 1 , located in the fuse block (J/B)]

to BCM terminal 38, and

trough BCM terminal 53

to power window main switch terminal 10

to rear power window switch (LH and RH) terminal 1.
Ground supplied

to BCM terminal 49 and 52

through body grounds M35, M45 and M85.

to power window main switch terminal 17

through body grounds M35, M45 and M85.

to front power window switch (passenger side) terminal 11

through body grounds M35, M45 and M85.
MANUAL OPERATION
Front Driver Side Door
WINDOW UP
When the front LH switch in the power window main switch is pressed in the up position,
Power is supplied

through power window main switch terminal 8

to front power window motor (driver side) terminal 2.
Ground is supplied

to front power window motor (driver side) terminal 1

through power window main switch terminal 11.
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the front LH switch in the power window main switch is pressed in the down position
Power is supplied

through power window main switch terminal 11

to front power window motor (driver side) terminal 1.
Ground is supplied

to front power window motor (driver side) terminal 2

through power window main switch terminal 8.
Then, the motor lowers the window until the switch is released.
Front Passenger Side Door
FRONT POWER WINDOW SWITCH (PASSENGER SIDE) OPERATION
WINDOW UP
When the front power window switch (passenger side) is pressed in the up position
Power is supplied

through front power window switch (passenger side) terminal 8

to front power window motor (passenger side) terminal 2.

GW-32
POWER WINDOW SYSTEM
Revision: 2006 July 2007 FX35/FX45
Check BCM Power Supply and Ground CircuitNIS001R7
1. CHECK FUSE

Check 15A fuse [No. 1, located in fuse block (J/B)]

Check 15A fuse [No. 22, located in fuse block (J/B)]

Check 50A fusible link (letter M , located in the fuse and fusible link box).
NOTE:
Refer to GW-15, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to
PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
Check voltage between BCM connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check BCM power supply circuit for open or short.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM connector M4 terminal 49, 52 and ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Check BCM ground circuit for open or short.
Connector Terminal (Wire color)
Condition of
ignition switch Voltage [V]
(Approx.)
(+) (–)
M3 38 (W/L) Ground ON
Battery
voltage
M4 42 (L/R)
OFF
55 (G)
PIIB1383E
49 (B) – Ground : Continuity should exist.
52 (B) – Ground : Continuity should exist.
PIIA6161E

REAR WINDOW DEFOGGER GW-67
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 July 2007 FX35/FX45
REAR WINDOW DEFOGGERPFP:25350
Component Parts and Harness Connector LocationNIS001S0
System DescriptionNIS001S1
The rear window defogger system is controlled by BCM (Body Control Module) and IPDM E/R (Intelligent
Power Distribution Module Engine Room).
The rear window defogger operates only for approximately 15 minutes.
Power is at all times supplied

through 20A fuse [No. 75, located in the IPDM E/R]

to rear window defogger relay terminals 3,

through 20A fuse [No. 80, located in the IPDM E/R]

to rear window defogger relay terminals 6,

through 15A fuse [No. 32, located in the fuse block (J/B)]

to A/C and AV switch terminal 1,

through 50A fusible link (letter M , located in the fuse and fusible link box)

to BCM terminal 55,

through 15A fuse [No. 22, located in the fuse block (J/B)]

to BCM terminal 42.
With the ignition switch turned to ON or START position,
Power is supplied

through 15A fuse [No. 1, located in the fuse block (J/B)]

to BCM terminal 38.

through 10A fuse [No. 12, located in the fuse block]
1. a: Fusible link 50A letter M
b: Fuse 15A No.32 2. a: Fuse block (J/B) M1, M2, E201
b: BCM M3, M4 3. IPDM E/R E4, E8, E9
4. Rear window defogger relay E13 5. A/C and AV switch M64 (Rear window defogger switch) 6. a: Rear window defogger D104
b: Rear window defogger D114
PIIB8568E

REAR WINDOW DEFOGGER GW-77
C
D E
F
G H
J
K L
M A
B
GW
Revision: 2006 July 2007 FX35/FX45
Check BCM Power Supply and Ground Circuit NIS001SB
First perform the “SELF-DIAG RESULTS” in “BCM” with CONSULT-II, when perform the each trouble
diagnosis. Refer to BCS-13, "
CAN Communication Inspection Using CONSULT-II (Self-Diagnosis)" .
1. CHECK FUSE

Check 15A fuse [No.1, located in the fuse block (J/B)]

Check 15A fuse [No.22, located in the fuse block (J/B)]

Check 50A fusible link (letter M located in the fuse and fusible link box).
NOTE:
Refer to GW-67, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown out, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between BCM connector M3, M4 terminal 38, 42, 55 and ground.
OK or NG
OK >> GO TO 3.
NG >> Check BCM power supply circuit for open or short.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check continuity between BCM connector M4 terminal 49, 52 and ground.
OK or NG
OK >> Power supply and ground circuit are OK.
NG >> Check BCM ground circuit for open or short. 38 (W/L) – Ground : Battery voltage
42 (L/R) – Ground : Battery voltage
55 (G) – Ground : Battery voltage
PIIA6160E
49 (B) – Ground : Continuity should exist.
52 (B) – Ground : Continuity should exist.
PIIA6161E

IDX-4
ALPHABETICAL INDEX
Electrical units location ...................................... PG-67
Electronic ignition (EI) system ............. EC-32, EC-694
Engine control circuit diagram ......................... EC-107
Engine control component parts location ......... EC-100
Engine control module (ECM) .......... EC-480, EC-1148
Engine control system diagram ........... EC-29, EC-691
Engine coolant temperature sensor (ECTS) ... EC-209,
EC-221
, EC-880, EC-893
Engine coolant(VK45DE) .................................. CO-38
Engine coolant(VQ35DE) ................................. CO-11
Engine fail-safe system ...................................... EC-95
Engine oil filter replacement ............................. MA-26
Engine oil filter replacement(VQ35DE) ............. MA-19
Engine oil precautions .......................................... GI-8
Engine oil replacement(VQ35DE) ..................... MA-18
Engine oil(VK45DE) ........................................... LU-25
Engine oil(VQ35DE) ............................................ LU-7
Engine removal(VK45DE) ............................... EM-243
Engine removal(VQ35DE) .............................. EM-113
Engine room cover(VK45DE) ......................... EM-173
ETC1 - Wiring diagram .................... EC-564, EC-1245
ETC2 - Wiring diagram .................... EC-559, EC-1240
ETC3 - Wiring diagram .................... EC-570, EC-1252
EVAP canister ...................................... EC-41, EC-703
EVAP canister purge volume control solenoid valve ....
EC-396
, EC-404, EC-1065, EC-1073
EVAP canister vent control valve ...... EC-411, EC-418,
EC-1080
, EC-1087
EVAP control system (small leak) diagnosis .. EC-387,
EC-449
, EC-1056, EC-1118
EVAP control system pressure sensor ........... EC-424,
EC-427
, EC-433, EC-1093, EC-1096, EC-1102
EVAP control system purge flow monitoring diagnosis
EC-382
, EC-1051
EVAP vapor lines inspection ................. MA-21, MA-28
Evaporative emission (EVAP) system . EC-38, EC-700
Evaporator ..................................................... ATC-154
Exhaust manifold(VK45DE) ............................ EM-183
Exhaust manifold(VQ35DE) .............................. EM-26
Exhaust system ................................................... EX-3
Exhaust system inspection ..................... EX-3, MA-29
Expansion valve ............................................. ATC-155
F
F/PUMP - Wiring diagram ................ EC-637
, EC-1319
Final drive pre-inspection .................. FFD-20, RFD-19
Final drive removal and installation .. FFD-13, FFD-15,
RFD-16
Floor trim ............................................................. EI-41
Flow charts ......................................................... GI-28
Fluid temperature sensor (A/T) ........................ AT-134
Fluorescent leak detector .............................. ATC-156
Freeze frame data ............................... EC-59, EC-721
Front axle ................................ FAX-4, FAX-10, RAX-5
Front brake solenoid valve ................. AT-150, AT-152
Front bumper ...................................................... EI-14
Front door ............................. BL-148, BL-152, GW-58
Front passenger air bag .................................. SRS-46
Front seat belt ...................................................... SB-4
Front seat belt pre-tensioner ..... SB-2, SRS-3, SRS-52
Front suspension .............................................. FSU-6
FTS - Wiring diagram ....................................... AT-135
FTTS - Wiring diagram .... EC-329, EC-334, EC-1000,
EC-1005
Fuel cut control (at no load high engine speed) EC-33,
EC-695
Fuel filter replacement ......................................... FL-4
Fuel gauge ............................................................ DI-5
Fuel injection system (Bank 1) ......... EC-304, EC-316,
EC-976
, EC-987
Fuel injection system (Bank 2) ......... EC-304, EC-316,
EC-976
, EC-987
Fuel injector ..................................................... EC-629
Fuel injector and fuel tube(VK45DE) .............. EM-194
Fuel injector and fuel tube(VQ35DE) ................ EM-45
Fuel level sensor EC-459, EC-461, EC-463, EC-1127,
EC-1129
, EC-1131
Fuel line inspection .................................. FL-3, MA-25
Fuel line inspection(VQ35DE) .......................... MA-17
Fuel precautions .......................................... GI-6, GI-7
Fuel pressure check ........................... EC-85, EC-747
Fuel pressure release ......................... EC-85, EC-747
Fuel pump ....................................... EC-636, EC-1318
Fuel pump and gauge .......................................... FL-4
Fuel system ......................................................... FL-3
Fuel tank ............................................................ FL-10
Fuel tank temperature sensor .......... EC-327, EC-333,
EC-998
, EC-1004
Fuel tank vacuum relief valve ............. EC-41, EC-703
FUELB1 - Wiring diagram .. EC-306, EC-318, EC-978,
EC-989
FUELB2 - Wiring diagram .. EC-308, EC-320, EC-980,
EC-991
Fuse .................................................................. PG-16
Fuse and fusible link box .................................. PG-81
Fusible link ........................................................ PG-16
G
Gauges ................................................................. DI-5
Generic scan tool (GST) .................................. EC-129
Glass ...................................... GW-11, GW-58, GW-62
Grille - See Exterior ............................................ EI-22
Ground distribution ........................................... PG-29
H
Harness connector ............................................ PG-71
Harness layout .................................................. PG-43
Headlining - See Roof trim .................................. EI-43
Heated oxygen sensor 2 (bank 1) .... EC-269, EC-280,
EC-293
, EC-941, EC-952, EC-965
Heated oxygen sensor 2 (bank 2) .... EC-269, EC-280,
EC-293
, EC-941, EC-952, EC-965
Heated oxygen sensor 2 heater (bank 1) ....... EC-172,
EC-844
Heated oxygen sensor 2 heater (bank 2) ....... EC-172,

LT-6
HEADLAMP - XENON TYPE -
Revision: 2006 July 2007 FX35/FX45
HEADLAMP - XENON TYPE -PFP:26010

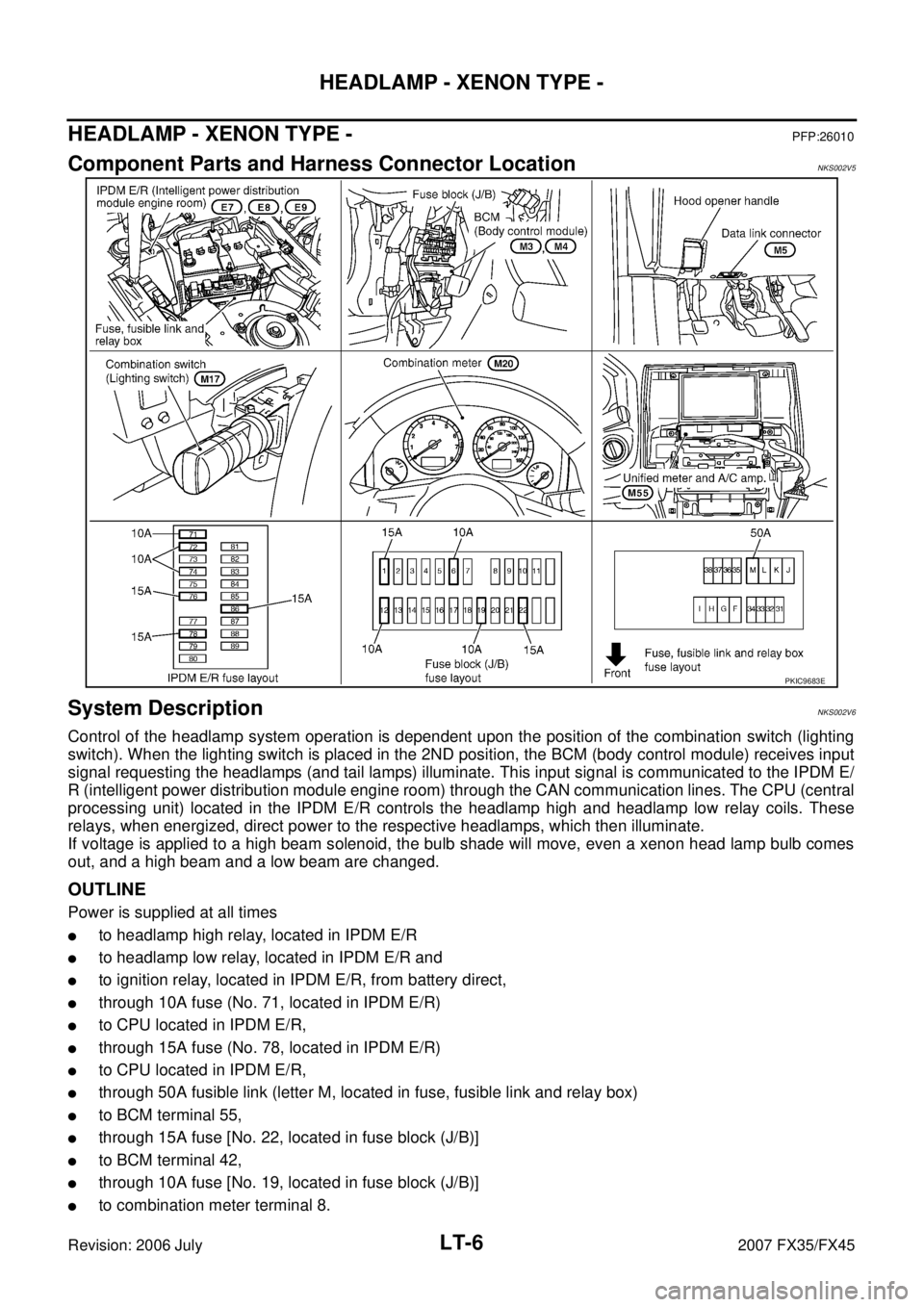

Component Parts and Harness Connector LocationNKS002V5
System DescriptionNKS002V6
Control of the headlamp system operation is dependent upon the position of the combination switch (lighting
switch). When the lighting switch is placed in the 2ND position, the BCM (body control module) receives input
signal requesting the headlamps (and tail lamps) illuminate. This input signal is communicated to the IPDM E/
R (intelligent power distribution module engine room) through the CAN communication lines. The CPU (central
processing unit) located in the IPDM E/R controls the headlamp high and headlamp low relay coils. These
relays, when energized, direct power to the respective headlamps, which then illuminate.
If voltage is applied to a high beam solenoid, the bulb shade will move, even a xenon head lamp bulb comes
out, and a high beam and a low beam are changed.
OUTLINE
Power is supplied at all times

to headlamp high relay, located in IPDM E/R

to headlamp low relay, located in IPDM E/R and

to ignition relay, located in IPDM E/R, from battery direct,

through 10A fuse (No. 71, located in IPDM E/R)

to CPU located in IPDM E/R,

through 15A fuse (No. 78, located in IPDM E/R)

to CPU located in IPDM E/R,

through 50A fusible link (letter M, located in fuse, fusible link and relay box)

to BCM terminal 55,

through 15A fuse [No. 22, located in fuse block (J/B)]

to BCM terminal 42,

through 10A fuse [No. 19, located in fuse block (J/B)]

to combination meter terminal 8.
PKIC9683E
