Screen Is not Shown (Sounds Come Out of Both an Audio Speaker and a Head
Phone)
NKS003E9
1. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and DVD display connectors.
3. Check continuity between DVD player harness connector B19 terminals 23, 24 and DVD display harness connector B61 termi-
nals 7, 8.
4. Check continuity between DVD player harness connector B19 terminals 23, 24 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.
2. CHECK VIDEO SIGNAL
1. Connect DVD player and DVD display connectors.
2. Turn ignition switch ACC.
3. Check the signal between DVD player harness connector B19 terminal 23 and 24 with CONSULT-II or oscilloscope.
OK or NG
OK >> GO TO 3.
NG >> Replace DVD player.
3. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and DVD display connectors.
3. Check continuity between DVD player harness connector B19 terminal 29 and DVD display harness connector B61 terminal
13.
4. Check continuity between DVD player harness connector B19 terminal 29 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector. 23 – 7 : Continuity should exist.
24 – 8 : Continuity should exist.
23, 24 – Ground : Continuity should not exist.
SKIA7044E
Terminal Condition Reference value
(+) (–)
23 24 Play DVD video
SKIA7050E
SKIA8863J
29 – 13 : Continuity should exist.
29 – Ground : Continuity should not exist.
SKIB0333E

AV-168
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2006 July 2007 FX35/FX45
4. CHECK DATA (DVD – LCD) SIGNAL
1. Connect DVD display and DVD player connectors.
2. Turn ignition switch ACC.
3. Check voltage between DVD display harness connector B61 ter- minal 13 and ground.
OK or NG
OK >> Replace DVD display.
NG >> Replace DVD player.
Head Phone Does Not SoundNKS003EA
1. CHECK HEAD PHONE AND SIGNAL
Check the inspection items below to diagnose the malfunction.

Check that the signal is received at the rear seat.

Check that transmission part has any seals or dirt that interrupts
signal.

Check that the head phone battery has run down.
OK or NG
OK >> GO TO 2.
NG >>

Receive signal with head phone at the rear seat.

Remove seal or dirt that is interrupting signal.

If the battery has run down, replace it with new one.
2. CHECK HEAD PHONE
Check that sound is heard with another head phone.
OK or NG
OK >> Replace malfunction head phone.
NG >> GO TO 3. 13 – 10:
SKIB0334E
SKIB0322E
SKIA5852E

INFINITI MOBILE ENTERTAINMENT SYSTEM AV-169
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
3. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and DVD display connectors.
3. Check continuity between DVD player harness connector B19 terminals 17, 18, 19, 20 and DVD display harness connector
B61 terminals 1, 2, 3, 4.
4. Check continuity between DVD player harness connector B19 terminals 17, 18, 19, 20 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK MES SOUND SIGNAL
1. Connect DVD player and DVD display connectors.
2. Turn the ignition switch ACC and Press “POWER” switch of DVD player.
3. Check the signal between DVD player harness connector B19 terminals 17, 18, 20 and 19 with CONSULT-II or oscilloscope.
OK or NG
OK >> Replace DVD display.
NG >> Replace DVD player.
Remote Controller Does Not WorkNKS003EB
1. CHECK DVD PLAYER OPERATION SWITCH
1. Turn ignition switch ACC.
2. Press “POWER” switch of DVD player and operate DVD player switch.
Dose the DVD player switches work?
YES >> Replace remote controller.
NO >> GO TO 2. 17 – 1 : Continuity should exist.
18 – 2 : Continuity should exist.
19 – 3 : Continuity should exist.
20 – 4 : Continuity should exist.
17, 18, 19, 20 – Ground : Continuity should not exist.
SKIA7033E
Te r m i n a l Condition Reference value
(+) (–)
17 19 Play CD or DVD video. Refer to
AV-161, "
Terminals and
Reference Value for DVD Player" .
18
20
SKIA7047E

AV-170
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2006 July 2007 FX35/FX45
2. CHECK REMOTE CONTROLLER AND SENSOR
Check the inspection items below to diagnose the malfunction.

Check that remote controller is facing to the sensor.

Check that sensor does not have any seals or dirt that is inter-
rupting signal.

Check that the remote controller battery has run down.
OK or NG
OK >> GO TO 3.
NG >>

When operating, face remote controller to the sensor.

Remove seal or dirt that is interrupting signal.

If the battery has run down, replace it with new one.
3. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and DVD display connectors.
3. Check continuity between DVD player harness connector B19 terminal 30 and DVD display harness connector B61 terminal
14.
4. Check continuity between DVD player harness connector B19 terminal 30 (BR) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK DATA (LCD – DVD) SIGNAL
1. Connect DVD display connector.
2. Turn ignition switch ACC.
3. Check the signal between DVD player harness connector B19 terminal 30 and ground.
OK or NG
OK >> Replace DVD player.
NG >> Replace DVD display.
No CD·DVD Sound From All SpeakersNKS003EC
1. VERIFY THE PHENOMENON
1. Turn ignition switch ACC.
2. Turn on the radio, receive radio program, check that the sound is heard from all the speakers.
OK or NG
OK >> GO TO 2.
NG >> Replace audio unit.
SKIA5855E
30 – 14 : Continuity should exist.
30 – Ground : Continuity should not exist.
SKIB0335E
30 – Ground:
SKIA7043E
SKIA5832E

INFINITI MOBILE ENTERTAINMENT SYSTEM AV-171
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 July 2007 FX35/FX45
2. CHECK A/C AND AV SWITCH SELF-DIAGNOSIS
A/C and AV switch self-diagnosis. Check “REAR AV” switch. Refer to AV- 8 2 , "
A/C and AV Switch Self-Diagno-
sis Function" .
OK or NG
OK >> GO TO 3.
NG >> Replace A/C and AV switch.
3. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and audio unit connectors.
3. Check continuity between DVD player harness connector M73 terminals 1, 2, 3, 4 and audio unit harness connector M65 termi-
nals 37, 39, 43, 42.
4. Check continuity between DVD player harness connector M73 terminals 1, 2, 3, 4 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK MES SOUND SIGNAL
1. Connect DVD player and audio unit connectors.
2. Turn ignition switch ACC and Press “POWER” switch of DVD player.
3. Check the signal between DVD player harness connector M73 terminals 1 and 2, 3 and 4 with CONSULT-II or oscilloscope.
OK or NG
OK >> Replace audio unit.
NG >> Replace DVD player. 1 – 37 : Continuity should exist.
2 – 39 : Continuity should exist.
3 – 43 : Continuity should exist.
4 – 42 : Continuity should exist.
1, 2, 3, 4 – Ground : Continuity should not exist.
SKIA7034E
Terminal Condition Reference value
(+) (–)
12
Play CD or DVD video.
34
SKIA7035E
SKIA8863J

AV-172
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2006 July 2007 FX35/FX45
Removal and Installation for DVD PlayerNKS003ED
REMOVAL
1. Remove center console. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove center console rear finisher. Refer to IP-12, "
(H) Center Console" .
3. Remove screws (2) with power tool and remove DVD player.
4. Remove screws (4) with power tool and remove brackets.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation for DVD Display UnitNKS003EE
REMOVAL
1. Insert cloth-covered driver into gaps between rear display cover and head lining, and remove rear display cover.
2. Press pawl on rear side and remove inner cover.
SKIA5810E
SKIA5811E
SKIA5812E
SKIA5813E

BRC-4
[VDC/TCS/ABS]
PRECAUTIONS
Revision: 2006 July 2007 FX35/FX45

If there is a radio, antenna, or antenna lead-in wire (including wiring) near control module, VDC/TCS/ABS
function may have a malfunction or error.

If aftermarket parts (car stereo, CD player, etc.) have been installed, check for incidents such as harness
pinches, open circuits, and improper wiring.

If the following components are replaced with non-genuine components or converted, VDC OFF indicator
lamp and SLIP indicator lamp may turn on or the VDC system may not operate properly. Components
related to suspension (shock absorber, strut, spring, bushing, etc.), Tires, wheels (exclude specified size),
components related to brake (pad, rotor, caliper, etc.), components related to engine (muffler, ECM, etc.),
components related to body reinforcement (roll bar, tower bar, etc.).

Driving in the condition of breakage or excessive wear of suspension, tires or components related to the
brakes may cause VDC OFF indicator lamp and SLIP indicator lamp turn on, and the VDC system may
not operate properly.

When the TCS or VDC is activated by sudden acceleration or sudden turn, some noise may occur. The
noise is a result of the normal operation of the TCS and VDC.

When driving on roads which have extreme slopes (such as mountainous roads) or high banks (such as
sharp carves on a freeway), the VDC may not operate normally, or VDC OFF indicator lamp and SLIP
indicator lamp may turn on. However, this is not a malfunction, if normal operation can be resumed after
restarting engine.

Sudden turns (such as spin turns, acceleration turns), drifting, etc. When VDC function is OFF (VDC OFF
SW ON) may cause the G sensor system indicate a malfunction. However, this is not a malfunction, if nor-
mal operation can be resumed after restarting engine.

Change 4 tires at a time. Be sure to use specified-size tires that have the same brand name and pattern.
Wheel sensor errors can be detected be self-diagnosis when tires have wide abrasion variations or the
size is different from the genuine tires.

INSTRUMENT PANEL ASSEMBLY IP-17
C
D E
F
G H
J
K L
M A
B
IP
Revision: 2006 July 2007 FX35/FX45
CENTER CONSOLE
Disassembly
1. Insert a remover into side between gaps console rear finisher and pull back to your side, and disconnect pawls below.
2. Disconnect harness connector and remove console rear finisher.
3. Insert a remover into side between gaps of console mask and pull back to your side.
4. Remove screws with power tool and remove console lid.
5. Remove screws fixing DVD player with power tool.
6. Disconnect harness connectors, and remove DVD player.
Assembly
Assemble in the reverse order of disassembly.

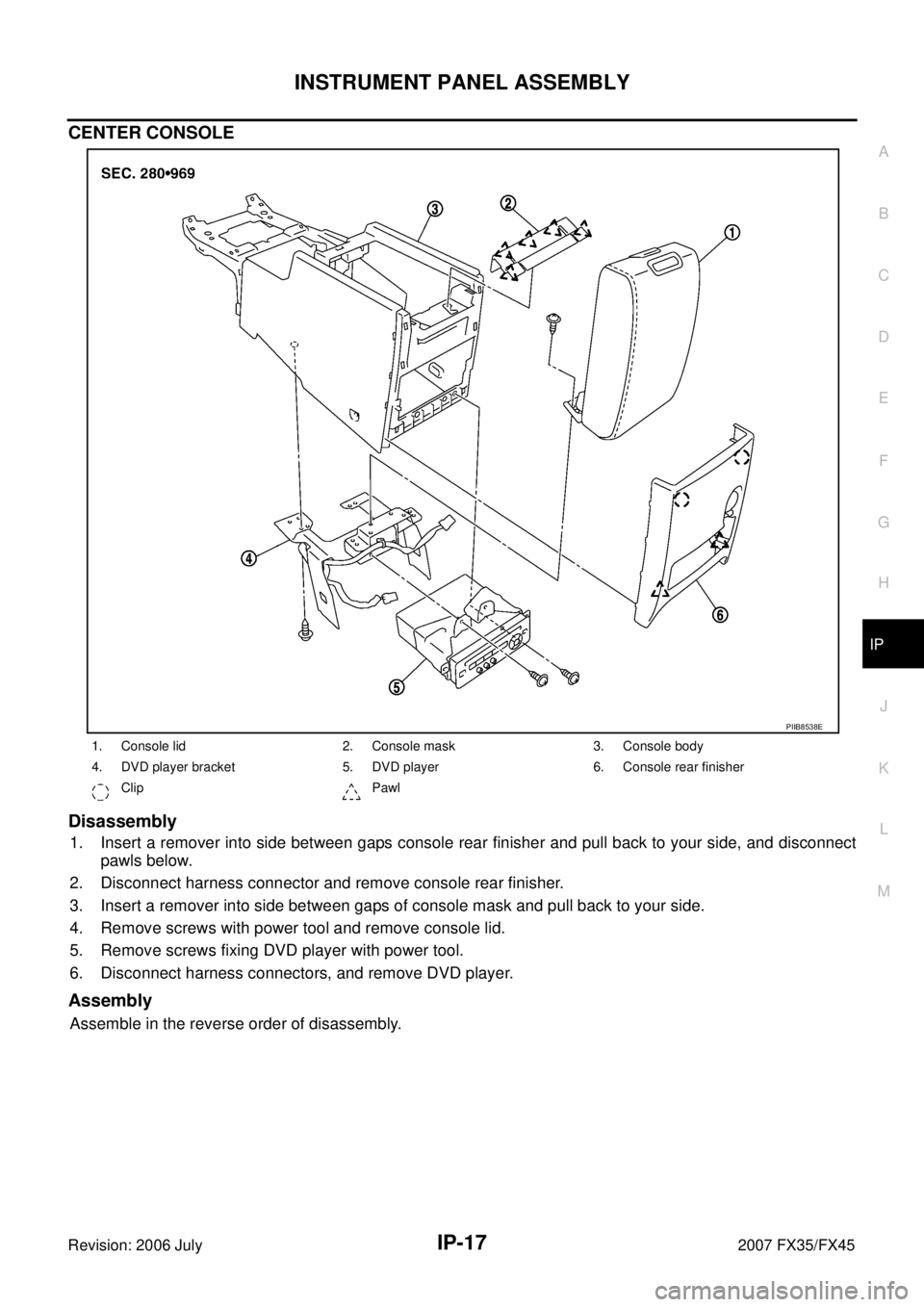

1. Console lid 2. Console mask 3. Console body
4. DVD player bracket 5. DVD player 6. Console rear finisher
Clip Pawl
PIIB8538E
