2007 GMC SIERRA CLASSIC Owners Manual

Fog Lamps
If your vehicle has fog lamps, use them for better
vision in foggy or misty conditions.
The fog lamp button is
located on the left side
of the instrument
panel.
The parking lamps and/or low-beam headlamps
must be on for the fog lamps to work.
Press the button to turn the fog lamps on or off.
An indicator light will glow in the button when
the fog lamps are on.Remember, fog lamps alone will not give off as
much light as the headlamps. Never use the
fog lamps in the dark without turning on the
headlamps.
The fog lamps will go off whenever the high-beam
headlamps come on. When the high beams go
off, the fog lamps will come on again.
The fog lamps will be cancelled after the ignition is
turned off. If you still want to use the fog lamps
after you restart the vehicle, you will need to press
the fog lamp button again.
Some localities have laws that require the
headlamps to be on along with the fog lamps.
225

Auxiliary Roof Mounted Lamp
If your vehicle has this feature, this button includes
wiring provisions for a dealer or a qualied
service center to install an auxiliary roof lamp.
This button is located
on the center of the
instrument panel near
the climate controls.
When the wiring is connected to an auxiliary roof
mounted lamp, pressing the button will activate
the lamp and illuminate an indicator light near the
button. Pressing the button again will turn off
the roof mounted lamp.
If your vehicle has this button, your vehicle may
have the snow plow prep package. For further
information seeAdding a Snow Plow or Similar
Equipment on page 416.
Instrument Panel Brightness
D(Instrument Panel Brightness):This feature
controls the brightness of the instrument panel
lights.
The thumbwheel for this feature is located next to
the headlamp control.
Move the thumbwheel up to adjust the instrument
panel lights and to return the radio display to
full brightness when the headlamps or parking
lamps are on. To turn on the dome lamps, move
the thumbwheel to the farthest position.
Dome Lamps
The dome lamps come on when a door is opened.
The dome lamps can be turned on by moving
the thumbwheel, located next to the exterior lamps
control, to the farthest position. In this position,
the dome lamps will remain on whether a door is
opened or closed.
226

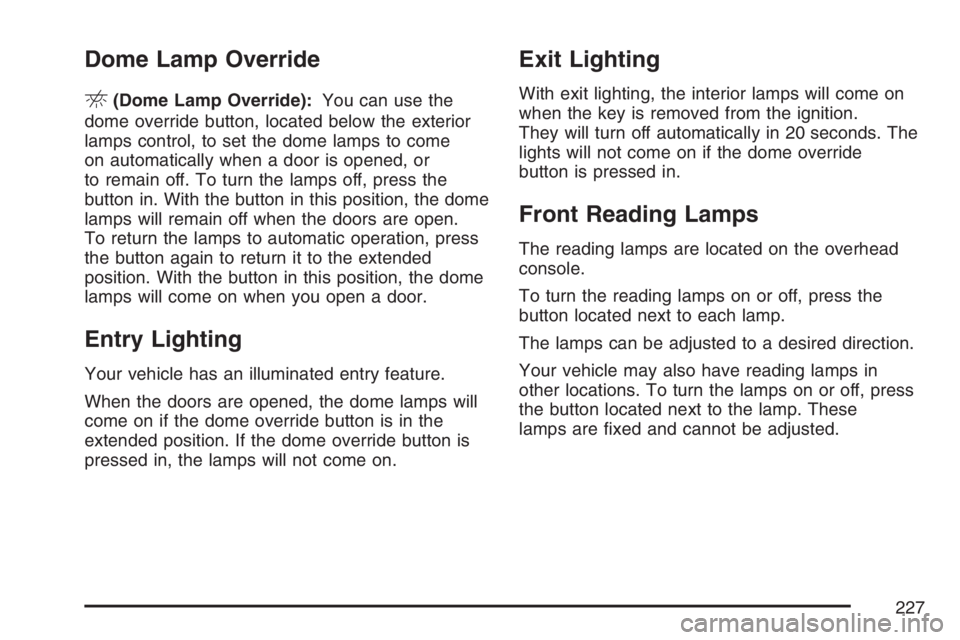

Dome Lamp Override
E(Dome Lamp Override):You can use the
dome override button, located below the exterior
lamps control, to set the dome lamps to come
on automatically when a door is opened, or
to remain off. To turn the lamps off, press the
button in. With the button in this position, the dome
lamps will remain off when the doors are open.
To return the lamps to automatic operation, press
the button again to return it to the extended
position. With the button in this position, the dome
lamps will come on when you open a door.
Entry Lighting
Your vehicle has an illuminated entry feature.
When the doors are opened, the dome lamps will
come on if the dome override button is in the
extended position. If the dome override button is
pressed in, the lamps will not come on.
Exit Lighting
With exit lighting, the interior lamps will come on
when the key is removed from the ignition.
They will turn off automatically in 20 seconds. The
lights will not come on if the dome override
button is pressed in.
Front Reading Lamps
The reading lamps are located on the overhead
console.
To turn the reading lamps on or off, press the
button located next to each lamp.
The lamps can be adjusted to a desired direction.
Your vehicle may also have reading lamps in
other locations. To turn the lamps on or off, press
the button located next to the lamp. These
lamps are xed and cannot be adjusted.
227

Cargo Lamp
The cargo lamp button
is located on the left
side of the instrument
panel. Press the
button to turn the cargo
lamp on or off.
An indicator light on the instrument panel cluster
will come on when the cargo lamp is turned
on, and the ignition key is turned to RUN.
Accessory Power Outlet(s)
Accessory power outlets can be used to connect
auxiliary electrical equipment, such as a cellular
telephone or CB radio. The outlet can accept
electrical equipment up to a maximum of
20 amperes.
Your vehicle may have two accessory power
outlets, or may have one accessory power outlet
located near the cigarette lighter, if the vehicle
has one. The cigarette lighter is designed to t only
in the receptacle to the right of the accessory
power outlet.
To use an outlet, remove the protective cap.
When not in use, always cover the outlet with the
protective cap. The accessory power outlet is
operational at all times.
Notice:If electrical devices are left plugged
into a power outlet, the battery may drain
causing your vehicle not to start or damage to
the battery. This would not be covered by
the warranty. Always unplug all electrical
devices when turning off your vehicle.
228

Certain power accessory plugs may not be
compatible to the accessory power outlet and
could result in blown vehicle or adapter fuses.
If you experience a problem, see your dealer for
additional information on the accessory power
plugs.
Notice:Adding any electrical equipment to
your vehicle may damage it or keep other
components from working as they should.
The repairs would not be covered by your
warranty. Do not use equipment exceeding
maximum amperage rating of 20 amperes.
Check with your dealer before adding electrical
equipment.
When adding electrical equipment, be sure to
follow the proper installation instructions included
with the equipment.
Notice:Improper use of the power outlet can
cause damage not covered by your warranty.
Do not hang any type of accessory or
accessory bracket from the plug because the
power outlets are designed for accessory
power plugs only.Ashtray(s) and Cigarette Lighter
Your vehicle may have a front ashtray located near
the center of the instrument panel. Pull on the
door to open it.
Notice:If you put papers, pins, or other
ammable items in the ashtray, hot cigarettes
or other smoking materials could ignite
them and possibly damage your vehicle. Never
put ammable items in the ashtray.
To remove the front ashtray, pull the ashtray
toward you. To replace the ashtray, place
the ashtray on the slides at the side of its location
in the instrument panel. To use the cigarette
lighter, push it in all the way, and let go. When it
is ready, the lighter will pop back out by itself.
Notice:Holding a cigarette lighter in while it
is heating will not allow the lighter to back
away from the heating element when it is hot.
Damage from overheating may occur to the
lighter or heating element, or a fuse could be
blown. Do not hold a cigarette lighter in
while it is heating.
229

Climate Controls
Climate Control System
Fan Knob
The fan knob on the left side of the control panel
adjusts the fan speed. Turn the knob clockwise
or counterclockwise, to increase or decrease
airow. To turn the fan off, turn the knob to the off
position.
9(Off):If the fan is off, outside air will still enter
the vehicle, and will be directed based on the
position of the mode knob. The temperature can
also be adjusted using the temperature knob.
Temperature Knob
The middle knob on the control panel lets you
select the temperature of the air owing into the
passenger area. Turn the knob clockwise
toward the red area for warmer air. Turn the knob
counterclockwise toward the blue area for
cooler air.
Mode Knob
The right knob on the control panel allows you to
choose the direction of air delivery.
H(Vent):This mode directs the air through the
instrument panel outlets.
)(Bi-Level):This mode directs air through the
oor outlets as well as the instrument panel
outlets. The ow can be divided between vent and
oor outlets depending upon where the knob is
placed between the settings.
6(Floor):This mode directs most of the air
through the oor outlets, and the rest of the air is
divided between the windshield defroster outlets
and the side window defroster outlets.
230

W(Defog):Airow is delivered through the oor
outlets, the windshield defroster outlets, and
the side window defroster outlets. The air ow can
be divided between oor and defrost depending
upon where the knob is placed between the
settings.
1(Defrost):This setting directs most air
through the windshield defroster outlets, side
window defroster outlets, and some through the
oor outlets.
Dual Climate Control System
With this system you can control the heating,
cooling, and ventilation for your vehicle.
Fan Control
9(Fan):Turn the left knob clockwise or
counterclockwise to increase or decrease the fan
speed. Turn the knob to the off position to turn
off the fan. If the knob is in off, outside air will still
enter the vehicle and will be directed based on
the position of the mode knob. The temperature
can also be adjusted using the temperature levers.
Turn the right knob clockwise or counterclockwise
to direct the airow inside of your vehicle.
231

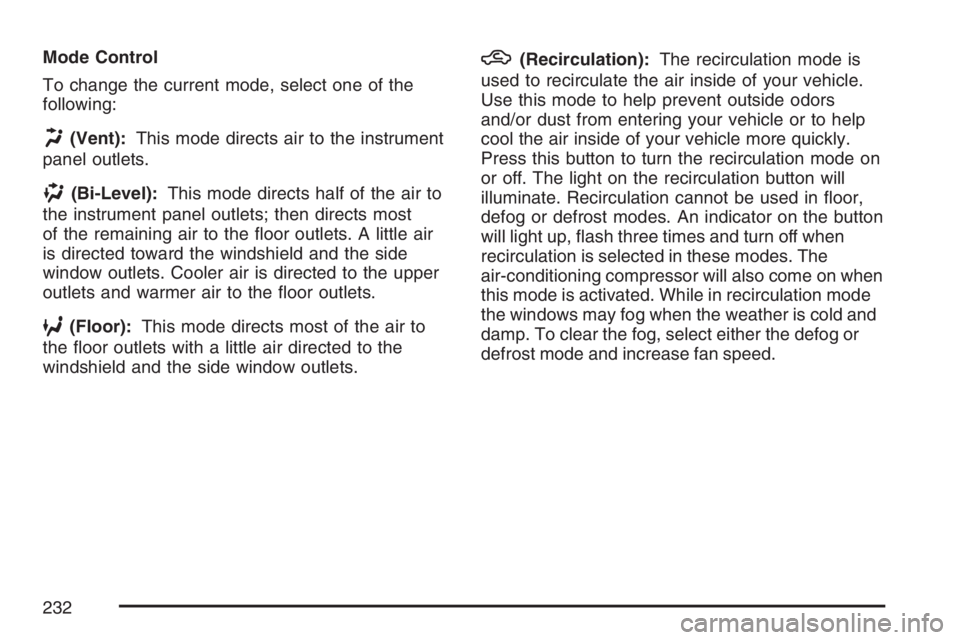

Mode Control
To change the current mode, select one of the
following:
H(Vent):This mode directs air to the instrument
panel outlets.
)(Bi-Level):This mode directs half of the air to
the instrument panel outlets; then directs most
of the remaining air to the oor outlets. A little air
is directed toward the windshield and the side
window outlets. Cooler air is directed to the upper
outlets and warmer air to the oor outlets.
6(Floor):This mode directs most of the air to
the oor outlets with a little air directed to the
windshield and the side window outlets.
h(Recirculation):The recirculation mode is
used to recirculate the air inside of your vehicle.
Use this mode to help prevent outside odors
and/or dust from entering your vehicle or to help
cool the air inside of your vehicle more quickly.
Press this button to turn the recirculation mode on
or off. The light on the recirculation button will
illuminate. Recirculation cannot be used in oor,
defog or defrost modes. An indicator on the button
will light up, ash three times and turn off when
recirculation is selected in these modes. The
air-conditioning compressor will also come on when
this mode is activated. While in recirculation mode
the windows may fog when the weather is cold and
damp. To clear the fog, select either the defog or
defrost mode and increase fan speed.
232
