2007 GMC SIERRA CLASSIC Owners Manual

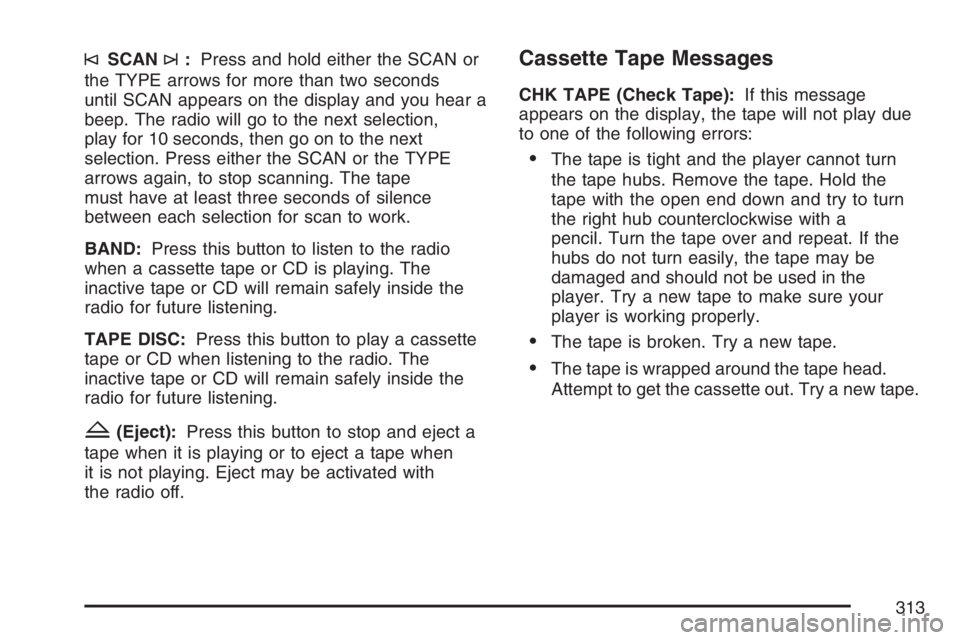

©SCAN¨:Press and hold either the SCAN or
the TYPE arrows for more than two seconds
until SCAN appears on the display and you hear a
beep. The radio will go to the next selection,
play for 10 seconds, then go on to the next
selection. Press either the SCAN or the TYPE
arrows again, to stop scanning. The tape
must have at least three seconds of silence
between each selection for scan to work.
BAND:Press this button to listen to the radio
when a cassette tape or CD is playing. The
inactive tape or CD will remain safely inside the
radio for future listening.
TAPE DISC:Press this button to play a cassette
tape or CD when listening to the radio. The
inactive tape or CD will remain safely inside the
radio for future listening.
Z(Eject):Press this button to stop and eject a
tape when it is playing or to eject a tape when
it is not playing. Eject may be activated with
the radio off.
Cassette Tape Messages
CHK TAPE (Check Tape):If this message
appears on the display, the tape will not play due
to one of the following errors:
The tape is tight and the player cannot turn
the tape hubs. Remove the tape. Hold the
tape with the open end down and try to turn
the right hub counterclockwise with a
pencil. Turn the tape over and repeat. If the
hubs do not turn easily, the tape may be
damaged and should not be used in the
player. Try a new tape to make sure your
player is working properly.
The tape is broken. Try a new tape.
The tape is wrapped around the tape head.
Attempt to get the cassette out. Try a new tape.
313

CLEAN:If this message appears on the display,
the cassette tape player needs to be cleaned. It will
still play tapes, but it should be cleaned as soon as
possible to prevent damage to the tapes and player.
SeeCare of the Cassette Tape Player on page 350.
If the cassette tape is not playing correctly, for any
other reason, try a known good cassette.
If any error occurs repeatedly or if an error cannot
be corrected, contact your GM dealer. If the radio
displays an error message, write it down and
provide it to your GM dealer when reporting the
problem.
CD Adapter Kits
It is possible to use a portable CD player with the
cassette tape player after activating the bypass
feature on your tape player.
To activate the bypass feature, perform the
following steps:
1. Turn the ignition on.
2. Turn the radio off.3. Press and hold the TAPE DISC button for
ve seconds. READY will appear on the
display and the tape symbol on the display
will ash, indicating the feature is active.
4. Insert the adapter into the cassette tape slot.
It will power up the radio and begin playing.
The override feature will remain active until the
eject button is pressed.
Playing a CD
Insert a CD part way into the slot, label side up.
The player will pull it in and the CD should
begin playing. If you want to insert a CD with the
ignition off, rst press the eject button or the
INFO knob.
If the ignition or radio is turned off with the CD in
the player, it will stay in the player. When the
ignition or radio is turned on, the CD will
start playing where it stopped, if it was the last
selected audio source.
When a CD is inserted, the CD symbol will appear
on the display. As each new track starts to play,
the track number will appear on the display.
314

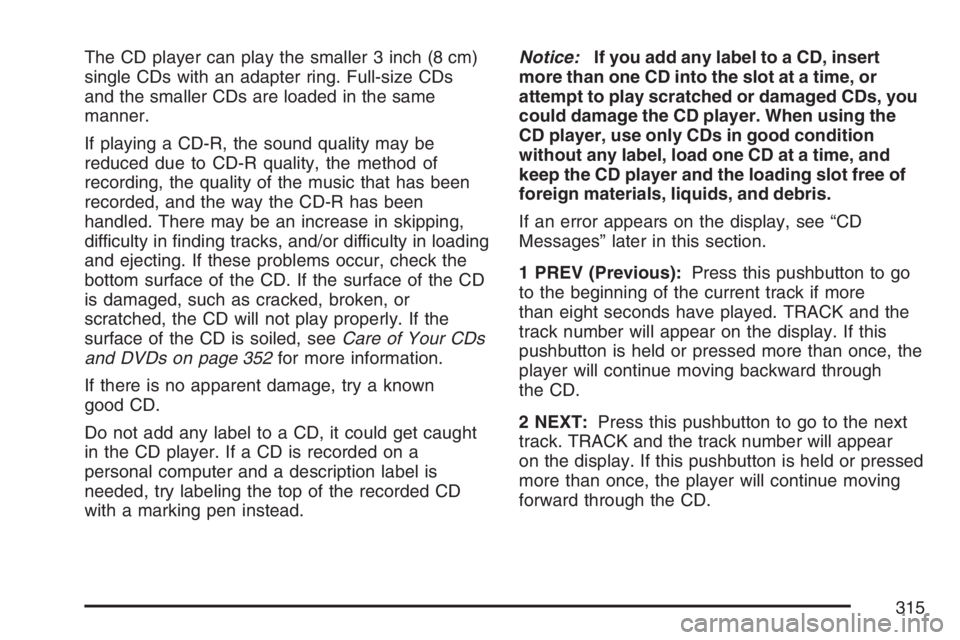

The CD player can play the smaller 3 inch (8 cm)
single CDs with an adapter ring. Full-size CDs
and the smaller CDs are loaded in the same
manner.
If playing a CD-R, the sound quality may be
reduced due to CD-R quality, the method of
recording, the quality of the music that has been
recorded, and the way the CD-R has been
handled. There may be an increase in skipping,
difficulty in nding tracks, and/or difficulty in loading
and ejecting. If these problems occur, check the
bottom surface of the CD. If the surface of the CD
is damaged, such as cracked, broken, or
scratched, the CD will not play properly. If the
surface of the CD is soiled, seeCare of Your CDs
and DVDs on page 352for more information.
If there is no apparent damage, try a known
good CD.
Do not add any label to a CD, it could get caught
in the CD player. If a CD is recorded on a
personal computer and a description label is
needed, try labeling the top of the recorded CD
with a marking pen instead.Notice:If you add any label to a CD, insert
more than one CD into the slot at a time, or
attempt to play scratched or damaged CDs, you
could damage the CD player. When using the
CD player, use only CDs in good condition
without any label, load one CD at a time, and
keep the CD player and the loading slot free of
foreign materials, liquids, and debris.
If an error appears on the display, see “CD
Messages” later in this section.
1 PREV (Previous):Press this pushbutton to go
to the beginning of the current track if more
than eight seconds have played. TRACK and the
track number will appear on the display. If this
pushbutton is held or pressed more than once, the
player will continue moving backward through
the CD.
2 NEXT:Press this pushbutton to go to the next
track. TRACK and the track number will appear
on the display. If this pushbutton is held or pressed
more than once, the player will continue moving
forward through the CD.
315

3 REV (Reverse):Press and hold this pushbutton
to quickly reverse within a track. Press and hold
this pushbutton for less than two seconds to
reverse at six times the normal playing speed.
Press and hold it for more than two seconds
to reverse at 17 times the normal playing speed.
Release this pushbutton to play the passage.
ET and the elapsed time of the track will appear
on the display.
4 FWD (Forward):Press and hold this pushbutton
to quickly advance within a track. Press and
hold this pushbutton for less than two seconds to
advance at six times the normal playing speed.
Press and hold it for more than two seconds
to advance at 17 times the normal playing speed.
Release this pushbutton to play the passage.
ET and the elapsed time of the track will appear
on the display.
6 RDM (Random):Press this pushbutton to hear
the tracks in random, rather than sequential,
order. RDM ON will appear on the display. RDM
and the track number will appear on the display
when each track starts to play. Press this
pushbutton again to turn off random play. RDM
OFF will appear on the display.©SEEK¨:Press the left arrow to go to the
start of the current or to the previous track. Press
the right arrow to go to the start of the next
track. If either arrow is pressed more than once,
the player will continue moving backward or
forward through the CD.
©SCAN¨:Press and hold either the SCAN or
the TYPE arrows for more than two seconds
until SCAN appears on the display and you hear a
beep. The radio will go to the next track, play
for 10 seconds, then go on to the next track. Press
either the SCAN or the TYPE arrows again, to
stop scanning.
INFO (Information):Press this knob to see how
long the current track has been playing. ET
and the elapsed time will appear on the display.
To change the default on the display, track or
elapsed time, press the knob until you see
the display you want, then press and hold the
knob for two seconds. The radio will produce
one beep and the selected display will now be
the default.
316

BAND:Press this button to listen to the radio
when a cassette tape or CD is playing. The
inactive tape or CD will remain safely inside the
radio for future listening.
TAPE DISC:Press this button to play a cassette
tape or CD when listening to the radio. The
inactive tape or CD will remain safely inside the
radio for future listening.
Z(Eject):Press this button to stop and eject a
CD when it is not playing. Eject may be activated
with either the ignition or radio off. CDs may
be loaded with the radio and ignition off if this
button is pressed rst.
CD Messages
If the CD comes out, it could be for one of the
following reasons:
It is very hot. When the temperature returns to
normal, the CD should play.
You are driving on a very rough road.
When the road becomes smoother, the CD
should play.
The CD is dirty, scratched, wet, or
upside down.
The air is very humid. If so, wait about an
hour and try again.
There may have been a problem while
burning the CD.
The label may be caught in the CD player.
If the CD is not playing correctly, for any other
reason, try a known good CD.
If any error occurs repeatedly or if an error cannot
be corrected, contact your GM dealer. If the
radio displays an error message, write it down and
provide it to your GM dealer when reporting the
problem.
317

Listening to a DVD
If your vehicle has the Rear Seat Entertainment
(RSE) system and a DVD is playing, the DVD
symbol will appear on the radio display indicating
that the DVD is available and can be listened
to through your vehicle’s speakers. To listen to the
DVD, press the TAPE DISC button until RSE
appears on the radio display. The current radio
source will stop and the DVD sound will come
through the speakers. To stop listening to
the DVD, press the TAPE DISC button, if a
cassette tape or a CD is loaded, or press the
BAND button to select a different source.
When the RSE system is turned off, the DVD
symbol will go off of the radio display and RSE
OFF will appear on the radio display. The radio will
return to the last radio source that you were
listening to.
SeeRear Seat Entertainment System on page 334
for more information.
Radio with Six-Disc CD
If your vehicle has the Bose®audio system, your
vehicle will have six Bose®amplied speakers.
Base Radio Shown, Bose®Similar
318

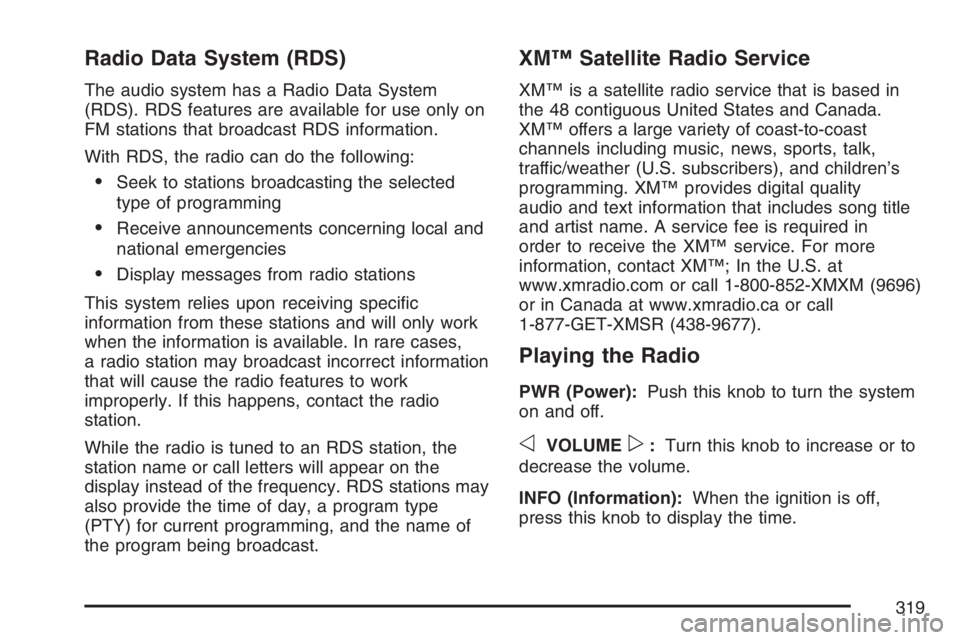

Radio Data System (RDS)
The audio system has a Radio Data System
(RDS). RDS features are available for use only on
FM stations that broadcast RDS information.
With RDS, the radio can do the following:
Seek to stations broadcasting the selected
type of programming
Receive announcements concerning local and
national emergencies
Display messages from radio stations
This system relies upon receiving specic
information from these stations and will only work
when the information is available. In rare cases,
a radio station may broadcast incorrect information
that will cause the radio features to work
improperly. If this happens, contact the radio
station.
While the radio is tuned to an RDS station, the
station name or call letters will appear on the
display instead of the frequency. RDS stations may
also provide the time of day, a program type
(PTY) for current programming, and the name of
the program being broadcast.
XM™ Satellite Radio Service
XM™ is a satellite radio service that is based in
the 48 contiguous United States and Canada.
XM™ offers a large variety of coast-to-coast
channels including music, news, sports, talk,
traffic/weather (U.S. subscribers), and children’s
programming. XM™ provides digital quality
audio and text information that includes song title
and artist name. A service fee is required in
order to receive the XM™ service. For more
information, contact XM™; In the U.S. at
www.xmradio.com or call 1-800-852-XMXM (9696)
or in Canada at www.xmradio.ca or call
1-877-GET-XMSR (438-9677).
Playing the Radio
PWR (Power):Push this knob to turn the system
on and off.
oVOLUMEp:Turn this knob to increase or to
decrease the volume.
INFO (Information):When the ignition is off,
press this knob to display the time.
319

For RDS, press the INFO knob to change what
appears on the display while using RDS. The
display options are station name, RDS station
frequency, PTY, and the name of the program
(if available).
For XM™ (if equipped), press the INFO knob
while in XM™ mode to retrieve four different
categories of information related to the current
song or channel: Artist, Song Title, Category
or PTY, Channel Number/Channel Name.
To change the default on the display, press the
INFO knob until you see the desired display, then
hold the knob until you hear a beep. The
selected display will now be the default.
AUTO VOL (Automatic Volume):With automatic
volume, the audio system will adjust automatically
to make up for road and wind noise as you drive by
increasing the volume as vehicle speed increases.
Set the volume at the desired level. Press this
button to select MIN (minimum), MED (medium), or
MAX (maximum). AUTO VOL will appear on the
display. Each higher setting will provide more
volume compensation at faster vehicle speeds. To
turn automatic volume off, press this button until
AUTO VOL OFF appears on the display.Finding a Station
BAND:Press this button to switch between FM1,
FM2, AM, or XM1 or XM2 (if equipped). The
display will show the selection.
oTUNEp:Turn this knob to select radio
stations.
©SEEK¨:Press either the SEEK or the TYPE
arrows to go to the next or to the previous
station and stay there.
The radio will only seek stations with a strong
signal that are in the selected band.
©SCAN¨:Press and hold either the SCAN or
the TYPE arrows for two seconds until SCN
appears on the display and you hear a beep. The
radio will go to a station, play for a few seconds,
then go on to the next station. Press either the
SCAN or the TYPE arrows again to stop scanning.
320
