Fuel Charging and Con
Duratec-HE
(N
trols - 2.OL
14)
DIAGNOSIS AND TESTING
Symptom
Engine misfire
Possible Sources Action
Engine ignition. REFER to: Engine Ignition
(303-078, Diagnosis and
Testing).
Incorrect or contaminated fuel. CHECK for signs of contamina-
tion such as strange odors from
the fuel tank.
If contaminated fuel is found,
DRAIN the complete fuel
system. FLUSH the fuel system
through with clean gasoline.
REFER to: Fuel Tank Draining
(31
0-OOA, General Proced-
u res).
INSTALL a new fuel filter.
INSPECT the fuel injectors.
CLEAN the fuel injectors or
INSTALL a new set of injectors
as required only after the
checks have been carried out.
INSTALL a new fuel rail.
REFER to: Fuel Injection
Supply Manifold
(303-046,
Removal and Installation).
Low fuel system pressure. Check the fuel system pres- ( sure.
REFER to: Fuel System Pres-
sure Check (31
0-OOA,
General Procedures).
EGR valve sticking open. REFER to: Engine Emission
Control (303-08 Engine
Emission Control
- 2.OL
Duratec-HE (M14), Diagnosis
and Testing).
Engine operating temperature
too high. REFER to:
Engine Cooling
(303-03C, Diagnosis and
Testing).
ECT sensor. Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
CKP sensor.
Carry out a full engine
diagnosis using the guided diagnostic menu in WDS.
CMP sensor. Carry out a full
engine
diagnosis using the guided
diagnostic menu in WDS.
KS.
2006.0 Fiesta 1212006 GI 65371 en
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS. )I
procarmanuals.com

Fuel Charging and Controls - 2.OL
303-04B-21 Duratec-HE (M14) 303-04B-21
DIAGNOSIS AND TESTING
Symptom
Engine knock at idle
Possible Sources Action
Fuel injectors.
INSPECT the fuel injectors.
CLEAN the fuel injectors or
INSTALL a new set of injectors
as required only after the
checks have been carried out.
Fuel rail fuel pressure sensor.
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
Low cylinder compression.
CHECK the engine compres-
sion.
Worn or damaged
valve(s),
tappet(s) or camshaft(s).
REMOVE the cylinder head.
INSPECT the cylinder head,
valves, tappets and camshafts
for signs of wear or damage.
REFER to: Cylinder Head (303-
01 C, In-vehicle Repair).
Damaged cylinder head gasket. REMOVE the cylinder head.
INSPECT the cylinder head
gasket and cylinder bores for
wear or damage.
REFER to: Cylinder Head (303-
01 C, In-vehicle Repair).
Low engine oil level.
CHECK the engine oil level.
REFILL as necessary.
Incorrect or contaminated fuel.
-
KS. CHECK
for signs of contamina-
tion such as strange odors from
the fuel tank.
If contaminated fuel is found,
DRAIN the complete fuel
system. FLUSH the fuel system
through with clean gasoline.
REFER to: Fuel Tank Draining
(31
0-OOA, General Proced-
u res).
INSTALL a new fuel filter.
INSPECT the fuel injectors.
CLEAN the fuel injectors or
INSTALL a new set of injectors
as required only after the
checks have been carried out. INSTALL a new fuel rail.
REFER to: Fuel Injection
Supply Manifold
(303-04C,
Removal and Installation).
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
2006.0 Fiesta 1212006 GI 65371 en
procarmanuals.com

Fuel Charging and Controls - 2.OL
303-04B-22 Duratec-HE (M14) 303-04B-22
DIAGNOSIS AND TESTING
Symptom
Engine knock during accelera-
tion Possible
Sources Action
CKP sensor. Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
INSPECT the fuel injectors.
CLEAN the fuel injectors or
INSTALL a new set of injectors
as required only after the
checks have been carried out.
I . Incorrect valve timing. I CHECK the valve timing. I
Excessive carbon build up. REMOVE the cylinder head.
INSPECT the cylinder head
and pistons for signs carbon
build up.
REFER to: Cylinder Head (303-
01 C, In-vehicle Repair).
Worn or damaged oil pump.
Worn or damaged timing chain
or sprocket.
Major mechanical engine
failure. INSPECT
the engine compon- I
ents.
KS.
Fuel injectors. Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
INSPECT the fuel injectors.
CLEAN the fuel injectors or
INSTALL a new set of injectors
as required only after the
checks have been carried out.
Major mechanical engine
failure. REFER
to: Engine (303-01
Engine
- 2.OL Duratec-HE
(M14), Diagnosis and
Testing).
N0TE:Before proceeding with any
of the actions in relation to the
possible sources for excessive
fuel consumption, a fuel consumption test located in the
toolbox menu of WDS must be
performed.
Excessive fuel consumption Brakes binding. CHECK
the braking system.
REFER to: Brake System (206-
00, Diagnosis and Testing).
Vehicle overloaded, or
excessive wind resistance (roof
racks, towing etc).
ADVISE the customer about
the effects of overloading the
vehicle and wind resistance on
the fuel consumption.
2006.0 Fiesta 1212006 GI 65371 en
Air cleaner element blocked. INSTALL a new air cleaner .-
element. I
procarmanuals.com

Fuel Charging and Controls - 2.OL
303-048-23 Duratec-HE (M14) 303-04B-23
DIAGNOSIS AND TESTING
Symptom
Possible Sources Action
Fuel system leak(s). CHECK the system for fuel
leak(s). REPAIR or INSTALL
new parts as necessary.
I Fuel filter blocked. I INSTALL a new fuel filter. I
Incorrect engine oil.
INSTALL a new oil filter and
engine oil.
I Generator. 1. REFER to WDS. I
EGR valve sticking open. REFER to: Engine Emission
Control (303-08 Engine
Emission Control
- 2.OL
Duratec-HE (M 14), Diagnosis
and Testing).
Slipping
clutch. REFER to: Manual Transaxle
and Clutch (308-00,
Diagnosis and Testing).
ECT sensor.
--
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
Fuel injectors. INSPECT the fuel injectors.
CLEAN the fuel injectors or
INSTALL a new set of injectors
as required only after the
checks have been carried out.
PCM calibration. Using WDS, CHECK for the
availability of a calibration
update.
--
I . Incorrect valve timing. I CHECK the valve timing. I
Engine cuts out during hard
acceleration
Low cylinder compression.
CMP sensor. CHECK
the engine compres-
sion.
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
CKP sensor. Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
Fuel rail fuel pressure sensor.
REFER to: Fuel System Pres-
sure Check (31
0-OOA,
General Procedures).
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
Low fuel system pressure.
2006.0 Fiesta 1212006 GI 65371 en
Check the fuel system pres-
sure.
procarmanuals.com

303-05-1 1 Accessory Drive 303-05-1 I
DIAGNOSIS AND TESTING
Symptom
Accessory drive belt noise Possible Sources
Action
Accessory drive system -
Vehicles with accessory drive
belt tensioner
CHECK the system with the
engine running and the
accessory drive belt removed
(only run the engine for a very
short period). If a noise is
apparent, the cause is not the
accessory drive system. If a
noise is not apparent, the
cause is the accessory drive
system. CHECK where the
noise is coming from. Use a
stethoscope or other listening
device to determine the source
of the noise. INSTALL new
components as necessary.
TEST the system for normal
operation.
Accessory drive system -
Vehicles without accessory
drive belt tensioner Use
a stethoscope or other
listening device-to determine
the source of the noise. INSTALL new components as
necessary. TEST the system
for normal operation.
2006.0 Fiesta 1212006 G346263en
procarmanuals.com

303-05-1 4 Accessory Drive 303-05-1 4
DIAGNOSIS AND TESTING
Symptom
N0TE:Squeal is defined as a
continuous shriek, most noticeable
when the engine is being acceler-
ated or with electrical load.
Accessory drive belt squeal
N0TE:Whine is defined as a
continuous noise at the same
frequency, generally associated
with plastic pulleys.
Accessory drive belt whine
Possible Sources Action
Accessory drive belt tensioner
worn, damaged or contamin-
ated with oil.
Poor surface finish on
accessory drive belt idler pulley
flat
surface(s).
CHECK the accessory drive
belt tensioner for correct opera
tion, damage or contamination.
REFER to the Accessory Drive
Belt Tensioner Component
Test in this procedure.
INSTALL a new accessory
drive belt tensioner as neces-
sary.
REFER to: Accessory Drive
Belt Tensioner
- 1.6L
Duratorq-TDCi (DV) Diesel,
Vehicles With: Air Condi-
tioning (303-05, Removal and
Installation)
1 Accessory Drive Belt
Tensioner
- I .6L Duratorq-
TDCi (DV) Diesel (303-05
Accessory Drive, Removal and Installation).
TEST the system for normal
operation.
REMOVE the accessory drive
belt.
REFER to: Accessory Drive
Belt
- 1.3L Duratec-8V
(Rocam) (303-05 Accessory
Drive, Removal and Installa-
tion)
1 Accessory Drive Belt - 1.4L
Duratorq-TDCi (DV) Diesel
(303-05 Accessory Drive,
Removal and Installation)
1 Accessory Drive Belt Tensioner
- 1.6L Duratorq-
TDCi (DV) Diesel (303-05
Accessory Drive, Removal
and Installation)
I Accessory Drive Belt - 2.OL
Duratec-H E (M14) (303-05
Accessory Drive, Removal
and Installation).
INSPECT the idler
pulley(s) for
surface finish. INSTALL a new
idler
pulley(s) as necessary.
TEST the system for normal
operation.
2006.0 Fiesta 1212006 G346263en
procarmanuals.com

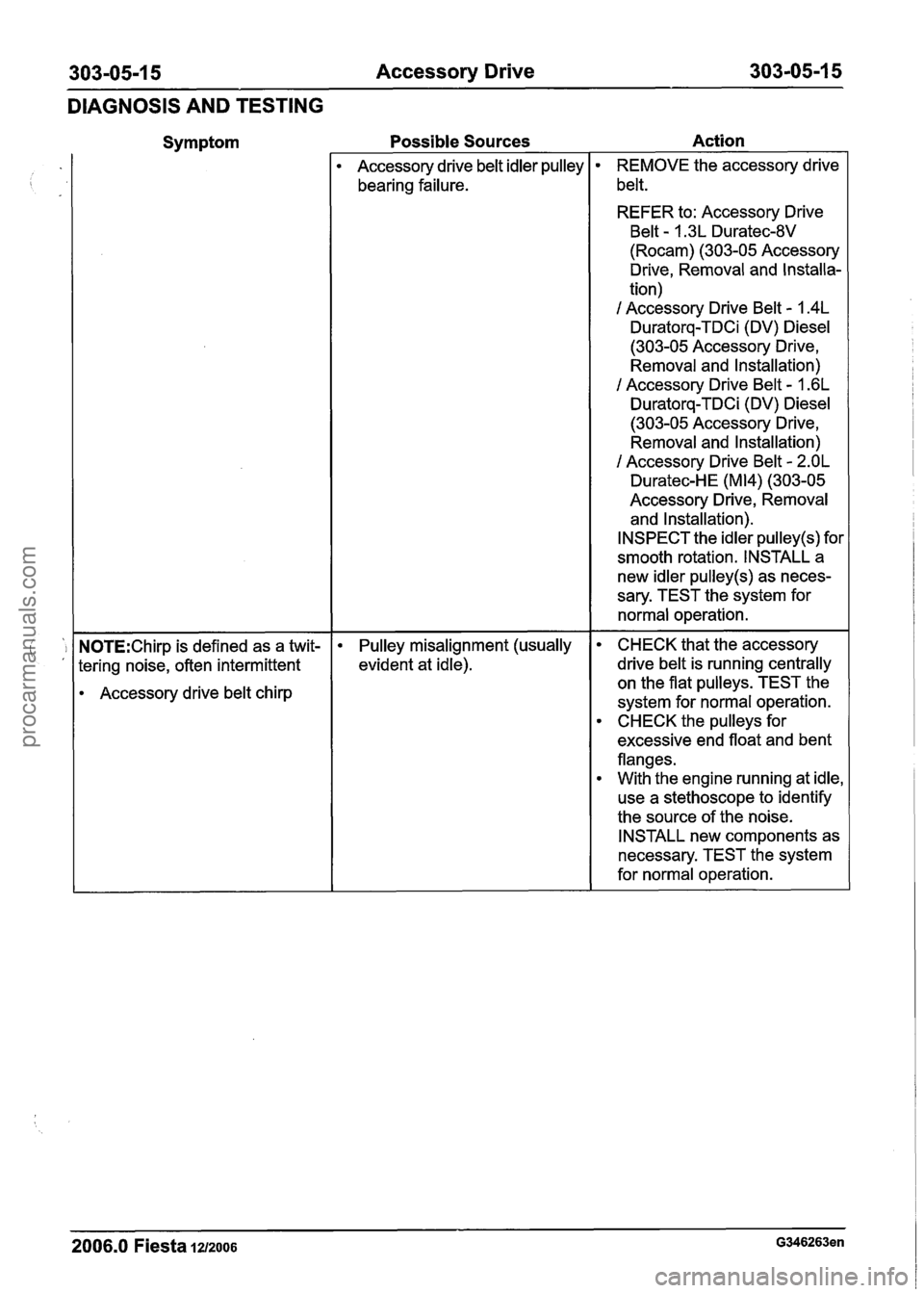

303-05-1 5 Accessory Drive 303-05-1 5
DIAGNOSIS AND TESTING
Symptom
N0TE:Chirp is defined as a twit-
tering noise, often intermittent
Accessory drive belt chirp Possible
Sources Action
Accessory drive belt idler pulley
bearing failure.
Pulley misalignment (usually
evident at idle). REMOVE
the accessory drive
belt.
REFER to: Accessory Drive
Belt
- 1.3L Duratec-8V
(Rocam) (303-05 Accessory
Drive, Removal and Installa-
tion)
I Accessory Drive Belt - 1.4L
Duratorq-TDCi (DV) Diesel
(303-05 Accessory Drive,
Removal and Installation)
I Accessory Drive Belt - I .6L
Duratorq-TDCi (DV) Diesel
(303-05 Accessory Drive,
Removal and Installation)
I Accessory Drive Belt - 2.OL
Duratec-HE (M14) (303-05
Accessory Drive, Removal
and Installation).
INSPECT the idler
pulley(s) for
smooth rotation. INSTALL a
new idler
pulley(s) as neces-
sary. TEST the system for
normal operation.
CHECK that the accessory
drive belt is running centrally
on the flat pulleys. TEST the
system for normal operation.
CHECK the pulleys for
excessive end float and bent
flanges.
With the engine running at idle,
use a stethoscope to identify
the source of the noise.
INSTALL new components as
necessary. TEST the system
for normal operation.
2006.0 Fiesta 121~oo6 G346263en
procarmanuals.com

303-05-1 7 Accessory Drive 303-05-1 7
DIAGNOSIS AND TESTING
REFER to: Accessory Drive Belt Tensioner -
1.6L Duratorq-TDCi (DV) Diesel, Vehicles i With: Air Conditioning (303-05, Removal and
Installation).
REFER to: Accessory Drive Belt Tensioner
-
1.6L Duratorq-TDCi (DV) Diesel (303-05
Accessory Drive, Removal and lnstallation).
TEST the system for normal operation.
2. Detach the accessory drive belt in the area of
the accessory drive belt tensioner.
3. N0TE:The accessory drive belt tensioner
has a damping feature, which is usually a
friction device, therefore some friction within
the system is normal.
Using the correct tool, move the accessory drive
belt tensioner from its relaxed position through
its full stroke and back to the relaxed position
to make sure there is no excessive stick, grab
or bind, and to make sure there is tension on
the accessory drive belt tensioner spring.
4. Rotate the accessory drive belt tensioner pulley
and check for damage, freedom of rotation and
alignment. INSTALL a new accessory drive belt
tensioner as necessary.
Accessory Drive Belt Tensioner - Dynamic
Check
The accessory drive belt tensioner may be checked
dynamically as follows:
1. With the engine running, observe the accessory
drive belt tensioner movement. The accessory
drive belt tensioner should move (respond)
when the engine is accelerated rapidly or when
the
A/C clutch cycles ON and OFF (the degree
of movement can be up to 4 mm). If the
accessory drive belt tensioner movement is not
constant without engine acceleration or
A/C
clutch cycling, a pulley or shaft is possibly bent,
out of round, or the damping mechanism inside
the accessory drive belt tensioner may be
damaged. INSTALL a new accessory drive belt
tensioner as necessary.
REFER to: Accessory Drive Belt Tensioner
-
1.6L Duratorq-TDCi (DV) Diesel, Vehicles
With: Air Conditioning (303-05, Removal and
Installation).
REFER to: Accessory Drive Belt Tensioner -
1.6L Duratorq-TDCi (DV) Diesel (303-05
Accessory Drive, Removal and lnstallation).
( :I. REFER to: Accessory Drive Belt Tensioner - TEST the system for normal operation.
1.6L Duratorq-TDCi (DV) Diesel, Vehicles
2. Excessive accessory drive belt rideout (uneven
With: Air Conditioning (303-05, Removal and
depth of grooves in the accessory drive belt)
Installation). may cause excessive accessory drive belt
REFER to: Accessory Drive Belt Tensioner
- tensioner movement. Check the condition by
1.6L Duratorq-TDCi (DV) Diesel (303-05
installing a new accessory drive belt.
Accessory Drive, Removal and
installation). . REFER to: Accessory Drive Belt - 1.3~
TEST the system for normal operation. Duratec-8V (Rocam) (303-05 Accessory
Drive,
5. If the accessory drive belt tensioner meets the
above criteria, proceed to test the accessory
drive belt tensioner dynamically. If the accessory
drive belt tensioner does not meet the above
criteria, INSTALL a new accessory drive belt
tensioner.
REFER to: Accessory Drive Belt Tensioner
-
1.6L Duratorq-TDCi (DV) Diesel, Vehicles
With: Air Conditioning (303-05, Removal and
Installation).
REFER to: Accessory Drive Belt Tensioner
-
1.6L Duratorq-TDCi (DV) Diesel (303-05
Accessory Drive, Removal and Installation).
TEST the system for normal operation. Removal and Installation).
REFER to: Accessory Drive Belt
- 1.4L
Duratorq-TDCi (DV) Diesel (303-05 Accessory
Drive, Removal and Installation).
REFER to: Accessory Drive Belt - 1.6L
Duratorq-TDCi (DV) Diesel (303-05 Accessory
Drive, Removal and Installation).
REFER to: Accessory Drive Belt
- 2.OL
Duratec-H E (M 14) (303-05 Accessory Drive,
Removal and Installation).
TEST the system for normal operation.
2006.0 Fiesta 12/2006 G346263en
procarmanuals.com
