CONTROLS

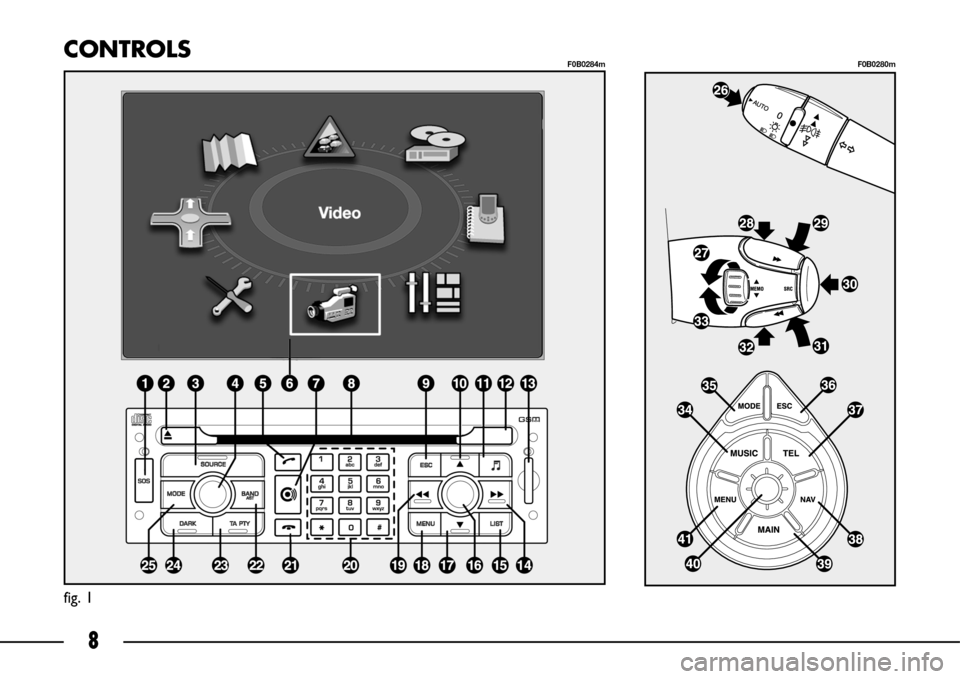

fig. 1
F0B0284mF0B0280m
Page 10 of 58
9
Some controls have multiple functions which depend on the active system mode. The activated function in some cases
depends on how long the button is pressed as shown in the following table:
Key Short press (less than 1 second) Long press (over 1 second)
1SOS
2˚
3SOURCE
4
5£
6
7•
8
9ESC
10N
11
–
–
–
–
–
–
–
–
–
Show active mode general information.
– Display emergency call menu
(medical emergency, breakdown, etc.).
Eject audio CD audio or navigation CD-ROM.
Select mode: radio, CD, CD changer.
System on/off.
Turn: adjust volume and audio settings
(treble, bass, balance, fader, loudness).
Telephone mode.
Dial set number.
Answer incoming call.
CONNECT Nav+ comprised system
multifunctional display
bCONNECT mode.
CD compartment/housing.
Quit selection menu or go from a submenu to a
higher level menu.
Radio mode: tune radio in 50 kHz (in FM) or 1 kHz (in
AM) steps to the next radio station from the
currently tuned station.
CD changer mode: select next CD.
Sound settings.
Page 11 of 58
10
Key Short press (less than 1 second) Long press (over 1 second)
12
13
14
˜
15LIST
16
17O
18MENU
19
÷
20
21Ô
–
–
CD mode: fast forward by one track.
–
–
–
Show help menu.
CD mode: fast backward by one track.
Store current station (1 – 6).
– IR port.
SIM card housing adapter.
Radio mode: tune radio to the next station;
press twice: switch from LO mode to DX mode.
CD mode: go to next track.
CD changer mode: go to next track.
Radio mode: show receivable radio stations in
alphabetical order.
CD mode: show track list contained on CD.
MP3 mode: show folder list contained on CD.
Turn: select function.
Press: confirm selected functions.
Radio mode: tune radio in 50 kHz (in FM) or 1 kHz (in
AM) steps to the previous radio station from the current-
ly tuned station.
CD changer mode: select previous CD.
Access to function menus.
Radio mode: tune radio to the previous station;
press twice: switch from LO mode to DX mode.
CD mode: go to previous track.
CD changer mode: go to previous track.
Radio mode: recall preset station (1 – 6)
Telephone mode: dial telephone number (1 – 12).
CD changer mode: select CD (1 – 6).
Reject incoming call.
Hang up current call.
Page 12 of 58
11
Key Short press (less than 1 second)Long press (over 1 second)
22BND AST
23TA/PTY
24DARK
25MODE
26
27MEMO
28˜
29
30SRC
31
32÷
33 MEMO
Automatic station store (in FMAST band).
PTY (Type Program): activate search filter
according to broadcasting station category.
–
–
Navigation mode: repeat last voice message
(supplied by system).
–
–
–
–
–
–
– Select frequency band FM1 – FM2 – FMAST
(autostore) – AM.
TA (Traffic Announcements): automatic
reception of traffic announcements.
Press once: partial dimming of display.
Press twice: dimming of display.
Press three times: normal display brightness.
Change current display.
Voice controls
Anticlockwise:
Radio mode: previous preset station.
CD changer mode: select previous CD.
Radio mode: manual tuning next station.
CD mode: select next track
Audio section: volume up.
Pressed with button 31: mute function
Select mode: radio, CD, CD changer.
Audio section: volume down.
Pressed with button 29: mute function
Radio mode: manual tuning previous station.
CD mode: select previous track
Clockwise.
Radio mode: next preset station.
CD changer mode: select next CD
Page 13 of 58
12
Key Short press (less than 1 second)Long press (over 1 second)
34MUSIC
35MODE
36ESC
37TEL
38NAV
39MAIN
40
41MENUAudio settings: treble, bass, balance, fader, loudness auto-
matic volume adjustment
according to speed.
Change current display.
Quit selection menu or go from a submenu to a higher
level menu.
Telephone mode.
Navigation mode.
Go to main menu.
Turn: select function.
Press: confirm selected function.
Access function menus.–
–
–
–
–
–
–
Show help menu.
Page 14 of 58
13
IMPORTANT INSTRUCTIONS
FOR USE AND ROAD
SAFETY
The Connect Nav+ system allows to
easily control the main car functions.
Read the following instructions to
avoid endangering yourself and other
system users:
– maintain full control of the car whi-
le using the Connect Nav+ system. If
in doubt when selecting a function,
stop the car before proceeding.
– do not use the mobile telephone in
the proximity of explosive substances.
GENERAL INFORMATION
The navigation system allows to rea-
ch your destination indicating changes
of route employing the data stored on
the navigation CD-ROM.
The system calculates the route
taking all stored road data into ac-
count and recommends the best rou-
te. Traffic conditions, unexpected de-
tours and other problems cannot be
taken into consideration.
Respect the highway code regardless
of the navigation system instructions.
The navigation system will calculate a
new route if you decide not to follow
the recommended route instructions.
IIMPORTANT Do not use 8-cm
audio CDs or MP3 CDs even with a
specific adapter. This type of disk may
damage the system.
The navigation system is
designed to assist the driver
and to suggest the best route to
reach the programmed destination
using voice and graphic messages.
The suggestions supplied by the na-
vigation system do not exonerate
the driver from driving the car re-
sponsibly and respecting the hi-
ghway code as well as other road
traffic dispositions. The driver is
always and only responsible for
road safety.
WARNING
Page 15 of 58
14
fig. 2
F0B1005g
SWITCHING THE SYSTEM
ON/OFF
The system will be switched on when
the key is switched to the Mposition.
The system will be switched off when
the key is turned to the Sposition.
With the key at S, press knob (4) to
operate the system for 20 minutes only
to protect the battery charge.
ANTITHEFT PROTECTION
The CONNECT Nav+ system is
provided with an automatic antitheft
system which does not need to be
operated by the user. CONFIGURATION
Press MENU(18); turn and press
the knob (16 – 40) to select the
CONFIGURATION function - fig. 2.
The following settings may be acces-
sed:
– “Display configuration”: turn and
press the knob (16 – 40) to select and
confirm. This function is used to chan-
ge the display colour, adjust brightness,
set the date and time and set the unit
of measure.
– “Sound”: turn and press the knob
(16 – 40) to select and confirm. This
function is used to adjust the voice
control volume, set the voice synthe-
sis parameters and switch the auxiliary
input (RCA socket) located in the
oddment compartment on and off.– “Select language”: turn and press
the knob (16 – 40) to select and con-
firm. This function is used to select the
required language.
– “Define vehicle parameters”: turn
and press the knob (16 – 40) to select
and confirm. This function may be
used switch some vehicle parameters
on and off. The parameters change ac-
cording to the version (e.g. parking
sensors, etc.).
Page 16 of 58
15
With the key at M, the audio section
may be switched on and off by pres-
sing the knob (4).
VOLUME ADJUSTMENT
Turn the knob (4) clockwise to turn
the radio volume up and anticlockwi-
se to turn it down.
AUDIO SETTINGS
Sound settings (BASS/ TREBLE), ba-
lance (BAL), fader (FAD), loudness
(LOUD), automatic volume and type
of sound (musical ambiance) may be
adjusted. The balance and fader func-
tions emphasise the sound from the
left/right and the front/rear speakers.
The loudness function is used to
emphasise the bass and treble tone
when the volume is low. To access the
audio settings function, repeatedly
press
(11) to adjust bass (BASS),
treble (TREB), loudness (LOUD), fa-
der (FAD), balance (BAL), automatic
volume and sound type (musical am-
bience).The system will deactivate the audio
adjustment system after a few seconds
if no action is performed or if the ESC
(9 - 36) is pressed after making the
setting.
IMPORTANTThe bass and treble
settings are source specific. They may
be adjusted separately in RADIO, CD
or CD changer mode.
Bass settings (BASS)
When the message “BASS” appears
on the display, turn the knob (4) to
adjust the setting as follows:
– “BASS -9” for setting bass to mi-
nimum level;
– “BASS 0” for setting bass to me-
dium level;
– “BASS +9” for setting bass to maxi-
mum level.Treble setting (TREB)
When the message “TREB” appears
on the display, turn the knob (4) to
adjust the setting as follows:
– “TREB -9” for setting treble to mi-
nimum level;
– “TREB 0” for setting treble to me-
dium level;
– “TREB +9” for setting treble to
maximum level.
Loudness function (LOUD)
This function allows to automatical-
ly emphasise bass and treble settings
when the volume is low. Simply turn
the knob (4) to switch the function on
and off.
AUDIO
