DOOR LOCKS
SIDE DOOR LOCKS
To lock a front door from outside the ve-
hicle:
❒Insert the key and turn the top of the
key toward the rear of the vehicle, or
❒Turn the lock knob forward and hold
the door handle up as you close the
door.
To unlock a front door from outside the
vehicle, insert the key and turn the top of
the key toward the front of the vehicle.
To lock a rear door from outside the ve-
hicle, turn the lock knob forward and
close the door.
To lock a door from inside the vehicle,
turn the lock knob forward. Turn the lock
knob rearward to unlock the door.
NOTE Be sure to hold the door handle
up when you close a locked front door, or
the door will not remain locked.
❒In case of attaching any metal objects
to the immobilizer key, it may not start
the engine.
IMPORTANT The immobilizer key is a
sensitive electronic instrument. To avoid
damaging the immobilizer key:
❒Do not expose it to impacts, moisture
or high temperature such as on the
dashboard under direct sunlight.
❒Keep the immobilizer key away from
magnetic objects.
IMPORTANT The electronic components
inside the key may be damaged if the key
is submitted to sharp knocks.
This immobilizer system, model 5WK49181
and 5WK49182 for gasoline engine or
model 5WK49183 and 5WK49184 for
diesel engine are in compliance with the
essential requirements and other provi-
sions of the Directive 1999/5/EC.
Ignition Key Reminder
(if equipped)
A buzzer sounds intermittently to remind
you to remove the ignition key if it is in
the ignition switch when the driver’s door
is opened. If the immobilizer system light (1) for gaso-
line engine or service vehicle soon (SVS)
light (2) for diesel engine blinks when the
ignition switch is in the “ON” position, the
engine will not start.
NOTE
If this light blinks, turn the ignition switch
to the “LOCK” position, then turn it back
to the “ON” position. If the light still blinks
with the ignition switch turned to the
“ON” position, there may be something
wrong with your key or with the immo-
bilizer system. Ask your Fiat dealer to in-
spect the system.
NOTE
❒If you lose your Immobilizer ignition
key, see your Fiat Dealership as soon
as possible to have the lost one deac-
tivated, then have the new key made by
them.
❒If you own other vehicles with immo-
bilizer keys, keep those keys away from
the ignition switch when using your Fi-
at, or the engine may not be started be-
cause they may interfere with your Fi-
at’s immobilizer system.
(1) (2)
62J127
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 12

13
60B008
UNLOCKLOCK
Rear
Front
79J021
UNLOCKLOCK
You can also lock or unlock all doors by
depressing the front or rear of the switch,
respectively.
NOTE
❒If your vehicle is equipped with the key-
less entry system, you can also lock or
unlock all doors by operating the trans-
mitter. Refer to “Keyless Entry System”
in this section.
❒If your vehicle is equipped with the key-
less start system, you can also lock or
unlock all doors by pushing the request
switch on the door handle. Refer to
“Keyless Start System” in this section. CENTRAL DOOR LOCKING
SYSTEM (if equipped)
You can lock and unlock all doors (in-
cluding the rear door) simultaneously by
using the key in the driver’s door lock.
To lock all doors simultaneously, insert
the key in the driver’s door lock and turn
the top of the key toward the rear of the
vehicle once.
To unlock all doors simultaneously, insert
the key in the driver’s door lock and turn
the top of the key toward the front of the
vehicle twice.
To unlock the driver’s door only, insert
the key in that door lock and turn the top
of the key toward the front of the vehi-
cle once.
54G294
UNLOCK
LOCK
Rear
Front
79J022
UNLOCKLOCK
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 13

14
To activate this system:
Insert the key in the driver’s door lock and
turn the top of the key toward the rear of
the vehicle twice within 3 seconds.
You can not use the lock knobs to unlock
the side doors when this system is acti-
vated. NOTE
❒The dead lock system will not operate
if one or more door (s) is (are) not
closed and latched completely. Make
sure all doors are completely closed
and latched when activating the dead
lock system.
❒The dead lock system is released au-
tomatically allowing all the side doors
to be unlocked when the ignition switch
is turned to the “ON” position.
Do not activate the dead
lock system if there are oc-
cupants in the vehicle. They will be
locked in the vehicle and cannot un-
lock the doors from inside.
WARNING
83E107
Rear 2 times
Front
DEAD LOCK SYSTEM
(if equipped)
This system is designed to help prevent
tamper-unlocking of the door locks.
You can activate this system by turning the
key in the driver’s door lock.
NOTE
❒If your vehicle is equipped with the key-
less entry system, you can activate the
dead lock system by operating the
transmitter. Refer to “Keyless Entry
System” in this section.
❒If your vehicle is equipped with the key-
less start system, you can activate the
dead lock system by pushing the re-
quest switch on the door handle. Refer
to “Keyless Start System” in this sec-
tion.
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 14

15
To release this system:
To unlock all the side doors, insert the key
in the driver’s door lock and turn the top
of the key toward the front of the vehi-
cle twice.
To unlock only the driver’s door, insert
the key in that door lock and turn the top
of the key toward the front of the vehi-
cle once.
83E105
Rear
Front
❒When the remote controller is placed
near an electric appliance such as per-
sonal computer.
The Keyless Start System, controller mod-
el S62J1 and key model TS001 are in com-
pliance with the essential requirements
and other provisions of Directive
1999/5/EC.
NOTE
❒Make sure the ignition key is stowed
in the remote controller. If the remote
controller becomes unreliable, you can
not lock or unlock the doors and start
the engine.
❒Be sure that the driver always carries
the remote controller.
❒If you lose your remote controller, see
your Fiat Dealership as soon as possi-
ble to have the lost one deactivated.
❒You can use up to four remote con-
trollers and ignition keys for your ve-
hicle. Ask your Fiat Dealership for de-
tails.
❒The battery life of the remote con-
troller is about two years, but it can
very depending on usage conditions. KEYLESS START SYSTEM
(if equipped)
The keyless start system enables the fol-
lowing operations:
❒You can lock or unlock the doors by
pushing the request switch on the door
handle. For details, refer to the expla-
nation in this section.
❒You can start the engine without using
an ignition key. For details, refer to “Ig-
nition Switch” in the “STEERING COL-
UMN CONTROLS” section and
“Starting the Engine” in the “OPERAT-
ING YOUR VEHICLE” section.
❒You can lock or unlock the doors by
operating the LOCK/ UNLOCK but-
tons on the remote controller. Refer
to “Keyless Entry System” in the “BE-
FORE DRIVING” section.
NOTE The keyless start system may not
function correctly depending on the en-
vironment or operating conditions as fol-
lows:
❒When there are strong signals coming
from a television, power station or a
cellular phone with you.
❒When the remote controller is in con-
tact with or covered by a metal object.
❒When the radio wave type remote key-
less entry is used nearby.
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 15

16
The turn signal lights will flash once when
the doors are locked and then the turn
signal lights will flash once again when the
doors are locked with the dead lock sys-
tem.
Keyless unlocking /
locking operation
When the remote controller is within the
access range, you can lock or unlock the
doors by pushing the request switch (1)
on the door handle of the driver’s door,
front passenger’s door or rear door. If you
want to prevent tamper- unlocking of the
door locks, you can activate the dead lock
system.
To lock or dead lock all doors when all
doors are unlocked:
❒To lock all doors, push the request
switch on one of the door handles
once.
❒To lock all doors with the dead lock
system, push the request switch on one
of the door handles twice within about
3 seconds.
(1)
79J023Do not activate the dead
lock system if there are oc-
cupants in the vehicle. They will be
locked in the vehicle and cannot un-
lock the doors from inside.
WARNING
To unlock a door or all doors:
❒To unlock the door only, push the re-
quest switch on the door handle once.
❒To unlock other doors, push the re-
quest switch on the door handle once
again. To stow the ignition key in the remote
controller, push the key in the remote
controller until the click is heard.
62J004
(A)
62J005
To remove the key from the remote con-
troller, push the button (A) in the direc-
tion of the arrow and pull the key out
from the remote controller.
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 16

20
Replacement of the battery
If the transmitter/ remote controller be-
comes unreliable, replace the battery.
To replace the battery for the
transmitter of the keyless entry
❒Remove the screw (1), and open the
transmitter cover.
❒Remove the transmitter (2). Type 1
The Keyless Entry System, Transmitter
model TS002 and Receiver model R62J1
or R51K0 are in compliance with the es-
sential requirements and other provisions
of Directive 1999/5/EC.
Type 2
The Keyless Start System, controller mod-
el S62J1 and key model TS001 are in com-
pliance with the essential requirements
and other provisions of Directive
1999/5/EC.
IMPORTANT The transmitter/remote
controller is a sensitive electronic instru-
ment. To avoid damaging the transmit-
ter/remote controller:
❒Do not expose it to impacts, moisture
or high temperature such as on the
dashboard under direct sunlight.
❒Keep the transmitter/remote con-
troller away from magnetic objects
such as a television.
(1)
(2)
81A185
NOTE
❒The maximum operating distance is
about 5 meter (16 ft.), but this can vary
depending on the surroundings, espe-
cially near other transmitting devices
such as radio towers or CB (Citizen’s
Band) radios.
❒The door locks can not be operated
with the transmitter/ remote con-
troller:
– if the ignition switch is in a position
other than “LOCK” or the ignition
key is inserted in the ignition switch,
or
– if any door is open or incompletely
closed.
❒If you lose your transmitter/ remote
controller, ask your Fiat Dealership as
soon as possible for a replacement and
to have the lost one deactivated.
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 20

43
78F11454G18354G184

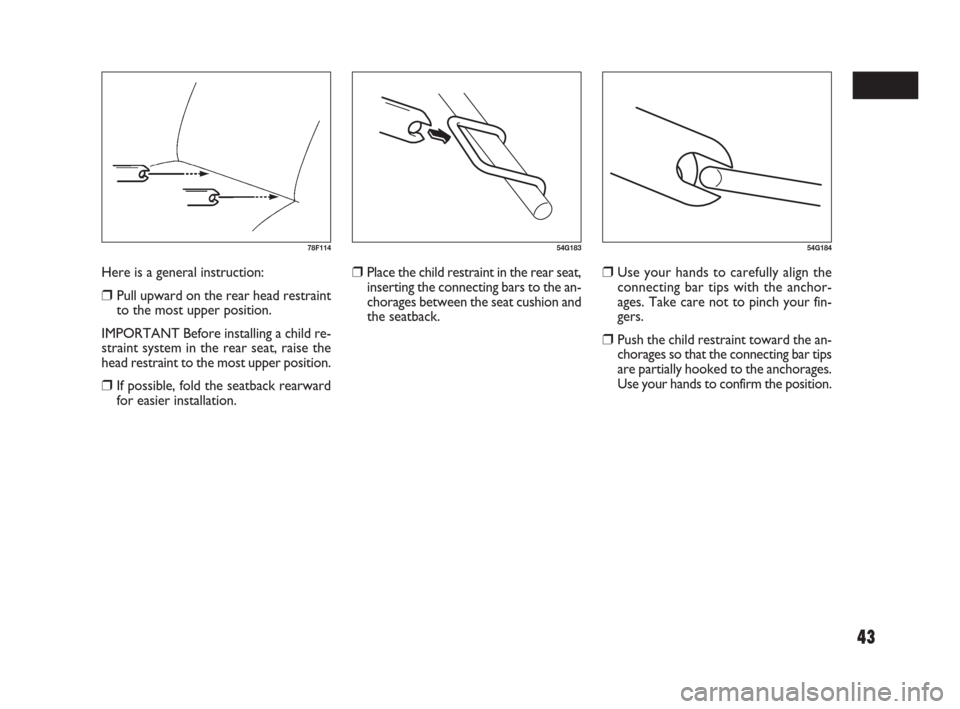

❒Place the child restraint in the rear seat,
inserting the connecting bars to the an-
chorages between the seat cushion and
the seatback.❒Use your hands to carefully align the
connecting bar tips with the anchor-
ages. Take care not to pinch your fin-
gers.
❒Push the child restraint toward the an-
chorages so that the connecting bar tips
are partially hooked to the anchorages.
Use your hands to confirm the position. Here is a general instruction:
❒Pull upward on the rear head restraint
to the most upper position.
IMPORTANT Before installing a child re-
straint system in the rear seat, raise the
head restraint to the most upper position.
❒If possible, fold the seatback rearward
for easier installation.
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 43
