START
This is the position for starting the engine
using the starter motor. The key should
be released from this position as soon as
the engine starts.
Ignition key reminder (if equipped)
A buzzer sounds intermittently to remind
you to remove the ignition key if it is in
the ignition switch when the driver’s door
is opened.
If the ignition device is tam-
pered with (e.g.: attempted
theft), have it checked over by a Fiat
Dealership as soon as possible.
WARNING
When getting out of the ve-
hicle, always remove the key
to prevent any occupants from acci-
dentally activating the controls. Re-
member to engage the handbrake
and if the vehicle is parked on uphill
slope to engage the first gear. If the
vehicle is facing downhill, engage the
reverse gear. Never leave unsuper-
vised children in the vehicle.
WARNING
Never remove the ignition
key while the vehicle is mov-
ing. The steering wheel would auto-
matically lock as soon as you try to
turn it. This also applies when the ve-
hicle is being towed.
WARNING
It is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the vehicle with ho-
mologation requirements.
WARNING
057-068 Fiat16 New GB 27-11-2007 11:25 Pagina 59

63
Lights “On” reminder
(if equipped)
A buzzer/ chime sounds to remind you to
turn off the lights if they are left on when
the ignition key is removed and the dri-
ver’s door is opened.Day time running light control
(if equipped)
When the engine is started, this system
turns on all lights. But this control is can-
celed when the light control lever is
turned to any position other than “OFF”.
LIGHTING/TURN
SIGNAL CONTROL
LEVER
LIGHTING OPERATION
To turn the lights on or off, twist the knob
on the end of the lever. There are three
positions: in the “OFF” position all lights
are off; in the middle position the front
parking lights, taillights, licence plate light,
and instrument lights are on, but the head-
lights are off; in the third position the
headlights come on in addition to the oth-
er lights.
With the headlights on, push the lever for-
ward to switch to the high beams (main
beams) or pull the lever toward you to
switch to the low beams. When the high
beams (main beams) are on, a light on the
instrument panel will come on. To mo-
mentarily activate the high beams (main
beams) as a passing signal, pull the lever
slightly toward you and release it when
you have completed the signal.
62J02962J030
057-068 Fiat16 New GB 27-11-2007 11:25 Pagina 63

65
If the lever is equipped with the “INT
TIME” control, turn the control forward
or rearward to adjust the intermittent
wiper operation to the desired interval.WINDSHIELD WASHER
To spray windshield washer fluid, pull the
lever toward you. The windshield wipers
will automatically turn on at low speed if
they are not already on and the “INT” po-
sition is equipped.
WINDSHIELD WIPER
AND WASHER LEVER
WINDSHIELD WIPERS
To turn the windshield wipers on, move
the lever down to one of the three op-
erating positions. In the “INT” position
(if equipped), the wipers operate inter-
mittently. The “INT” position is very con-
venient for driving in mist or light rain. In
the “LO” position, the wipers operate at
a steady low speed. In the “HI” position,
the wipers operate at a steady high speed.
To turn off the wipers, move the lever
back to the “OFF” position.
Move the lever up and hold it to the
“MIST” position, the windshield wipers
will turn on continuously at low speed.
IMPORTANT Never use the window
wiper to remove ice or snow from the
windscreen. In these conditions, the wiper
is submitted to excessive effort that re-
sults in motor protection cutting in and
wiper operation inhibition for few seconds
as a consequence. If operation is not re-
stored (also after restarting the vehicle by
the ignition key) contact Fiat Dealership.
MIST
OFF
INT
LO
HI
62J034
62J035
62J036
To prevent windshield icing in
cold weather, turn on the de-
froster to heat the windshield before
and during windshield washer use.
Do not use radiator antifreeze in the
windshield washer reservoir. It can se-
verely impair visibility when sprayed
on the windshield, and can also dam-
age your vehicle’s paint.
WARNING
057-068 Fiat16 New GB 27-11-2007 11:25 Pagina 65

72
The light should go out after starting the
engine and fully releasing the parking
brake, if the fluid level in the brake fluid
reservoir is adequate.
The light also comes on together with the
ABS warning light when the rear brake
force control function (Proportioning
valve function) of the ABS system fails.
If the brake system warning light comes
on while you are driving the vehicle, it may
mean that there is something wrong with
the vehicle’s brake system. If this happens,
you should:
❒Pull off the road and stop carefully.
❒Test the brakes by carefully starting and
stopping at the side of the road.
– If you determine that it is safe, drive
carefully at low speed to the near-
est dealer for repairs, or
WARNING AND
INDICATOR LIGHTS
BRAKE SYSTEM WARNING
LIGHT
65D477
For working check of this light, there are
following three different type operations
depending on the vehicle’s specification.
❒The light comes on briefly when the ig-
nition switch is turned to the “ON”
and/or “START” position.
❒The light comes on when the parking
brake is engaged with the ignition
switch in the “ON” position.
❒The light comes on when under either
or both of above two conditions.
The light also comes on when the fluid in
the brake fluid reservoir falls below the
specified level.
Remember that stopping dis-
tance may be longer, you
may have to push harder on the ped-
al, and the pedal may go down far-
ther than normal.
WARNING
If any of the following con-
ditions occur, you should im-
mediately ask your Fiat Dealership to
inspect the brake system.
If the brake system warning light does
not go out after the engine has been
started and the parking brake has
been fully released.
If the brake system warning light does
not come on when the ignition switch
is turned to the “ON” or “START”
position.
If the brake system warning light
comes on at any time during vehicle
operation.
WARNING
– Have the vehicle towed to the nearest
dealer for repairs.
NOTE Because the disc brake system is
selfadjusting, the fluid level will drop as the
brake pads become worn. Replenishing
the brake fluid reservoir is considered
normal periodic maintenance.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 72

134
❒Stow the seat belt buckles of the cen-
ter and right seating position as shown
in the illustration.
IMPORTANT When you fold the rear
seatback forward, stow the seat belt buck-
les of the center and right seating position
into the seat first. This helps prevent be-
ing caught by the seat and being damaged.❒Lower the adjustable head restraint
fully.
❒Pull the release lever on the top of each
split seat, and fold the seatbacks for-
ward.
❒Pull the lock release strap (1) rearward
to unlatch the seat cushion.

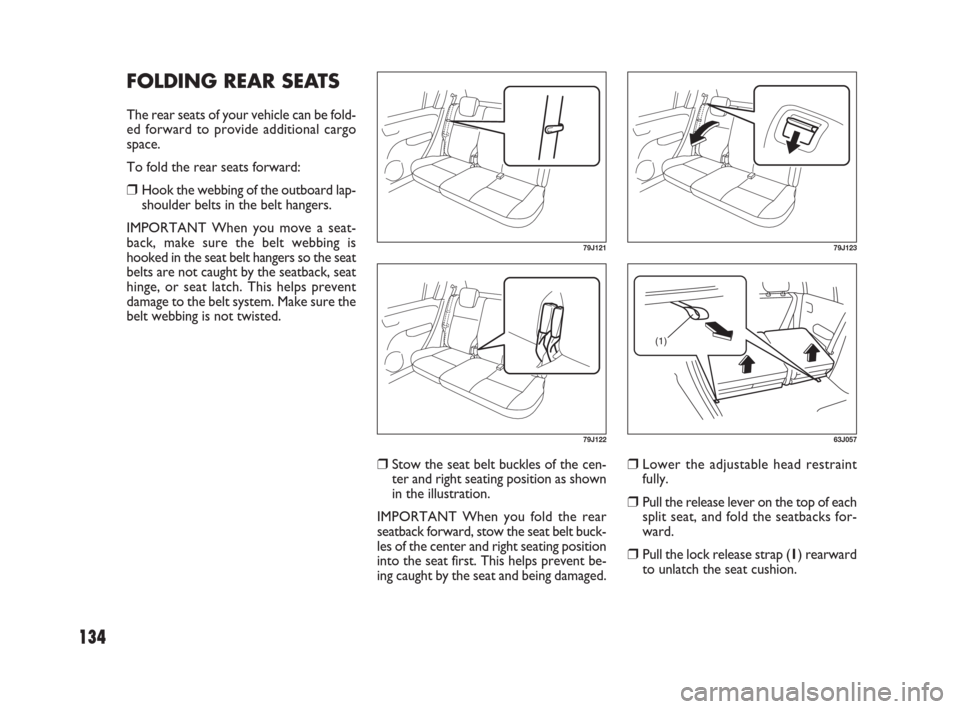

FOLDING REAR SEATS
The rear seats of your vehicle can be fold-
ed forward to provide additional cargo
space.
To fold the rear seats forward:
❒Hook the webbing of the outboard lap-
shoulder belts in the belt hangers.
IMPORTANT When you move a seat-
back, make sure the belt webbing is
hooked in the seat belt hangers so the seat
belts are not caught by the seatback, seat
hinge, or seat latch. This helps prevent
damage to the belt system. Make sure the
belt webbing is not twisted.
79J121
79J122
(1)
63J057
79J123
129-148 Fiat16 New GB 27-11-2007 11:27 Pagina 134

135

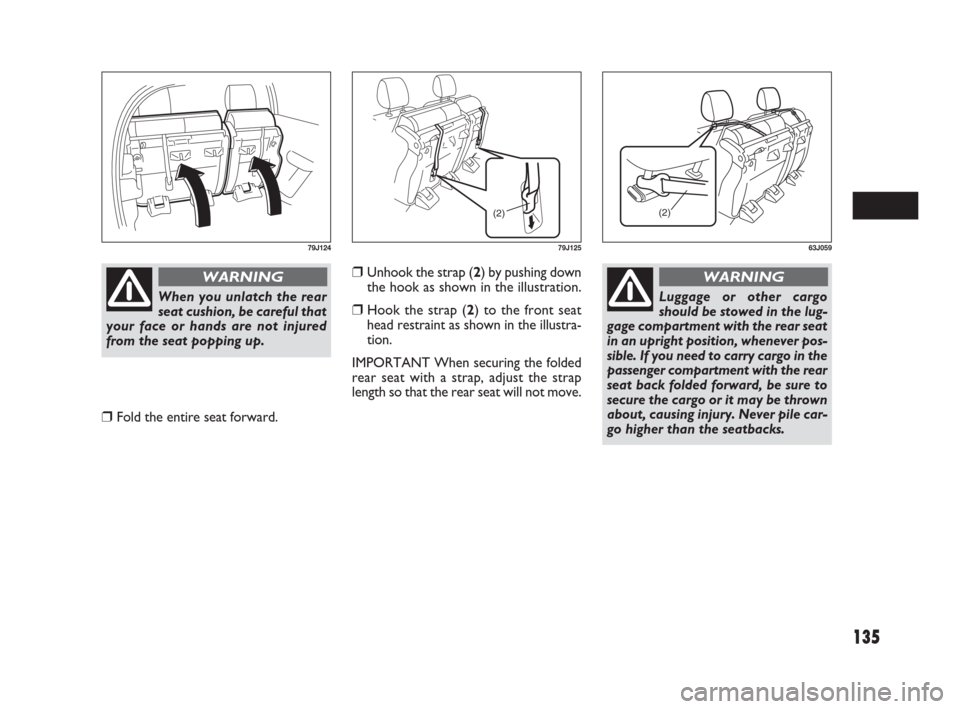

❒Unhook the strap (2) by pushing down
the hook as shown in the illustration.
❒Hook the strap (2) to the front seat
head restraint as shown in the illustra-
tion.
IMPORTANT When securing the folded
rear seat with a strap, adjust the strap
length so that the rear seat will not move.
❒Fold the entire seat forward.
79J124
(2)
79J125
(2)
63J059
When you unlatch the rear
seat cushion, be careful that
your face or hands are not injured
from the seat popping up.
WARNING
Luggage or other cargo
should be stowed in the lug-
gage compartment with the rear seat
in an upright position, whenever pos-
sible. If you need to carry cargo in the
passenger compartment with the rear
seat back folded forward, be sure to
secure the cargo or it may be thrown
about, causing injury. Never pile car-
go higher than the seatbacks.
WARNING
129-148 Fiat16 New GB 27-11-2007 11:27 Pagina 135

136
❒Pull down the seat cushion until it locks
into place.IMPORTANT When returning the rear
seat cushion to the normal position, make
sure that there is nothing around the strik-
er. This prevents the seat cushion from
being locked securely. When returning the
rear seat cushion to the normal position,
make sure that there is nothing under the
seat cushion. This prevents damage to the
seat cushion.
❒Raise the seatback until it locks into
place.
After returning the seat, try moving the
seat and seatback to make sure they are

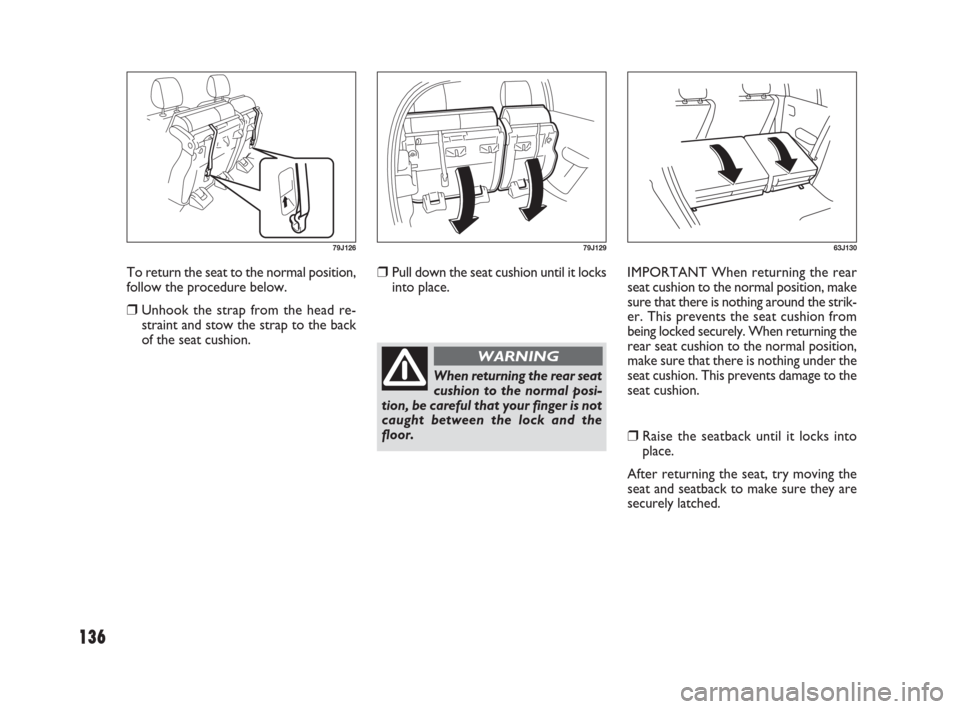

securely latched. To return the seat to the normal position,
follow the procedure below.
❒Unhook the strap from the head re-
straint and stow the strap to the back
of the seat cushion.
79J12679J12963J130
When returning the rear seat
cushion to the normal posi-
tion, be careful that your finger is not
caught between the lock and the
floor.
WARNING
129-148 Fiat16 New GB 27-11-2007 11:27 Pagina 136

143
Shipping hook
The hooks (2) and frame holes (3) are
provided for shipping purposes only. It can
break if used for any other purpose.

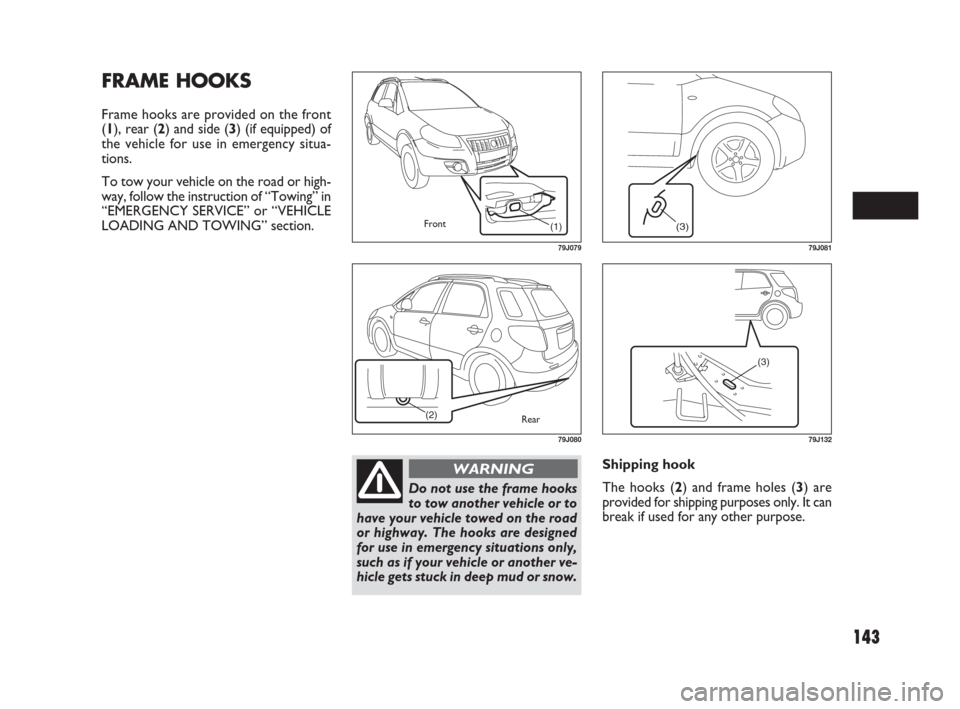

FRAME HOOKS
Frame hooks are provided on the front
(1), rear (2) and side (3) (if equipped) of
the vehicle for use in emergency situa-
tions.
To tow your vehicle on the road or high-
way, follow the instruction of “Towing” in
“EMERGENCY SERVICE” or “VEHICLE
LOADING AND TOWING” section.
(1)
79J079
(2)
79J080
Front
Rear
Do not use the frame hooks
to tow another vehicle or to
have your vehicle towed on the road
or highway. The hooks are designed
for use in emergency situations only,
such as if your vehicle or another ve-
hicle gets stuck in deep mud or snow.
WARNING
(3)
79J081
(3)
79J132
