2007 FIAT SEDICI windshield wipers

65
If the lever is equipped with the “INT
TIME” control, turn the control forward
or rearward to adjust the intermittent
wiper operation to the desired interval.WINDSHIELD WASHER
To spray windshield washer fluid, pull the
lever toward you. The windshield wipers
will automatically turn on at low speed if
they are not already on and the “INT” po-
sition is equipped.

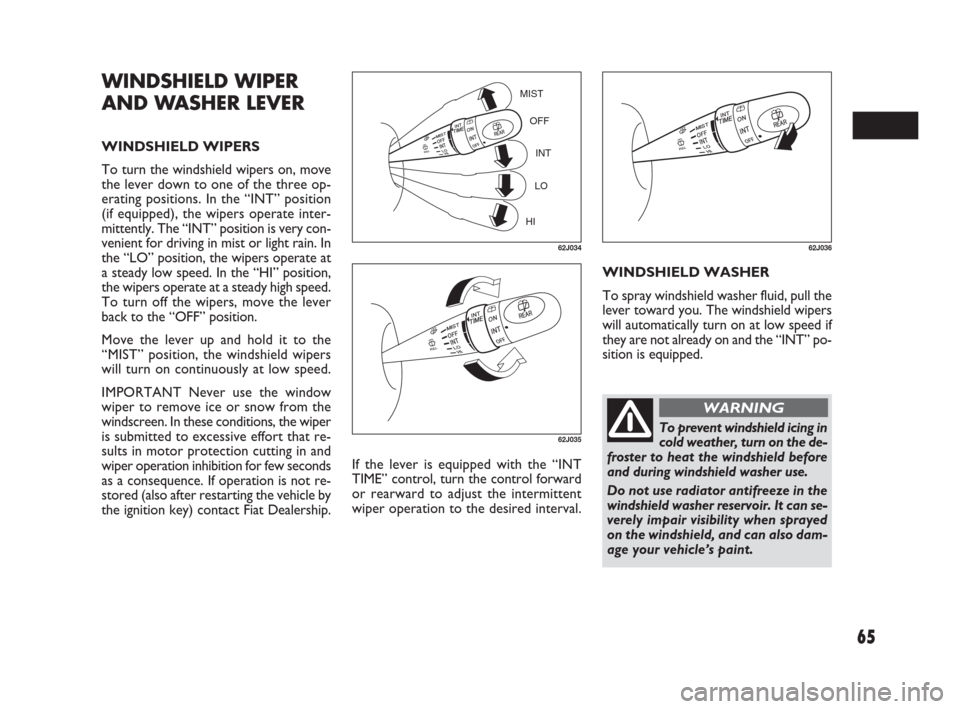

WINDSHIELD WIPER
AND WASHER LEVER
WINDSHIELD WIPERS
To turn the windshield wipers on, move
the lever down to one of the three op-
erating positions. In the “INT” position
(if equipped), the wipers operate inter-
mittently. The “INT” position is very con-
venient for driving in mist or light rain. In
the “LO” position, the wipers operate at
a steady low speed. In the “HI” position,
the wipers operate at a steady high speed.
To turn off the wipers, move the lever
back to the “OFF” position.
Move the lever up and hold it to the
“MIST” position, the windshield wipers
will turn on continuously at low speed.
IMPORTANT Never use the window
wiper to remove ice or snow from the
windscreen. In these conditions, the wiper
is submitted to excessive effort that re-
sults in motor protection cutting in and
wiper operation inhibition for few seconds
as a consequence. If operation is not re-
stored (also after restarting the vehicle by
the ignition key) contact Fiat Dealership.
MIST
OFF
INT
LO
HI
62J034
62J035
62J036
To prevent windshield icing in
cold weather, turn on the de-
froster to heat the windshield before
and during windshield washer use.
Do not use radiator antifreeze in the
windshield washer reservoir. It can se-
verely impair visibility when sprayed
on the windshield, and can also dam-
age your vehicle’s paint.
WARNING
057-068 Fiat16 New GB 27-11-2007 11:25 Pagina 65

66

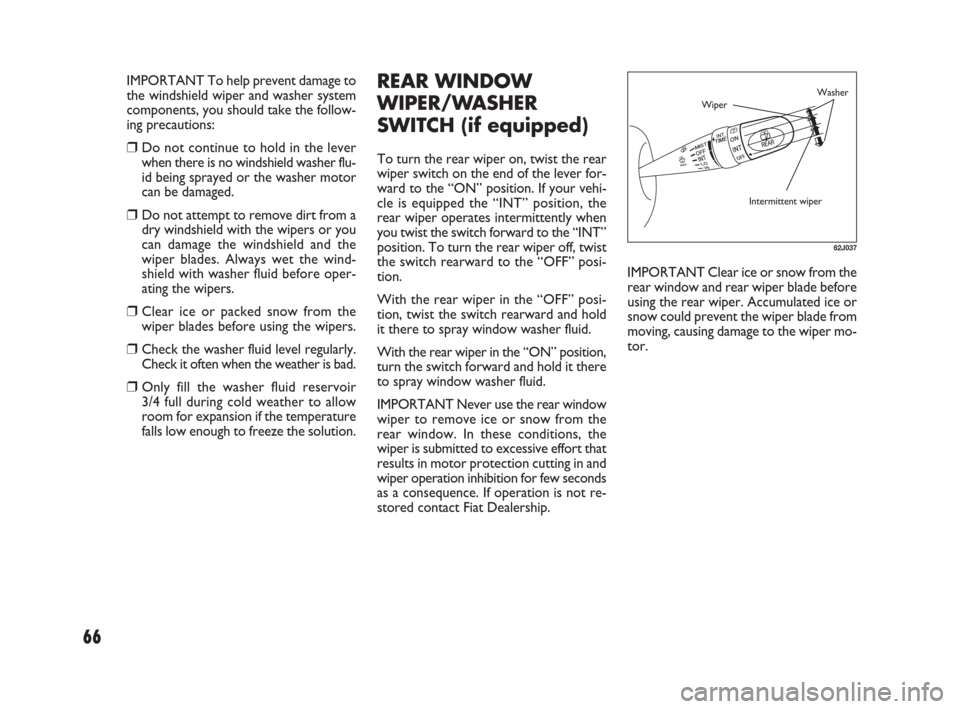

REAR WINDOW
WIPER/WASHER
SWITCH (if equipped)
To turn the rear wiper on, twist the rear
wiper switch on the end of the lever for-
ward to the “ON” position. If your vehi-
cle is equipped the “INT” position, the
rear wiper operates intermittently when
you twist the switch forward to the “INT”
position. To turn the rear wiper off, twist
the switch rearward to the “OFF” posi-
tion.
With the rear wiper in the “OFF” posi-
tion, twist the switch rearward and hold
it there to spray window washer fluid.
With the rear wiper in the “ON” position,
turn the switch forward and hold it there
to spray window washer fluid.
IMPORTANT Never use the rear window
wiper to remove ice or snow from the
rear window. In these conditions, the
wiper is submitted to excessive effort that
results in motor protection cutting in and
wiper operation inhibition for few seconds
as a consequence. If operation is not re-
stored contact Fiat Dealership.IMPORTANT Clear ice or snow from the
rear window and rear wiper blade before
using the rear wiper. Accumulated ice or
snow could prevent the wiper blade from
moving, causing damage to the wiper mo-
tor.
62J037
WiperWasher
Intermittent wiper
IMPORTANT To help prevent damage to
the windshield wiper and washer system
components, you should take the follow-
ing precautions:
❒Do not continue to hold in the lever
when there is no windshield washer flu-
id being sprayed or the washer motor
can be damaged.
❒Do not attempt to remove dirt from a
dry windshield with the wipers or you
can damage the windshield and the
wiper blades. Always wet the wind-
shield with washer fluid before oper-
ating the wipers.
❒Clear ice or packed snow from the
wiper blades before using the wipers.
❒Check the washer fluid level regularly.
Check it often when the weather is bad.
❒Only fill the washer fluid reservoir
3/4 full during cold weather to allow
room for expansion if the temperature
falls low enough to freeze the solution.
057-068 Fiat16 New GB 27-11-2007 11:25 Pagina 66

181
I I
N N
S S
P P
E E
C C
T T
I I
O O
N N
A A
N N
D D
M M
A A
I I
N N
T T
E E
N N
A A
N N
C C
E E E
60G410
MAINTENANCE SCHEDULE ........................................... 183
MAINTENANCE RECOMMENDED UNDER SEVERE
DRIVING CONDITIONS .................................................... 188
DRIVE BELT .......................................................................... 189
ENGINE OIL AND FILTER ................................................ 189
GEAR OIL .............................................................................. 193
ENGINE COOLANT .......................................................... 195
WINDSHIELD WASHER FLUID ...................................... 198
AIR CLEANER ...................................................................... 198
SPARK PLUGS (Petrol engine).......................................... 199
FUEL FILTER (Diesel engine)............................................. 201
BRAKES .................................................................................. 202
STEERING .............................................................................. 204
CLUTCH PEDAL ................................................................. 205
TIRES ....................................................................................... 205
BATTERY ............................................................................... 210
FUSES ...................................................................................... 211
BULB REPLACEMENT ........................................................ 217
WINDSCREEN - REAR WINDOW WASHER /
WIPERS .................................................................................. 222
AIR CONDITIONING SYSTEM ....................................... 223
8
