2007 FIAT SEDICI service indicator

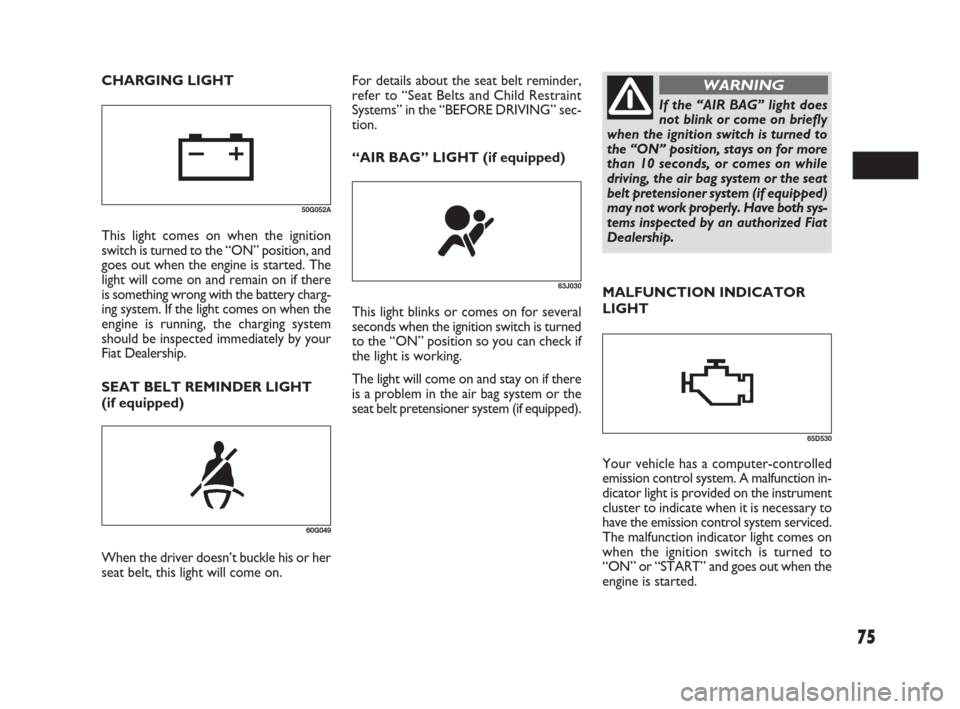

75
MALFUNCTION INDICATOR
LIGHT
SEAT BELT REMINDER LIGHT
(if equipped)
60G049
When the driver doesn’t buckle his or her
seat belt, this light will come on.
63J030
This light blinks or comes on for several
seconds when the ignition switch is turned
to the “ON” position so you can check if
the light is working.
The light will come on and stay on if there
is a problem in the air bag system or the
seat belt pretensioner system (if equipped).
If the “AIR BAG” light does
not blink or come on briefly
when the ignition switch is turned to
the “ON” position, stays on for more
than 10 seconds, or comes on while
driving, the air bag system or the seat
belt pretensioner system (if equipped)
may not work properly. Have both sys-
tems inspected by an authorized Fiat
Dealership.
WARNING
65D530
Your vehicle has a computer-controlled
emission control system. A malfunction in-
dicator light is provided on the instrument
cluster to indicate when it is necessary to
have the emission control system serviced.
The malfunction indicator light comes on
when the ignition switch is turned to
“ON” or “START” and goes out when the
engine is started. CHARGING LIGHT
50G052A
This light comes on when the ignition
switch is turned to the “ON” position, and
goes out when the engine is started. The
light will come on and remain on if there
is something wrong with the battery charg-
ing system. If the light comes on when the
engine is running, the charging system
should be inspected immediately by your
Fiat Dealership.For details about the seat belt reminder,
refer to “Seat Belts and Child Restraint
Systems” in the “BEFORE DRIVING” sec-
tion.
“AIR BAG” LIGHT (if equipped)
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 75

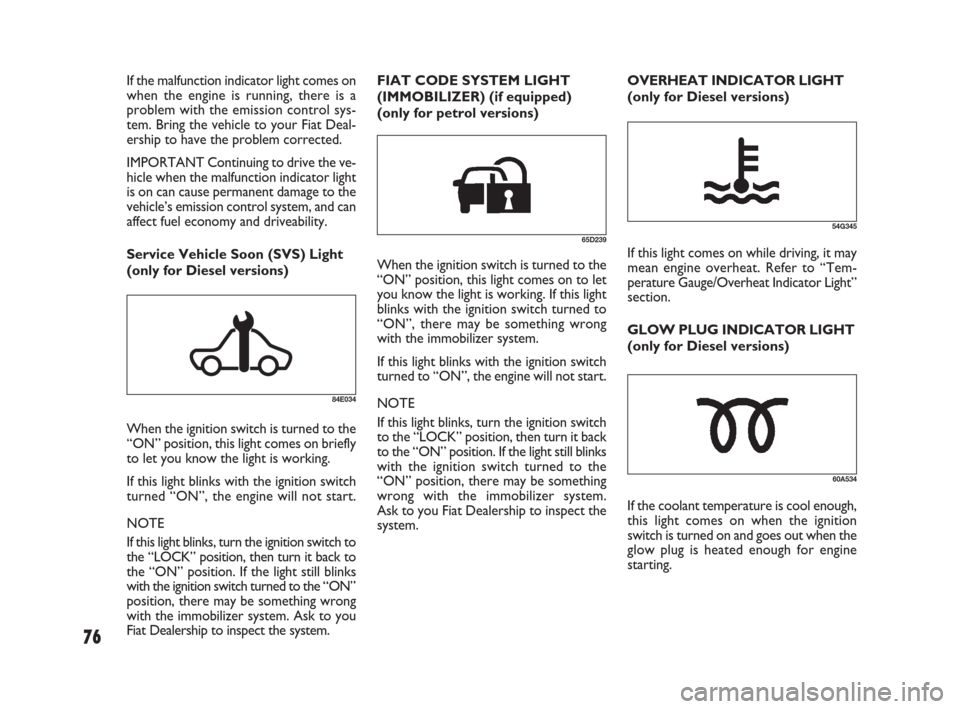

76
If the malfunction indicator light comes on
when the engine is running, there is a
problem with the emission control sys-
tem. Bring the vehicle to your Fiat Deal-
ership to have the problem corrected.
IMPORTANT Continuing to drive the ve-
hicle when the malfunction indicator light
is on can cause permanent damage to the
vehicle’s emission control system, and can
affect fuel economy and driveability.
Service Vehicle Soon (SVS) Light
(only for Diesel versions)
84E034
When the ignition switch is turned to the
“ON” position, this light comes on briefly
to let you know the light is working.
If this light blinks with the ignition switch
turned “ON”, the engine will not start.
NOTE
If this light blinks, turn the ignition switch to
the “LOCK” position, then turn it back to
the “ON” position. If the light still blinks
with the ignition switch turned to the “ON”
position, there may be something wrong
with the immobilizer system. Ask to you
Fiat Dealership to inspect the system.FIAT CODE SYSTEM LIGHT
(IMMOBILIZER) (if equipped)
(only for petrol versions)
65D239
When the ignition switch is turned to the
“ON” position, this light comes on to let
you know the light is working. If this light
blinks with the ignition switch turned to
“ON”, there may be something wrong
with the immobilizer system.
If this light blinks with the ignition switch
turned to “ON”, the engine will not start.
NOTE
If this light blinks, turn the ignition switch
to the “LOCK” position, then turn it back
to the “ON” position. If the light still blinks
with the ignition switch turned to the
“ON” position, there may be something
wrong with the immobilizer system.
Ask to you Fiat Dealership to inspect the
system.
54G345
OVERHEAT INDICATOR LIGHT
(only for Diesel versions)
If this light comes on while driving, it may
mean engine overheat. Refer to “Tem-
perature Gauge/Overheat Indicator Light”
section.
GLOW PLUG INDICATOR LIGHT
(only for Diesel versions)
60A534
If the coolant temperature is cool enough,
this light comes on when the ignition
switch is turned on and goes out when the
glow plug is heated enough for engine
starting.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 76

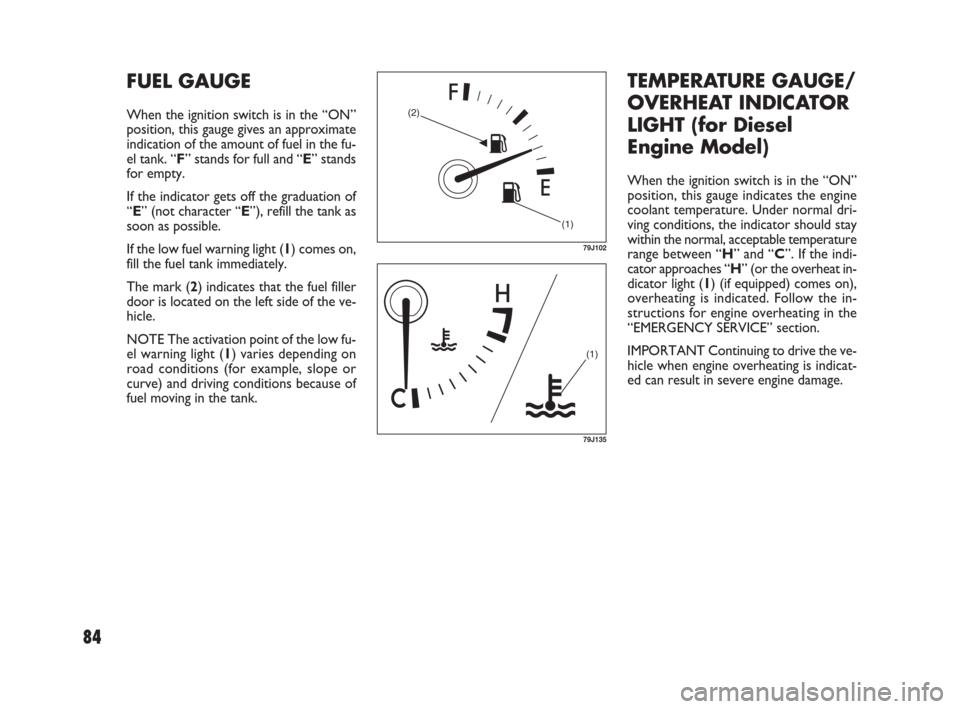

84
TEMPERATURE GAUGE/
OVERHEAT INDICATOR
LIGHT (for Diesel
Engine Model)
When the ignition switch is in the “ON”
position, this gauge indicates the engine
coolant temperature. Under normal dri-
ving conditions, the indicator should stay
within the normal, acceptable temperature
range between “H” and “C”. If the indi-
cator approaches “H” (or the overheat in-
dicator light (1) (if equipped) comes on),
overheating is indicated. Follow the in-
structions for engine overheating in the
“EMERGENCY SERVICE” section.
IMPORTANT Continuing to drive the ve-
hicle when engine overheating is indicat-
ed can result in severe engine damage.
FUEL GAUGE
When the ignition switch is in the “ON”
position, this gauge gives an approximate
indication of the amount of fuel in the fu-
el tank. “F” stands for full and “E” stands
for empty.
If the indicator gets off the graduation of
“E” (not character “E”), refill the tank as
soon as possible.
If the low fuel warning light (1) comes on,
fill the fuel tank immediately.
The mark (2) indicates that the fuel filler
door is located on the left side of the ve-
hicle.
NOTE The activation point of the low fu-
el warning light (1) varies depending on
road conditions (for example, slope or
curve) and driving conditions because of
fuel moving in the tank.
(1) (2)
79J102
(1)
79J135
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 84

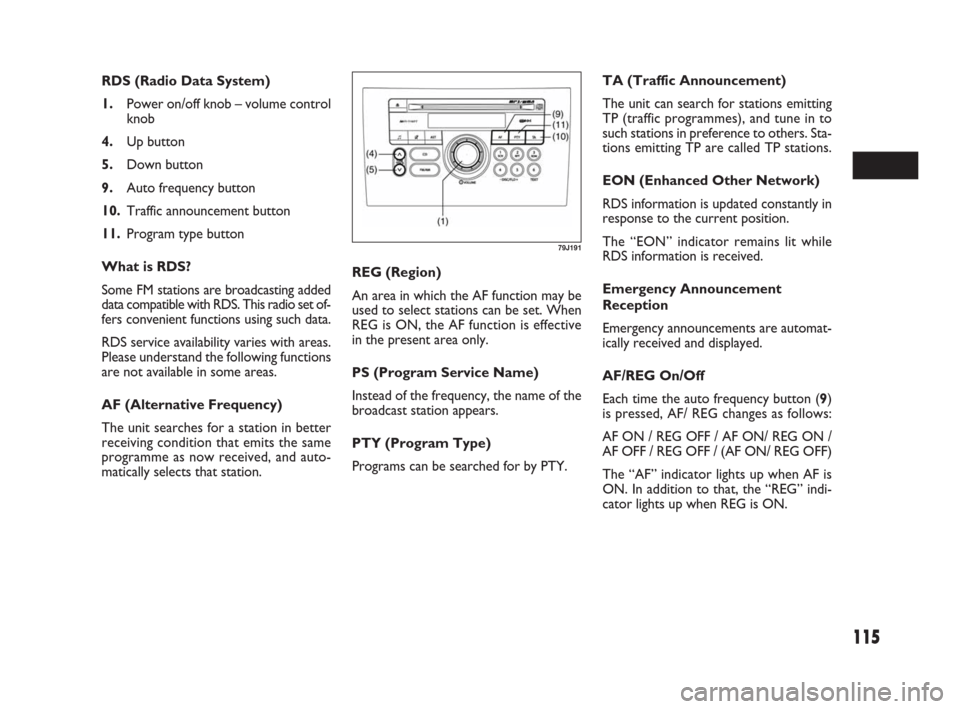

115
REG (Region)
An area in which the AF function may be
used to select stations can be set. When
REG is ON, the AF function is effective
in the present area only.
PS (Program Service Name)
Instead of the frequency, the name of the
broadcast station appears.
PTY (Program Type)
Programs can be searched for by PTY.TA (Traffic Announcement)
The unit can search for stations emitting
TP (traffic programmes), and tune in to
such stations in preference to others. Sta-
tions emitting TP are called TP stations.
EON (Enhanced Other Network)
RDS information is updated constantly in
response to the current position.
The “EON” indicator remains lit while
RDS information is received.
Emergency Announcement
Reception
Emergency announcements are automat-
ically received and displayed.
AF/REG On/Off
Each time the auto frequency button (9)
is pressed, AF/ REG changes as follows:
AF ON / REG OFF / AF ON/ REG ON /
AF OFF / REG OFF / (AF ON/ REG OFF)
The “AF” indicator lights up when AF is
ON. In addition to that, the “REG” indi-
cator lights up when REG is ON. RDS (Radio Data System)
1.Power on/off knob – volume control
knob
4.Up button
5.Down button
9.Auto frequency button
10.Traffic announcement button
11.Program type button
What is RDS?
Some FM stations are broadcasting added
data compatible with RDS. This radio set of-
fers convenient functions using such data.
RDS service availability varies with areas.
Please understand the following functions
are not available in some areas.
AF (Alternative Frequency)
The unit searches for a station in better
receiving condition that emits the same
programme as now received, and auto-
matically selects that station.
79J191
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 115

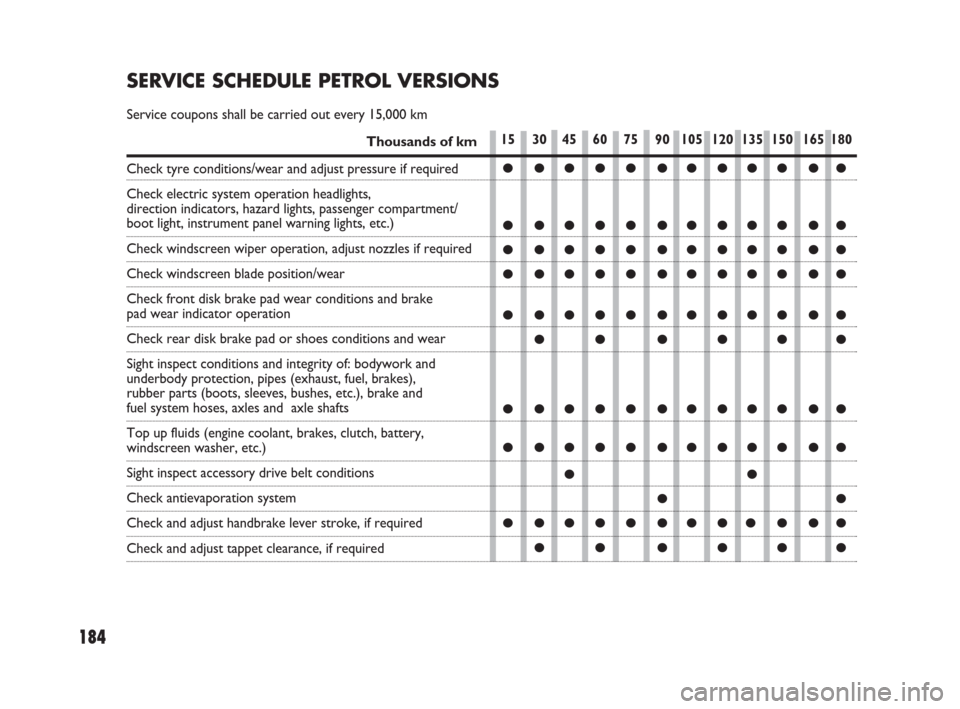

184
15 30 45 60 75 90 105 120 135 150 165 180
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●● ●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●
●●
●●●●●●●●●●●●
●● ●●●●
SERVICE SCHEDULE PETROL VERSIONS
Service coupons shall be carried out every 15,000 km
Thousands of km
Check tyre conditions/wear and adjust pressure if required
Check electric system operation headlights,
direction indicators, hazard lights, passenger compartment/
boot light, instrument panel warning lights, etc.)
Check windscreen wiper operation, adjust nozzles if required
Check windscreen blade position/wear
Check front disk brake pad wear conditions and brake
pad wear indicator operation
Check rear disk brake pad or shoes conditions and wear
Sight inspect conditions and integrity of: bodywork and
underbody protection, pipes (exhaust, fuel, brakes),
rubber parts (boots, sleeves, bushes, etc.), brake and
fuel system hoses, axles and axle shafts
Top up fluids (engine coolant, brakes, clutch, battery,
windscreen washer, etc.)
Sight inspect accessory drive belt conditions
Check antievaporation system
Check and adjust handbrake lever stroke, if required
Check and adjust tappet clearance, if required
181-224 Fiat16 New GB 27-11-2007 11:29 Pagina 184

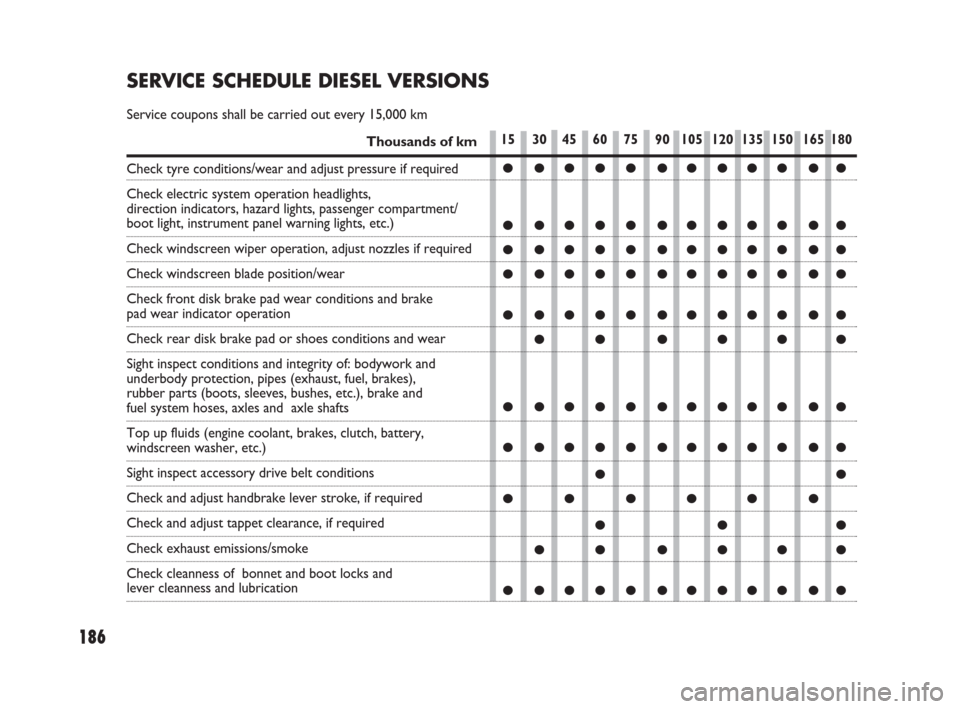

186
15 30 45 60 75 90 105 120 135 150 165 180
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●● ●●●●
●●●●●●●●●●●●
●●●●●●●●●●●●
●●
●●●●●●
●●●
●● ●●●●
●●●●●●●●●●●●
SERVICE SCHEDULE DIESEL VERSIONS
Service coupons shall be carried out every 15,000 km
Thousands of km
Check tyre conditions/wear and adjust pressure if required
Check electric system operation headlights,
direction indicators, hazard lights, passenger compartment/
boot light, instrument panel warning lights, etc.)
Check windscreen wiper operation, adjust nozzles if required
Check windscreen blade position/wear
Check front disk brake pad wear conditions and brake
pad wear indicator operation
Check rear disk brake pad or shoes conditions and wear
Sight inspect conditions and integrity of: bodywork and
underbody protection, pipes (exhaust, fuel, brakes),
rubber parts (boots, sleeves, bushes, etc.), brake and
fuel system hoses, axles and axle shafts
Top up fluids (engine coolant, brakes, clutch, battery,
windscreen washer, etc.)
Sight inspect accessory drive belt conditions
Check and adjust handbrake lever stroke, if required
Check and adjust tappet clearance, if required
Check exhaust emissions/smoke
Check cleanness of bonnet and boot locks and
lever cleanness and lubrication
181-224 Fiat16 New GB 27-11-2007 11:29 Pagina 186
