2007 FIAT SEDICI glove box

18
KEYLESS ENTRY SYSTEM
(if equipped)
(1) “LOCK” button
(2) “UNLOCK” button
There are two ways to lock or unlock all
doors simultaneously by operating the
transmitter/ remote controller near the
vehicle. If the remote controller is left in the ve-
hicle and you lock the door in the follow-
ing manner, the driver’s door or the front
passenger’s door will be automatically un-
locked.
❒You open the driver’s door and lock
the door by turning the lock knob for-
ward or pushing the power door lock-
ing switch, the driver’s door will be au-
tomatically unlocked.
❒You open the door (s) except the dri-
ver’s door and lock the front passen-
ger’s door by turning the lock knob for-
ward or pushing the power door lock-
ing switch, the front passenger’s door
will be automatically unlocked.
NOTE
❒The reminder will not operate when
the remote controller is on the instru-
ment panel, in the glove box, in the
door pocket, in the sun visor or on the
floor etc.
❒Be sure that the driver always carries
the remote controller.
❒Do not leave the remote controller in
the vehicle when departing from the ve-
hicle.
(1)
(2)
81A184
Type 1
Reminder function
If the remote controller is not in the vehi-
cle under the following condition, a buzzer
sounds intermittently for about 2 seconds
and the keyless start system indicator light
on the instrument cluster blinks in red:
❒When the vehicle speed is over 10 km/h.
❒When the door (s) has (have) opened
and later all doors are closed with the
ignition switch in a position other than
LOCK.
The red indicator light will turn off within
several seconds after the remote controller
is returned in the vehicle except in the rear
luggage area.
79J186
009-056 Fiat16 New GB 27-11-2007 11:25 Pagina 18

60
❒If the keyless start system red indicator
light illuminates, the remote controller
may not be in the vehicle or the battery
of the remote controller may be unre-
liable. The red indicator light will turn
off within several seconds after the re-
mote controller is returned in the ve-
hicle except in the rear luggage area.
When the remote controller is in the ve-
hicle except the rear luggage area, you can
turn the ignition switch without using an
ignition key.
NOTE
❒If the battery of the remote controller
runs down or there are strong radio
waves or noise, the operating range
may be narrower or the remote con-
troller may be inoperative.
❒If the remote controller is too close to
the door glass, it may not operate.
❒The ignition switch may not turn when
the remote controller is on the instru-
ment panel, in the glove box, in the
door pocket, in the sun visor or on the
floor. VEHICLE WITH KEYLESS
START SYSTEM
The ignition switch can be operated when
the remote controller is in the vehicle ex-
cept the rear luggage area. To turn the
ignition switch, push the switch first.
NOTE You must push in the ignition
switch to turn it from the “LOCK” posi-
tion to the “ACC” position. To return to
the “LOCK” position from the “ACC” po-
sition, turn the ignition switch counter-
clockwise while pushing in the switch.If the keyless start system blue indicator
light illuminates on the instrument cluster,
you can turn the ignition switch. If the red
indicator light illuminates, you can not turn
the ignition switch.
NOTE
❒The ignition switch can be turned to the
“ACC” position when the keyless start
system blue indicator light illuminates.
The blue indicator light will illuminate
for several seconds and then turn off to
protect the system. In this case, you
must release the ignition switch once
and push the switch again.
80J08379J186
057-068 Fiat16 New GB 27-11-2007 11:25 Pagina 60

69
I I
N N
S S
T T
R R
U U
M M
E E
N N
T T
P P
A A
N N
E E
L L
60G406
INSTRUMENT PANEL ........................................................ 70
INSTRUMENT CLUSTER ................................................... 71
WARNING AND INDICATOR LIGHTS ...................... 72
SPEEDOMETER/ ODOMETER/ TRIP METER/
METER ILLUMINATION CONTROL ............................. 81
TACHOMETER .................................................................... 83
FUEL GAUGE ....................................................................... 84
TEMPERATURE GAUGE/OVERHEAT INDICATOR
LIGHT (for diesel engine model) ...................................... 84HAZARD WARNING SWITCH ...................................... 85
“ESP OFF” SWITCH (if equipped)................................... 85
2WD/ 4WD SWITCH (if equipped) ................................ 86
HEADLIGHT LEVELING SWITCH (if equipped) .........87
HEATED REAR WINDOW AND HEATED OUTSIDE
REARVIEW MIRRORS (if equipped)SWITCH .............. 88
ILLUMINATION CANCEL SWITCH (if equipped) ..... 89
FRONT FOG LIGHT SWITCH (if equipped) ................ 89
CIGARETTE LIGHTER AND ASHTRAY (if equipped) .. 90
GLOVE BOX ......................................................................... 91
INFORMATION DISPLAY (Type I) (if equipped) ......... 91
INFORMATION DISPLAY (Type II) (if equipped) ........ 94
CLOCK (if equipped) .......................................................... 98
HEATING AND AIR CONDITIONING SYSTEM ....... 99
MANUAL HEATING AND
AIR CONDITIONING SYSTEM ..................................... 100
AUTOMATIC HEATING AND
AIR CONDITIONING SYSTEM....................................... 104
AUDIO SYSTEMS ................................................................ 109
MP3/WMA PLAYER (if equipped).................................... 120
3
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 69

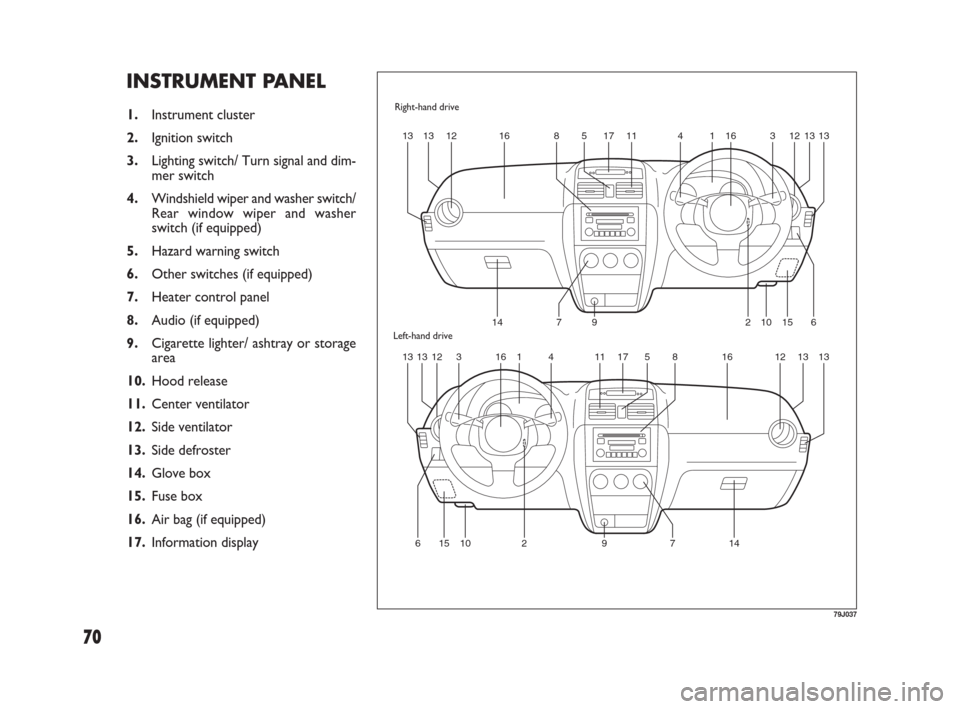

70
INSTRUMENT PANEL
1.Instrument cluster
2.Ignition switch
3.Lighting switch/ Turn signal and dim-
mer switch
4.Windshield wiper and washer switch/
Rear window wiper and washer
switch (if equipped)
5.Hazard warning switch
6.Other switches (if equipped)
7.Heater control panel
8.Audio (if equipped)
9.Cigarette lighter/ ashtray or storage
area
10.Hood release
11.Center ventilator
12.Side ventilator
13.Side defroster
14.Glove box
15.Fuse box
16.Air bag (if equipped)
17.Information display
12 13 1313 31614 11 517 8 16 12 13
15 10 62971412 1313 133 16 1 4 11 517 8 16 12 13
15 10 6 2 7 14 9
79J037
Right-hand drive
Left-hand drive
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 70

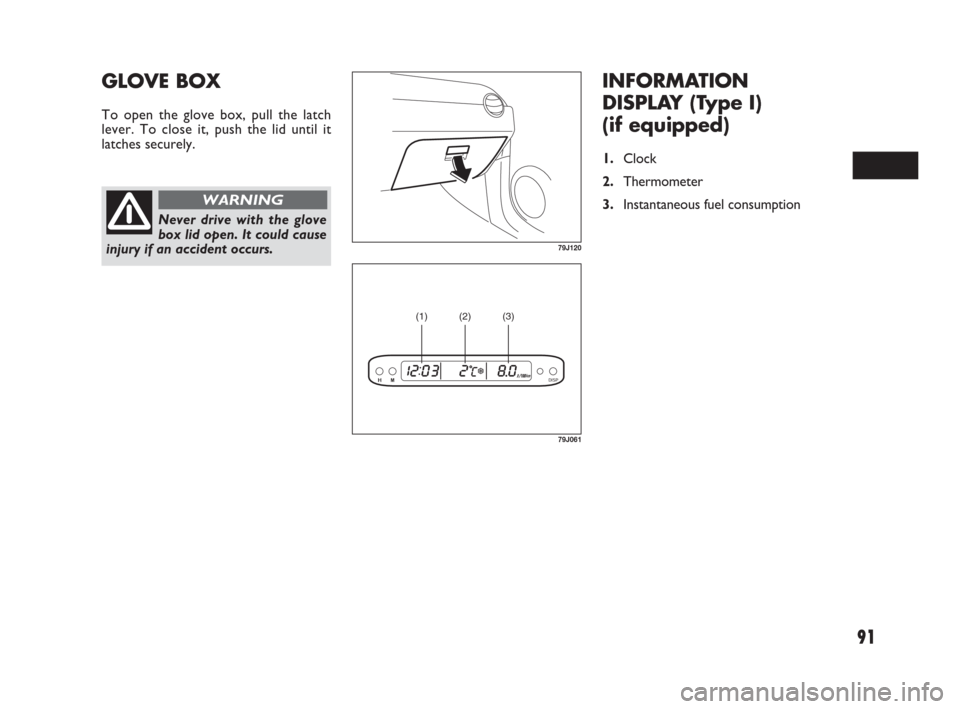

91
INFORMATION
DISPLAY (Type I)
(if equipped)
1.Clock
2.Thermometer
3.Instantaneous fuel consumption
GLOVE BOX
To open the glove box, pull the latch
lever. To close it, push the lid until it
latches securely.
Never drive with the glove
box lid open. It could cause
injury if an accident occurs.
WARNING
79J120
(1) (2) (3)
79J061
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 91

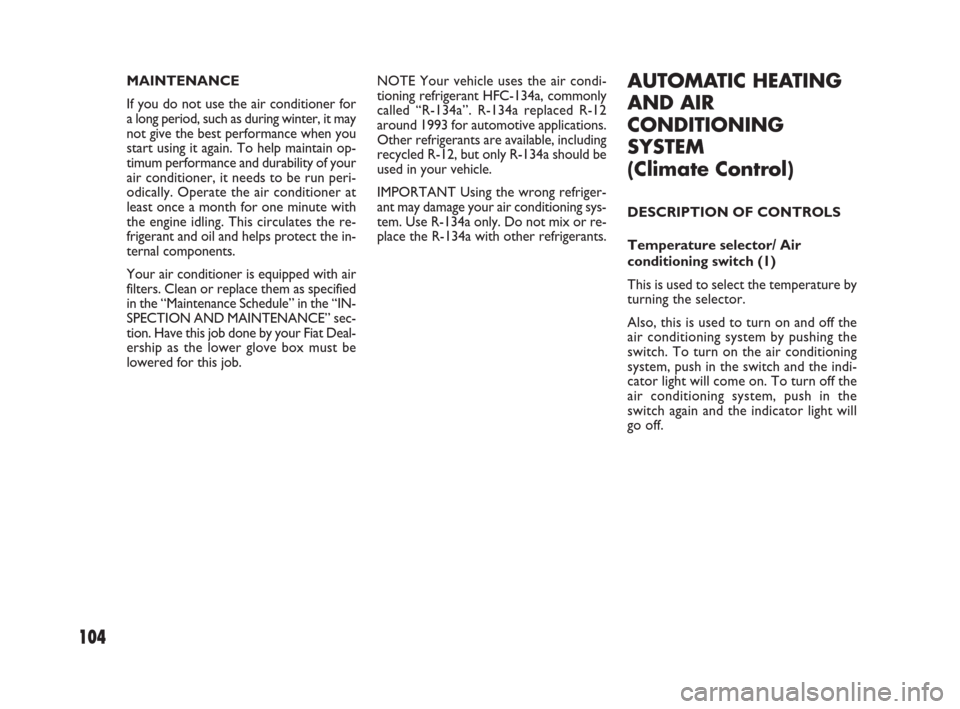

104
NOTE Your vehicle uses the air condi-
tioning refrigerant HFC-134a, commonly
called “R-134a”. R-134a replaced R-12
around 1993 for automotive applications.
Other refrigerants are available, including
recycled R-12, but only R-134a should be
used in your vehicle.
IMPORTANT Using the wrong refriger-
ant may damage your air conditioning sys-
tem. Use R-134a only. Do not mix or re-
place the R-134a with other refrigerants.AUTOMATIC HEATING
AND AIR
CONDITIONING
SYSTEM
(Climate Control)
DESCRIPTION OF CONTROLS
Temperature selector/ Air
conditioning switch (1)
This is used to select the temperature by
turning the selector.
Also, this is used to turn on and off the
air conditioning system by pushing the
switch. To turn on the air conditioning
system, push in the switch and the indi-
cator light will come on. To turn off the
air conditioning system, push in the
switch again and the indicator light will
go off. MAINTENANCE
If you do not use the air conditioner for
a long period, such as during winter, it may
not give the best performance when you
start using it again. To help maintain op-
timum performance and durability of your
air conditioner, it needs to be run peri-
odically. Operate the air conditioner at
least once a month for one minute with
the engine idling. This circulates the re-
frigerant and oil and helps protect the in-
ternal components.
Your air conditioner is equipped with air
filters. Clean or replace them as specified
in the “Maintenance Schedule” in the “IN-
SPECTION AND MAINTENANCE” sec-
tion. Have this job done by your Fiat Deal-
ership as the lower glove box must be
lowered for this job.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 104

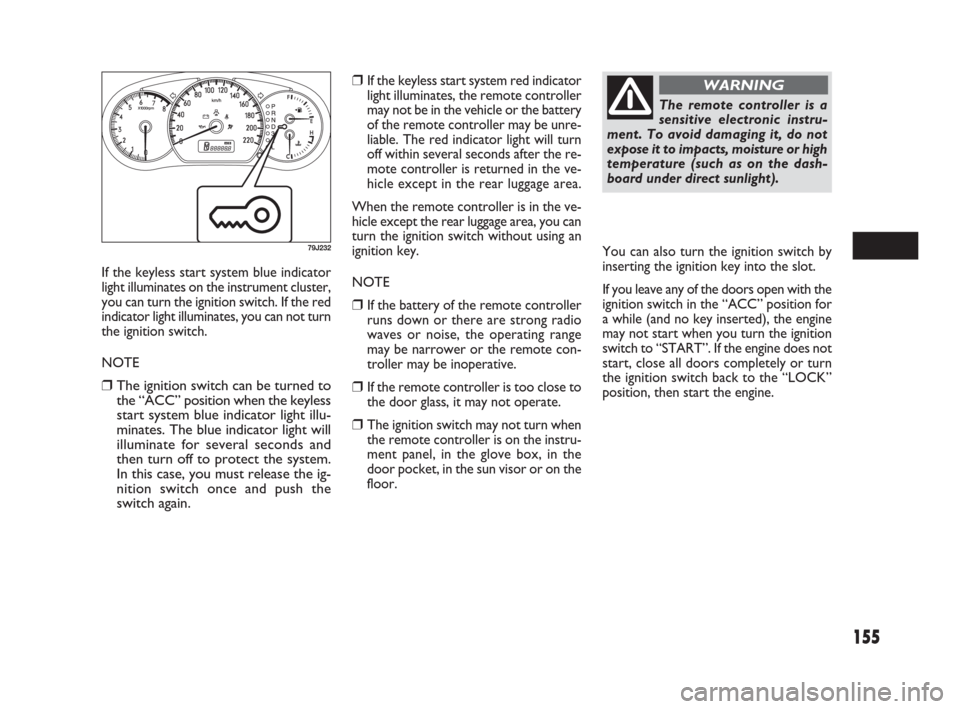

155
If the keyless start system blue indicator
light illuminates on the instrument cluster,
you can turn the ignition switch. If the red
indicator light illuminates, you can not turn
the ignition switch.
NOTE
❒The ignition switch can be turned to
the “ACC” position when the keyless
start system blue indicator light illu-
minates. The blue indicator light will
illuminate for several seconds and
then turn off to protect the system.
In this case, you must release the ig-
nition switch once and push the
switch again.
79J232
❒If the keyless start system red indicator
light illuminates, the remote controller
may not be in the vehicle or the battery
of the remote controller may be unre-
liable. The red indicator light will turn
off within several seconds after the re-
mote controller is returned in the ve-
hicle except in the rear luggage area.
When the remote controller is in the ve-
hicle except the rear luggage area, you can
turn the ignition switch without using an
ignition key.
NOTE
❒If the battery of the remote controller
runs down or there are strong radio
waves or noise, the operating range
may be narrower or the remote con-
troller may be inoperative.
❒If the remote controller is too close to
the door glass, it may not operate.
❒The ignition switch may not turn when
the remote controller is on the instru-
ment panel, in the glove box, in the
door pocket, in the sun visor or on the
floor.
The remote controller is a
sensitive electronic instru-
ment. To avoid damaging it, do not
expose it to impacts, moisture or high
temperature (such as on the dash-
board under direct sunlight).
WARNING
You can also turn the ignition switch by
inserting the ignition key into the slot.
If you leave any of the doors open with the
ignition switch in the “ACC” position for
a while (and no key inserted), the engine
may not start when you turn the ignition
switch to “START”. If the engine does not
start, close all doors completely or turn
the ignition switch back to the “LOCK”
position, then start the engine.
149-166 Fiat16 New GB 27-11-2007 11:27 Pagina 155

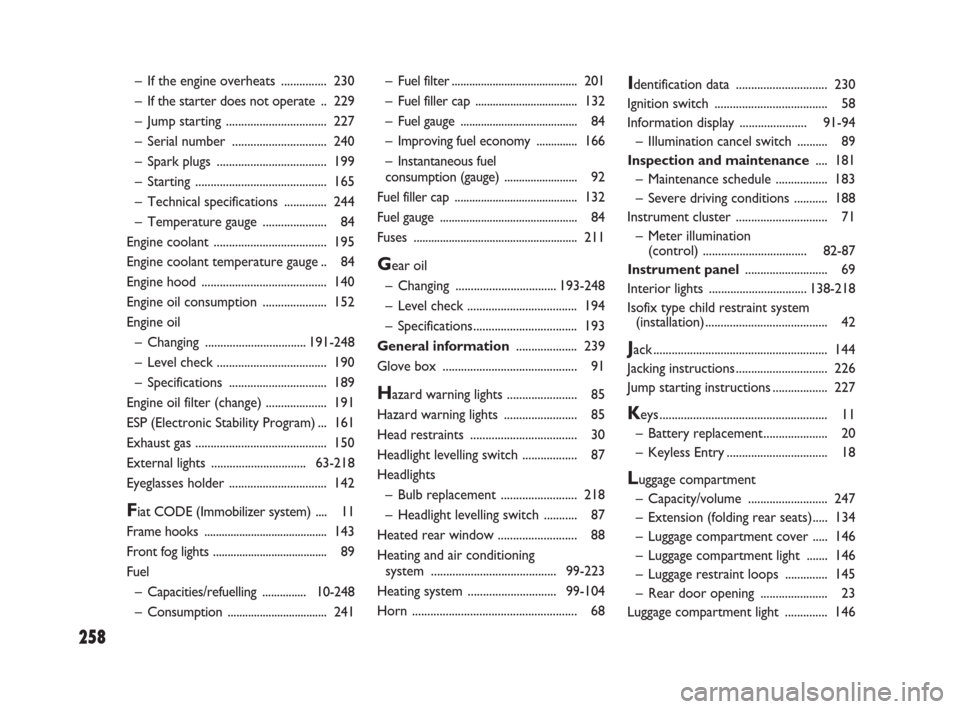

258
– Fuel filter........................................... 201
– Fuel filler cap ................................... 132
– Fuel gauge ........................................ 84
– Improving fuel economy .............. 166
– Instantaneous fuel
consumption (gauge) ......................... 92
Fuel filler cap .......................................... 132
Fuel gauge ............................................... 84
Fuses ........................................................ 211
Gear oil
– Changing .................................193-248
– Level check .................................... 194
– Specifications.................................. 193
General information.................... 239
Glove box ............................................ 91
Hazard warning lights ....................... 85
Hazard warning lights ........................ 85
Head restraints ................................... 30
Headlight levelling switch .................. 87
Headlights
– Bulb replacement ......................... 218
– Headlight levelling switch ........... 87
Heated rear window .......................... 88
Heating and air conditioning
system .........................................99-223
Heating system .............................99-104
Horn ...................................................... 68
Identification data .............................. 230
Ignition switch ..................................... 58
Information display ......................91-94
– Illumination cancel switch .......... 89
Inspection and maintenance.... 181
– Maintenance schedule ................. 183
– Severe driving conditions ........... 188
Instrument cluster .............................. 71
– Meter illumination
(control) ..................................82-87
Instrument panel........................... 69
Interior lights ................................138-218
Isofix type child restraint system
(installation)........................................ 42
Jack ......................................................... 144
Jacking instructions.............................. 226
Jump starting instructions.................. 227
Keys ....................................................... 11
– Battery replacement..................... 20
– Keyless Entry................................. 18
Luggage compartment
– Capacity/volume .......................... 247
– Extension (folding rear seats)..... 134
– Luggage compartment cover ..... 146
– Luggage compartment light ....... 146
– Luggage restraint loops .............. 145
– Rear door opening ...................... 23
Luggage compartment light .............. 146 – If the engine overheats ............... 230
– If the starter does not operate .. 229
– Jump starting ................................. 227
– Serial number ............................... 240
– Spark plugs .................................... 199
– Starting ........................................... 165
– Technical specifications .............. 244
– Temperature gauge ..................... 84
Engine coolant ..................................... 195
Engine coolant temperature gauge .. 84
Engine hood ......................................... 140
Engine oil consumption ..................... 152
Engine oil
– Changing .................................191-248
– Level check .................................... 190
– Specifications ................................ 189
Engine oil filter (change) .................... 191
ESP (Electronic Stability Program) ... 161
Exhaust gas ........................................... 150
External lights ...............................63-218
Eyeglasses holder ................................ 142
Fiat CODE (Immobilizer system) .... 11
Frame hooks .......................................... 143
Front fog lights ....................................... 89
Fuel
– Capacities/refuelling ...............10-248
– Consumption .................................. 241
257-264 Fiat16 New GB 27-11-2007 11:55 Pagina 258
