2007 FIAT SEDICI Owners Manual

216
15A
15A
10A
10A
15A
15A
30A
30A
10A
15A
10A
10A
15A
20A
15A
10A
15A
10A
10A
15A
30A
15A
10A
79J093
79J011
FUSES UNDER THE DASH BOARD
Main fuse / Primary fuse
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(22)
(23)Rear wiper
Ignition coil
Back-up light
Meter
Accessory
Accessory 2
Power window
Wiper
IG1 SIG
Air bag
Anti-lock brake system
Tail light
Stop light
Door lock
4WD light
ST SIG
Seat heater
IG 2 SIG
Rear fog lamp
Dome
Rear defogger
Horn / Hazard
Fiat CODE (Immobilizer)
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 216

217
BULB REPLACEMENT
1.Fuse puller
The fuses are also located under the dri-
ver’s side of the dashboard. Remove the
fuse box lid by pulling it off. To remove a
fuse, use the fuse puller provided in the
fuse box. The amperage of each fuse is
shown on the top of the fuse box cover.
54G256
Always be sure to replace a
blown fuse with a fuse of the
correct amperage. Never use a sub-
stitute such as aluminum foil or wire
to replace a blown fuse. If you re-
place a fuse and the new one blows
in a short period of time, you may
have a major electrical problem.
Have your vehicle inspected imme-
diately by your Fiat Dealership.
WARNING
65D046
NOTE Make sure that the fuse box always
carries spare fuses.
OK
BLOWN
– Light bulbs can be hot
enough to burn your finger
right after being turned off. This is
true especially for halogen headlight
bulbs. Replace the bulbs after they
become cool enough.
– The headlight bulbs are filled with
pressurized halogen gas. They can
burst and injure you if they are hit or
dropped. Handle them carefully.
WARNING
IMPORTANT The oils from your skin may
cause a halogen bulb to overheat and burst
when the lights are on. Grasp a new bulb
with a clean cloth.
IMPORTANT Frequent replacement of a
bulb indicates the need for an inspection
of the electrical system. This should be
carried out by your Fiat Dealership.
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 217

218
HEADLIGHT
Open the engine hood. Disconnect the
coupler. Remove the sealing rubber.
Push the retaining spring forward and un-
hook it. Then remove the bulb. Install a
new bulb in the reverse order of removal.SIDE TURN SIGNAL LIGHT
As the bulb is built-in type, the light as-
sembly must be replaced. Remove the light
assembly by sliding the light housing left-
ward with your finger. CENTER INTERIOR LIGHT
(if equipped)
Pull down the lens by using a plane screw
driver covered with a soft cloth as shown.
To install it, simply push it back in.
The bulb can be removed by simply pulling
it out. When replacing the bulb, make sure
that the contact springs are holding the
bulb securely.
60G11554G12164J195
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 218

219

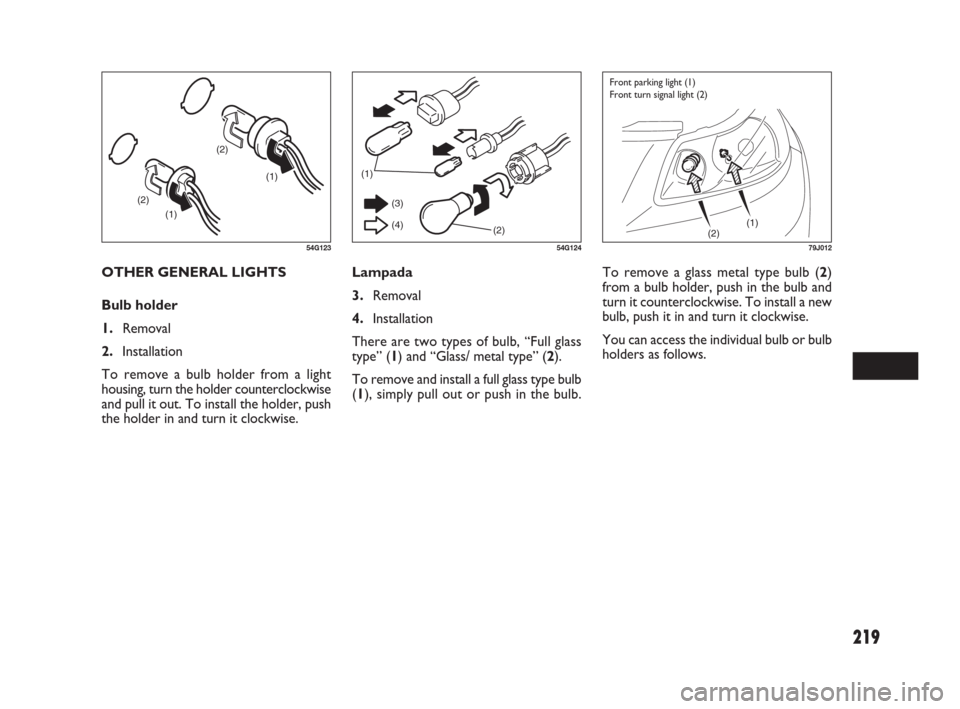

Lampada
3.Removal
4.Installation
There are two types of bulb, “Full glass
type” (1) and “Glass/ metal type” (2).
To remove and install a full glass type bulb
(1), simply pull out or push in the bulb. OTHER GENERAL LIGHTS
Bulb holder
1.Removal
2.Installation
To remove a bulb holder from a light
housing, turn the holder counterclockwise
and pull it out. To install the holder, push
the holder in and turn it clockwise.
(1)
(1) (2)(2)
54G123
(1)
(2) (3)
(4)
54G124
(1)
(2)
79J012
Front parking light (1)
Front turn signal light (2)
To remove a glass metal type bulb (2)
from a bulb holder, push in the bulb and
turn it counterclockwise. To install a new
bulb, push it in and turn it clockwise.
You can access the individual bulb or bulb
holders as follows.
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 219

220

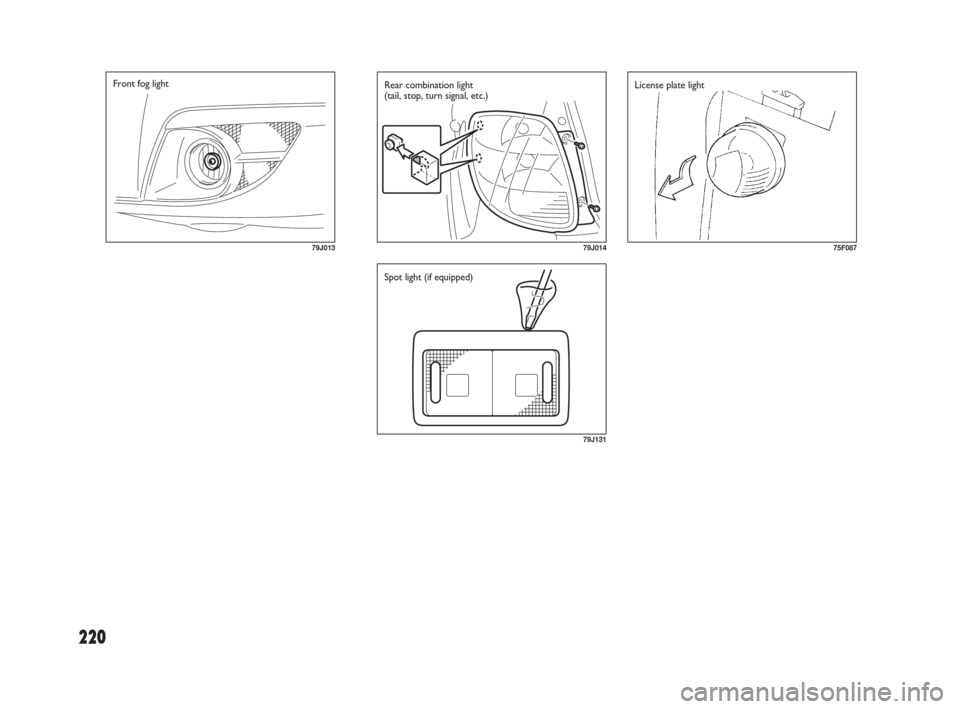

79J014
79J131
Rear combination light
(tail, stop, turn signal, etc.)
Spot light (if equipped)
75F087
License plate light
79J013
Front fog light
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 220

221
❒Pushing the unguiform prongs (3) to-
ward inside and remove the bulb hold-
er (4).
❒Replace the bulbs.
To install a high-mounted stop light
housing in the reverse order of re-
moval.
To remove a high-mounted stop light
housing the following procedure:
❒Open the tailgate, and remove the nuts
(1) as shown in the illustration.
❒Close the tailgate. Remove a high-
mounted stop light housing (2) from
the tailgate.
Luggage compartment light
79J015
(1)
63J106
High-mount stop light (if equipped)
(2)
63J127
(3) (3)(4)
63J107
63J108
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 221

222
❒Squeeze lock (1) towards wiper arm (2)
and remove the wiper frame from the
arm as shown.
54G130
WINDSCREEN - REAR
WINDOW WASHER /
WIPERS
If the wiper blades become brittle or dam-
aged, or make streaks when wiping, re-
place the wiper blades.
To install new wiper blades, follow the
procedures below.
IMPORTANT To avoid scratching or
breaking the window, do not let the wiper
arm strike the window while replacing the
wiper blade.
NOTE Some wiper blades may be differ-
ent from the ones described here de-
pending on vehicle specifications. If so,
consult your Fiat Dealership for proper
replacement method.
For windscreen wipers
❒Hold the wiper arm away from the win-
dow.
54G129
70G119ADriving with worn wiper
blades is a serious hazard,
because visibility is reduced in bad
weather.
WARNING
181-224 Fiat16 New GB 27-11-2007 11:30 Pagina 222

223
For rear window / wiper
❒Hold the wiper arm away from the win-
dow.
❒Remove the wiper frame from the arm
as shown.
❒Slide the blade out as shown.
80G146
AIR CONDITIONING
SYSTEM
If you do not use the air conditioner for
a long period, such as during winter, it may
not give the best performance when you
start using it again. To help maintain op-
timum performance and durability of your
air conditioner, it needs to be run peri-
odically.Operate the air conditioner at least once
a month for one minute with the engine
idling. This circulates the refrigerant and
oil and helps protect the internal compo-
nents.
