2007 FIAT SEDICI Owners Manual

96
62J143Type B (For Diesel Engine Model)
This display shows instantaneous fuel con-
sumption when the vehicle is moving.
However, the display of instantaneous fu-
el consumption can be turned off if you
desire.
NOTE Unless the vehicle is moving, the
display will indicate “--.-”.
You can change the unit indication be-
tween “l/ 100km” or “MPG” and you can
also turn the display off. To change the in-
dication, follow the instructions below. NOTE
❒The value of fuel consumption shown
in the display is affected by such as fol-
lowing conditions;
– road condition
– surrounding traffic condition
– driving condition
❒The information display will be changed
to the state of initialization when you
reconnect the negative (–) terminal to
a battery.
63J148
❒Turn the ignition switch to the “ACC”
or “ON” position while holding in the
“DISP” knob (c). The unit display of fu-
el consumption will blink the current
unit.
❒Push the “DISP” knob (c) quickly to
change the display as shown in the
above illustrations.
❒Push the “DISP” knob (c) for more than
2 seconds, and the unit display will stop
blinking and the display will stay on. If
you don’t operate the “DISP” knob (c)
within about 8 seconds, the unit display
will automatically stop blinking and the
display will stay on.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 96

97
63J111
❒Hold in the “DISP” knob (c) for more
than 2 seconds. The unit display of the
instantaneous fuel consumption will
blink. When the display of instanta-
neous fuel consumption is turned off,
the display “-- -” will appear.
❒Push the “DISP” knob (c) quickly to
change the indication as shown in the
above illustration.
❒Push the “DISP” knob (c) for more than
2 seconds, and the unit indication will
stop blinking or the display “-- -” will go
out and the display will be turned off.
If you don’t operate the “DISP” knob
(c) within about 8 seconds after the
unit indication starts blinking, the unit
display will automatically stop blinking
or the display “-- -” will go out and the
display will be turned off.NOTE
❒The value of fuel consumption shown
in the display is affected by such as fol-
lowing conditions;
– road condition
– surrounding traffic condition
– driving condition
❒The information display will be changed
to the state of initialization when you
reconnect the negative (–) terminal to
a battery.
THEFT DETERRENT LIGHT (4)
This light will blink with the ignition switch
in the “OFF” or “ACC” position. The
blinking light is intended to deter theft by
leading others to believe that the vehicle
is equipped with a security system.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 97

98
❒To set the minute display, push the “M”
knob (b) repeatedly to advance the
minute display. To advance the minute
display quickly, hold in the “M” knob (b)
for about 1 second and continue hold-
ing.THEFT DETERRENT LIGHT (c)
This light will blink with the ignition switch
in the “OFF” or “ACC” position. The
blinking light is intended to deter theft by
leading others to believe that the vehicle
is equipped with a security system.
CLOCK (if equipped)
The clock is shown when the ignition
switch is in the “ACC” or “ON” position.
To set the clock, follow the instructions
below.
❒To set the hour display, push the “H”
knob (a) repeatedly to advance the
hour display. To advance the hour dis-
play quickly, hold in the “H” knob (a)
for about 1 second and continue hold-
ing.
(a) (b)
(c)
62J054
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 98

99
HEATING AND AIR
CONDITIONING
SYSTEM
There are two types of heating and air
conditioning systems as follows:
❒manual Heating and Air Conditioning
System
❒automatic Heating and Air Condition-
ing System (Climate Control)
AIR OUTLET
1.Windshield defroster outlet
2.Side defroster outlet
3.Side outlet
4.Center outlet
5.Floor outlet
1
1
2
2 3 3
5 5
5 54
2 2
79J064
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 99

100

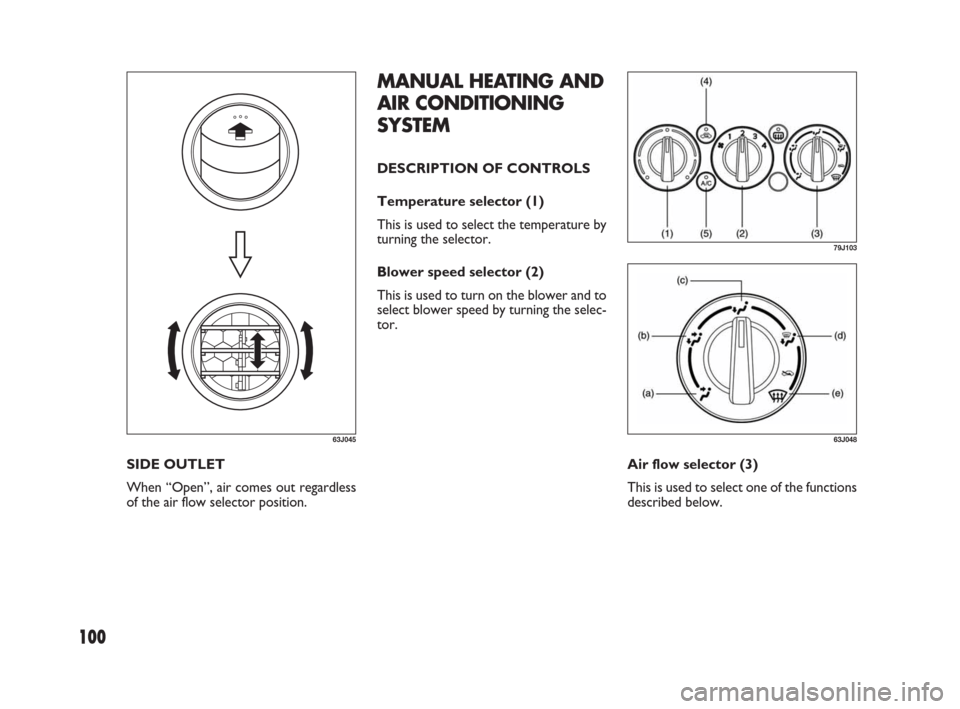

MANUAL HEATING AND
AIR CONDITIONING
SYSTEM
DESCRIPTION OF CONTROLS
Temperature selector (1)
This is used to select the temperature by
turning the selector.
Blower speed selector (2)
This is used to turn on the blower and to
select blower speed by turning the selec-
tor.
Air flow selector (3)
This is used to select one of the functions
described below. SIDE OUTLET
When “Open”, air comes out regardless
of the air flow selector position.
63J045
79J103
63J048
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 100

101
Heat (c)
Temperature-controlled air comes out of
the floor outlets and the side outlets, al-
so comes out of the windshield defroster
outlets and the side defroster outlets
slightly.Defrost (e)
Temperature-controlled air comes out of
the windshield defroster outlets, the side
defroster outlets and the side outlets. Ventilation (a)
Temperature-controlled air comes out of
the center and side air outlets.
79J065
79J066
Bi- level (b)
Temperature-controlled air comes out of
the floor outlets and cooler air comes out
of the center and side outlets. When the
temperature selector (1) is in the fully
COLD position or fully HOT position,
however, the air from the floor outlets
and the air from the center and side out-
lets will be the same temperature.
79J067
79J068
Heat & defrost (d)
Temperature-controlled air comes out of
the floor outlets, the windshield defroster
outlets, the side defroster outlets and the
side outlets.
79J069
(g) (f)
63J047
Air intake selector (4)
This selector is used to select the follow-
ing modes.
Fresh Air (f)
When this mode is selected, the indica-
tor light will go off and outside air is
used.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 101

102
During operation of the air conditioner,
you may notice slight changes in engine
speed. These changes are normal, the sys-
tem is designed so that the compressor
turns on or off to maintain the desired
temperature.
Less operation of the compressor results
in better fuel economy.
SYSTEM OPERATING
INSTRUCTIONS
Natural ventilation
Select “VENTILATION” and “FRESH
AIR”, the temperature selector to the de-
sired temperature position, and the blow-
er speed selector to “OFF”. Fresh air will
flow through the vehicle during driving.
Forced ventilation
The control settings are the same as for
natural ventilation except you set the
blower speed selector to a position oth-
er than “OFF”.Normal heating (using outside air)
Select “HEAT” and “FRESH AIR”, the
temperature selector to the desired tem-
perature position and the blower speed
selector to the desired blower speed po-
sition. Setting the blower speed selector
to a higher blower speed position in-
creases heating efficiency.
Quick heating
(using recirculated air)
The control settings are the same as for
normal heating except you select “RE-
CIRCULATED AIR”. If you use this heat-
ing method for an extended period of
time, the air in the vehicle can become
contaminated and the windows can be-
come misty. Therefore, use this method
only for quick heating and change to the
normal heating method as soon as possi-
ble. Recirculated Air (g)
When this mode is selected, the indicator
light will come on, outside air is shut out
and inside air is recirculated. This mode is
suitable when driving through dusty or
polluted air such as in a tunnel, or when
attempting to quickly cool down the in-
terior.
“FRESH AIR” and “RECIRCULATED AIR”
are switched alternately each time the air
intake selector is pushed.
NOTE If you select “RECIRCULATED
AIR” for an extended period of time, the
air in the vehicle can become contami-
nated. Therefore, you should occasional-
ly select “FRESH AIR”.
Air conditioning switch (5)
To turn on the air conditioning system,
push in the “A/C” switch and set the blow-
er speed selector to a position other than
“OFF”. With this “A/ C” switch operation,
a indicator light will come on when the air
conditioning system is on. To turn off the
air conditioning system, push the “A/C”
switch again.
069-128 Fiat16 New GB 27-11-2007 11:26 Pagina 102

103

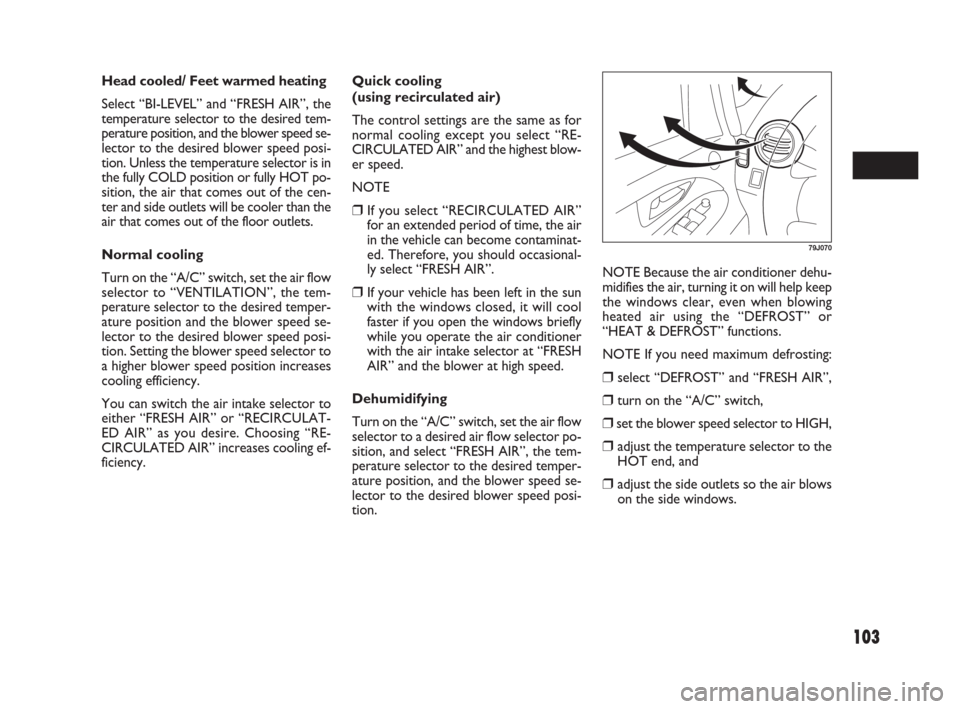

Quick cooling
(using recirculated air)
The control settings are the same as for
normal cooling except you select “RE-
CIRCULATED AIR” and the highest blow-
er speed.
NOTE
❒If you select “RECIRCULATED AIR”
for an extended period of time, the air
in the vehicle can become contaminat-
ed. Therefore, you should occasional-
ly select “FRESH AIR”.
❒If your vehicle has been left in the sun
with the windows closed, it will cool
faster if you open the windows briefly
while you operate the air conditioner
with the air intake selector at “FRESH
AIR” and the blower at high speed.
Dehumidifying
Turn on the “A/C” switch, set the air flow
selector to a desired air flow selector po-
sition, and select “FRESH AIR”, the tem-
perature selector to the desired temper-
ature position, and the blower speed se-
lector to the desired blower speed posi-
tion.NOTE Because the air conditioner dehu-
midifies the air, turning it on will help keep
the windows clear, even when blowing
heated air using the “DEFROST” or
“HEAT & DEFROST” functions.
NOTE If you need maximum defrosting:
❒select “DEFROST” and “FRESH AIR”,
❒turn on the “A/C” switch,
❒set the blower speed selector to HIGH,
❒adjust the temperature selector to the
HOT end, and
❒adjust the side outlets so the air blows
on the side windows. Head cooled/ Feet warmed heating
Select “BI-LEVEL” and “FRESH AIR”, the
temperature selector to the desired tem-
perature position, and the blower speed se-
lector to the desired blower speed posi-
tion. Unless the temperature selector is in
the fully COLD position or fully HOT po-
sition, the air that comes out of the cen-
ter and side outlets will be cooler than the
air that comes out of the floor outlets.
Normal cooling
Turn on the “A/C” switch, set the air flow
selector to “VENTILATION”, the tem-
perature selector to the desired temper-
ature position and the blower speed se-
lector to the desired blower speed posi-
tion. Setting the blower speed selector to
a higher blower speed position increases
cooling efficiency.
You can switch the air intake selector to
either “FRESH AIR” or “RECIRCULAT-
ED AIR” as you desire. Choosing “RE-
CIRCULATED AIR” increases cooling ef-
ficiency.
79J070
