THE KEYS

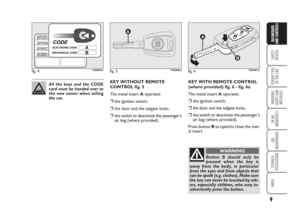

CODE CARD fig. 4
The car is delivered with two copies of the
key, and the CODE card which bears the
following:
Athe electronic code to be used for
emergency starting (see “Emergency
starting” in section “Correct use of the
car”).
Bthe mechanical key code to be given to
the Fiat Dealership when ordering du-
plicate keys.
Make sure you have the electronic code
Awith you at all times in the event you
have to perform an emergency start-up.
IMPORTANT In order to ensure perfect
efficiency of the electronic devices con-
tained inside the keys, they should never
be exposed to direct sunlight.
8
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
In this case, the key should be moved to
the STOPposition and then back to
MAR; if the lock continues, possibly try
again with the other key provided with the
car. If it is still not possible to start the car,
follow the instructions given in the section
“In an emergency” and then contact a Fi-
at Dealership.
IMPORTANT Every key has its own code,
which must be memorised by the system
control unit. To memorise new keys, up
to a maximum of eight, apply solely to Fi-
at Dealership.Warning light Ycoming on when
driving
❒If the warning light Yturns on, this
means that the system is running a self-
test (for example for a voltage drop).
At the first stop, turn the ignition key
to STOPand then back to MAR: if no
failure is detected, warning light
Ywill not come on.
❒If the warning light Ystays on, repeat
the procedure described previously
leaving the key at STOPfor over 30
seconds. Should the inconvenience per-
sists, contact a Fiat Dealership.
❒If the warning light Ystays on this
means that the code has not been
recognised. In this case the key should
be moved to the STOPposition and
then back to MAR; if the lock contin-
ues, possibly try again with the other
keys provided with the car. If it is still
not possible to start the car, follow the
instructions given in section “In an
emergency” and then contact a Fiat
Dealership.
The electronic components
inside the key may be dam-
aged if the key is submitted to
sharp knocks.
001-031 Panda New GB 21-06-2007 13:47 Pagina 8

KEY WITH REMOTE CONTROL
(where provided) fig. 6 - fig. 6a
The metal insert Aoperates:
❒the ignition switch;
❒the door and the tailgate locks;
❒the switch to deactivate the passenger’s
air bag (where provided).
Press button Bto open/to close the met-
al insert.
fig. 6F0G0681m
9
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
KEY WITHOUT REMOTE
CONTROL fig. 5
The metal insert Aoperates:
❒the ignition switch;
❒the door and the tailgate locks;
❒the switch to deactivate the passenger’s
air bag (where provided).
fig. 4F0G0679mfig. 5F0G0680m
All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
Button B should only be
pressed when the key is
away from the body, in particular
from the eyes and from objects that
can be spoilt (e.g. clothes). Make sure
the key can never be touched by oth-
ers, especially children, who may in-
advertently press the button.
WARNING
001-031 Panda New GB 21-06-2007 13:47 Pagina 9

10
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

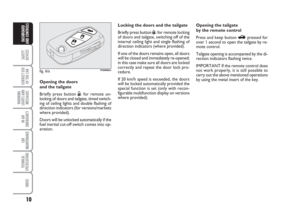

fig. 6/aF0G0682m
Opening the doors
and the tailgate
Briefly press button Ë: for remote un-
locking of doors and tailgate, timed switch-
ing of ceiling lights and double flashing of
direction indicators (for versions/markets
where provided).
Doors will be unlocked automatically if the
fuel inertial cut-off switch comes into op-
eration.Locking the doors and the tailgate
Briefly press button Á: for remote locking
of doors and tailgate, switching off of the
internal ceiling light and single flashing of
direction indicators (where provided).
If one of the doors remains open, all doors
will be closed and immediately re-opened;
in this case make sure all doors are locked
correctly and repeat the door lock pro-
cedure.
If 20 km/h speed is exceeded, the doors
will be locked automatically provided the
special function is set (only with recon-
figurable multifunction display on versions
where provided). Opening the tailgate
by the remote control
Press and keep button Rpressed for
over 1 second to open the tailgate by re-
mote control.
Tailgate opening is accompanied by the di-
rection indicators flashing twice.
IMPORTANT If the remote control does
not work properly, it is still possible to
carry out the above mentioned operations
by using the metal insert of the key.
001-031 Panda New GB 21-06-2007 13:47 Pagina 10

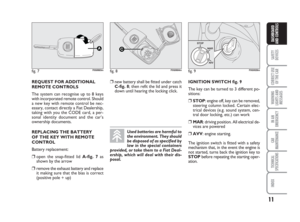

IGNITION SWITCH fig. 9
The key can be turned to 3 different po-
sitions:
❒STOP: engine off, key can be removed,
steering column locked. Certain elec-
trical devices (e.g. sound system, cen-
tral door locking, etc.) can work
❒MAR: driving position. All electrical de-
vices are powered
❒AVV: engine starting.
The ignition switch is fitted with a safety
mechanism that, in the event the engine is
not started, turns back the ignition key to
STOPbefore repeating the starting oper-
ation. REQUEST FOR ADDITIONAL
REMOTE CONTROLS
The system can recognise up to 8 keys
with incorporated remote control. Should
a new key with remote control be nec-
essary, contact directly a Fiat Dealership,
taking with you the CODE card, a per-
sonal identity document and the car’s
ownership documents.

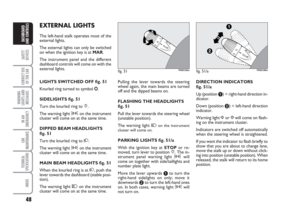

REPLACING THE BATTERY
OF THE KEY WITH REMOTE
CONTROL
Battery replacement:
❒open the snap-fitted lid A-fig. 7as
shown by the arrow
❒remove the exhaust battery and replace
it making sure that the bias is correct
(positive pole + up)
fig. 7F0G0683mfig. 8F0G0684mfig. 9F0G0026m
11
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Used batteries are harmful to
the environment. They should
be disposed of as specified by
law in the special containers
provided, or take them to a Fiat Deal-
ership, which will deal with their dis-
posal.
❒new battery shall be fitted under catch
C-fig. 8; then refit the lid and press it
down until hearing the locking click.
001-031 Panda New GB 21-06-2007 13:47 Pagina 11

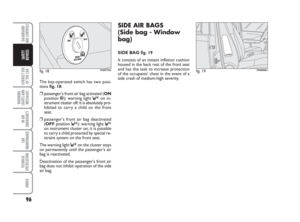

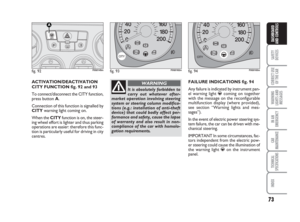

STEERING COLUMN LOCK
fig. 10
Engaging
When the key is at STOPremove the key
and turn the steering wheel until it locks.
Disengaging
Rock the steering wheel slightly as you
turn the ignition key to MAR.
fig. 10F0G0026m
12
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
If the ignition device is tam-
pered with (e.g. attempted
theft), have it checked over by a Fiat
Dealership.
WARNING
When getting out of the car,
always remove the key to
prevent any occupants from acci-
dentally activating the controls. Re-
member to engage the handbrake. If
the car is parked on uphill slope, en-
gage the first gear; if the car is fac-
ing downhill, engage the reverse gear.
Never leave unsupervised children in
the car.
WARNING
Never remove the ignition
key while the car is moving.
The steering wheel would automati-
cally lock as soon as you try to turn
it. This also applies when the car is
being towed.
WARNING
It is absolutely forbidden to
carry out whatever after-
market operation involving steering
system or steering column modifica-
tions (e.g.: installation of anti-theft
device) that could badly affect per-
formance and safety, cause the lapse
of warranty and also result in non-
compliance of the car with homolo-
gation requirements.
WARNING
001-031 Panda New GB 21-06-2007 13:47 Pagina 12

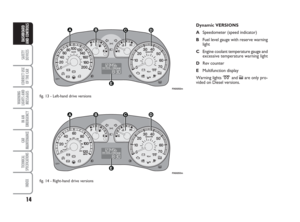

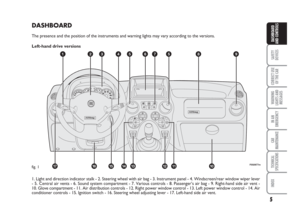

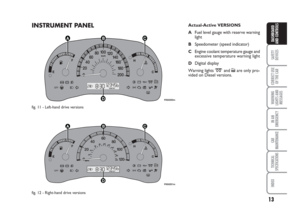

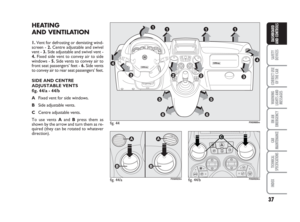

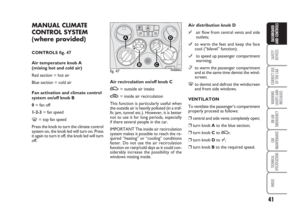

INSTRUMENT PANEL
13
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
F0G0250m
F0G0251m

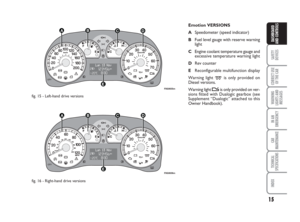

Actual-Active VERSIONS
