2007 CHEVROLET SUBURBAN Owners Manual

{CAUTION:
Sitting in a reclined position when your
vehicle is in motion can be dangerous.
Even if you buckle up, your safety belts
cannot do their job when you are reclined
like this.
The shoulder belt cannot do its job. In a
crash, you could go into it, receiving neck
or other injuries.
The lap belt cannot do its job either. In a
crash the belt could go up over your
abdomen. The belt forces would be there,
not at your pelvic bones. This could cause
serious internal injuries.
For proper protection when the vehicle is
in motion, have the seatback upright.
Then sit well back in the seat and wear
your safety belt properly.
Do not have a seatback reclined if your vehicle is
moving.
17

Head Restraints
Adjust the head restraint so that the top of the
restraint is at the same height as the top of
the occupant’s head. This position reduces the
chance of a neck injury in a crash.Pull the head restraint up
to raise it. To lower the
head restraint, press the
release button (A),
located on the top of
the seatback, while
you push the head
restraint down.
The front seats may have head restraints that also
tilt forward and rearward.
To tilt the head restraint, grasp the top of the
restraint while pressing the button (B), located on
the inboard side of the head restraint, and
move it forward or rearward until the desired
locking position is reached. Try to move the head
restraint after the button is released to make
sure that it is locked in place.
The second row seats may have head rests that
can be adjusted up and down, but they do not tilt.
18

Center Seat
Your vehicle may have a front center seat.
The seatback doubles as an armrest and
cupholder/storage area for the driver and
passenger when the center seat is not used. Do
not use it as a seating position when the seatback
is folded down.
For information on safety belts for this position,
seeCenter Front Passenger Position on page 53.
Rear Seats
Heated Seats
If the rear seats have
the heated seat feature,
the buttons used to
control this feature are
located on the Rear
Seat Audio (RSA) panel.
M(Heated Seat):To heat the seat cushion,
press the button with the heated seat symbol.
A heated seat symbol will be shown in the RSA
display to indicate that the feature is on. Press the
button to cycle through the temperature settings
of high, medium, and low, and to turn it off.
Driver’s Side RSA
Heated Seat Button
Only shown
19

Indicator bars next to the symbol will designate
the level of heat selected: three for high, two
for medium, and one for low.
The heated seats will be canceled ten seconds
after the ignition is turned off. If the vehicle
is restarted, the heated seat button will need to be
pressed again to restart the feature.
60/40 Split Bench Seat
(Second Row)
If your vehicle has a 60/40 split bench, the seat(s)
can be folded for additional cargo space or
folded and tumbled for easy entry and exit to the
third row seats, if your vehicle has them. These
seats will have either the manual fold and tumble
feature or the automatic seat release fold and
tumble feature.
Manual Fold and Tumble Feature
Folding and Tumbling the Seat(s)
To fold and tumble the seat, do the following:
1. Make sure that there is nothing under, in front
of, or on the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or
the safety belts. Always unbuckle the safety
belts and return them to their normal stowed
position before folding a rear seat.
2. Lift the lever, located on the outboard side of
the seat, to release the seatback.
20

The seatback will fold forward automatically.
Leaving the seatback in this position creates a
at load oor.
If the seatback cannot fold at, try moving the
front seat forward and/or put the front
seatback in the upright position.3. Lift the same lever
again to release the
rear of the seat
from the oor. The
seat will tumble
forward.
21

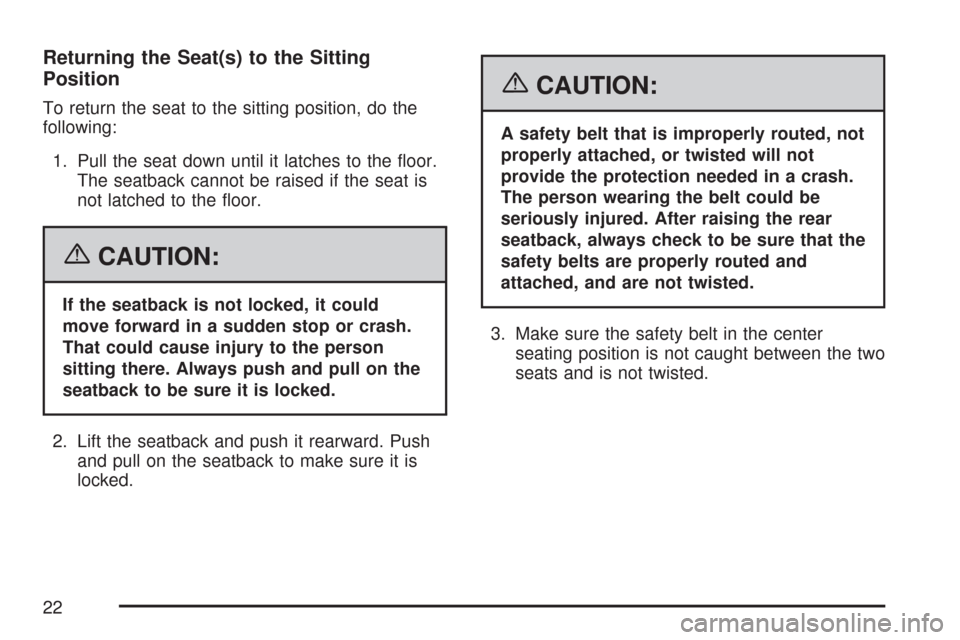

Returning the Seat(s) to the Sitting
Position
To return the seat to the sitting position, do the
following:
1. Pull the seat down until it latches to the oor.
The seatback cannot be raised if the seat is
not latched to the oor.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
2. Lift the seatback and push it rearward. Push
and pull on the seatback to make sure it is
locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not
provide the protection needed in a crash.
The person wearing the belt could be
seriously injured. After raising the rear
seatback, always check to be sure that the
safety belts are properly routed and
attached, and are not twisted.
3. Make sure the safety belt in the center
seating position is not caught between the two
seats and is not twisted.
22

Folding and Tumbling the Seat(s) from the
Third Row Seats
{CAUTION:
Using the third row seating position while
the second row is folded, or folded and
tumbled, could cause injury in a sudden
stop or crash. Be sure to return the seat
to the passenger seating position. Push
and pull on the seat to make sure it is
locked into place.
To fold and tumble the seat from the third rows, if
your vehicle has them, do the following:
1. Make sure that there is nothing under, in front
of, or on the seat.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.2. Lift the lever(s), located on the bottom rear of
the second row seat(s) on the inboard side, to
release the seatback. The seatback will fold
forward.
3. Lift the same lever again to release the rear
of the seat from the oor. The seat will
tumble forward automatically.
23

Automatic Release Fold and Tumble
Feature
The transmission must be in PARK (P) for this
feature to work.
Folding and Tumbling the Seat(s)
{CAUTION:
Automatically folding and tumbling the
seat when someone is sitting in the seat,
could cause injury to the person sitting
there. Always make sure there is no one
sitting in the seat before pressing the
automatic seat release button.
To fold and tumble the seat, do the following:
1. Make sure that there is nothing under, in front
of, or on the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or
the safety belts. Always unbuckle the safety
belts and return them to their normal stowed
position before folding a rear seat.2. From the front
seats, press one of
the automatic
seat release buttons
located on the
overhead console.
When accessing the third row seats, if your
vehicle has them, from the outside of the
vehicle, press the button on the panel behind
either rear door.
One press of the button automatically folds the
seatback at and tumbles the seat forward.
There will be a slight delay between the folding
of the seatback and the tumbling of the seat.Overhead Console
Buttons shown, Panel
Button similar
24
