2007 CHEVROLET SUBURBAN Owners Manual

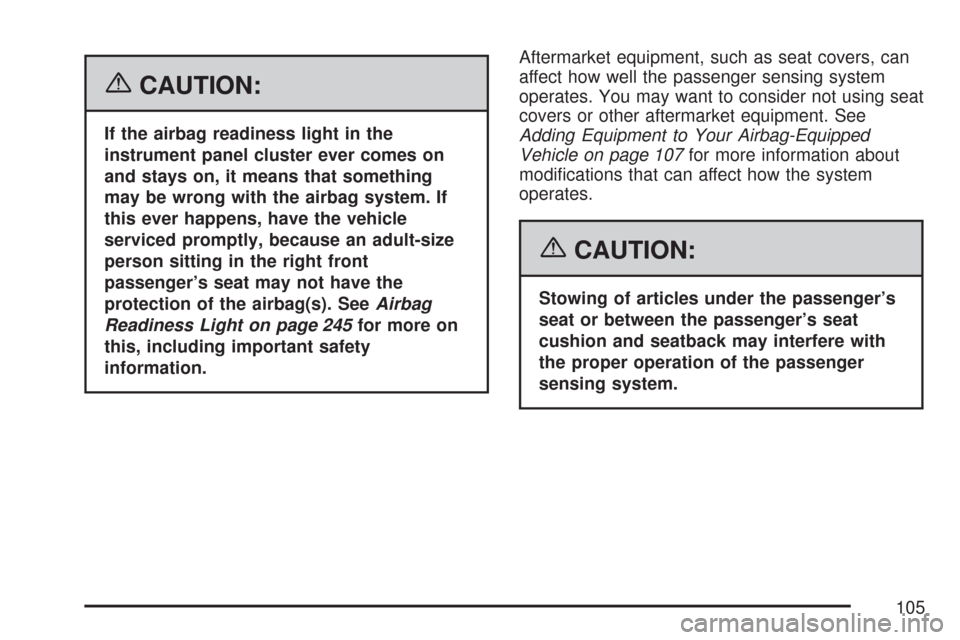

{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something
may be wrong with the airbag system. If
this ever happens, have the vehicle
serviced promptly, because an adult-size
person sitting in the right front
passenger’s seat may not have the
protection of the airbag(s). SeeAirbag
Readiness Light on page 245for more on
this, including important safety
information.Aftermarket equipment, such as seat covers, can
affect how well the passenger sensing system
operates. You may want to consider not using seat
covers or other aftermarket equipment. See
Adding Equipment to Your Airbag-Equipped
Vehicle on page 107for more information about
modications that can affect how the system
operates.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
105

Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag system in
several places around your vehicle. You do
not want the system to inate while someone is
working on your vehicle. Your dealer and the
service manual have information about servicing
your vehicle and the airbag system. To purchase a
service manual, seeService Publications
Ordering Information on page 616.
{CAUTION:
For up to 10 seconds, after the ignition is
turned off and the battery is disconnected,
an airbag can still inate during improper
service. You can be injured if you are
close to an airbag when it inates. Avoid
yellow connectors. They are probably part
of the airbag system. Be sure to follow
proper service procedures, and make sure
the person performing work for you is
qualied to do so.
The airbag system does not need regular
maintenance.
106

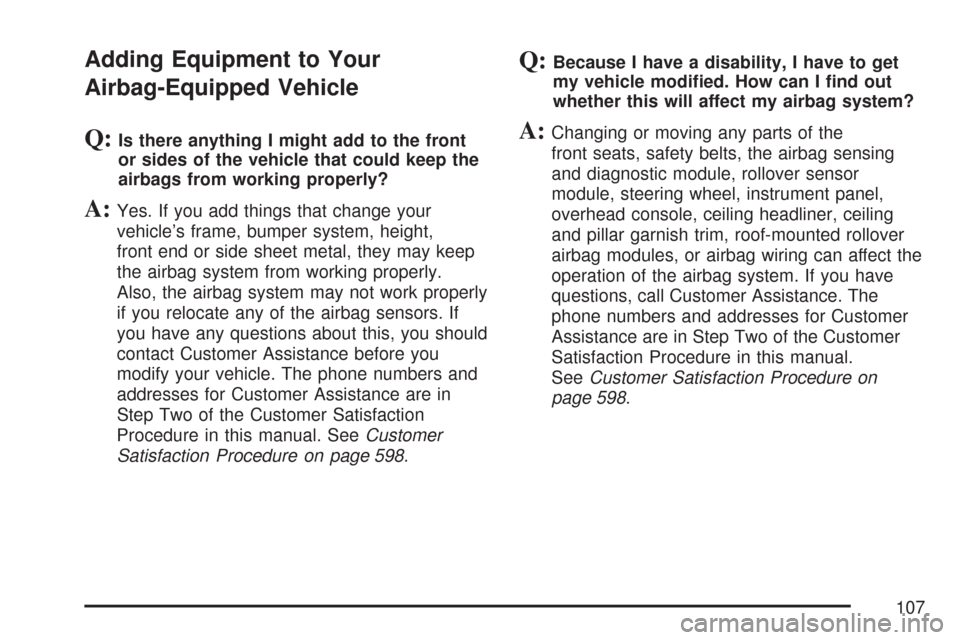

Adding Equipment to Your
Airbag-Equipped Vehicle
Q:Is there anything I might add to the front
or sides of the vehicle that could keep the
airbags from working properly?
A:Yes. If you add things that change your
vehicle’s frame, bumper system, height,
front end or side sheet metal, they may keep
the airbag system from working properly.
Also, the airbag system may not work properly
if you relocate any of the airbag sensors. If
you have any questions about this, you should
contact Customer Assistance before you
modify your vehicle. The phone numbers and
addresses for Customer Assistance are in
Step Two of the Customer Satisfaction
Procedure in this manual. SeeCustomer
Satisfaction Procedure on page 598.
Q:Because I have a disability, I have to get
my vehicle modied. How can I nd out
whether this will affect my airbag system?
A:Changing or moving any parts of the
front seats, safety belts, the airbag sensing
and diagnostic module, rollover sensor
module, steering wheel, instrument panel,
overhead console, ceiling headliner, ceiling
and pillar garnish trim, roof-mounted rollover
airbag modules, or airbag wiring can affect the
operation of the airbag system. If you have
questions, call Customer Assistance. The
phone numbers and addresses for Customer
Assistance are in Step Two of the Customer
Satisfaction Procedure in this manual.
SeeCustomer Satisfaction Procedure on
page 598.
107

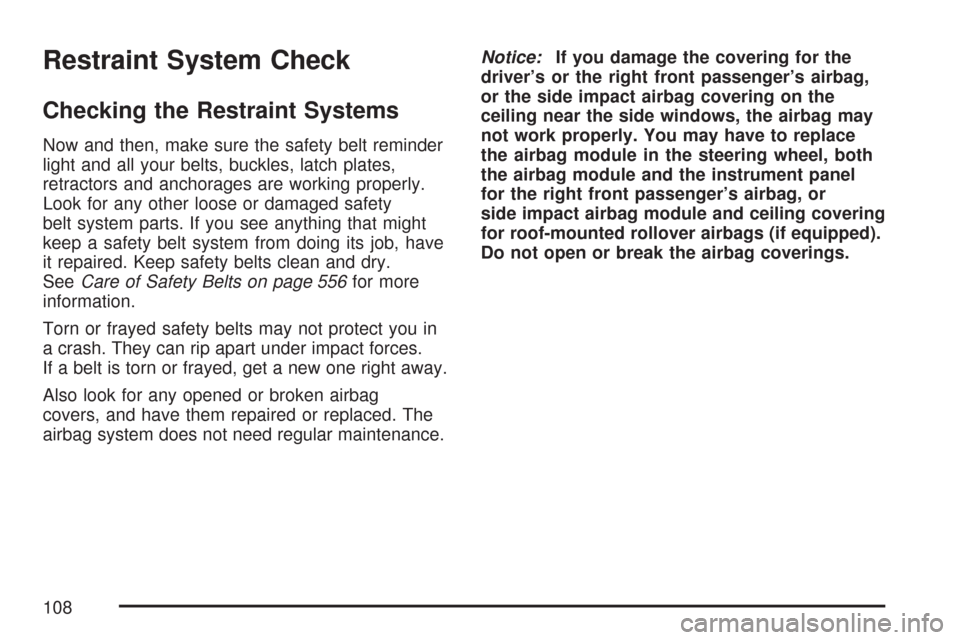

Restraint System Check
Checking the Restraint Systems
Now and then, make sure the safety belt reminder
light and all your belts, buckles, latch plates,
retractors and anchorages are working properly.
Look for any other loose or damaged safety
belt system parts. If you see anything that might
keep a safety belt system from doing its job, have
it repaired. Keep safety belts clean and dry.
SeeCare of Safety Belts on page 556for more
information.
Torn or frayed safety belts may not protect you in
a crash. They can rip apart under impact forces.
If a belt is torn or frayed, get a new one right away.
Also look for any opened or broken airbag
covers, and have them repaired or replaced. The
airbag system does not need regular maintenance.Notice:If you damage the covering for the
driver’s or the right front passenger’s airbag,
or the side impact airbag covering on the
ceiling near the side windows, the airbag may
not work properly. You may have to replace
the airbag module in the steering wheel, both
the airbag module and the instrument panel
for the right front passenger’s airbag, or
side impact airbag module and ceiling covering
for roof-mounted rollover airbags (if equipped).
Do not open or break the airbag coverings.
108

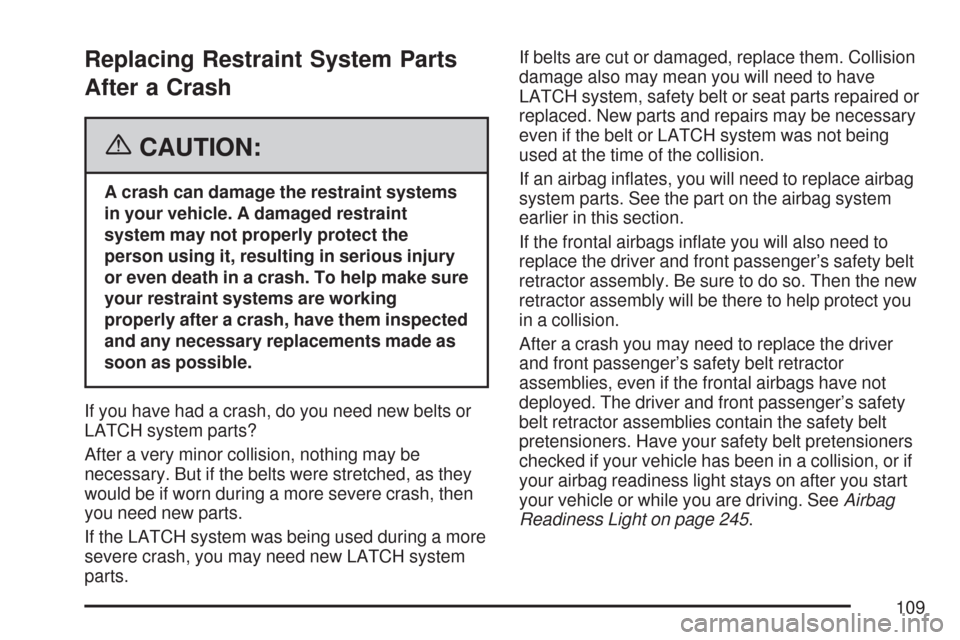

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious injury
or even death in a crash. To help make sure
your restraint systems are working
properly after a crash, have them inspected
and any necessary replacements made as
soon as possible.
If you have had a crash, do you need new belts or
LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as they
would be if worn during a more severe crash, then
you need new parts.
If the LATCH system was being used during a more
severe crash, you may need new LATCH system
parts.If belts are cut or damaged, replace them. Collision
damage also may mean you will need to have
LATCH system, safety belt or seat parts repaired or
replaced. New parts and repairs may be necessary
even if the belt or LATCH system was not being
used at the time of the collision.
If an airbag inates, you will need to replace airbag
system parts. See the part on the airbag system
earlier in this section.
If the frontal airbags inate you will also need to
replace the driver and front passenger’s safety belt
retractor assembly. Be sure to do so. Then the new
retractor assembly will be there to help protect you
in a collision.
After a crash you may need to replace the driver
and front passenger’s safety belt retractor
assemblies, even if the frontal airbags have not
deployed. The driver and front passenger’s safety
belt retractor assemblies contain the safety belt
pretensioners. Have your safety belt pretensioners
checked if your vehicle has been in a collision, or if
your airbag readiness light stays on after you start
your vehicle or while you are driving. SeeAirbag
Readiness Light on page 245.
109

✍NOTES
110

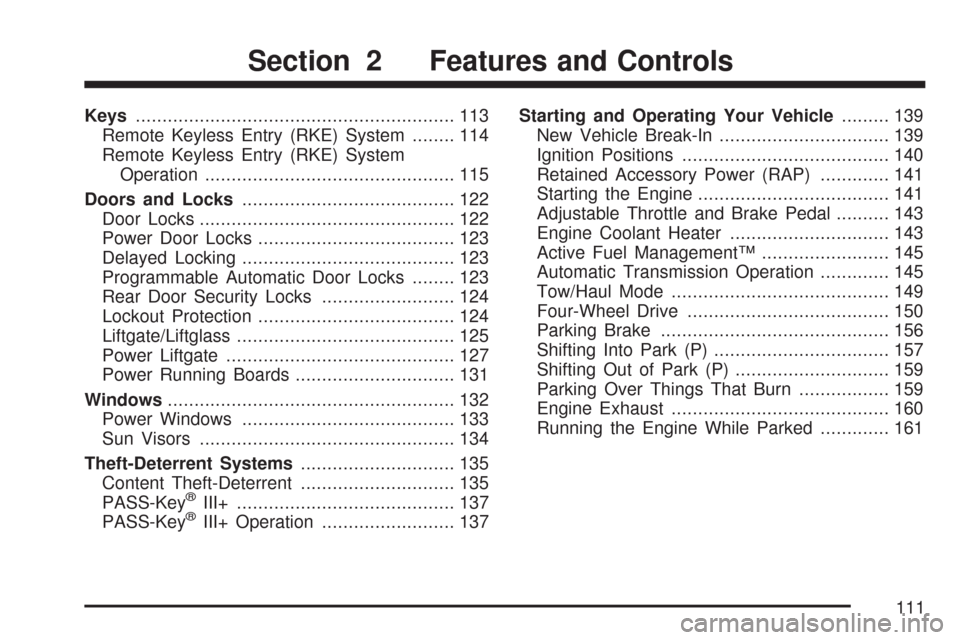

Keys............................................................ 113
Remote Keyless Entry (RKE) System........ 114
Remote Keyless Entry (RKE) System
Operation............................................... 115
Doors and Locks........................................ 122
Door Locks................................................ 122
Power Door Locks..................................... 123
Delayed Locking........................................ 123
Programmable Automatic Door Locks........ 123
Rear Door Security Locks......................... 124
Lockout Protection..................................... 124
Liftgate/Liftglass......................................... 125
Power Liftgate........................................... 127
Power Running Boards.............................. 131
Windows...................................................... 132
Power Windows........................................ 133
Sun Visors................................................ 134
Theft-Deterrent Systems............................. 135
Content Theft-Deterrent............................. 135
PASS-Key
®III+......................................... 137
PASS-Key®III+ Operation......................... 137Starting and Operating Your Vehicle......... 139
New Vehicle Break-In................................ 139
Ignition Positions....................................... 140
Retained Accessory Power (RAP)............. 141
Starting the Engine.................................... 141
Adjustable Throttle and Brake Pedal.......... 143
Engine Coolant Heater.............................. 143
Active Fuel Management™........................ 145
Automatic Transmission Operation............. 145
Tow/Haul Mode......................................... 149
Four-Wheel Drive...................................... 150
Parking Brake........................................... 156
Shifting Into Park (P) ................................. 157
Shifting Out of Park (P)............................. 159
Parking Over Things That Burn................. 159
Engine Exhaust......................................... 160
Running the Engine While Parked............. 161
Section 2 Features and Controls
111

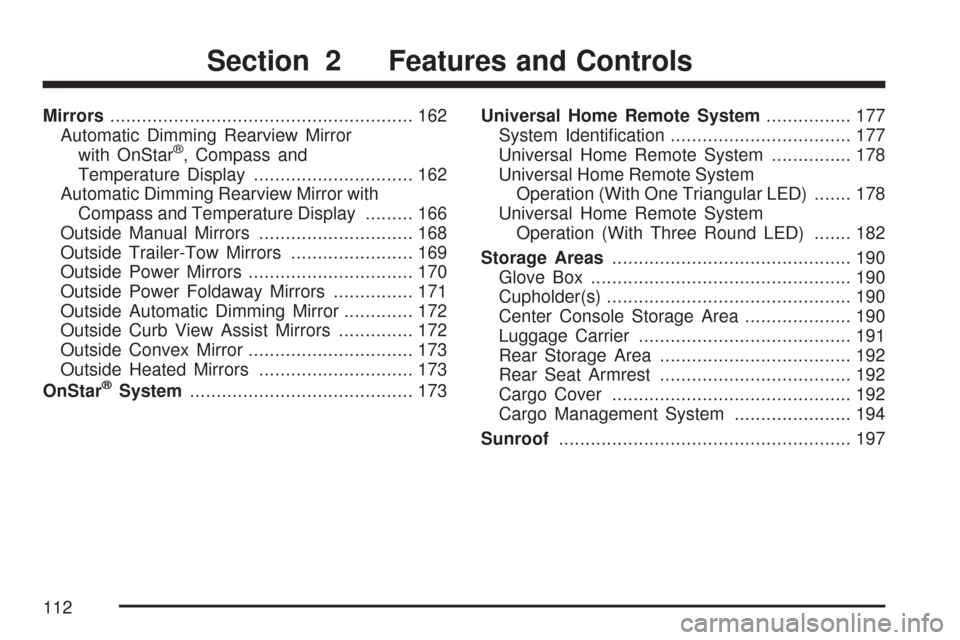

Mirrors......................................................... 162
Automatic Dimming Rearview Mirror
with OnStar
®, Compass and
Temperature Display.............................. 162
Automatic Dimming Rearview Mirror with
Compass and Temperature Display......... 166
Outside Manual Mirrors............................. 168
Outside Trailer-Tow Mirrors....................... 169
Outside Power Mirrors............................... 170
Outside Power Foldaway Mirrors............... 171
Outside Automatic Dimming Mirror............. 172
Outside Curb View Assist Mirrors.............. 172
Outside Convex Mirror............................... 173
Outside Heated Mirrors............................. 173
OnStar
®System.......................................... 173Universal Home Remote System................ 177
System Identication.................................. 177
Universal Home Remote System............... 178
Universal Home Remote System
Operation (With One Triangular LED)....... 178
Universal Home Remote System
Operation (With Three Round LED)....... 182
Storage Areas............................................. 190
Glove Box................................................. 190
Cupholder(s).............................................. 190
Center Console Storage Area.................... 190
Luggage Carrier........................................ 191
Rear Storage Area.................................... 192
Rear Seat Armrest.................................... 192
Cargo Cover............................................. 192
Cargo Management System...................... 194
Sunroof....................................................... 197
Section 2 Features and Controls
112
