2007 CHEVROLET SUBURBAN Owners Manual

6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt. You should not be able
to pull more of the belt from the retractor
once the lock has been set.
7. Push and pull the child restraint in different
directions to be sure it is secure.8. If the airbag is off, the off indicator will be lit
and stay lit when the key is turned to RUN or
START.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion. If
this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the
vehicle and check with your dealer.
To remove the child restraint, just unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be
ready to work for an adult or larger child
passenger.
89

Airbag System
Your vehicle has a frontal airbag for the driver and a
frontal airbag for the right front passenger. Your
vehicle may also have roof-mounted rollover
airbags designed for either side impact or rollover
deployment. Roof-mounted rollover airbags are
available for the driver and the passenger seated
directly behind the driver and for the right front
passenger and the passenger seated directly
behind that passenger.
If your vehicle has roof-mounted rollover airbags,
the word AIRBAG will appear on the airbag
covering on the ceiling above the sidewall trim near
the driver’s and right front passenger’s window and
the second row outside seating positions.
Also, if your vehicle has a third row passenger seat,
you may have third row roof-mounted rollover
airbags.
Frontal airbags are designed to help reduce the risk
of injury from the force of an inating frontal airbag.
But these airbags must inate very quickly to do
their job and comply with federal regulations.Here are the most important things to know about
the airbag system:
{CAUTION:
You can be severely injured or killed
in a crash if you are not wearing your
safety belt — even if you have airbags.
Wearing your safety belt during a crash
helps reduce your chance of hitting things
inside the vehicle or being ejected from it.
Airbags are “supplemental restraints” to
the safety belts. All airbags are designed
to work with safety belts but do not
replace them.
Frontal airbags for the driver and right
front passenger are designed to deploy in
moderate to severe frontal and near frontal
crashes.
CAUTION: (Continued)
90

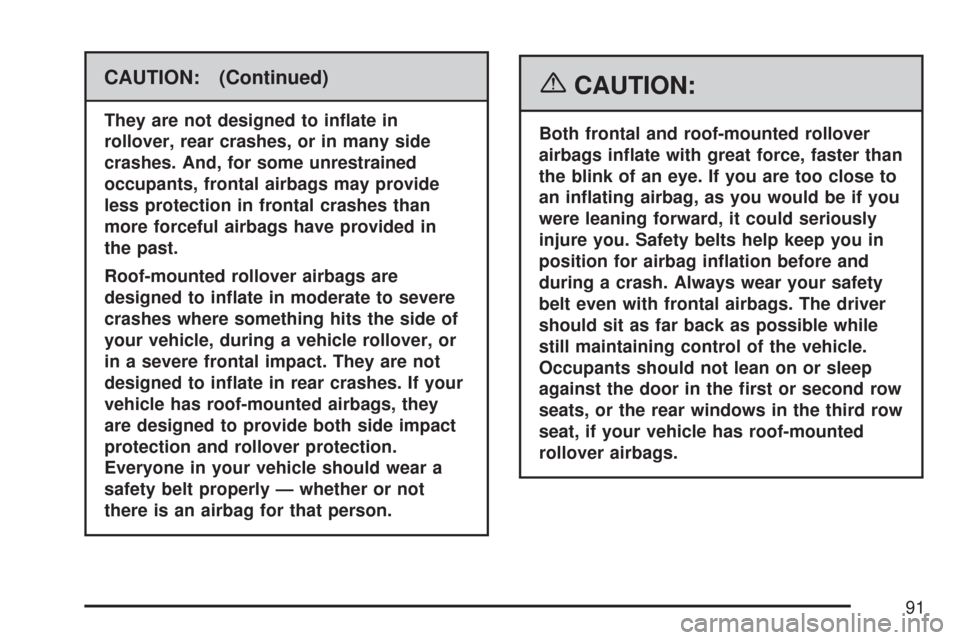

CAUTION: (Continued)
They are not designed to inate in
rollover, rear crashes, or in many side
crashes. And, for some unrestrained
occupants, frontal airbags may provide
less protection in frontal crashes than
more forceful airbags have provided in
the past.
Roof-mounted rollover airbags are
designed to inate in moderate to severe
crashes where something hits the side of
your vehicle, during a vehicle rollover, or
in a severe frontal impact. They are not
designed to inate in rear crashes. If your
vehicle has roof-mounted airbags, they
are designed to provide both side impact
protection and rollover protection.
Everyone in your vehicle should wear a
safety belt properly — whether or not
there is an airbag for that person.
{CAUTION:
Both frontal and roof-mounted rollover
airbags inate with great force, faster than
the blink of an eye. If you are too close to
an inating airbag, as you would be if you
were leaning forward, it could seriously
injure you. Safety belts help keep you in
position for airbag ination before and
during a crash. Always wear your safety
belt even with frontal airbags. The driver
should sit as far back as possible while
still maintaining control of the vehicle.
Occupants should not lean on or sleep
against the door in the rst or second row
seats, or the rear windows in the third row
seat, if your vehicle has roof-mounted
rollover airbags.
91

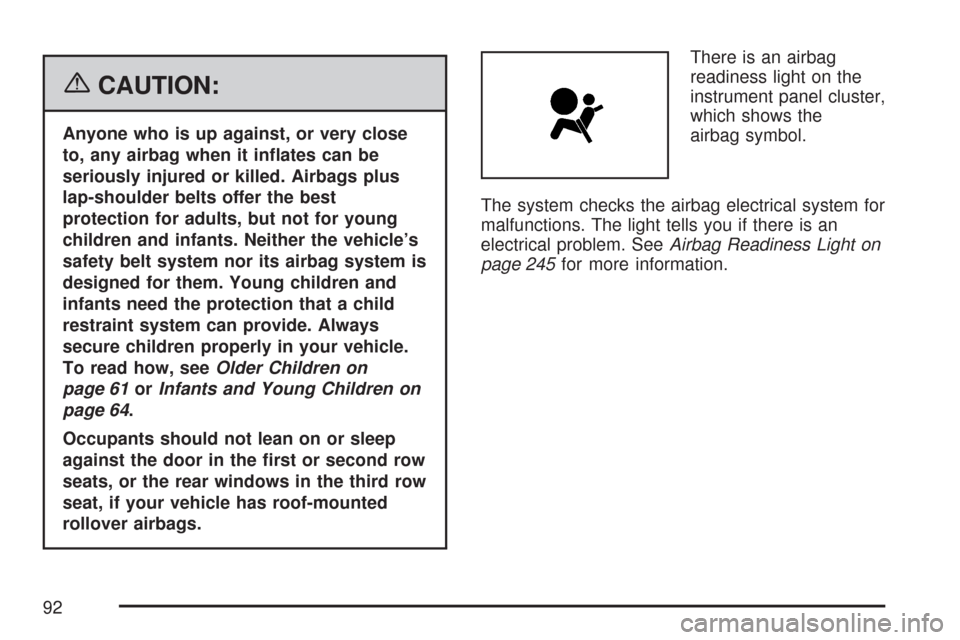

{CAUTION:
Anyone who is up against, or very close
to, any airbag when it inates can be
seriously injured or killed. Airbags plus
lap-shoulder belts offer the best
protection for adults, but not for young
children and infants. Neither the vehicle’s
safety belt system nor its airbag system is
designed for them. Young children and
infants need the protection that a child
restraint system can provide. Always
secure children properly in your vehicle.
To read how, seeOlder Children on
page 61orInfants and Young Children on
page 64.
Occupants should not lean on or sleep
against the door in the rst or second row
seats, or the rear windows in the third row
seat, if your vehicle has roof-mounted
rollover airbags.There is an airbag
readiness light on the
instrument panel cluster,
which shows the
airbag symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an
electrical problem. SeeAirbag Readiness Light on
page 245for more information.
92

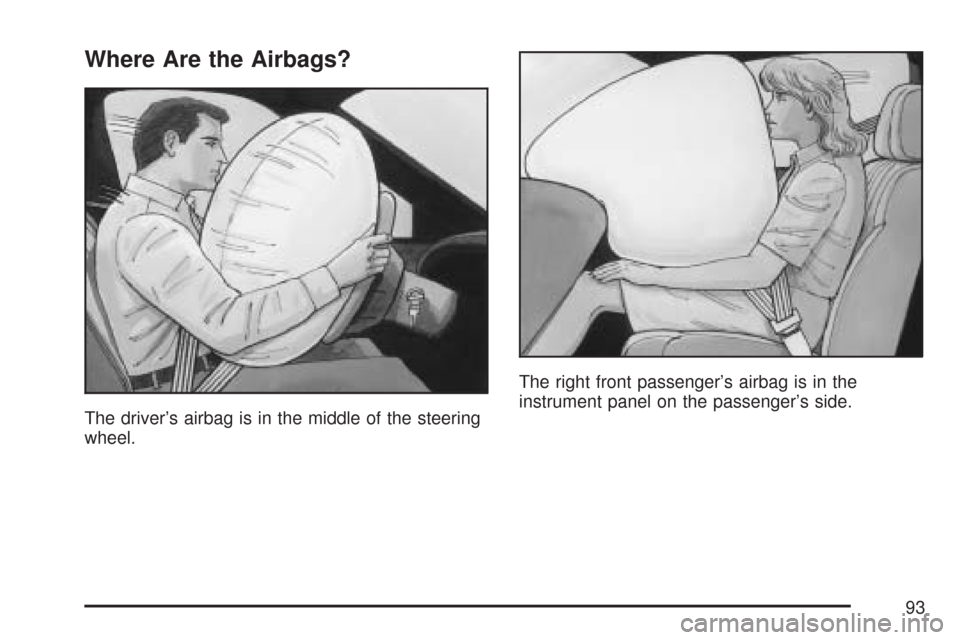

Where Are the Airbags?
The driver’s airbag is in the middle of the steering
wheel.The right front passenger’s airbag is in the
instrument panel on the passenger’s side.
93

If your vehicle has a roof-mounted rollover airbag
for the driver and the person seated directly
behind the driver, it is located in the ceiling above
the side windows.If your vehicle has a roof-mounted rollover airbag
for the right front passenger and the person
directly behind that passenger, it is located in the
ceiling above the side windows.
94

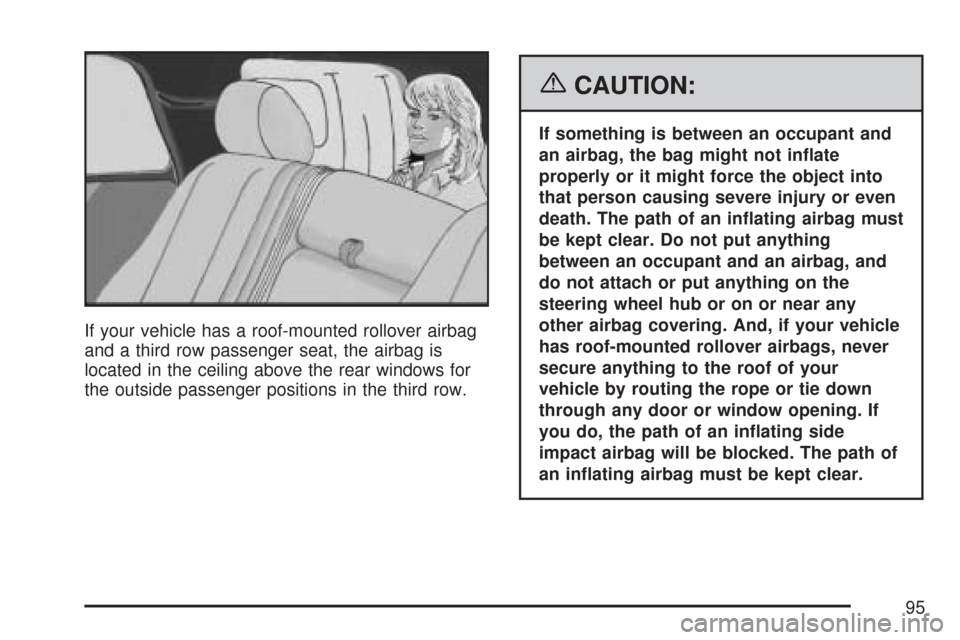

If your vehicle has a roof-mounted rollover airbag
and a third row passenger seat, the airbag is
located in the ceiling above the rear windows for
the outside passenger positions in the third row.
{CAUTION:
If something is between an occupant and
an airbag, the bag might not inate
properly or it might force the object into
that person causing severe injury or even
death. The path of an inating airbag must
be kept clear. Do not put anything
between an occupant and an airbag, and
do not attach or put anything on the
steering wheel hub or on or near any
other airbag covering. And, if your vehicle
has roof-mounted rollover airbags, never
secure anything to the roof of your
vehicle by routing the rope or tie down
through any door or window opening. If
you do, the path of an inating side
impact airbag will be blocked. The path of
an inating airbag must be kept clear.
95

When Should an Airbag Inate?
The driver’s and right front passenger’s frontal
airbags are designed to inate in moderate to
severe frontal or near-frontal crashes. But they are
designed to inate only if the impact exceeds a
predetermined deployment threshold. Deployment
thresholds take into account a variety of desired
deployment and non-deployment events and are
used to predict how severe a crash is likely to be in
time for the airbags to inate and help restrain the
occupants. Whether your frontal airbags will or
should deploy is not based on how fast your vehicle
is traveling. It depends largely on what you hit, the
direction of the impact, and how quickly your
vehicle slows down.In addition, your vehicle has “dual stage” frontal
airbags, which adjust the restraint according
to crash severity. Your vehicle has electronic
frontal sensors, which help the sensing system
distinguish between a moderate frontal impact and
a more severe frontal impact. For moderate
frontal impacts, these airbags inate at a level less
than full deployment. For more severe frontal
impacts, full deployment occurs. If the front of your
vehicle goes straight into a wall that does not
move or deform, the threshold level for the
reduced deployment is about 9 to 16 mph
(14 to 26 km/h), and the threshold level for a full
deployment is about 18 to 25 mph (29 to 40 km/h).
The threshold level can vary, however, with
specic vehicle design, so that it can be somewhat
above or below this range.
96
