2007 CHEVROLET AVALANCHE Owners Manual

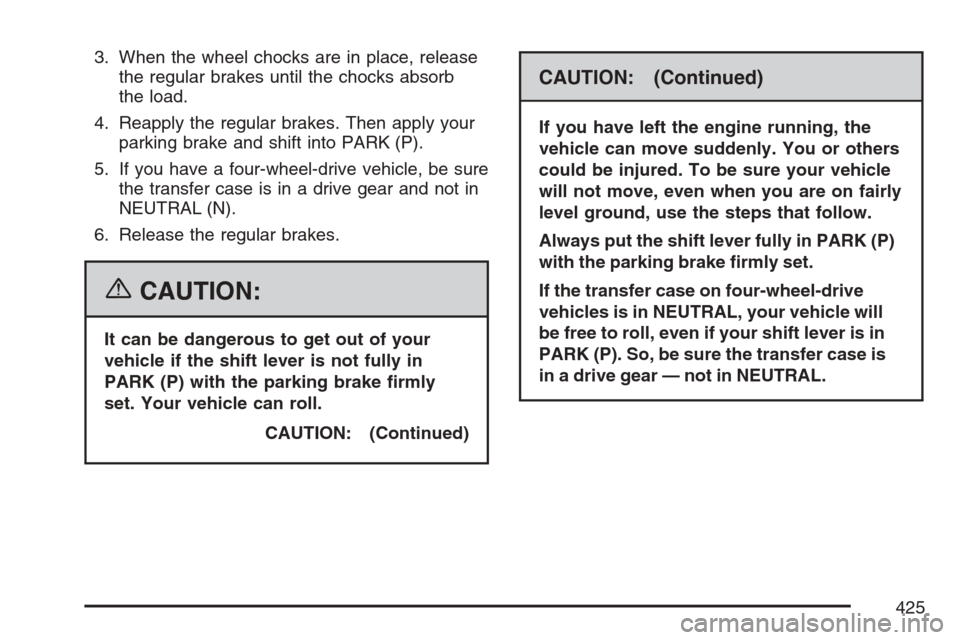

3. When the wheel chocks are in place, release
the regular brakes until the chocks absorb
the load.
4. Reapply the regular brakes. Then apply your
parking brake and shift into PARK (P).
5. If you have a four-wheel-drive vehicle, be sure
the transfer case is in a drive gear and not in
NEUTRAL (N).
6. Release the regular brakes.
{CAUTION:
It can be dangerous to get out of your
vehicle if the shift lever is not fully in
PARK (P) with the parking brake rmly
set. Your vehicle can roll.
CAUTION: (Continued)
CAUTION: (Continued)
If you have left the engine running, the
vehicle can move suddenly. You or others
could be injured. To be sure your vehicle
will not move, even when you are on fairly
level ground, use the steps that follow.
Always put the shift lever fully in PARK (P)
with the parking brake rmly set.
If the transfer case on four-wheel-drive
vehicles is in NEUTRAL, your vehicle will
be free to roll, even if your shift lever is in
PARK (P). So, be sure the transfer case is
in a drive gear — not in NEUTRAL.
425

When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold the pedal
down while you:
start your engine,
shift into a gear, and
release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the
chocks.
4. Stop and have someone pick up and store
the chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when
you’re pulling a trailer. See the Maintenance
Schedule for more on this. Things that are
especially important in trailer operation are
automatic transmission uid (don’t overll), engine
oil, axle lubricant, belts, cooling system and
brake system. Each of these is covered in this
manual, and the Index will help you nd them
quickly. If you’re trailering, it’s a good idea
to review these sections before you start your trip.
Check periodically to see that all hitch nuts and
bolts are tight.
426

Trailer Wiring Harness
Heavy-Duty Trailer Wiring Package
Your vehicle is equipped with the seven-wire
trailer towing harness. This harness with a
seven-pin universal heavy-duty trailer connector
is attached to the rear bumper beam. It is located
next to the integrated trailer hitch.The seven-wire harness contains the following
trailer circuits:
Yellow: Left Stop/Turn Signal
Dark Green: Right Stop/Turn Signal
Brown: Taillamps
White: Ground
Light Green: Back-up Lamps
Red: Battery Feed **#
Dark Blue: Trailer Brake #
** If you are charging a remote (non-vehicle)
battery, press the tow/haul mode button located
at the end of the shift lever. This will boost
the vehicle system voltage and properly charge
the battery. If the trailer is too light for tow/haul
mode, you can turn on the headlamps as a
second way to boost the vehicle system and
charge the battery.
# The fuses for these circuits are installed in the
underhood electrical center, but the wires are
not connected. These circuits should be connected
by your dealer or a qualied service technician.
427

Electric Brake Control Wiring
Provisions
These wiring provisions are included with your
vehicle as part of the heavy-duty trailer wiring
package. These provisions are for an electric
brake controller. The instrument panel contains
blunt cut wires near the data link connector for
the trailer brake controller. The harness contains
the following wires:
Dark Blue: Auxiliary
Red/Black: Battery #
Light Blue: Brake Switch
White: Ground
The trailer brake controller should be installed
by your dealer or a qualied service center.
Trailer Recommendations
You must subtract your hitch loads from the
Cargo Weight Rating (CWR). CWR is the
maximum weight of the load your vehicle can
carry. It doesn’t include the weight of the people
inside, but you can gure about 150 lbs. (68 kg)
for each seat. The total cargo load must not
be more than your vehicles CWR.
Weigh your vehicle with your trailer attached,
so that you won’t go over the GVWR or GAWR.
If you are using a weight-distributing hitch,
weigh the vehicle without the spring bars in place.
You’ll get the best performance if you spread
out the weight of your load the right way, and if
you choose the correct hitch and trailer brakes.
For more information seeTowing a Trailer
on page 414.
428

Service........................................................ 432
Accessories and Modications................... 433
California Proposition 65 Warning.............. 433
Doing Your Own Service Work.................. 434
Adding Equipment to the Outside
of Your Vehicle...................................... 435
Fuel............................................................. 435
Gasoline Octane........................................ 436
Gasoline Specications.............................. 436
California Fuel........................................... 436
Additives................................................... 437
Fuel E85 (85% Ethanol)............................ 438
Fuels in Foreign Countries........................ 439
Filling the Tank......................................... 440
Filling a Portable Fuel Container............... 442
Checking Things Under the Hood.............. 442
Hood Release........................................... 443
Engine Compartment Overview.................. 444
Engine Oil................................................. 446
Engine Oil Life System.............................. 449Engine Air Cleaner/Filter............................ 451
Automatic Transmission Fluid.................... 454
Engine Coolant.......................................... 457
Coolant Surge Tank Pressure Cap............ 460
Engine Overheating................................... 460
Overheated Engine Protection
Operating Mode..................................... 463
Cooling System......................................... 464
Engine Fan Noise..................................... 469
Power Steering Fluid ................................. 469
Windshield Washer Fluid........................... 470
Brakes...................................................... 472
Battery...................................................... 475
Jump Starting............................................ 476
Rear Axle.................................................... 482
Four-Wheel Drive........................................ 483
Front Axle................................................... 484
Headlamp Aiming........................................ 485
Section 5 Service and Appearance Care
429

Bulb Replacement....................................... 488
Halogen Bulbs........................................... 488
Taillamps, Turn Signal, Sidemarker,
Stoplamps and Back-up Lamps.............. 488
License Plate Lamp................................... 490
Replacement Bulbs................................... 490
Windshield Wiper Blade Replacement....... 491
Tires............................................................ 492
Tire Sidewall Labeling............................... 493
Tire Terminology and Denitions............... 497
Ination - Tire Pressure............................. 500
Tire Pressure Monitor System................... 501
Tire Inspection and Rotation...................... 506
When It Is Time for New Tires.................. 508
Buying New Tires...................................... 508
Different Size Tires and Wheels................ 510
Uniform Tire Quality Grading..................... 511
Wheel Alignment and Tire Balance............ 512Wheel Replacement.................................. 512
Tire Chains............................................... 514
If a Tire Goes Flat.................................... 515
Changing a Flat Tire................................. 516
Removing the Spare Tire and Tools.......... 518
Removing the Flat Tire and
Installing the Spare Tire......................... 522
Secondary Latch System........................... 529
Storing a Flat or Spare Tire and Tools...... 533
Spare Tire................................................. 536
Appearance Care........................................ 537
Cleaning the Inside of Your Vehicle.......... 537
Fabric/Carpet............................................. 538
Leather...................................................... 539
Instrument Panel, Vinyl, and
Other Plastic Surfaces........................... 540
Care of Safety Belts.................................. 540
Weatherstrips............................................ 540
Section 5 Service and Appearance Care
430

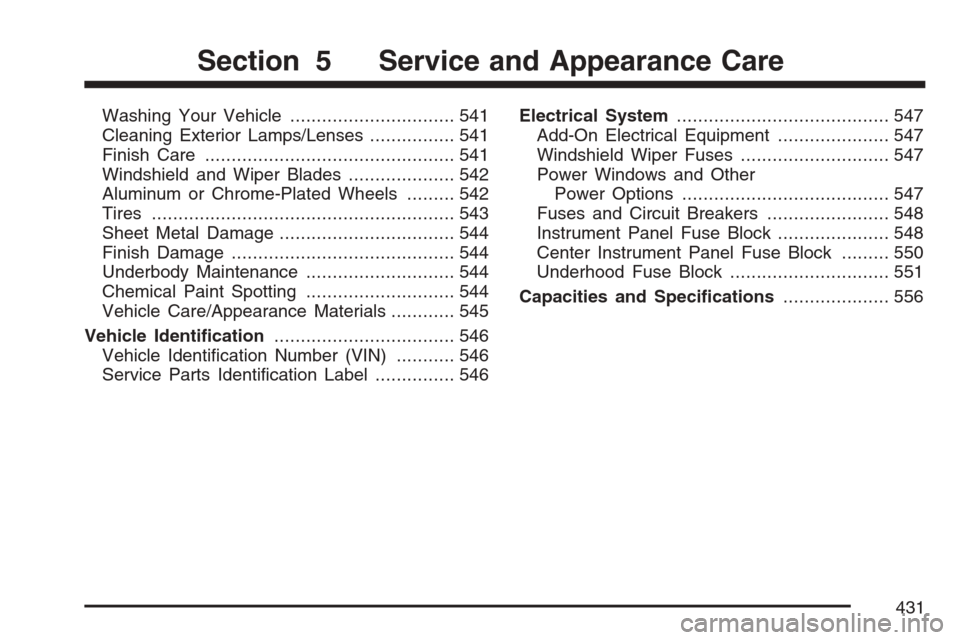

Washing Your Vehicle............................... 541
Cleaning Exterior Lamps/Lenses................ 541
Finish Care............................................... 541
Windshield and Wiper Blades.................... 542
Aluminum or Chrome-Plated Wheels......... 542
Tires......................................................... 543
Sheet Metal Damage................................. 544
Finish Damage.......................................... 544
Underbody Maintenance............................ 544
Chemical Paint Spotting............................ 544
Vehicle Care/Appearance Materials............ 545
Vehicle Identication.................................. 546
Vehicle Identication Number (VIN)........... 546
Service Parts Identication Label............... 546Electrical System........................................ 547
Add-On Electrical Equipment..................... 547
Windshield Wiper Fuses............................ 547
Power Windows and Other
Power Options....................................... 547
Fuses and Circuit Breakers....................... 548
Instrument Panel Fuse Block..................... 548
Center Instrument Panel Fuse Block......... 550
Underhood Fuse Block.............................. 551
Capacities and Specications.................... 556
Section 5 Service and Appearance Care
431

Service
Your dealer knows your vehicle best and wants
you to be happy with it. We hope you will
go to your dealer for all your service needs.
You will get genuine GM parts and GM-trained
and supported service people.We hope you will want to keep your GM vehicle all
GM. Genuine GM parts have one of these marks:
432
