2007 CHEVROLET AVALANCHE Owners Manual

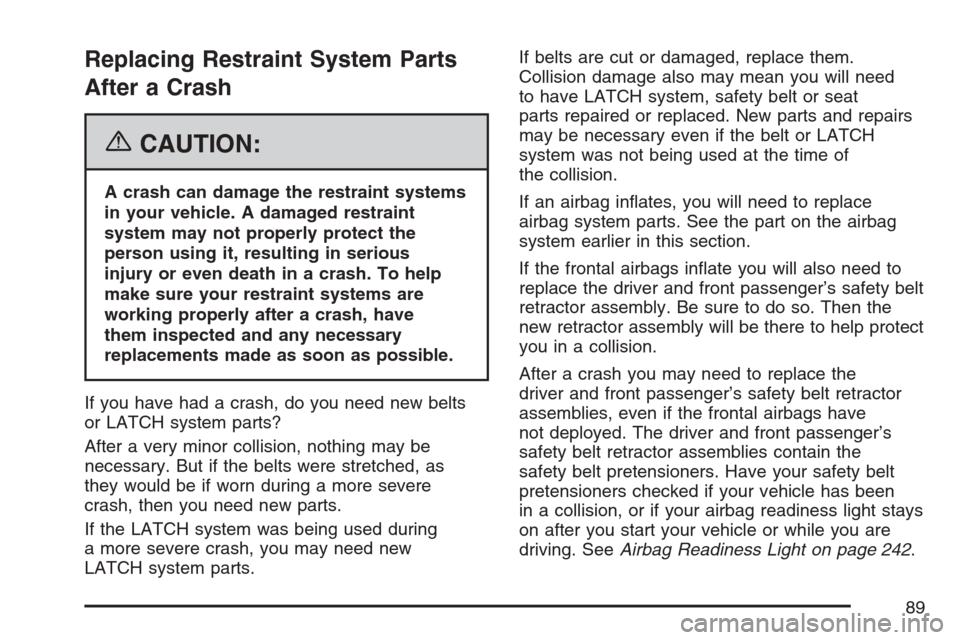

Replacing Restraint System Parts
After a Crash
{CAUTION:
A crash can damage the restraint systems
in your vehicle. A damaged restraint
system may not properly protect the
person using it, resulting in serious
injury or even death in a crash. To help
make sure your restraint systems are
working properly after a crash, have
them inspected and any necessary
replacements made as soon as possible.
If you have had a crash, do you need new belts
or LATCH system parts?
After a very minor collision, nothing may be
necessary. But if the belts were stretched, as
they would be if worn during a more severe
crash, then you need new parts.
If the LATCH system was being used during
a more severe crash, you may need new
LATCH system parts.If belts are cut or damaged, replace them.
Collision damage also may mean you will need
to have LATCH system, safety belt or seat
parts repaired or replaced. New parts and repairs
may be necessary even if the belt or LATCH
system was not being used at the time of
the collision.
If an airbag inates, you will need to replace
airbag system parts. See the part on the airbag
system earlier in this section.
If the frontal airbags inate you will also need to
replace the driver and front passenger’s safety belt
retractor assembly. Be sure to do so. Then the
new retractor assembly will be there to help protect
you in a collision.
After a crash you may need to replace the
driver and front passenger’s safety belt retractor
assemblies, even if the frontal airbags have
not deployed. The driver and front passenger’s
safety belt retractor assemblies contain the
safety belt pretensioners. Have your safety belt
pretensioners checked if your vehicle has been
in a collision, or if your airbag readiness light stays
on after you start your vehicle or while you are
driving. SeeAirbag Readiness Light on page 242.
89

✍NOTES
90

Keys.............................................................. 93
Remote Keyless Entry (RKE) System.......... 94
Remote Keyless Entry (RKE)
System Operation.................................... 95
Doors and Locks........................................ 102
Door Locks................................................ 102
Power Door Locks..................................... 103
Delayed Locking........................................ 103
Programmable Automatic Door Locks........ 103
Rear Door Security Locks......................... 104
Lockout Protection..................................... 104
Midgate
®................................................... 105
Tailgate..................................................... 115
Power Running Boards.............................. 115
Windows...................................................... 116
Power Windows........................................ 117
Sun Visors................................................ 118
Theft-Deterrent Systems............................. 118
Content Theft-Deterrent............................. 118
PASS-Key
®III+......................................... 120
PASS-Key®III+ Operation......................... 121Starting and Operating Your Vehicle........... 122
New Vehicle Break-In................................ 122
Ignition Positions....................................... 123
Retained Accessory Power (RAP)............. 124
Starting the Engine.................................... 124
Adjustable Throttle and Brake Pedal.......... 126
Engine Coolant Heater.............................. 126
Active Fuel Management™........................ 127
Automatic Transmission Operation............. 128
Tow/Haul Mode......................................... 131
Four-Wheel Drive...................................... 132
Parking Brake........................................... 138
Shifting Into Park (P) ................................. 139
Shifting Out of Park (P)............................. 141
Parking Over Things That Burn................. 142
Engine Exhaust......................................... 143
Running the Engine While Parked............. 144
Mirrors......................................................... 145
Automatic Dimming Rearview Mirror
with OnStar
®, Compass and
Temperature Display.............................. 145
Section 2 Features and Controls
91

Automatic Dimming Rearview Mirror with
Compass and Temperature Display......... 148
Outside Power Mirrors............................... 152
Outside Power Foldaway Mirrors............... 153
OnStar
®System.......................................... 156
Universal Home Remote System................ 159
Universal Home Remote System
(With Three Round LED)....................... 159
Universal Home Remote System
(With One Triangular LED)..................... 160
Universal Home Remote
System Operation
(With Three Round LED)....................... 161
Universal Home Remote
System Operation
(With One Triangular LED)..................... 166Storage Areas............................................. 170
Glove Box................................................. 170
Cupholder(s).............................................. 170
Center Overhead Console......................... 171
Front Armrest Storage Area....................... 171
Center Console Storage Area.................... 171
Luggage Carrier........................................ 171
Rear Storage Area.................................... 173
Cargo Cover Panels.................................. 173
All-Weather Cargo Area............................. 186
Top-Box Storage....................................... 191
Tonneau Cover......................................... 192
Sunroof....................................................... 199
Section 2 Features and Controls
92

Keys
{CAUTION:
Leaving children in a vehicle with the
ignition key is dangerous for many
reasons, children or others could be
badly injured or even killed. They could
operate the power windows or other
controls or even make the vehicle move.
The windows will function with the keys in
the ignition and they could be seriously
injured or killed if caught in the path of a
closing window. Do not leave the keys in
a vehicle with children.
93

Your vehicle has
one double-sided key
for the ignition, all
door locks, tailgate,
and side storage boxes.
If you ever lose your keys, your dealer will be
able to assist you with obtaining replacements.
In an emergency contact roadside assistance.
SeeRoadside Assistance Program on page 588
for more information.Remote Keyless Entry (RKE)
System
Your Remote Keyless Entry (RKE) system
operates on a radio frequency subject to
Federal Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
Changes or modications to this system by
other than an authorized service facility could
void authorization to use this equipment.
94

At times you may notice a decrease in operating
range. This is normal for any RKE system. If
the transmitter does not work or if you have to
stand closer to your vehicle for the transmitter to
work, try this:
Check the distance. You may be too far from
your vehicle. You may need to stand closer
during rainy or snowy weather.
Check the location. Other vehicles or objects
may be blocking the signal. Take a few steps
to the left or right, hold the transmitter
higher, and try again.
Check to determine if battery replacement
is necessary. See “Battery Replacement”
underRemote Keyless Entry (RKE) System
Operation on page 95.
If you are still having trouble, see your dealer
or a qualied technician for service.
Remote Keyless Entry (RKE)
System Operation
The vehicle’s doors can be locked and unlocked
from about 3 feet (1 m) up to 65 feet (20 m)
away with the Remote Keyless Entry (RKE)
transmitter.
If your vehicle has the remote start feature
you can also start your vehicle with the RKE
transmitter. The RKE transmitter, with the remote
start button, provides an increased operating
range of 195 feet (60 m) away. However,
the operating range may be less while the vehicle
is running. As a result, you may need to be
closer to your vehicle to turn it off than you were
to start it.
There are other conditions which can affect the
performance of the transmitter. SeeRemote
Keyless Entry (RKE) System on page 94.
95

The following functions
may be available if your
vehicle has the remote
keyless entry system:
/(Remote Vehicle Start):If your vehicle
has this feature, it may be started from outside
the vehicle using the RKE transmitter. See
“Remote Vehicle Start” following for more
detailed information.
Q(Lock):Press the lock button to lock all the
doors, including the tailgate. If enabled through
the Driver Information Center (DIC), the parking
lamps will ash once to indicate locking has
occurred. If enabled through the DIC, the horn
will chirp when the lock button is pressed
again within ve seconds of the previous press of
the lock button. SeeDIC Vehicle Customization
(With DIC Buttons) on page 278for additional
information. Pressing the lock button may arm
the content theft-deterrent system. SeeContent
Theft-Deterrent on page 118.
"(Unlock):Press the unlock button to unlock
the driver’s door. If the button is pressed
again within ve seconds, all remaining doors,
including the tailgate, will unlock. The interior
lamps will come on and stay on for 20 seconds or
until the ignition is turned on. If enabled through
the DIC, the parking lamps will ash once to
indicate unlocking has occurred. SeeDIC Vehicle
Customization (With DIC Buttons) on page 278.
Pressing the unlock button on the RKE transmitter
will disarm the content theft-deterrent system.
SeeContent Theft-Deterrent on page 118.With Remote Start
(Without Remote
Start Similar)
96
