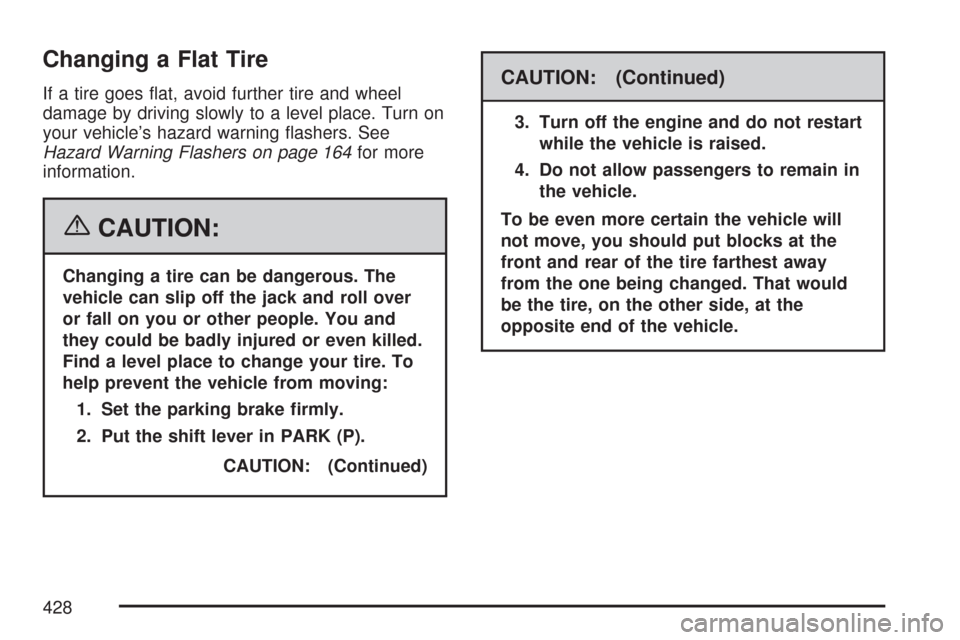

Changing a Flat Tire
If a tire goes at, avoid further tire and wheel
damage by driving slowly to a level place. Turn on
your vehicle’s hazard warning ashers. See
Hazard Warning Flashers on page 164for more
information.
{CAUTION:
Changing a tire can be dangerous. The
vehicle can slip off the jack and roll over
or fall on you or other people. You and
they could be badly injured or even killed.
Find a level place to change your tire. To
help prevent the vehicle from moving:
1. Set the parking brake rmly.
2. Put the shift lever in PARK (P).
CAUTION: (Continued)
CAUTION: (Continued)
3. Turn off the engine and do not restart
while the vehicle is raised.
4. Do not allow passengers to remain in
the vehicle.
To be even more certain the vehicle will
not move, you should put blocks at the
front and rear of the tire farthest away
from the one being changed. That would
be the tire, on the other side, at the
opposite end of the vehicle.
428

Vehicle Identication
Vehicle Identication Number (VIN)
This is the legal identier for your vehicle. It
appears on a plate in the front corner of the
instrument panel, on the driver side. You can see
it if you look through the windshield from outside
your vehicle. The VIN also appears on the Vehicle
Certication and Service Parts labels and the
certicates of title and registration.
Engine Identication
The eighth character in the VIN is the engine
code. This code helps you identify your vehicle’s
engine, specications, and replacement parts.
Service Parts Identication Label
This label is on the spare tire cover. It is very
helpful if you ever need to order parts. The label
has the following information:
Vehicle Identication Number (VIN)
Model designation
Paint information
Production options and special equipment
Do not remove this label from the vehicle.
450

Power Windows and Other Power
Options
Circuit breakers protect the power windows and
power seats. When the current load is too
heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is xed or
goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected
from short circuits by a combination of fuses
and circuit breakers. This greatly reduces
the chance of res caused by electrical problems.
Look at the silver-colored band inside the fuse.
If the band is broken or melted, replace the fuse.
Be sure you replace a bad fuse with a new
one of the identical size and rating. If a fuse should
blow, see your dealer for service immediately.If you ever have a problem on the road and do not
have a spare fuse, you can “borrow” one that has
the same amperage. Pick some feature of your
vehicle that you can get along without — like the
radio or cigarette lighter — and use its fuse, if it
is the correct amperage. Replace it as soon as
you can.
The fuses are located in two fuse blocks,
one located in the engine compartment, and
the other under the rear seat. If a fuse should
blow, have your vehicle serviced by your dealer
immediately.
Underhood Fuse Block
The underhood fuse block is located on the
passenger’s side of the engine compartment.
Remove the fuse cover and secondary service
cover to access the fuse block.
452

Fuses Usage
F1 Spare
F2 Driver’s Side Low-Beam
F3 Passenger’s Side Low-Beam
F4 Airbag Ignition
F5 Engine Control ModuleFuses Usage
F6 Transaxle Ignition
F7 Spare
F8 Spare
F9 Spare
453

Fuses Usage
F10Passenger’s Side High-Beam
Headlamp
F11 Driver’s Side High-Beam Headlamp
F12 Windshield Washer Pump
F13 Spare
F14Climate Controls, Instrument Panel
Cluster
F15 Spare
F16 Fog Lamps
F17 Horn
F18 Windshield Wiper
F19 Driver’s Side Corner Lamp
F20 Passenger’s Side Corner Lamp
F21 Oxygen Sensor
F22 Powertrain
F23 Engine Control Module (ECM), Crank
F24 Injector Coil
F25 Injector Coil
F26 Air Conditioning
F27 Air Solenoid
F28Engine Control Module, Transaxle
Control Module (ECM/TCM)
F29 Spare
F30 SpareFuses Usage
F31 Spare
F32 Spare
J-Case Fuse Usage
JC1 Heated Windshield Washer
JC2 Cooling Fan 1
JC3 Spare
JC4 Crank
JC5 Cooling Fan 2
JC6 Anti-lock Brake System 2
JC7 Anti-lock Brake System 1
JC8 Air Pump
Relays Usage
R1 Cooling Fan 1
R2 Cooling Fan
R3 Crank
R4 Powertrain
R5 Spare
R6 Run/Crank
R7 Cooling Fan 2
R8 Windshield Wiper
R9 Air Pump
454

Fuses Usage
F9 Door Unlatch - Limo (Option)
F10 Switch Dimmer
F11 Fuel Pump
F12 Body Control Module Logic
F13 Airbag
F14 Auxiliary Power Outlets
F15 Driver’s Side Turn Signal
F16 Passenger Side Rear Turn Signal
F17 Not Used
F18Center High-Mounted Stoplamp,
Back-up Lamps
F19 Rear Door Locks
F20 Stoplamp - Export (Option)
F21 Radio, S-Band
F22 OnStar
®(Option)
F23Auxiliary Power Outlet, Cigarette
Lighter, Console
F24 Driver Door Module
F25 Passenger Door Module
F26 Trunk Release (Option)
F27 Heated/Cooled Seats (Option)
F28Engine Control Module, Transaxle
Control Module (ECM/TCM)
Fuses Usage
F29 Regulated Voltage Control Sense
F30 Not Used
F31 Instrument Panel Harness Module
F32 Rear Heated Seats (Option)
F33 Not Used
F34 Steering Wheel Illumination
F35 Body Harness Module
F36Memory Seat Module Logic, Right
Front Massage (Option)
F37 Object Detection Sensor (Option)
F38 Sunroof
F40 Shifter Solenoid (Option)
F41Retained Accessory Power,
Miscellaneous
F42 Driver’s Side Park Lamp
F43 Passenger’s Side Park Lamp
F44 Heated Steering Wheel (Option)
F45 Rear Climate Control (Option)
F46 Not Used
F47 Heated/Cooled Seats, Ignition 3
F48 Ignition Switch
F49 Not Used
458

Capacities and Specications
The following approximate capacities are given in English and metric conversions. SeeRecommended
Fluids and Lubricants on page 475for more information.
ApplicationCapacities
English Metric
Air Conditioning RefrigerantFor the air conditioning system refrigerant charge
amount, see the refrigerant caution label located
under the hood. See your dealer for more
information.
Cooling System 12.6 qt 12.0 L
Engine Oil with Filter 7.5 qt 7.1 L
Fuel Tank 18.5 gal 70.0 L
Transaxle 7.0 qt 6.6 L
Wheel Nut Torque 100 lb ft
140Y
All capacities are approximate. When adding, be sure to ll to the approximate level as recommended in this
manual. Recheck uid level after lling.
Engine Specications
Engine VIN Code Transaxle Spark Plug Gap
4.6L DOHC V8 Y Automatic 0.050 inches (1.27 mm)
4.6L DOHC V8 9 Automatic 0.050 inches (1.27 mm)
460
