2007 BUICK LACROSSE Owner's Manual

Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog or frost from the rear window. The
rear window defogger will only work when
the engine is running.
=(Rear Window Defogger):Press this button
to turn the rear window defogger on and off.
Be sure to clear as much snow from the rear
window as possible.
The rear window defogger will turn off about
20 minutes after the button is pressed. If turned
on again, the defogger will only run for about
20 minutes before turning off. The defogger can
also be turned off by pressing the button again or
by turning off the engine.
Do not drive the vehicle until all the windows
are clear.
Notice:Do not use a razor blade or sharp
object to clear the inside rear window. Do not
adhere anything to the defogger grid lines
in the rear glass. These actions may damage
the rear defogger. Repairs would not be
covered by your warranty.
Outlet Adjustment
Use the thumbwheels located between the center
outlets to open and close the outlets. Move the
lever in the center of each air outlet to adjust the
direction of the airow.
Operation Tips
Clear away any ice, snow or leaves from the
air inlets at the base of the windshield that
may block the ow of air into the vehicle.
Use of non-GM approved hood deectors
may adversely affect the performance of
the system.
Keep the path under the front seats clear of
objects to help circulate the air inside of the
vehicle more effectively.
This vehicle has a passenger compartment air
lter. If the airow seems low when the fan is
at the highest setting it may need to be
replaced. For more information, see
Passenger Compartment Air Filter on
page 178.
177

Passenger Compartment Air Filter
The passenger compartment air lter is located in
the engine compartment below the air inlet
grille, near the passenger’s side windshield wiper
arm. SeeEngine Compartment Overview on
page 350.
The lter traps most of the pollen from the air
entering the air conditioning module. Like
the engine’s air cleaner lter, it needs to be
changed periodically to keep the air conditioning
working at its best. For information on how often to
change the passenger compartment air lter,
seeScheduled Maintenance on page 462.
To change the passenger compartment air lter,
use the following steps:
1. Turn the ignition to ACCESSORY and turn the
windshield wipers on.
2. Turn the ignition to OFF when the windshield
wipers are in the upright position.
3. Raise the hood.
4. Disconnect the windshield washer pump hose
from the fender rail and air inlet grille.5. Peel back the hood weather-strip from the
passenger’s side of the vehicle halfway to
the center of the hood.
6. Remove the three air inlet grille retainers.
7. Remove the air inlet grille.
8. Remove the water deector panel.
9. Remove the old air
lter by pulling up
on its tab.
178

10. Install a new passenger compartment air lter.
SeeNormal Maintenance Replacement Parts
on page 471for the type of lter to use.
Make sure it slides under the compartment
retainers.
11. Reverse Steps 1 through 8.
For best climate control performance,
re-installation of a clean air lter is required.
Warning Lights, Gages,
and Indicators
This part describes the warning lights and gages
that may be on the vehicle. The pictures will
help you locate them.
Warning lights and gages can signal that something
is wrong before it becomes serious enough to
cause an expensive repair or replacement. Paying
attention to the warning lights and gages could also
save you or others from injury.Warning lights come on when there may be or is a
problem with one of the vehicle’s functions. As
you will see in the details on the next few pages,
some warning lights come on briey when you
start the engine just to let you know they are
working. If you are familiar with this section, you
should not be alarmed when this happens.
Gages can indicate when there may be or is a
problem with one of your vehicle’s functions. Often
gages and warning lights work together to let
you know when there is a problem with your
vehicle.
When one of the warning lights comes on and
stays on when you are driving, or when one of the
gages shows there may be a problem, check
the section that tells you what to do about
it. Please follow this manual’s advice. Waiting to
do repairs can be costly – and even dangerous. So
please get to know the warning lights and gages.
They are a big help.
179

Instrument Panel Cluster
The instrument panel cluster is designed to let the driver know at a glance how the vehicle is running.
It will show how fast the vehicle is going, about how much fuel is in the fuel tank and many other things
needed to drive safely and economically.
180

Speedometer and Odometer
Your speedometer lets you see your speed
in both miles per hour (mph) and kilometers
per hour (km/h).
Your vehicle’s odometer works together with the
driver information center. You can set a Trip A and
Trip B odometer. See “Trip Information” under
DIC Operation and Displays on page 200.
The odometer mileage can be checked without the
vehicle running. Simply press the odometer/trip
switch on the instrument panel cluster.
If your vehicle ever needs a new odometer
installed, the new one will be set to the correct
mileage total of the old odometer.
Tachometer
The tachometer displays the engine speed in
thousands of revolutions per minute (rpm).
Safety Belt Reminder Light
When the key is turned to RUN or START, a
chime will come on for several seconds to remind
people to fasten their safety belts, unless the
driver’s safety belt is already buckled.
The safety belt light will
also come on and stay
on for several
seconds, then it will
ash for several more.
This chime and light will be repeated if the driver
remains unbuckled and the vehicle is in motion.
If the driver’s belt is already buckled, neither
the chime nor the light will come on.
181

Passenger Safety Belt
Reminder Light
Several seconds after the key is turned to RUN or
START, a chime will sound for several seconds to
remind the front passenger to buckle their safety
belt. This would only occur if the passenger airbag
is enabled. SeePassenger Sensing System on
page 75for more information. The passenger
safety belt light will also come on and stay on for
several seconds, then it will ash for several more.
This chime and light will
be repeated if the
passenger remains
unbuckled and
the vehicle is in motion.
If the passenger’s safety belt is buckled, neither
the chime nor the light will come on.
Airbag Readiness Light
There is an airbag readiness light on the
instrument panel, which shows the airbag symbol.
The system checks the airbag’s electrical
system for malfunctions. The system check
includes the airbag modules, the wiring and the
crash sensing and diagnostic module. For
more information on the airbag system, seeAirbag
System on page 66.
This light will come on
when the vehicle is
started, and it will ash
for a few seconds. Then
the light should go out.
This means the system is functioning properly.
182

If the airbag readiness light stays on after the
vehicle is started, or comes on as the vehicle is
being driven, there may be an electrical problem
and the airbag system may not work properly.
Have the vehicle serviced right away.
{CAUTION:
If the airbag readiness light stays on after
you start your vehicle, it means the airbag
system may not be working properly. The
airbags in your vehicle may not inate in
a crash, or they could even inate without
a crash. To help avoid injury to yourself
or others, have your vehicle serviced right
away if the airbag readiness light stays on
after you start your vehicle.
The airbag readiness light should ash for a few
seconds when you turn the ignition key to RUN. If
the light does not come on then, have it xed
so it will be ready to warn you if there is a problem.
Passenger Airbag Status Indicator
Your vehicle has a passenger sensing system. The
passenger airbag status indicator on the instrument
panel will be visible when you turn your ignition key
to RUN or START. SeePassenger Sensing System
on page 75for more information.
The passenger airbag
status indicator will
light ON and OFF for
several seconds
as a system check.
If you use remote start to start your vehicle from a
distance, if your vehicle has this feature, you may
not see the system check. Then, after several more
seconds, the status indicator will light either ON or
OFF to let you know the status of the right front
passenger’s frontal airbag.
183

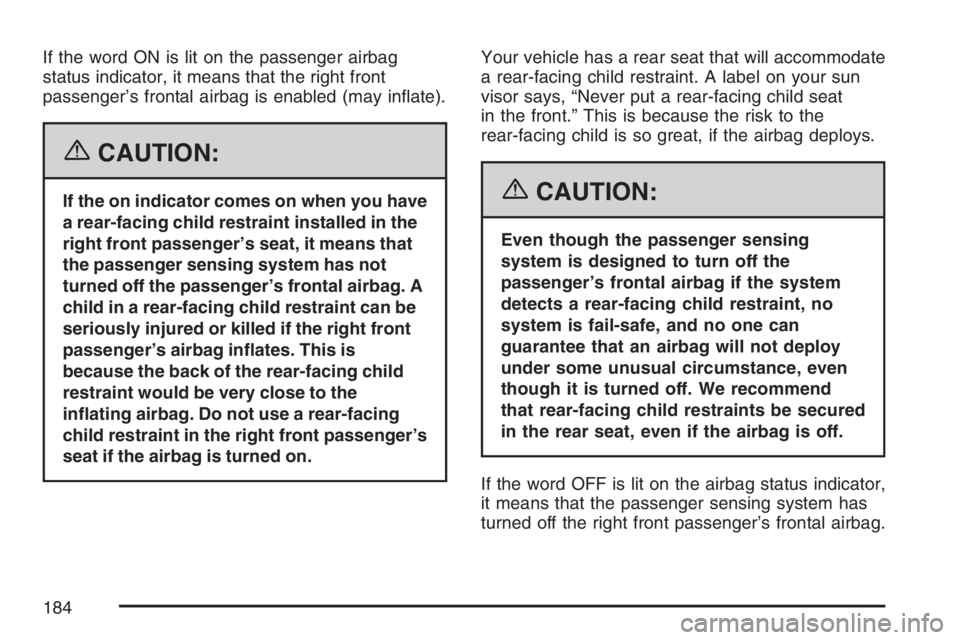

If the word ON is lit on the passenger airbag
status indicator, it means that the right front
passenger’s frontal airbag is enabled (may inate).
{CAUTION:
If the on indicator comes on when you have
a rear-facing child restraint installed in the
right front passenger’s seat, it means that
the passenger sensing system has not
turned off the passenger’s frontal airbag. A
child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger’s airbag inates. This is
because the back of the rear-facing child
restraint would be very close to the
inating airbag. Do not use a rear-facing
child restraint in the right front passenger’s
seat if the airbag is turned on.Your vehicle has a rear seat that will accommodate
a rear-facing child restraint. A label on your sun
visor says, “Never put a rear-facing child seat
in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.{CAUTION:
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag if the system
detects a rear-facing child restraint, no
system is fail-safe, and no one can
guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend
that rear-facing child restraints be secured
in the rear seat, even if the airbag is off.
If the word OFF is lit on the airbag status indicator,
it means that the passenger sensing system has
turned off the right front passenger’s frontal airbag.
184
