Operation
OFF:Turn the left knob to this position to turn the
climate control system off.
9(Fan):Turn the knob by this symbol, located
on the left side of the climate control panel,
clockwise or counterclockwise to increase or
decrease the fan speed. The fan speed will be
temporarily reduced between the transition
to a new mode. The fan will resume the original
speed when the transition to the new mode
is complete.
Temperature Control:Turn the center knob
clockwise or counterclockwise to increase
or decrease the temperature inside your vehicle.Use the right knob to select from the
following modes:
H(Vent):This mode directs outside air to the
instrument panel outlets. If driving in city
traffic, and the vehicle is stopped and idling, or the
weather is hot, turning on the recirculation
mode helps to prevent the air inside the vehicle
from becoming stale. After ve minutes recirculate
will allow some outside air into the vehicle.
)(Bi-Level):This mode directs half of the air to
the instrument panel outlets, and the remaining
air to the oor outlets. Some air may be directed
toward the windshield. Slightly cooler air is directed
to the instrument panel outlets and warmer air is
directed to the oor outlets.
6(Floor):This mode directs most of the air to
the oor outlets with some air directed toward
the side window outlets and a little air directed to
the windshield.
In this mode, the system will automatically use
outside air. The air conditioning compressor will be
engaged unless the outside temperature is 40°F
(4°C) or below.
169

You can also select modes by using the
following buttons:
h(Recirculate):Press this button to recirculate
cabin air through the vehicle. It can be used to
help reduce the outside air and odors that
enter your vehicle or to help heat or cool the air
inside your vehicle quicker. An indicator light below
the button will come on in this mode. Operation
in this mode during periods of high humidity
and cool outside temperatures may result in
increased window fogging. If window fogging is
experienced, select the defrost mode. To prevent
the air inside the vehicle from becoming stale,
after ve minutes recirculate will allow some
outside air into the vehicle.
#(Air Conditioning):Press this button to turn
the air conditioning system on or off. When
this button is pressed, an indicator light below the
button will come on to let you know the air
conditioning is activated. Air conditioning can be
selected in any mode as long as the fan switch is
on. The indicator light will change with each
button press even when conditions prevent
operation.On hot days during the vehicle’s initial start-up,
open the windows to let hot inside air escape; then
close them. This helps to reduce the time it
takes for the vehicle to cool down. It also helps
the system to operate more efficiently.
For quicker cool down on hot days, do the
following:
1. Select the vent air mode.
2. Select the recirculation mode.
3. Select the air conditioner.
4. Select the coolest temperature.
5. Select the highest fan speed.
The air conditioning system removes moisture
from the air, so you may sometimes notice a
small amount of water dripping underneath your
vehicle while idling or after turning off the
engine. This is normal.
Using these settings together for long periods
of time may cause the air inside the vehicle to
become too dry. To prevent this, after ve minutes
recirculate will allow some outside air into
the vehicle.
170

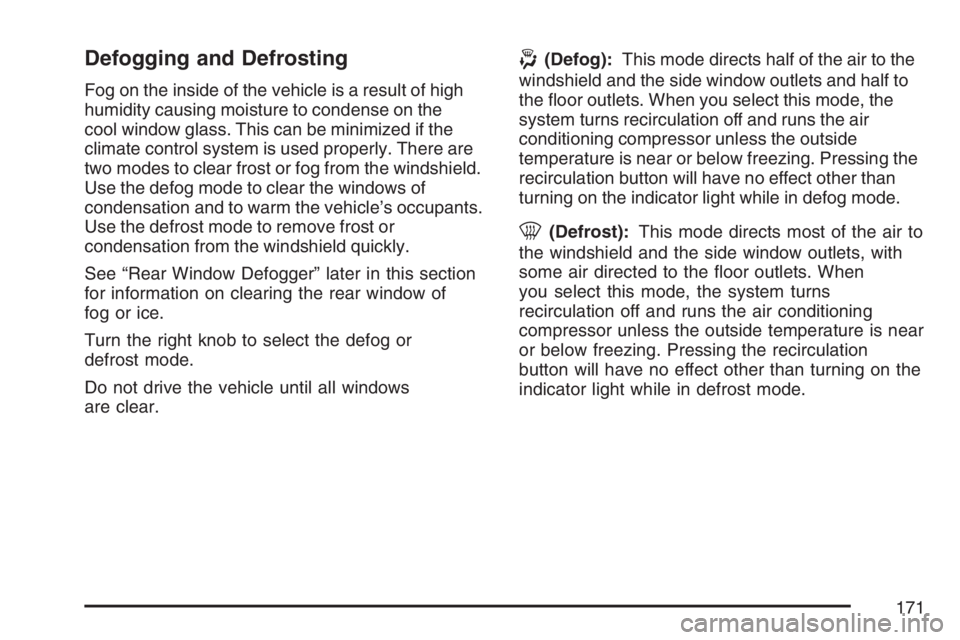

Defogging and Defrosting
Fog on the inside of the vehicle is a result of high
humidity causing moisture to condense on the
cool window glass. This can be minimized if the
climate control system is used properly. There are
two modes to clear frost or fog from the windshield.
Use the defog mode to clear the windows of
condensation and to warm the vehicle’s occupants.
Use the defrost mode to remove frost or
condensation from the windshield quickly.
See “Rear Window Defogger” later in this section
for information on clearing the rear window of
fog or ice.
Turn the right knob to select the defog or
defrost mode.
Do not drive the vehicle until all windows
are clear.
-(Defog):This mode directs half of the air to the
windshield and the side window outlets and half to
the oor outlets. When you select this mode, the
system turns recirculation off and runs the air
conditioning compressor unless the outside
temperature is near or below freezing. Pressing the
recirculation button will have no effect other than
turning on the indicator light while in defog mode.
0(Defrost):This mode directs most of the air to
the windshield and the side window outlets, with
some air directed to the oor outlets. When
you select this mode, the system turns
recirculation off and runs the air conditioning
compressor unless the outside temperature is near
or below freezing. Pressing the recirculation
button will have no effect other than turning on the
indicator light while in defrost mode.
171

Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog from the rear window.
<(Rear):Press the button to turn the rear
window defogger on or off. An indicator light below
the button will come on to let you know that the
rear window defogger is activated.
The rear window defogger will only work when the
ignition is in RUN. The rear window defogger
will stay on for about 20 minutes after the button is
pressed. If turned on again, the defogger will
only run for about 20 minutes before turning off.
The defogger can also be turned off by pressing
the button again or by turning off the engine.
Do not drive the vehicle until all windows are clear.
Notice:Do not use anything sharp on the
inside of the rear window. If you do, you could
cut or damage the warming grid, and the
repairs would not be covered by your warranty.
Do not attach a temporary vehicle license,
tape, a decal or anything similar to the
defogger grid.
Dual Automatic Climate Control
System
With this system you can control the heating,
cooling, and ventilation for the vehicle.
172

Automatic Operation
AUTO (Automatic):Press the AUTO button for
automatic control of the inside temperature, the air
delivery mode, and the fan speed. There might
be a delay of two to three minutes before the fan
comes on when the automatic operation is
used in cold weather. For the automatic system to
function, the temperature must be set between
61°F (15°C) and 89°F (32°C).
1. Adjust the temperature to a comfortable
setting.
2. Press the PASS button or the up or down
arrows on the passenger side to turn the
passenger temperature set on and off. When
turned on, the passenger temperature will
be the same as the driver setting. Press the
up or down arrow on passenger side to adjust
the passenger temperature setting.
When the passenger’s temperature set is off,
the passenger display will be off and the
driver’s set temperature will be for the driver
and passenger.In cold weather, the system will start at
reduced fan speeds to avoid blowing cold air
into the vehicle until warmer air is available.
The system will start out blowing air at the oor
but may change modes automatically as the
vehicle warms up to maintain the chosen
temperature setting. The length of time needed
for warm up will depend on the outside
temperature and the length of time that has
elapsed since the vehicle was last driven.
3. Wait for the system to regulate. This may take
from 10 to 30 minutes. Then, adjust the
temperature, if necessary.
Do not cover the solar sensor located in the
center of the instrument panel, near the
windshield. For more information on the solar
sensor, see “Sensors” later in this section.
4. Press OFF to turn the climate control system
off. Only the rear defog and heated seats will
function. Press AUTO or any other button
except the heated seats or rear defog to turn
the climate control system back on.
173

This control has four types of operation.
Automatic can set/change the temperature
only. AUTO and temperature only will
appear on the display.
Semi-Automatic Fan can set/change the
temperature and mode. The fan operates
automatically. The temperature and mode will
appear on the display.
Semi-Automatic Mode can set/change the
temperature and fan speed. The mode
operates automatically. The fan speed and
temperature will appear on the display.
Manual can set/change the temperature,
mode and fan. The fan speed, temperature,
and mode will appear on the display.
If your vehicle has the remote start feature, the
climate control system will automatically regulate
the inside temperature of your vehicle when
the remote start system is activated. Normal
operation and the last setting of the climate control
system will return after the key is turned on.
Manual Operation
During daylight hours, the instrument panel
brightness control might need to be adjusted to
the highest setting, in order to see the indicator
lights for the various climate control settings.
OFF:Press this button to turn the climate control
system off.
yz(Temperature):Press these buttons to
manually adjust the temperature inside the vehicle.
Press the up arrow on the driver or passenger
side to raise the temperature, and press the down
arrow to lower the temperature. The display will
show the selected temperature.
z9(Fan):Press this button to decrease the fan
speed. Pressing the arrows cancels the automatic
operation and places the system in manual or
semi-automatic mode. Press the AUTO button to
return to automatic operation. If the airow seems
low when the fan is at the highest setting, the
passenger compartment air lter may need to be
replaced. For more information seePassenger
Compartment Air Filter on page 178andScheduled
Maintenance on page 462.
174

9y(Fan):Press this button to increase the fan
speed. Pressing the arrows cancels the automatic
operation and places the system in manual or
semi-automatic mode. Press the AUTO button to
return to automatic operation. If the airow
seems low when the fan is at the highest setting,
the passenger compartment air lter may need
to be replaced. For more information see
Passenger Compartment Air Filter on page 178
andScheduled Maintenance on page 462.
6(Floor):This mode directs most of the air to
the oor, with some air directed to the side window
outlets and a small amount to the windshield.
)(Bi-Level):This setting directs airow to the
instrument panel and oor outlets. A small amount
of air is also directed to the windshield and the
side window outlets.
Y(Vent):This mode directs air through the
instrument panel outlets.
h(Recirculation):Press this button to turn
recirculation mode on or off. This mode keeps
outside air from coming into the vehicle. It can be
used to help reduce the outside air and odors
that enter your vehicle or help cool the air inside
the vehicle quicker.
Recirculation is not available while in the oor,
defrost, or oor/defog modes. Using recirculation
for long periods of time may cause the air
inside your vehicle to become too dry.
Recirculation mode has a ve minute timer after
which the system allows for some fresh outside air
into the vehicle to maintain interior air quality.
#(Air Conditioning):Press this button to turn
the air conditioning compressor on and off.
The indicator light on the button will come on
when the air conditioning is on. The indicator light
will change with each button press even when
conditions prevent operation.
((Heated Seats):Press this button to turn the
driver or passenger heated seats on and off. See
Heated Seats on page 10for additional information.
175

Defogging and Defrosting
Fog on the inside of windows is a result of high
humidity (moisture) condensing on the cool window
glass. This can be minimized if the climate
control system is used properly. There are
two modes to clear fog or frost from your
windshield. Use the oor/defog mode to clear the
windows of fog or moisture and warm the
passengers. Use defrost to remove fog or frost
from the windshield more quickly.
-(Floor/Defog):Press this button to direct the
air between the windshield, oor outlets and
side windows. When you select this mode, the
system turns recirculation off and runs the
air conditioning compressor unless the outside
temperature is near or below freezing. Pressing
the recirculation button will have no effect
other than turning on the indicator light while in
oor/defog mode.
1(Defrost):Press this button to direct most of
the air to the windshield, with some air directed to
the side windows. In this mode, the system will
automatically turn off the recirculation and run the
air conditioning compressor, unless the outside
temperature is near or below freezing. Pressing the
recirculation button will have no effect other than
turning on the indicator light while in defrost mode.
Do not drive the vehicle until all windows are clear.
Sensors
The solar sensor on the vehicle monitors the solar
heat and the air inside of the vehicle. This
information is used to maintain the selected
temperature by initiating needed adjustments to the
temperature, the fan speed, and the air delivery
system. The system may also supply cooler air to
the side of the vehicle facing the sun. The
recirculation mode will also be activated, as
necessary. Do not cover the solar sensor located in
the center of the instrument panel, near the
windshield, or the system will not work properly.
176
