2007 Acura RDX Owner's Manual

CONT INUED
Touseavanitymirroronthebackof
the sun visor, pull up the cover.Your vehicle has a multi-f unction
console compartment. It includes an
armrest, a coin holder, a pen holder,
a card holder and a console
compartment with two separatable
shelves.
To open the console compartment,
push the button and lif t the lid.
To close, lower the lid, and push it
down until it latches.
You can lock or unlock the console
compartment lid with the master key.
The light comes on when you pull up
the cover.
Interior Convenience Items
Vanity Mirror
Console Compartment
Inst rument s and Cont rols
165
VANITY MIRROR MASTER KEY
LID
Push BUTTON Close
——
y


y
() y
y

You can use the inside of the lid f or a
pen holder, a coin holder and a card
holder.The console compartment has two
shelves to divide it into two levels.
To store small items, you can use the
upperhalfofthespacebyputting
the shelves down until they latch.
The f ront and rear shelves can be
used separately.When you store a large item like a
brief case, lif t the shelves up to
create a large space.
The console compartment light
comes on when the parking lights
are on. The items on each shelves should
not exceed 11 lbs (5 kg). Heavy
items may damage the shelves.The maximum dimensions of the
item you can store in the console
compartment are:
Length: 16.9 in (430 mm)
Height: 12.2 in (310 mm)
Width: 5.5 in (140 mm)
Interior Convenience Items
166
LID
CARD HOLDER PEN HOLDER
COIN
HOLDER
SHELVES
——
y
y
() y

y

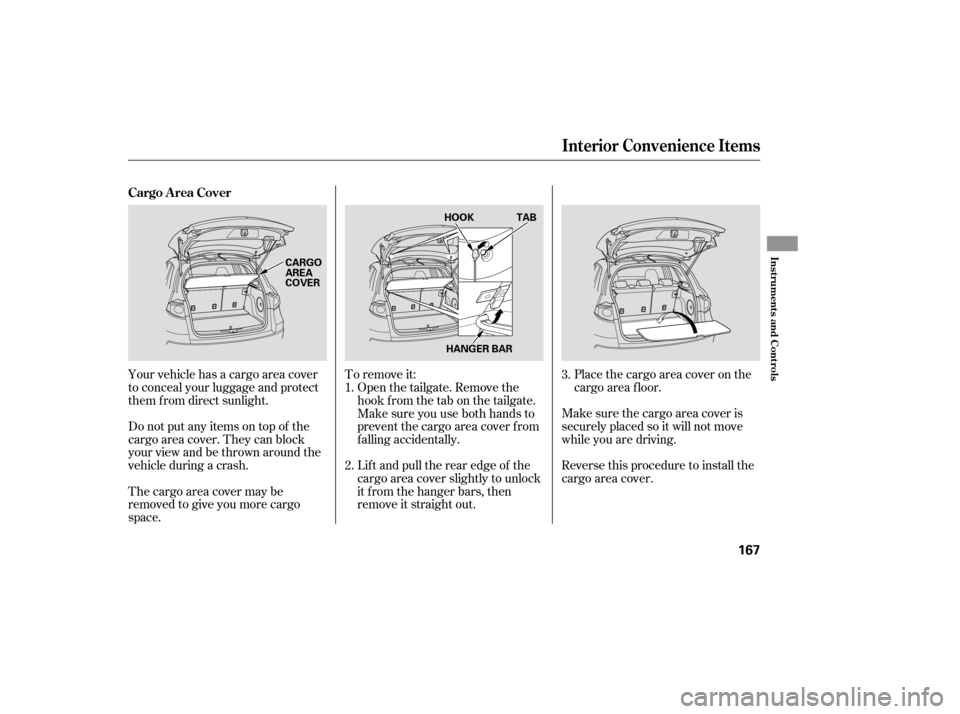

Your vehicle has a cargo area cover
to conceal your luggage and protect
them f rom direct sunlight.To remove it:
Place the cargo area cover on the
cargo area f loor.
Make sure the cargo area cover is
securely placed so it will not move
while you are driving.
Do not put any items on top of the
cargo area cover. They can block
your view and be thrown around the
vehicle during a crash.
The cargo area cover may be
removed to give you more cargo
space. Lif t and pull the rear edge of the
cargo area cover slightly to unlock
it from the hanger bars, then
remove it straight out.
Reverse this procedure to install the
cargo area cover.
Open the tailgate. Remove the
hook f rom the tab on the tailgate.
Make sure you use both hands to
prevent the cargo area cover f rom
f alling accidentally.
1.
2. 3.
Interior Convenience Items
Cargo Area Cover
Inst rument s and Cont rols
167
CARGO
AREA
COVER
HANGER BAR
HOOK TAB
——
y
y
() y
y

The climate control system in your
vehicle provides a comfortable
driving environment in all weather
conditions.
The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps to dis-
courage vandalism and thef t of your
vehicle.
Theclimatecontrolsystemandthe
audio system have a voice control
feature. Refer to the navigation
system manual f or more inf ormation................
Climate Control System .170
..........
Dual Temperature Control .175
..............
Climate Control Sensors .177
................................
Audio System .178
.
Audio System (On RDX model) .180
.....
To Play the AM/FM Radio .180
.....
Operating the CD Changer .183
..................
XM
Satellite Radio . 193
.................
Adjusting the Sound . 196
......................
Setting the Clock .198
Audio System (On RDX with Technology Package ................................
model) .199
.............................
Interf ace Dial .199
......
To Play the AM/FM Radio . 200
.....
Operating the CD Changer . 206
...................
XM
Satellite Radio .221
..................
Adjusting the Sound .227
.......................
Auxiliary Input Jack .230
............................
Radio Reception .231
..................
Protecting Your Discs . 233
.....
CD Changer Error Messages . 234
.
Playing the XM
Satellite Radio . 235
................
Remote Audio Controls . 237
.................
Radio Thef t Protection . 239
............................
Security System .240 ...............................
Cruise Control .241
......................................
AcuraLink .244
HomeLink Universal ................................
Transceiver .253
..........................
HandsFreeLink .257
.
Rear View Camera and Monitor . 275
TM
On RDX with Technology Package
model
Features
Features
169
——
y
y
() y
y

Climate Control System
170
RDX modelOFF BUTTON
U.S. model is shown. MODE INDICATOR
DUAL BUTTON FAN CONTROL BUTTONS AIR CONDITIONING (A/C) BUTTON
DRIVER’S SIDE
TEMPERATURE
CONTROL BUTTONS
AUTO BUTTON
RECIRCULATION BUTTON
MODE BUTTON
DRIVER’S SIDE
TEMPERATURE
DIPLAY RDX with Technology Package model
WINDSHIELD
DEFROSTER BUTTON
MODE INDICATOR DRIVER’S SIDE
TEMPERATURE DISPLAY
PASSENGER’S SIDE
TEMPERATURE DISPLAY
PASSENGER’S SIDE
TEMPERATURE
CONTROL BUTTONS
PASSENGER’S SIDE
TEMPERATURE DISPLAY
REAR WINDOW DEFOGGER/HEATED MIRROR BUTTON
——
y

y
() y
y

ÛÝ
Proper
use of the climate control
system can make the interior dry
and comfortable, and keep the
windows clear for best visibility.
For the climate control system to
provide heating and cooling, the
engine must be running.
You can adjust the temperatures of
thedriver’ssideandthepassenger’s
side independently (see page ).The
automatic climate control
system adjusts the fan speed and
airflow levels to maintain the interior
temperature you select. Set
the desired temperature by
pushing or of the driver’s
side temperature control buttons.
The selected temperature will
show in the display.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your preference.
Press
the AUTO button. You will
see AUTO in the display. The
indicator in the button also comes
on as a reminder.
In
the AUTO mode, the vehicle’s
interior temperature is
independently regulated for the
driver and passenger. If the driver’s
side of the vehicle is getting too
much sun, the system will adjust to a
lower temperature. When
you push the passenger’s side
temperature control buttons, the
indicator in the DUAL button comes
on and the driver’s side and
passenger’s side temperature can be
controlled independently (see page ).
The climate control system f or your
vehicle can also be operated by voice
control. See the navigation section in
your quick start guide f or an
overview of this system, and the
navigation system manual f or
complete details. 1.2.
175
175
CONT INUED
On RDX with Technology Package
model On RDX with Technology Package
modelVoice Control System Automatic Operation
Climate Control System
Features
171
——
y
y
() y
y

ÛÝÛ
Ý
When
you set the temperature to its
lowest limit ( ) or its highest
limit ( ), the system runs at
full cooling or heating only. It does
not regulate the interior temperature.
In cold weather, the fan will not
come on automatically until the
heater starts to develop warm air. Press
the DUAL button to select
dual temperature control mode (see
page ). The indicator in the
DUAL button comes on.
You can manually select various
f unctions of the climate control
system when it is in the AUTO mode.
All other f eatures remain
automatically controlled.
Making any manual selection causes
thewordAUTOinthedisplaytogo
out.
To adjust the desired temperature,
push or of the temperature
control buttons. Select the f an speed by pressing the
fan control buttons ( or
). The f an speed is
represented by vertical bars in the
display. When you press the DUAL button
again (indicator turns of f ), both
sides adjust to the driver’s side
temperature.
Press the A/C button to turn the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set the
temperature control below the
outside temperature.175
Climate Control System
Dual Button
Semi-automatic Operation
T emperature Control Fan Control A ir Conditioning (A /C) Button
172
——
y

y
() y
y
