2007 Acura RDX Owner's Manual

µ
µ µµ
µ
µ
CONT INUED
You can use any of f ive methods to
f ind radio stations on the selected
band: TUNE, SEEK, SCAN, the
preset bars, and AUTO SELECT. Use the TUNE/FOLDER
bar to tune the radio to a desired
f requency. Press the side of the
bar to tune to a higher f requency,
and the side of the bar to tune
to a lower f requency.
The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or side of the
SEEK/SKIP bar, then release it. If youpressandholdthe or side of the bar, the f requency
will begin to change rapidly. It will
stop when you release it. The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see ‘‘SCAN’’
on the center display. The system
will scan f or a station with a strong
signal. When it f inds one, it will stop
and play that station for about 10
seconds.
If you do nothing, the system will
then scan f or the next strong station
andplayitfor10seconds.Whenit
plays a station you want to listen to,
press the SCAN button again. Each side of the bars (1
6) can store one f requency on AM
and two f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each side of
the preset bar.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pick the preset number (1 6), f or
the station you want to store.
Press the lef t or right side of the
bar,andholdituntilyouheara
beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
1.
2.
3.
4.
To Select a Station
TUNE
SEEK
SCA N
Preset
Audio System
Features
181
——
y

y
() y
y

µµ If
you do not like the stations auto
select has stored, you can store
other frequencies on the preset bars.
,pressthe
A. SEL/RDM button. This restores
the presets you originally set. For
information on AM/FM radio
frequencies and reception, see page
.
For information, see page .
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
To activate it, press the A. SEL/
RDM button. ‘‘A. SEL’’ will f lash on
the center display, and the system
will go into scan mode f or several
seconds. It stores the f requencies of
six AM and twelve FM stations in
the preset bars (1 6).
You will see ‘‘0’’ displayed if auto
select cannot f ind a strong station f or
every preset bar. 231
196
To turn of f auto select
Audio System
Radio Frequencies and Reception
Adjusting the Sound
AUTO SELECT
182
——
y

y
() y
y

CONT INUED
On RDX model
Audio System
Operating the CD Changer
Features
183

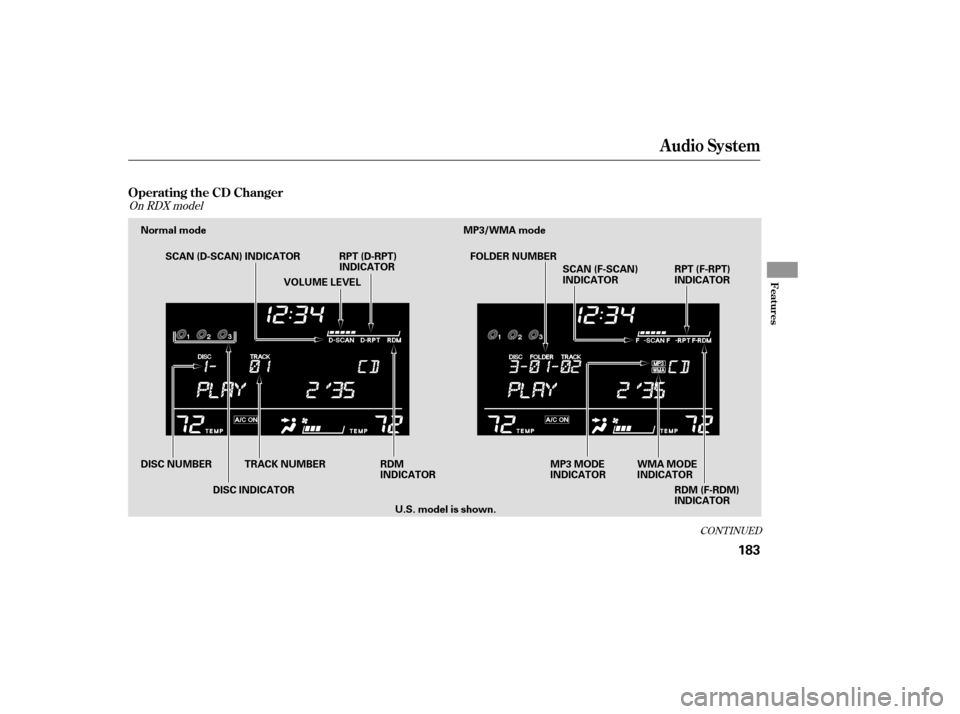

Normal modeMP3/WMA mode
SCAN (D-SCAN) INDICATOR RPT (D-RPT) INDICATOR
WMA MODE
INDICATOR
MP3 MODE
INDICATOR
RDM (F-RDM)
INDICATOR RPT (F-RPT)
INDICATOR
RDM
INDICATOR
DISC NUMBER
DISC INDICATORTRACK NUMBER FOLDER NUMBER
SCAN (F-SCAN)
INDICATOR
VOLUME LEVEL
U.S. model is shown.
——
y

y
() y
y

Audio System
184

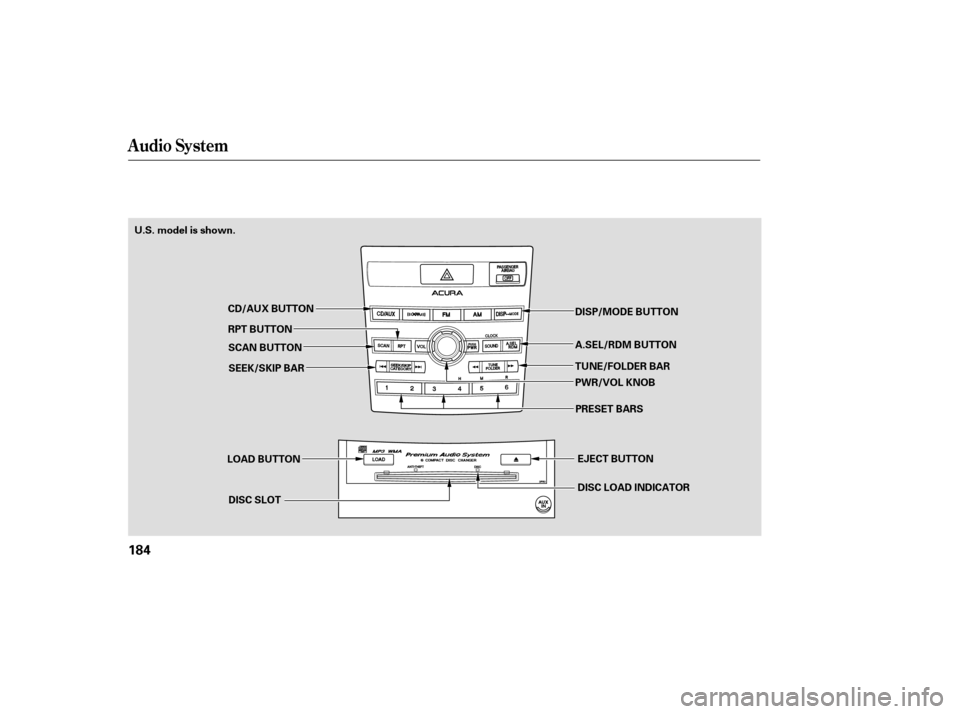

LOAD BUTTONDISC SLOT EJECT BUTTON
DISC LOAD INDICATOR
CD/AUX BUTTON
RPT BUTTON SCAN BUTTON
U.S. model is shown.
DISP/MODE BUTTON
TUNE/FOLDER BAR A.SEL/RDM BUTTON
PWR/VOL KNOBPRESET BARS
SEEK/SKIP BAR
——
y

y
() y
y

Your audio system has an in-dash
CD changer that holds up to six CDs,
providing several hours of
continuous entertainment. You
operate this CD changer with the
same controls used for the radio.
To load CDs or operate the CD
changer, the ignition switch must be
in the ACCESSORY (I) or ON (II)
position. For
best results when using CD-R or
CD-RW discs, use only high quality
discs labeled for audio use. When
recording a CD-R or CD-RW, the
recordingmustbeclosedinorder
for the disc to be played by CD
player.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
Video CDs and DVDs will not work
in this unit.
The
disc changer can play these disc
formats:
The disc packages or jackets should
have one of these marks. The changer can also play MP3 or
WMA format (see page ).
CD (CD-DA)
CD-R/RW 187
CONT INUED
Audio System
Features
185
Do not use CDs with adhesive labels.
The label can curl up and cause the CD
to jam in the unit.
——
yy
() y
y

To load a single disc:Press and release the LOAD
button on the changer unit. You
will see ‘‘BUSY’’ on the center
display, and the disc load indicator
turns red and starts blinking.
Insert a disc into the disc slot
when the disc load indicator turns
green and ‘‘LOAD’’ appears on the
center display at the same time.
Insert the disc only about half way;
the drive will pull it in the rest of
the way. You will see the disc
indicator blinking on the center
display.
To load multiple discs in one
operation:
When the disc load indicator turns
green and ‘‘LOAD’’ appears on the
center display again, insert the
next CD in the slot.
Do not try to insert a disc until
‘‘LOAD’’ appears. You could
damage the audio unit.
Repeat steps 1 through 3 until all
six positions are loaded. If you are
not loading all six positions, press
the LOAD button again after the
last CD has loaded. ‘‘DISC READ’’
appears on the center display, then
the system begins playing the last
CD loaded.
If you stop loading discs bef ore all
six positions are f illed, the system
will wait f or 10 seconds, stop the load
operation, and begin playing the last
disc loaded.
Press and hold the LOAD button
on the changer unit until you hear
a beep. You will see ‘‘BUSY’’ on
the center display, and disc load
indicator turns red and starts
blinking.
Insert the disc into the disc slot
when the disc load indicator turns
green and ‘‘LOAD’’ appears on the
center display at the same time.
Insert it only half way; the drive
will pull it in the rest of the way.
You will see ‘‘BUSY’’ on the center
display, and the disc load indicator
turns red again and blinks as the
CD is loaded.
Do not try to insert a disc until
‘‘LOAD’’ appears. You could
damage the audio unit.
1.
2.
3.
1.
2. 4.
Audio System
L oading CDs in the Changer
186
——
y
y
() y

y

µ
CONT INUED
The CD changer can play CD-Rs and
CD-RWs compressed in MP3 and
WMA format. When playing a disc in
MP3 or WMA, you will see ‘‘MP3’’ or
‘‘WMA’’ on the center display. A disc
can support more than 99 f olders,
and each folder can hold up to 255
playable f iles.
When there are more than 99 f olders
in a disc, the center display only
shows two digits.
If the disc has a complex structure, it
will be a while to read the disc bef ore
the system begins to play it.
Select the CD changer by pressing
the CD/AUX (U.S. model) or CD
(Canadian model) button. You will
see ‘‘CD’’ on the center display. The
system will begin playing the last
selected CD in the CD changer. You
will see the disc and track numbers
displayed.
When the system reaches the end of
the disc, the system will advance to
the next disc and begin to play. To
select a dif f erent disc, press an
appropriate side of the preset bar (1
6). If you select an empty position
in the CD changer, the system will
try to load the CD in the empty slot.
Youwillsee‘‘DISCREAD’’onthe
center display, then the system
begins to play the CD.
You can load a disc(s) in any mode
(AM,FM,XMradio,orAUX)if you
do not select an empty position.
If you press the LOAD button while
a disc is playing, the system will stop
playing that disc and start the
loading sequence. It will then play
the disc just loaded. You can load a CD into an empty
position while a CD is playing. Select
the empty position (the disc
indicator is not shown on the center
display) by pressing the appropriate
side of the preset bars. The current
CD stops playing and starts the
loading sequence. The CD just
loaded will play. 3.
Audio System
Playing an MP3/WMA Disc
To Play a CD
Features
187
——
y
y
() y
y

Each time you press the DISP/
MODE (U.S. model) or DISP
(Canadian model) button while
playing a CD (CD-DA), the center
display changes f rom album name,
to track name, to artist name, and
then to normal display. If the disc
was not recorded with CD-TEXT,
‘‘NO INFO’’ will be shown on the
center display.If the title is too long, it will not show
all at once. Press and hold the DISP/
MODE (U.S. model) or DISP
(Canadian model) button, and the
rest of the title will show on the
center display.
When playing a disc compressed in
MP3/WMA format, the display
changes f rom f older name, to f ile
name, to artist tag, to album tag, to
track tag, and then to normal display
each time you press the DISP/
MODE (U.S. model) or DISP
(Canadian model) button. If the disc
was not recorded with this
inf ormation, ‘‘NO INFO’’ will be
shownonthecenterdisplay. You will also see the album and track
name (CD-TEXT), or the f older and
f ile name (MP3/WMA) under these
conditions:
Each time a new track, file, or
folder plays. When you insert a disc, and the
system begins to play.
The specif ications of the compatible
MP3 f ile are:
Sampling f requency: 32/44.1/48 kHz
(MPEG1), 24, 22.05, 16 kHz
(MPEG2)
Bit rate: 32/40/48/56/64/80/96/
112/128/160/192/224/256/320 kbps
(MPEG1), 8/16/24/32/40/48/56/
64/80/96/112/128/160 kbps
(MPEG2)
Compatible with variable bit rate and
multi-session.
Maximum layers
(including ROOT): 8 layers
The specif ications of the compatible
WMA f ile are:
Sampling f requency: 32/44.1/48 kHz
Bit rate: 48/64/80/96/128/160/192
kbps
Compatible with variable bit rate and
multi-session.
Maximum layers (including ROOT):
8 layers
Name Display Funct ion
