2007.5 Citroen C4 PICASSO DAG Owner's Manual

23
4
5
67
89
1
186VI
C H A N G I N G A W H E E L
TOOLS
The tools are to be found either in
the compartment under the second-
row passenger footwells or in the
well under the third-row seats (ac-
cording to equipment).
1-
Tool for removing the central
trim on alloy wheels
2- Tool for removing the chrome
covers on the wheel bolts on
alloy wheels
3- Centring guide
4- Tool for removing the wheel
bolts
Never get underneath the vehicle if it is supported only by the jack.
The jack and all the tools are designed specifically for use on your particular vehicle.
Do not use them for any other applications.
Have the original wheel repaired and refitted as soon as po ssible.
It is essential not to exceed a speed of 80 km/h (50 mph) on your spare wheel.
5-
Vehicle jack with handle
6- Removable towing eye
7-
Two chocks, provided for chan-
ging a wheel or for other uses on
the vehicle (such as unlocking
the electric parking brake)
8- Electric parking brake unlocking
device
9- Anti-theft socket.

VI
187
C H A N G I N G A W H E E LACCESSING THE SPARE WHEEL
1.
Move the third-row seat, right-hand side (7 seater
model).
2. Retrieve the extension that is attached to the rear
of the seat well.
3. Engage the extension on the pinion located under
the carpet in the seat well.
4. Using the wheel brace on the extension to turn the
pinion clockwise , release the cable to lower the
spare wheel to the ground.
5. Remove the wheel from under the vehicle, disen-
gaging the linking plate in the centre of the wheel.
STOWING THE AFFECTED WHEEL
1. It is essential to orient the valve upwards.
2. Pass the linking plate through the centre of the
wheel (first removing the central trim on certain al-
loy wheels).
3. Turn the pinion anti-clockwise to draw in the ca-
ble. First the pinion will turn idly, then the cable wi ll
tighten to raise the wheel. Check that the wheel is
tight against the vehicle floor and not interfering
with other nearby components (e.g. the exhaust).
4. Stow the tools and chocks.
With the affected road wheel now under the vehicle floor, th e vehicle has reduced ground clearance,
so take extra care when reversing or driving on uneve n surfaces, including kerbs.
Retrieval of the spare wheel and stowage of the affected roa d wheel are operations that should be
done with the vehicle supported on its wheels, not by the jack.
Note :
The pinion to release the spare wheel is located
under the boot carpet, on the right hand side in the
wheel well for the Grand C4 Picasso and on the left
hand side for the C4 Picasso. Grand C4 Picasso C4 Picasso

A
1
188VI
C H A N G I N G A W H E E L
REMOVING A WHEEL
1.
Park the vehicle on level, sta-
ble and non-slippery ground.
Apply the parking brake.
Switch off the ignition, check
that the parking brake is ap-
plied (message and warning
lamp in the instrument panel)
and engage first gear or re-
verse gear depending on the
slope ( P if an automatic gear-
box, D or R if a 6-speed elec-
tronic gearbox).
2. Use a chock to secure the ve-
hicle more safely. Place the
chock in front of the wheel that
is opposite the wheel affected. 3.
Detach the trim using the re-
moving tool 4, pulling in the
area of the valve.
For vehicles with alloy wheels,
insert the trim removing tool 1
into the recess in the central
trim and lever it off.
For vehicles with alloy wheels
that have visible bolts, remove
the chromes covers using the
tool 2.
Before any operation of this sort, it is advisable to deac tivate your pneumatic suspension
(see « Pneumatic suspension »). When changing a wheel, it is essential to immobilise
the vehicle on ground that is level, stable and non-slip pery.
4.
Slacken the wheel bolts. For
vehicles with alloy wheels,
undo the anti-theft bolts using
tool 9.
5. Position the jack under the
vehicle (see diagrams), at the
jacking point A closest to the
wheel to be changed.
6. Unwind the jack 5 until its
bracket is in contact with the
ground. Make sure that the
jack is vertical under the jack-
ing point used.
7. Continue to extend the jack so
as to raise the vehicle.
8. Undo the wheel bolts and re-
move the wheel.

VI
189
C H A N G I N G A W H E E L
WHEEL FOR TEMPORARY USE
If your vehicle is equipped with
a spare wheel for temporary use
only, when fitting this it is normal
to observe that the wheel bolts do
not come to bear directly on the
wheel rim.
The spare wheel is secured by the
conical tapering of the wheel bolt’s
shaft (see illustration).
When refitting the original wheel,
ensure that the wheel bolt contact
surfaces are clean and in good
condition.
WHEEL EQUIPPED WITH
DEFLATION DETECTION
SYSTEM
Such wheels have tyre pressure
sensors. It is essential to have re-
pairs carried out by a CITROËN
dealer.
ANTI-THEFT BOLTS
(alloy wheels)
Each wheel may be equipped with
one anti-theft bolt.
To remove it :
1.
Remove the protector that is
covering it by means of the tool
2 (for removing the chrome
covers on alloy wheels).
2. Use the anti-theft socket 9
with the handle.
DIMENSION OF THE SPARE
WHEEL
If your spare wheel has dimen-
sions different from those of the
normal vehicle wheels (identified
by a label), it is imperative to use
the spare wheel only temporarily,
to drive with caution, not to exceed
80 km/h (50 mph) and to have the
tyre repaired and the normal wheel
refitted as soon as possible.
Tyre pressures
These are indicated on the label
on the front door pillar. See “Ve-
hicle identification” and “User Pre-
cautions”.
The wheel bolts are specific to each type of wheel.
If new wheels are fitted, check with your CITROËN dealer that the wheel bolts are compatible with the new wheels.
Note : take care to note down the code number on the head of the
anti-theft bolt socket. This will enable you to obtain a rep lacement
anti-theft socket from a CITROËN dealership. REFITTING A WHEEL
1.
Position the wheel with the aid
of the centring guide 3.
2. Do up the 3 bolts by hand, then
remove the centring guide 3.
Position the 4
th bolt.
3. Pre-tighten the wheel bolts,
using the wheelbrace 4.
4. Retract the jack 5 and disen-
gage it.
5. Tighten the wheel bolts, using
the wheelbrace 4.
6. Ensure that the tyre pressure
is correct (see “Vehicle identi-
fication”).

190VI
Any repair or any change of tyre, on a wheel fitted with a s
ensor,
should be carried out by a CITROËN dealer.
The system may be affected from time to time by interference from radio transmissions on similar frequencies.
This function alerts you in the
event of a tyre being deflated or
punctured. For this purpose, sen-
sors continuously monitor the con-
dition of the vehicle’s wheels.
This system does not absolve the
driver of the need to check the tyre
pressures regularly.
T Y R E D E F L AT I O N D E T E C T I O N
The
SERVICE warning
lamp comes on and a ve-
hicle outline is displayed,
accompanied by a mes-
sage and a sound signal.
The wheel(s) concerned
will be shown flashing on the vehicle
outline. Check the tyre pressures as
soon as possible.
Deflation warning
The STOP warning lamp
comes on and a vehicle
outline is displayed, ac-
companied by a mes-
sage and a sound signal.
The wheel(s) concerned
will be shown flashing on the vehi-
cle outline. Stop the vehicle imme-
diately, avoiding any violent actions
on the steering wheel or brakes.
Puncture Change the damaged wheel
(whether punctured or substan-
tially deflated), have the tyre re-
paired as soon as possible, then
check the tyre pressures as soon
as you can after that.
The wheel affected will no longer
be detectable by the alert system
if it is in the boot or undergoing re-
pair. The spare wheel is not moni-
tored by the alert system.
The SERVICE warning
lamp comes on and a ve-
hicle outline is displayed,
accompanied by a mes-
sage and a sound signal.
The wheel(s) concerned
will be shown as absent on the vehi-
cle outline. If you have not changed
a wheel, this information indicates a
malfunctioning of the system.
Wheel not monitored Consult the CITROËN network to
have the defective sensor(s) re-
placed.
The deflation detection system is a
driving assistance function which
does not relieve the driver from
the responsibility to be vigilant.
This system does not absolve the
driver of the need to check the
tyre pressures on a regular basis
(see « Vehicle identification»), to
ensure that the vehicle behaves
as it should and to avoid prema-
ture wear on the tyres, especially
when the vehicle is being subject-
ed to heavy loads or driven at high
speeds.
Do not forget to check the tyre
pressure on the spare wheel.

VI
191Towing with all wheels on the ground
Towing ring fixings are placed at the front and at the rear of the vehicl e.
To access them:
- at the front : push at top left, then pull on right.
- at the rear : push at bottom, then pull on top.
The cover remains attached to the bumper by means of a tab, so t hat it
cannot become lost.
The ignition key should be in position “M” so as to retain steering.
Use a bar with hooks to attach on the towing rings.
If the engine is not running, the steering and braking s ystems will not be power-assisted.
If towing another vehicle, the latter should be free-wheeli ng
(that is, gearbox in neutral).
Removable towing ring
The towing ring is detachable and
can be fitted either at the front or at
the rear of the vehicle. It is stowed
with the tools either in the storage
flap under the second-row footwell
or (according to equipment) in the
boot well.
T O W I N G - L I F T I N G
Advice
In exceptional circumstances, it
is permitted to tow the vehicle at
low speed over a short distance
(depending on local legislation in
force).
In all other cases, the vehicle
must be transported by a trans-
porter.
CAUTION - TOWING A
VEHICLE WITH AUTOMATIC
TRANSMISSION
Put the selector lever in posi-
tion N (neutral).

192VI
C O L D W E AT H E R S C R E E N
INSTRUCTIONS FOR FITTING
THE SCREEN
Clip the component on the ribs of
the front bumper.
Before fitting After fitting
The screen supplied with the vehicle (depending on des tination)
should be fitted during the winter period only and removed when a mbient
temperatures are above 10 degrees Celsius.

VII
193

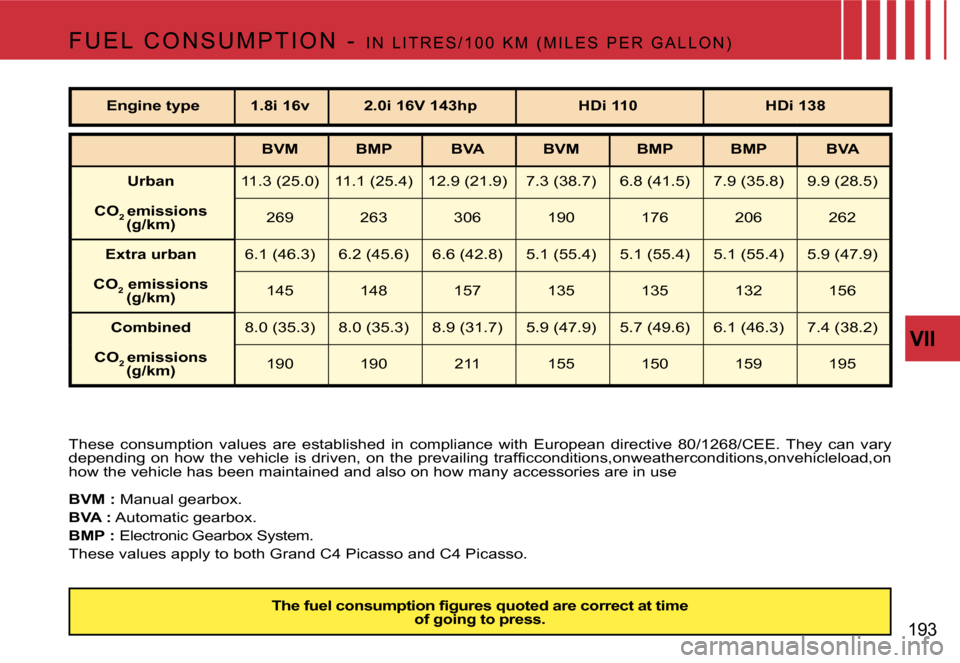

F U E L C O N S U M P T I O N -
I N L I T R E S / 1 0 0 K M ( M I L E S P E R G A L L O N )
The fuel consumption figures quoted are correct at time
of going to press.
BVM :
Manual gearbox.
BVA : Automatic gearbox.
BMP : Electronic Gearbox System.
These values apply to both Grand C4 Picasso and C4 Picasso.
These consumption values are established in compliance with Europ
ean directive 80/1268/CEE. They can vary
depending on how the vehicle is driven, on the prevailing trafficconditions,onweatherconditions,onvehicleload,on
how the vehicle has been maintained and also on how many a ccessories are in use
Engine type 1.8i 16v 2.0i 16V 143hp HDi 110 HDi 138
BVM BMP BVA BVM BMP BMP BVA
Urban 11.3 (25.0) 11.1 (25.4) 12.9 (21.9) 7.3 (38.7) 6.8 (41.5) 7.9 (35.8) 9.9 (28.5)
CO
2 emissions (g/km) 269 263 306 190 176 206 262
Extra urban 6.1 (46.3) 6.2 (45.6) 6.6 (42.8) 5.1 (55.4) 5.1 (55.4) 5.1 (55 .4) 5.9 (47.9)
CO
2 emissions (g/km) 145 148 157 135 135 132 156
Combined 8.0 (35.3) 8.0 (35.3) 8.9 (31.7) 5.9 (47.9) 5.7 (49.6) 6.1 (46 .3) 7.4 (38.2)
CO
2 emissions (g/km) 190 190 211 155 150 159 195
