2007.5 Citroen C4 PICASSO DAG Owner's Manual

A
B
146
III
The pneumatic suspension has an additional function
associated with it : the possibility to raise or lower the
height of the rear of the vehicle when stationary, in or-
der to facilitate loading / unloading of the boot.
TO INCREASE THE HEIGHT OF THE BOOT
SILL
- Press continuously at the top of the control A, which
is located in the boot, on the left-hand side.
This action will be accompanied by a sound signal.
You can stop the movement at any time by releasing
the control.
3 beeps will confirm that the movement has gone as far
as it can
.
To return to the nominal height :
- Press briefly twice at the bottom of the control A.
TO DECREASE THE HEIGHT OF THE BOOT SILL
- Press continuously at the bottom of the control A.
This action will be accompanied by a sound signal.
You can stop the movement at any time by releasing
the control.
3 beeps will confirm that the movement has gone as
far as it can.
To return to the nominal height :
- Press briefly twice at the top of the control A.
Note :
- If you start the vehicle without having returned it to the nominal height, the automatic correction will ac -
tivate as soon as the vehicle starts to move. During
the correction, the SERVICE warning lamp lights up
and a message on the screen reminds you not to ex -
ceed 10 km/h (6 mph).
- The loading assistance does not function in the fo l-
lowing instances:
- If the button B is lit up,
- in power economy mode.
-
When you first use the function, press for two seconds on
the control A to initialise the system. All subsequent ac -
tions will be followed immediately by the desired r esults
.
Driving with the boot sill in a low position may damage the components located under the bodyshell.
Grand C4 Picasso
C4 Picasso
L O A D I N G A S S I S TA N C E

A B C D E F G H I J KN
P M
R O
Q L
10
11 3
4
2
1
5
7
8
9
6 S
12
IV
147
RADIO - R D S A U D I O C O M P A C T D I S C S Y S T E M W I T H C D C H A N G E R

148IV
B U T T O N C O N T R O L S
A
On / Off.
Volume adjust.
B CD eject.
C CD aperture.
D SOURCE One press :
Selection of sound source (Radio, CD, CD
changer).
E BAND/
AST Short press :
Selection of frequency bands and memory
banks.
Long press : Automatic pre-set function (Autostore).
F Call-up of audio adjustments :
Sound ambiences, bass, treble, loudness, fade, bala
nce,
speed-sensitive volume.
G LIST Radio source :-
Short press :
Display of the list of radio stations available
(30 maximum).
-
Long press : Update of list of stations.
CD source : Display of list of tracks of the CD.
H ESC Short press :
Cancel the current operation or delete a
superimposed display.
Long press : Return to the permanent display.
I TA/PTY Short press :
TA function (road information).
Long press : PTY function (eélection of programme type).
J Radio source :
Manual search of higher frequencies.
CD/MP3 changer source : Selection of the previous
CD/CD-cover.
Other sources : Scrolling in the Main Menu.
K Radio source :
Automatic search of higher frequencies.
CD source, CD changer source and MP3 source :
Forward search for tracks.-
Long press : Fast forward with accelerated sound.
Other sources : In the menus, choice of your adjustments.
If your vehicle has the Bluetooth system : Selection of
characters.
L OK Button for validation and activation/deactivation o
f certain
functions.
If your vehicle has the Bluetooth system : Answer call, end
call.
M Radio source :
Manual search of lower frequencies.
CD/MP3 changer source : Selection of the next
CD/CD-cover.
Other sources : Scrolling in the Main Menu.
N Radio source :
Automatic search of lower frequencies.
CD source, CD changer source and MP3 source :
Reverse search for tracks.-
Long press : Rapid reverse with accelerated sound.
Other sources : In the menus, choice of your adjustments.
If your vehicle has the Bluetooth system : Selection of
characters.
O MENU Display of the Main Menu.
In certain countries, this control is deactivated while the veh
icle
is moving.
P 1-6
1-5Radio source : -
Short press :
Recall of pre-set stations.
- Long press : Memorisation.
CD changer source : Selecting a CD.
Q MUTE
- First press : Temporary sound pause.
- Second press : Restoration of sound.
R MODE Selection of the type of information displayed.
S CD changer.

IV
149
Multifunction screen A
Technical specifications
Your Bluetooth compatible radio possesses :- 3 wavebands (MW/LW/FM).
- Dual tuner with RDS EON PTY, display of the PS
name, RDS programme search, TA traffic informa-
tion, 24 pre-selections (18 FM - 6 MW/LW), automatic
memorisation of the AST strongest stations.
- An MP3- compatible CD reader.
- Audio power of 4 x 35 W. Multifunction screen C
C O N T R O L S AT T H E S T E E R I N G W H E E L
The controls at the steering wheel give you access to certain fu
nctions, without you needing to use the radio-CD control panel.
1 VOL +Volume increase
2 Radio source :
Short press :
Automatic search of higher frequencies.
CD and CD changer source :
Short press : Forward search for tracks.
Long press : Fast forward with accelerated sound.
3 Radio source :
Scrolling of pre-set stations.
CD and MP3 source :
Search of the track.
CD changer source :
Selection of next or previous CD.
4 VOL - Volume decrease.
5 Mute
First press :
Temporary sound pause.
Second press : Restoration of sound.
6 MENU Access to the main menu to activate/deactivate or choose
the adjustments for your vehicle.
In certain countries, this control is deactivated while the
vehicle is moving.
7 OK In a menu, a list, an alphabet :
Validation of the function, the element or the value cho
sen.
If your vehicle has the Bluetooth system : Answer call,
end call
8 Selection of the next or previous elements of a menu in a
screen, a list, an alphabet.
9 ESC Short press :
Cancellation of the current operation.
Long press : Return to the permanent display.10 MODE Selection of type of information displayed on the right of
the
screen and, for screen A, choice of activation/deactivation of
functions and adjustments.
11 If your vehicle has the Bluetooth system :
Press :
Display of the “Directory” menu.
12 If your vehicle has the Bluetooth system :
Press :
Activation of voice recognition.

150IV
G E N E R A L F U N C T I O N S - A U D I O A D J U S T M E N T S
On / Off
With the key in Drive position
M,
press on control A to switch the
radio on or off.
Note :
- If the radio was on the last time you switched off the ignition, it
will resume automatically when
you switch on the ignition again.
You will not have to press on
control A.
- After switching off the ignition, you can still operate the audio system
even without the ignition key be-
ing present. Simply press on but-
ton A. The system will turn itself
off after approx. 30 minutes .
Anti-theft system
This radio is coded in such a way
as to function only on your particu-
lar vehicle. It would be unusable if
installed on any other vehicle.
Note :
The anti-theft system is automatic
and requires no action on your
part. Selection of source
To select either Radio, CD (CD
already inserted and Radio source
activated), or CD changer source,
press on control
D.
When you insert a CD it automati-
cally starts being read.
Note :
When the radio is switched off, the
source selected is memorised.
Volume adjustment
Rotate control A to increase or de-
crease the sound volume.
You can also increase or decrease
the volume using buttons 1 and 4
at the steering wheel.
Note :
- The sound volume when you switch off the radio will be the same
when you switch it on again.
- The radio sound volume auto- matically adjusts to the vehicle
speed, provided the “ volume ad-
justment ” function is activated. Temporary sound pause
Press on control
5 at the steering
wheel, or on the MUTE button, to
activate this function.
The sound will be paused, regard-
less of the source selected.
To restore the audio output, press
one of the controls at the steering
wheel.
Sound adjustments
Each press on button F brings up
the parameter to be adjusted :
choice of predefined sound am-
biances, bass, treble, loudness,
fade (front/rear sound distribu-
tion), balance (left/right sound dis-
tribution) and volume adjusted to
vehicle speed.
Press buttons K or N to modify the
values for the function displayed.
Note :
- The selection of a sound ambi- ance automatically adjusts bass
and treble. These can be modified.
To restore the original adjust-
ments for the musical ambi-
ances, reset bass and treble to
zero.
- Adjustment of loudness, as well as bass and treble when they
are available, are specific to
each sound source and to each
musical ambiance.
- If you leave the audio system un-actioned for a few seconds, it
will revert to the normal display.

IV
151
R A D I O S O U R C E
Notes on radio reception
Your radio will be subject to certain
phenomena that are not encoun-
tered by domestic systems.
The reception of AM and FM sig-
nals may suffer from interference,
which is caused by the nature and
propagation of the signals and
does not reflect on the quality of
your radio installation.
In AM, the reception may be af-
fected when passing under power
lines or bridges, or when travelling
through tunnels.
In FM mode, the reception may be
affected by the distance from the
station transmitter, the reflecting of
signals off obstacles (mountains,
hills, tower blocks) and radio blacks-
pots (no coverage from the station
transmitter).
Selection of radio source
Press button
D to select the source.
Selection of frequencies and
memory banks
Press button E successively to go
through the memory banks FM1,
FM2 and FM3, for the FM wave-
band, and the memory banks MW/
LW, for the AM waveband. Manual search
Manual seearch is via buttons
J
or M.
By keeping button J or M pressed,
you will be able to scroll through
the waveband. Scrolling will stop
as soon as you release the button.
The radio will remain tuned to the
frequency that is displayed.
Tuning sensitivity
Automatic searches can be car-
ried out according to two levels of
sensitivity :
- To capture the most powerful trans- mitters, choose the local search
mode “ LO” (default option).
- To capture the weakest or most distant transmitters, choose the
sensitive search mode “ DX”.
Search for a station is done first
in “ LO” (local) sensitivity, then in
“ DX ” (distant) sensitivity.
To commence a search in sensi-
tivity “ DX” (distant) immediately ,
press twice in succession on one
of the buttons K or N. Automatic search
A short press on one of the but-
tons
K or N will tune into higher or
lower radio stations respectively,
within the chosen waveband.
By keeping button K or N pressed,
you will be able to scroll through
the waveband. The scrolling will
stop at the first station it finds once
the button is released.
You can also do this by means of
control 2 at the steering wheel.
If the automatic search is unable
to tune into a known frequency
(perhaps owing to very weak re-
ception), it is possible to search
manually to find this station.
Display and selection of a
station available in the area in
which you are travelling
Briefly press on button G to bring
up a list of stations, this is updated
every 10 minutes.
You can also update this list at
any time by giving a long press on
button G.
To listen to one of these stations,
select by pressing buttons J or M
and validate using button L.

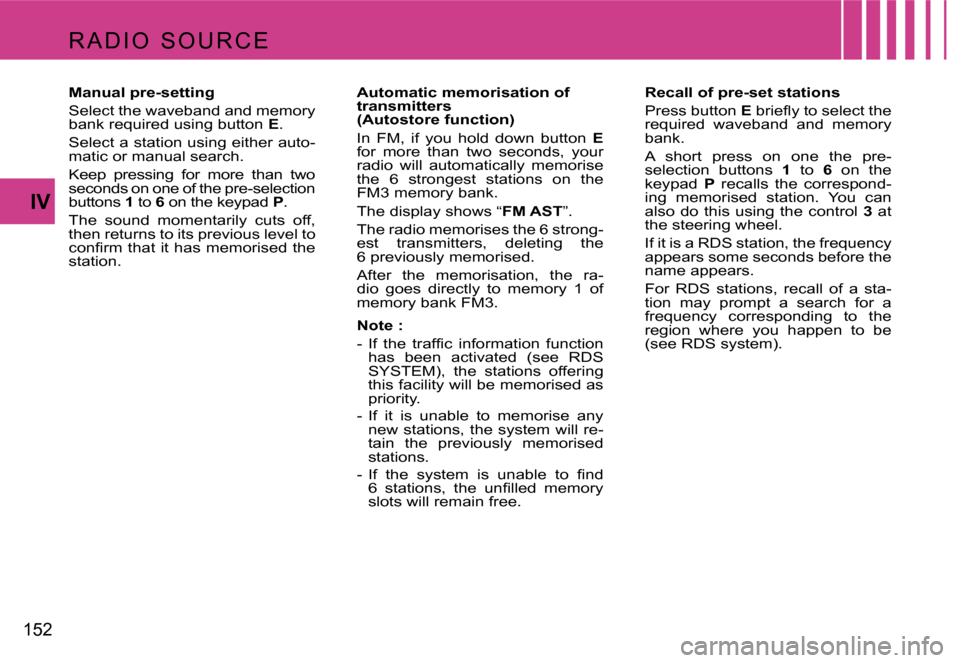

152IV
Manual pre-setting
Select the waveband and memory
bank required using button
E.
Select a station using either auto-
matic or manual search.
Keep pressing for more than two
seconds on one of the pre-selection
buttons 1 to 6 on the keypad P.
The sound momentarily cuts off,
then returns to its previous level to
confirm that it has memorised the
station. Automatic memorisation of
transmitters
(Autostore function)
In FM, if you hold down button
E
for more than two seconds, your
radio will automatically memorise
the 6 strongest stations on the
FM3 memory bank.
The display shows “ FM AST”.
The radio memorises the 6 strong-
est transmitters, deleting the
6 previously memorised.
After the memorisation, the ra-
dio goes directly to memory 1 of
memory bank FM3.
Note :
- If the traffic information function has been activated (see RDS
SYSTEM), the stations offering
this facility will be memorised as
priority.
- If it is unable to memorise any new stations, the system will re-
tain the previously memorised
stations.
- If the system is unable to find 6 stations, the unfilled memory
slots will remain free. Recall of pre-set stations
Press button
E briefly to select the
required waveband and memory
bank.
A short press on one the pre-
selection buttons 1 to 6 on the
keypad P recalls the correspond-
ing memorised station. You can
also do this using the control 3 at
the steering wheel.
If it is a RDS station, the frequency
appears some seconds before the
name appears.
For RDS stations, recall of a sta-
tion may prompt a search for a
frequency corresponding to the
region where you happen to be
(see RDS system).
R A D I O S O U R C E

IV
153
Using the RDS
(radio data system)
function on FM
The majority of FM radio stations
use the RDS system. The radio in
your vehicle has this system,.
The RDS system enables these
stations to transmit non-audible
data in addition to the broadcas
ting of their programmes. The data
provides access to various functions
described in this chapter, such as:
display of the station name, inter-
mittent traffic information flashes or
automatic scanning of stations. This
enables you to continue listening to
your chosen radio station, regard-
less of the different frequencies it
uses in the regions through which
you are travelling
.
Scanning of RDS stations
Your radio keeps the best pos-
sible reception by continuously
looking for any other frequencies
on which the selected radio sta-
tion is broadcast, automatically
choosing the frequency offering
the best reception (providing the
station broadcasts on more than
one transmitter or frequency). Activation/deactivation of the
RDS functions
The RDS functions can be accessed
via the following two menus : -
Main menu (press button O).
- Audio menu (press button L).
To activate/deactivate the RDS
functions on multifunction
screen C :
1. Press button O.
2. Select the AUDIO icon using
buttons J or M.
3. Confirm your choice with a
press on button L.
4. Select the sub-menu for the
FM waveband, via buttons J
or M. Confirm your choice with
a press on button L.
5. Select scanning for RDS sta-
tions, via buttons J or M.
6. Validate your choice with a
press on button L.
7. Using control L, select/dese-
lect to activate/deactivate the
function.
8. Validate your choice by select-
ing “ OK” on the display. To activate/deactivate the
RDS functions on
multifunction screen A :
1.
Press button O.
2. Select the AUDIO-CD icon via
buttons J or M.
3. Select scanning for RDS sta-
tions, via buttons J or M. The
system tells you the status (ac-
tive or inactive) of the function.
4. Modify this status via buttons
K or N.
5. Then please wait for the dis-
play to disappear.
Note :
If the RDS function is active :
The “ RDS” on the display will light
up provided the station being re-
ceived uses the RDS system with
scanning of frequencies.
The “ RDS” on the display is barred
if the station received uses the
RDS system without frequency
search.
If your RDS function is deactiva-
ted, the “ RDS” on the display will
be absent in all cases.
The display will indicate the “ NAME ” for the stations that use
the RDS system and the frequency
for stations that do not use it.
R D S S Y S T E M
