To open the tailgate
- Press on the control 1.
Note : You cannot open the tail-
gate if the rear screen is already
open. To close the tailgate
- Lower the tailgate, using one of
the handholds 3, located on the
inside of the tailgate trim.
- Past the balancing point, allow the tailgate to close itself (do not
assist it or slow it down). To open the rear screen
Your vehicle may have an opening
rear screen.
This opening configuration gives
you enhanced access to the boot-
space, even if you are parked
close to a wall or to another ve-
hicle.
- Press on the control
2.
To close the rear screen
- Lower the rear screen.
Note :
- The handhold 4 is in line with the
rear wiper.
- In the C4 Picasso
vehicle, if the
rear screen is open, you can ac-
cess your bootspace by lifting the
rear shelf using the tab located on
the shelf.
O P E N I N G T H E B O O T

III
139
B O O T -
L U G G A G E C O V E R - C 4 P I C A S S O

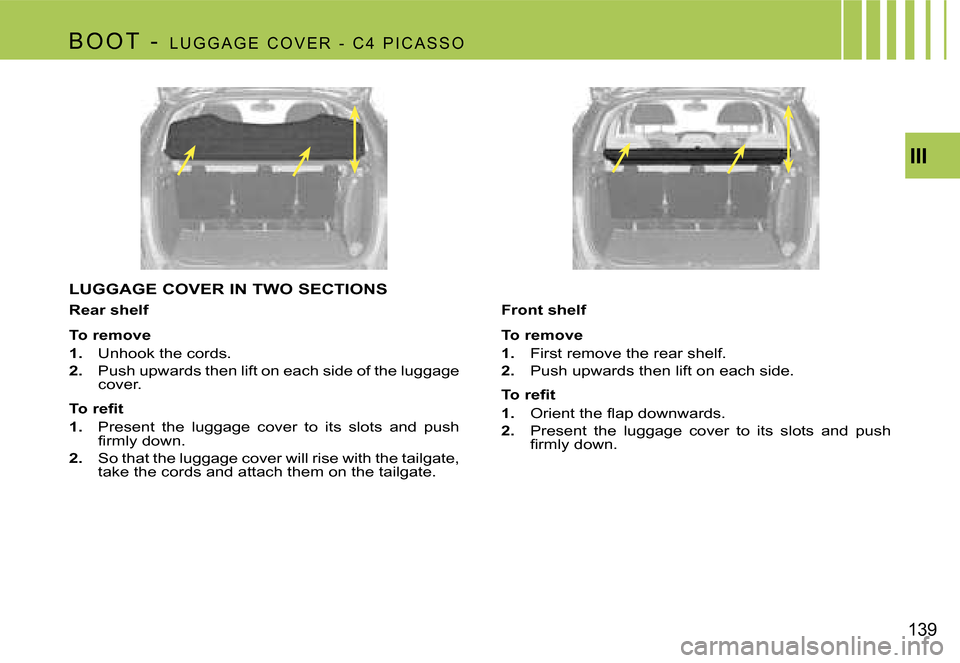

LUGGAGE COVER IN TWO SECTIONS
Rear shelf
To remove
1. Unhook the cords.
2. Push upwards then lift on each side of the luggage
cover.
To refit
1. Present the luggage cover to its slots and push
firmly down.
2. So that the luggage cover will rise with the tailgate,
take the cords and attach them on the tailgate. Front shelf
To remove
1.
First remove the rear shelf.
2. Push upwards then lift on each side.
To refit
1. Orient the flap downwards.
2. Present the luggage cover to its slots and push
firmly down.

140III
MODUBOX
The Modubox is for use both inside the vehicle and
away from the vehicle. It is composed of a shopping
trolley and a flexible bag (isotherm on some versions)
which can be used independently of each other de-
pending on your needs (by detaching the fastenings
on each side at the top and bottom).
To use
1.
Unhook the red strap to free the Modubox.
2. Unhook the black strap then press on the round
buttons on either side of the Modubox simultane-
ously to deploy it.
B O O T - M O D U B O X - C 4 P I C A S S O
Use of the Modubox outside the vehicle - Press on the recess on the left hand side of the
Modubox to raise (or lower) the handle.
Stowage inside the vehicle - Perform the operations in reverse to fold and stow
inside the vehicle.
- If you have used your Modubox away from the vehicl e,
take care to reposition it correctly in the housing s pro-
vided for this purpose.

12
78
3
56
4
78
12
3
56
4
III
141
B O O T -
C A R G O N E T - G R A N D C 4 P I C A S S O A N D C 4 P I C A S S O
Cargo net : Grand C4 Picasso
There are 8 anchoring rings in the boot to enable you
to secure your loads :
- 1 and 2 underneath the luggage-cover blind.
- 3, 4 , 7 and 8 on the boot floor.
- 5 and 6 on the boot pillars. Cargo net : C4 Picasso
There are 8 anchoring rings in the boot to enable you
to secure your loads :
-
1, 2 , 3 and 4 on the boot floor,
- 5, 6, 7 and 8 on the boot pillars.
The cargo net gives you a number of configurations de pending on which of the anchoring rings you attach it to
(hammock format, vertical / horizontal, on the floor or behind the second row seats), enabling you to secure a
variety of objects in the boot.
Note : For reasons of safety in the event of sudden braking, it is re commended that you place heavy objects on
the floor as close as possible to the backrests of the second-row seats.
Carrier bag hook
A carrier bag hook is available inside the boot on the left hand side.

CD
AB
142 III
B O O T
- L U G G A G E C O V E R B L I N D - G R A N D C 4 P I C A S S O
Luggage-cover blind
Position 1 : (5-seat configuration, behind the second ro w)
Behind the second-row seats, with the third-row seats
folded away.
To install the roller :
1. Compress the left-hand end of the roller and place
it in notch A.
2. Position the right-hand end of the blind roller in
notch B.
3. Unroll the blind until it reaches the boot pillars.
4. Insert the guides of the blind into the rails on the
pillars.
To remove the blind:
- Perform these operations in reverse order.
Note : the roller has a moving flap to avoid interference
with the second-row passengers when the seats are i n
the reclined position. Position 2 : (7-seat configuration)
Behind the third-row seats, this position conceals
objects stowed in the boot from outside view.
To install the roller :
1.
Roll up the blind, then remove the roller from its
initial position.
2. Position the roller, with the blind pull bar upper-
most, flap downward.
3. Fold the concertina plates in the vertical position.
4. Engage the lug on the left of the roller in notch C.
5. Pass the right-hand side above the third-row armre st.
6. Engage the lug in notch D.
7. Pull the seat belt(s) so that they will deploy without
locking.
8. Unroll the blind and engage the guides into the
rails on the pillars.
9. Lock the seat(s) in position.
10. Fold back the concertina plates, pressing them
firmly in position.

CDIII
143
B O O T
- L U G G A G E C O V E R B L I N D - G R A N D C 4 P I C A S S O
Position 2 : (continued)
To remove the roller :
1. Push the flap towards the seat backrest.
2. Lift the concertina plate by grabbing it at the side,
then position it vertically.
3.
Unlock the seat by pulling the strap G (see « Third-row
rear seats »).
4. Push the backrest towards the front.
5. Proceed in reverse order to installing.
Note : you can position the concertina plate vertically
to lodge a bulkier object in the boot well.
Position 3 : (7-seat configuration, stowage
position)
To install the roller :
1. Remove the blind from its current position.
2. Position the roller, with the blind pull bar upper-
most, flap downward.
3. Engage the lug on the left of the roller in notch C.
4. Pass the right-hand side above the third-row armre st.
5. Engage the lug in notch D.
To remove the roller :
- Proceed in reverse order to installing.

144III
B O O T
- H I G H C A R G O N E T - G R A N D C 4 P I C A S S O
Net for retaining high loads
This enables you to maximise the vehicle’s load-
space.
It retains objects, preventing them from sliding towards
the front of the passenger compartment.
You insert it under the roller of the luggage-cover
blind, securing it on the third-row side mouldings. Position 1 (5-seat configuration, behind the
second row)
To install the roller :
1.
Remove the protection covers located under the
blind roller notches.
2. Position the roller under that of the luggage-cover
blind.
3. Raise the flap on the blind, positioning it on top of
the blind.
4. Deploy the net, passing it between the rollers and
the seats.
5. Pull the net upwards.
6. Anchor it to the roof by means of the fixing points
(after you have removed their covers).
To remove :
- Perform these operations in reverse order.
Position 2 (2-seat configuration, behind the
first row)
To install the roller :
1. With the second-row seats folded away, remove
the covers of the Isofix anchoring points located
on the seat backrests.
2. Secure the roller on the Isofix anchoring points.
3. Deploy the net and pull it upwards.
4. Anchor it to the roof by means of the fixing points
(after you have removed their covers).

B
III
145

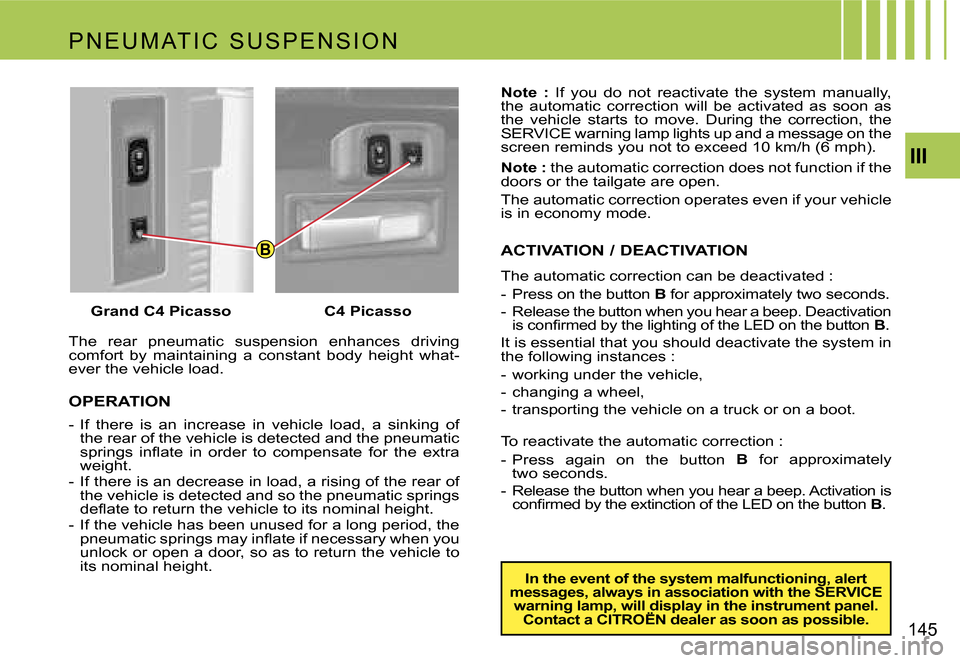

The rear pneumatic suspension enhances driving
comfort by maintaining a constant body height what-
ever the vehicle load.
OPERATION
- If there is an increase in vehicle load, a sinking of the rear of the vehicle is detected and the pneumatic
springs inflate in order to compensate for the extra
weight.
- If there is an decrease in load, a rising of the rear of the vehicle is detected and so the pneumatic springs
deflate to return the vehicle to its nominal height.
- If the vehicle has been unused for a long period, the pneumatic springs may inflate if necessary when you
unlock or open a door, so as to return the vehicle to
its nominal height. Note
: If you do not reactivate the system manually,
the automatic correction will be activated as soon as
the vehicle starts to move. During the correction, the
SERVICE warning lamp lights up and a message on the
screen reminds you not to exceed 10 km/h (6 mph).
Note : the automatic correction does not function if the
doors or the tailgate are open.
The automatic correction operates even if your vehicle
is in economy mode.
ACTIVATION / DEACTIVATION
The automatic correction can be deactivated :
- Press on the button B for approximately two seconds.
-
Release the button when you hear a beep. Deactivati on
is confirmed by the lighting of the LED on the button B.
It is essential that you should deactivate the system in
the following instances :
- working under the vehicle,
- changing a wheel,
- transporting the vehicle on a truck or on a boot.
To reactivate the automatic correction :
- Press again on the button B for approximately
two seconds.
- Release the button when you hear a beep. Activati on is
confirmed by the extinction of the LED on the button B.
In the event of the system malfunctioning, alert
messages, always in association with the SERVICE
warning lamp, will display in the instrument panel.
Contact a CITROËN dealer as soon as possible
.
Grand C4 Picasso
C4 Picasso
P N E U M AT I C S U S P E N S I O N
