2007.5 Citroen C4 PICASSO DAG Owner's Manual

1
1
2
130III
2. Interior lamp with three positions
In this position, the interior
lamp comes on when you
open a door or the boot.
In this position, it is deac-
tivated and thus perma-
nently off.
In this position, lighting is
permanent.
They come on immediate-
ly you unlock the vehicle
or open a door.
They go out 30 seconds after the
doors have been closed, or when
the ignition is switched on.
Automatic illumination of the
interior lamps
« PANORAMIC GLASS ROOF »
LAMPS
The panoramic glass roof lamps
have two operating modes :
- automatic lighting when you
open a door or when the front in-
terior lamp is in the permanent
position,
- permanent lighting.
I N T E R I O R L I G H T I N G
Note :
- the opening of a door switches the interior lamps on.
- the opening of the tailgate switches the third-row interi or lamp on, also the boot lamps.
INTERIOR LAMPS
1. Reading lamps
A press on one of the buttons
switches the corresponding spot-
lamp on or off.
They do not come on if the ignition
is switched off or if the vehicle is in
economy mode. When you leave the vehicle :
-
they come on when you remove the
ignition key (for about 30 seconds),
or when a door is opened
.
-
they go out after 30 seconds with
the doors closed, or immediately the
vehicle is locked, or after 10 minutes
if a door is open
.

A
III
131
AMBIANCE LIGHTING
You have in your vehicle a system
of ambiance lighting that is warm
and convivial.
It casts a gentle, orange-tinted
light.
You can adjust the lighting by
pressing on the control A.
This activates the light sources
which are located as follows :
- on the sides of the front and rear doors,
- on the front and rear interior door handles,
- on the dashboard,
- at the roof. Operation
The control
A :
- activates/deactivates the ambi- ance lighting,
- selects the lighting intensity.
The adjustment is memorised.
To increase the lighting intensity :
- Press a few times on the right of the control A to obtain your
brightness preference.
To decrease
the lighting intensity :
- Press a few times on the left
of the control A to obtain your
brightness preference.
Note : This lighting is available at
night or in conditions of poor day-
light.
COURTESY LIGHTING
The automatic courtesy lighting
consists of the footwell lamps, the
interior lamps and the ambiance
light sources.
FRONT DOOR POCKETS
WITH AUTOMATIC LIGHTING
The lighting for the door pockets
comes on automatically when you
place a hand inside one of the
compartments.
It goes off after a few seconds when
you take your hand away.
READING LAMPS ON SEAT
BACKRESTS
There are spotlamps incorporated
in the backrests of the front seats,
behind the rear tables (see « Air-
craft-style rear tables »).
A M B I A N C E L I G H T I N G PA C K

CB
A
132
III

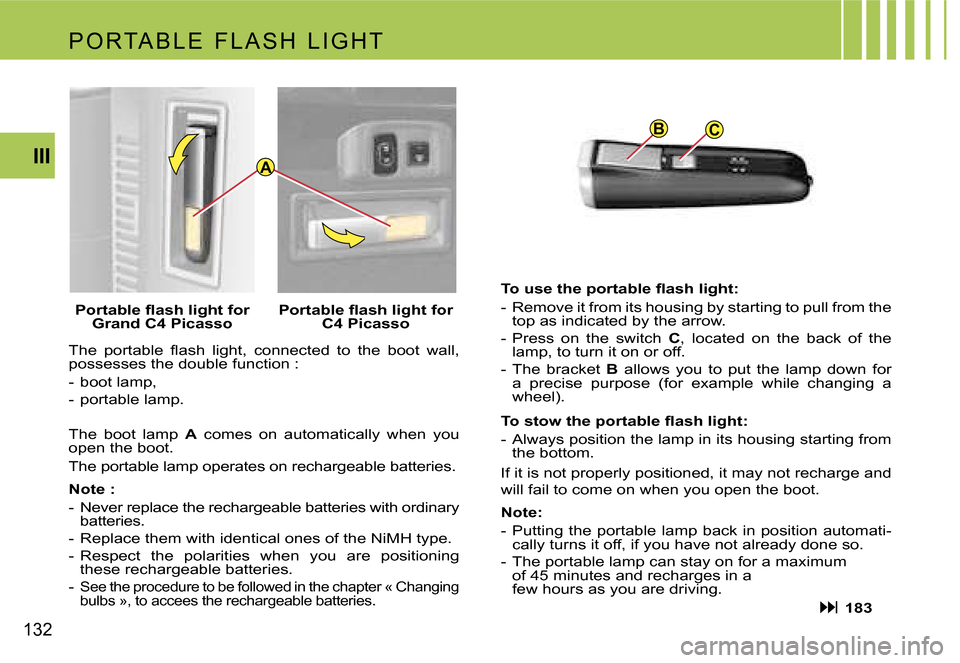

The portable flash light, connected to the boot wall,
possesses the double function :
- boot lamp,
- portable lamp.
The boot lamp A comes on automatically when you
open the boot.
The portable lamp operates on rechargeable batterie s.
Note :
- Never replace the rechargeable batteries with ordi nary
batteries.
- Replace them with identical ones of the NiMH type.
- Respect the polarities when you are positioning these rechargeable batteries.
-
See the procedure to be followed in the chapter « C hanging
bulbs », to accees the rechargeable batteries. To use the portable flash light:
- Remove it from its housing by starting to pull from the
top as indicated by the arrow.
- Press on the switch C, located on the back of the
lamp, to turn it on or off.
- The bracket B allows you to put the lamp down for
a precise purpose (for example while changing a
wheel).
To stow the portable flash light:
- Always position the lamp in its housing starting from the bottom.
If it is not properly positioned, it may not recharge and
will fail to come on when you open the boot.
Note:
- Putting the portable lamp back in position automati -
cally turns it off, if you have not already done so.
- The portable lamp can stay on for a maximum
of 45 minutes and recharges in a
few hours as you are driving. 183
Portable flash light for
Grand C4 Picasso Portable flash light for
C4 Picasso
P O R TA B L E F L A S H L I G H T

III
133

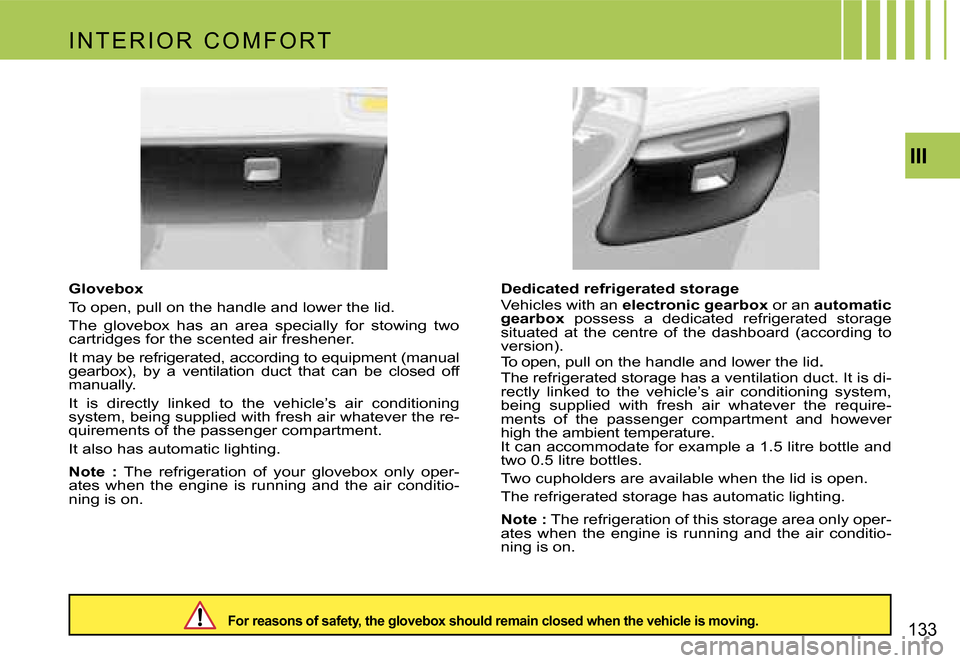

Glovebox
To open, pull on the handle and lower the lid.
The glovebox has an area specially for stowing two
cartridges for the scented air freshener.
It may be refrigerated, according to equipment (man ual
gearbox), by a ventilation duct that can be closed off
manually.
It is directly linked to the vehicle’s air conditioning
system, being supplied with fresh air whatever the re-
quirements of the passenger compartment.
It also has automatic lighting.
Note : The refrigeration of your glovebox only oper-
ates when the engine is running and the air conditio-
ning is on.
For reasons of safety, the glovebox should remain c losed when the vehicle is moving.
Dedicated refrigerated storage
Vehicles with an electronic gearbox or an automatic
gearbox possess a dedicated refrigerated storage
situated at the centre of the dashboard (according to
version).
To open, pull on the handle and lower the lid .
The refrigerated storage has a ventilation duct. It is di-
rectly linked to the vehicle’s air conditioning system,
being supplied with fresh air whatever the require-
ments of the passenger compartment and however
high the ambient temperature.
It can accommodate for example a 1.5 litre bottle and
two 0.5 litre bottles.
Two cupholders are available when the lid is open.
The refrigerated storage has automatic lighting.
Note : The refrigeration of this storage area only oper-
ates when the engine is running and the air conditio-
ning is on.
I N T E R I O R C O M F O R T

A
134
III
Upper storage area
This accommodates the CD changer, if the vehicle has
one.
There is also an upper storage area on the opposite
side.Second row storage
The lateral second-row occupants may also have the
benefit, in certain configurations, of storage at foot level,

identifiable by its handhold A.
Third row storage
Third-row passengers may have storage pockets in
the side panel and each of them will have a cup-holder
(7 seater model) .
Front door compartments
The front door pockets can hold objects equivalent in
volume to a 1.5 litre bottle.
They may have their own lighting, coming on automat
ically
when your hand approaches.
This lighting goes out automatically after a few mo ments
when your hand is taken away.
Rear door pockets
The rear door pockets can hold objects equivalent in
volume to a 0.5 litre bottle.
For reasons of safety, storage compartments should be kep t closed when the vehicle is moving.
I N T E R I O R C O M F O R T

ABB
A
B
III
135
CENTRAL CONSOLE
The central console contains :
- two cup-holders.
- a 1 2 V a c c e s s o r i e s s o c k e t
(Maximum power : 120W).
The latter is operational when the ignition is on.
Note : There may be a second 12V
socket in the boot, operational even
with the ignition switched off.
- a cigar lighter.
Press and wait for a few moments for the lighter to deploy automati -
cally.The cigar lighter comes out
slightly to enable you to grasp
it. It can act as a 12V socket
(120 W).
- a movable ashtray.
This is in one of the console’s cup-holders: it can be used in the
cup-holders on the rear tables.
I N T E R I O R C O M F O R T
SUN BLINDS
(C4 Picasso)
Second row - Pull on the tab A and anchor the
blind on the hook B.
Rear screen blind- Pull on the tab of the blind lo -
cated on the luggage cover and
position the blind on the hooks.
Sliding sun visors (see « Roof adjustments »)
Do not attach or suspend heavy objects in the environs
of the sun visors (central rear view mirror rails, blin d hooks,

sun visor blinds, etc.)
SUN BLINDS
(Grand C4 Picasso)
Second row
- Pull on the tab A and anchor the
blind on the hooks B.
Third-row
The blinds are incorporated in the
third-row trim panels.
- Pull on the tab and anchor the blind on the hooks.
Rear screen blind
- Pull on the tab and anchor the blind on the hooks.

A
A
136III

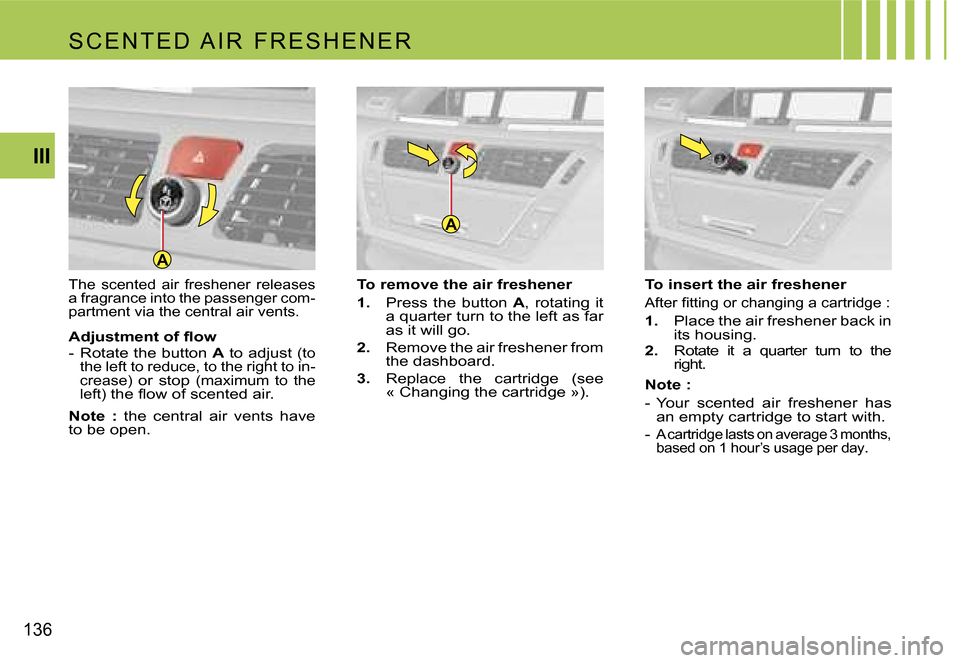

The scented air freshener releases
a fragrance into the passenger com-
partment via the central air vents.
Adjustment of flow
- Rotate the button
A to adjust (to
the left to reduce, to the right to in-
crease)
or stop (maximum to the
left) the flow of scented air.
Note : the central air vents have
to be open. To remove the air freshener
1.
Press the button A, rotating it
a quarter turn to the left as far
as it will go.
2. Remove the air freshener from
the dashboard.
3. Replace the cartridge (see
« Changing the cartridge »). To insert the air freshener
After fitting or changing a cartridge :
1.
Place the air freshener back in
its housing.
2. Rotate it a quarter turn to the
right.
Note :
- Your scented air freshener has an empty cartridge to start with.
-
A cartridge lasts on average 3 months,
based on 1 hour’s usage per day.
S C E N T E D A I R F R E S H E N E R

A
BCD
III
137
Replacing a cartridge
The recharge for the air freshener consists of a car-
tridge B and its sealed container C.
1. Remove the protective film D.
2. Place the head of the cartridge B on the button A
of the air freshener.
3. Rotate it a quarter turn to lock it on the button and
remove the container.
4. Insert the air freshener into its housing.
You can change cartridges at any time, keeping the
used cartridges in their original containers.
For safety, use only cartridges that are provided for this purpose.
Do not attempt to take cartridges apart.
Never recharge the cartridges with fragrances not suppli ed by CITROËN.
Keep them out of reach of children and animals.
Avoid all contact with the skin and with the eyes.
In the event of swallowing, consult a doctor and show hi m the product packaging or label.
Do not install or remove a cartridge while you are dri ving.
Air freshener button
The air freshener
button A is independent of the car-
tridge. Cartridges are supplied without the air fresh-
ener button A.
The button of the air freshener A can only be fixed into
the central dashboard with a cartridge attached.
Therefore always keep the air freshener button A and
one cartridge.
Note : Recharges are available, according to country, eit her
on the CITROËN Internet site or from a CITROËN deal er.
Stowage points are provided in the glovebox for storing
of cartridges and containers.
S C E N T E D A I R F R E S H E N E R - C H A N G I N G T H E C A R T R I D G E
