2006 YAMAHA T135 Owners Manual

1S7-F8199-E0
T 135 SE
OWNER’S MANUAL
Sniper

U5YPE0E0.book Page 2 Wednesday, February 23, 2005 4:22 PM

INTRODUCTION
EAU10100
Welcome to the Yamaha world of motorcycling!
As the owner of the Sniper , you are benefiting from Yamaha’s vast experience and newest technology regarding the design

and manufacture of high-quality product s, which have earned Yamaha a reputation for dependability.

Please take the time to read this manual thoroughly, so as to enjoy all a\
dvantages of your Sniper .The owner’s manual
does not only instruct you in how to operate, inspect and maintain your motorcycle, but also in how to safeguard yourself and
others from trouble and injury.
In addition, the many tips given in this manual will help keep your motorcycle in the best possible condition. If you have any
further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!
U5YPE0E0.book Page 1 Wednesday, February 23, 2005 4:22 PM

IMPORTANT MANUAL INFORMATION
EAU10150
Particularly important information is distinguished in this manual by the following notations:NOTE:

This manual should be considered a permanent part of this motorcycle and should remain with it even if the motorcycle
is subsequently sold.


Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most
current product information available at the time of printing, there may be minor discrepancies between your motorcycleand this manual. If you have any questions concerning this manual, please consult your Yamaha dealer.WARNING
EWA10030
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS MOTORCYCLE.The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death
to the
motorcycle operator, a bystander, or a person inspecting or repairing the motor-
cycle.
A CAUTION indicates special precautions that must be taken to avoid damage to
the motorcycle.
A NOTE provides key information to make procedures easier or clearer.
WARNING
CAUTION:
NOTE:
U5YPE0E0.book Page 1 Wednesday, February 23, 2005 4:22 PM

IMPORTANT MANUAL INFORMATION
EAU37430
Sniper
OWN ER ’S MANUAL
©2005 by Yamaha Motor Co., Ltd. 1st edition, February 2006
All rights reserved.
Any reprinting or unauthorized use without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited. .
U5YPE0E0.book Page 2 Wednesday, February 23, 2005 4:22 PM

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Main switch/steering lock ................3-1
Indicator and warning lights ............3-2
Speedometer unit ...........................3-3
Fuel gauge ......................................3-3
Handlebar switches ........................3-3
Shift pedal .......................................3-4
Brake lever .....................................3-4
Brake pedal ....................................3-5
Fuel tank cap ..................................3-5
Fuel .................................................3-6
Catalytic converter ..........................3-6
Starter (choke) lever ........................3-7
Kickstarter .......................................3-7
Seat ................................................3-7
Helmet holders ...............................3-8
Storage compartment .....................3-8
Sidestand ........................................3-9
PRE-OPERATION CHECKS..............4-1
Pre-operation check list ..................4-2OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting and warming up a
cold engine ................................. 5-1
Starting a warm engine .................. 5-2
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-5
General note .................................. 5-6
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing the
cowlings and panel ..................... 6-5
Checking the spark plug ................. 6-7
Engine oil and oil filter element ...... 6-9
Coolant ......................................... 6-11
Cleaning the air filter element ...... 6-13
Adjusting the carburetor ............... 6-14
Adjusting the engine idling
speed ........................................ 6-15
Adjusting the throttle cable
free play .................................... 6-15
Valve clearance ............................ 6-16
Tires ............................................. 6-16
Spoke wheels ............................... 6-18Checking the brake lever
free play .................................... 6-19
Adjusting the brake pedal
free play .................................... 6-19
Adjusting the rear brake light
switch ....................................... 6-20
Checking the front brake pads and
rear brake shoes ...................... 6-20
Checking the front brake
fluid level .................................. 6-21
Changing the brake fluid .............. 6-22
Drive chain slack .......................... 6-22
Cleaning and lubricating the
drive chain ................................ 6-23
Checking and lubricating the
cables ....................................... 6-24
Checking and lubricating the
throttle grip and cable ............... 6-24
Lubricating the brake lever .......... 6-25
Lubricating the brake pedal ......... 6-25
Checking and lubricating the
centerstand and sidestand ....... 6-25
Lubricating the
swingarm pivots ........................ 6-26
Checking the front fork ................. 6-26
Checking the steering .................. 6-27
Checking the wheel bearings ....... 6-27
Battery ......................................... 6-28
Replacing the fuse ....................... 6-29
Replacing a headlight bulb .......... 6-30U5YPE0E0.book Page 1 Wednesday, February 23, 2005 4:22 PM

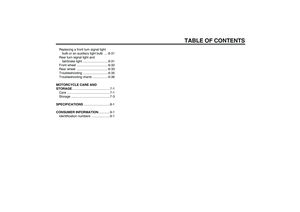

TABLE OF CONTENTS
Replacing a front turn signal light
bulb or an auxiliary light bulb .... 6-31
Rear turn signal light and
tail/brake light ............................ 6-31
Front wheel ................................... 6-32
Rear wheel ................................... 6-33
Troubleshooting ............................ 6-35
Troubleshooting charts ................. 6-36
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Care ................................................ 7-1
Storage ...........................................7-3
SPECIFICATIONS ............................. 8-1
CONSUMER INFORMATION............. 9-1
Identification numbers .................... 9-1
U5YPE0E0.book Page 2 Wednesday, February 23, 2005 4:22 PM

1-1
1
SAFETY INFORMATION
EAU10272
MOTORCYCLES ARE SINGLE
TRACK VEHICLES. THEIR SAFE USE
AND OPERATION ARE DEPENDENT
UPON THE USE OF PROPER RIDING
TECHNIQUES AS WELL AS THE EX-
PERTISE OF THE OPERATOR. EV-
ERY OPERATOR SHOULD KNOW
THE FOLLOWING REQUIREMENTS
BEFORE RIDING THIS MOTOR-
CYCLE.
HE OR SHE SHOULD:

OBTAIN THOROUGH INSTRUC-
TIONS FROM A COMPETENT
SOURCE ON ALL ASPECTS OF
MOTORCYCLE OPERATION.


OBSERVE THE WARNINGS AND
MAINTENANCE REQUIRE-
MENTS IN THE OWNER’S MAN-
UAL.


OBTAIN QUALIFIED TRAINING
IN SAFE AND PROPER RIDING
TECHNIQUES.


OBTAIN PROFESSIONAL TECH-
NICAL SERVICE AS INDICATED
BY THE OWNER’S MANUALAND/OR WHEN MADE NECES-
SARY BY MECHANICAL CONDI-
TIONS.
Safe riding


Always make pre-operation
checks. Careful checks may help
prevent an accident.


This motorcycle is designed to car-
ry the operator and a passenger.


The failure of motorists to detect
and recognize motorcycles in traf-
fic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been caused
by an automobile driver who did
not see the motorcycle. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
Wear a brightly colored jacket.
Use extra caution when you are
approaching and passing
through intersections, since in-
tersections are the most likely
places for motorcycle accidents
to occur.Ride where other motorists can
see you. Avoid riding in another
motorist’s blind spot.


Many accidents involve inexperi-
enced operators. In fact, many op-
erators who have been involved in
accidents do not even have a cur-
rent motorcycle license.
Make sure that you are qualified
and that you only lend your
motorcycle to other qualified op-
erators.
Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
We recommend that you prac-
tice riding your motorcycle
where there is no traffic until you
have become thoroughly famil-
iar with the motorcycle and all of
its controls.


Many accidents have been caused
by error of the motorcycle opera-
tor. A typical error made by the op-
erator is veering wide on a turn
U5YPE0E0.book Page 1 Wednesday, February 23, 2005 4:22 PM
