2006 TOYOTA PRIUS display

227
27p312

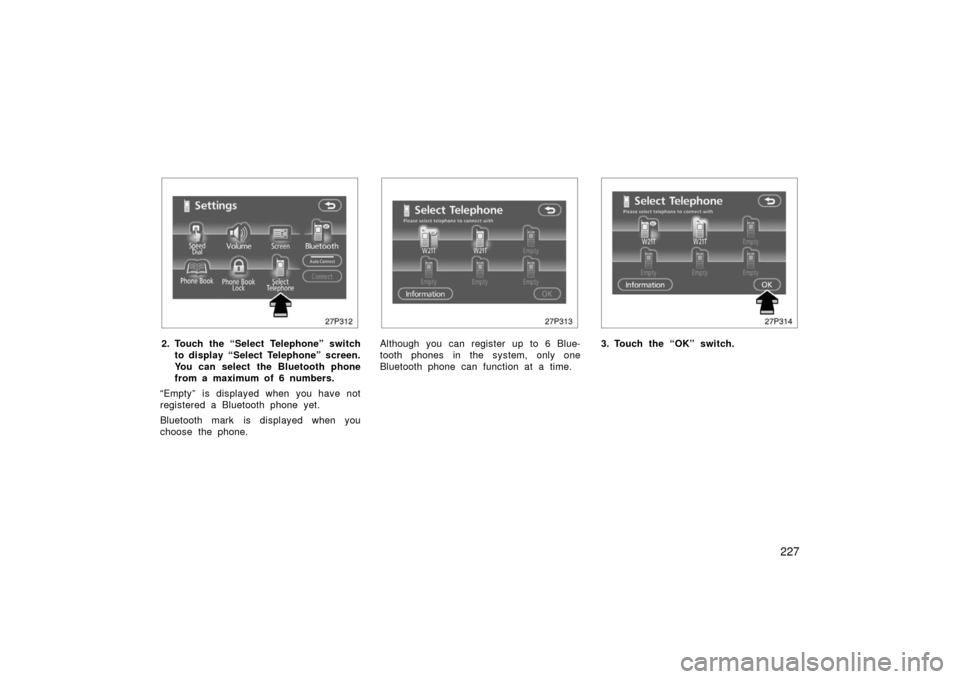

2. Touch the “Select Telephone” switchto display “Select Telephone” screen.
You can select the Bluetooth phone
from a maximum of 6 numbers.
“Empty” is displayed when you have not
registered a Bluetooth phone yet.
Bluetooth mark is displayed when you
choose the phone.
27p313
Although you can register up to 6 Blue-
tooth phones in the system, only one
Bluetooth phone can function at a time.
27p314
3. Touch the “OK” switch.

228
27p315

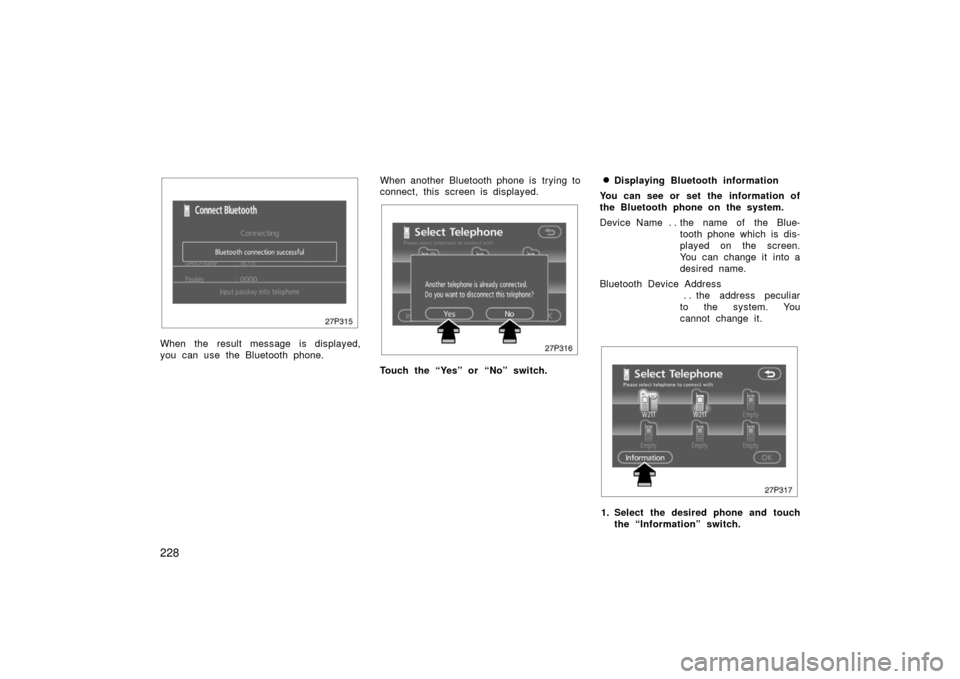

When the result message is displayed,
you can use the Bluetooth phone.When another Bluetooth phone is trying to
connect, this screen is displayed.
27p316
Touch the “Yes” or “No” switch.
Displaying Bluetooth information
You can see or set the information of
the Bluetooth phone on the system.
Device Name the name of the Blue- . .
tooth phone which is dis-
played on the screen.
You can change it into a
desired name.
Bluetooth Device Address the address peculiar
. .
to the system. You
cannot change it.
27p317
1. Select the desired phone and touch the “Information” switch.

230
27p320

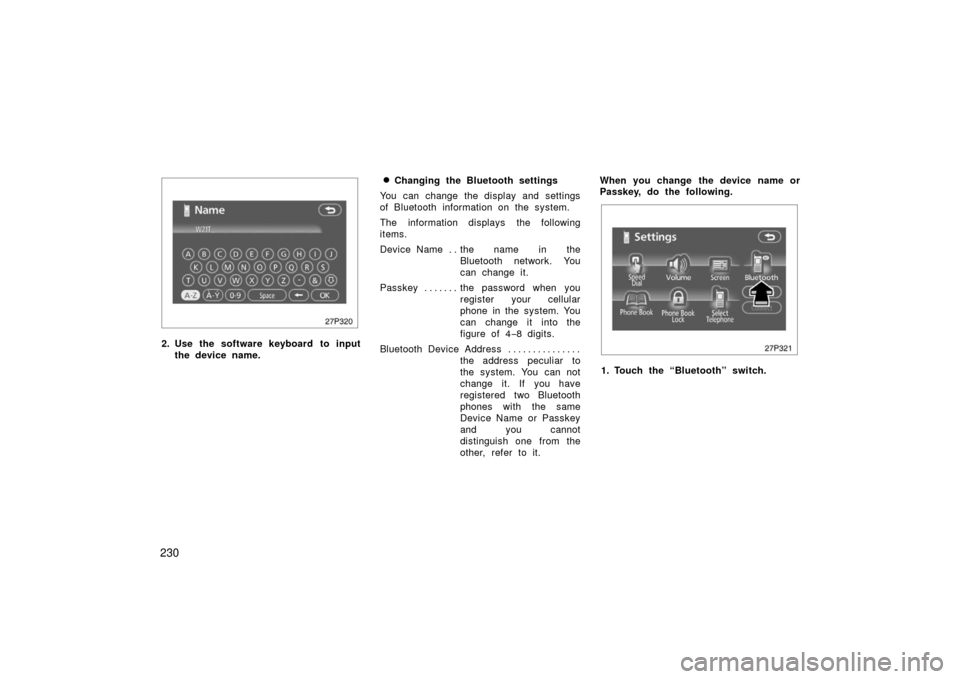

2. Use the software keyboard to inputthe device name.
Changing the Bluetooth settings
You can change the display and settings
of Bluetooth information on the system.
The information displays the following
items.
Device Name the name in the . .
Bluetooth network. You
can change it.
Passkey the password when you . . . . . . .
register your cellular
phone in the system. You
can change it into the
figure of 4 −8 digits.
Bl uet oot h D ev i c e A ddr es s . . . . . . . . . . . . . . . the address peculiar to
the system. You can not
change it. If you have
registered two Bluetooth
phones with the same
Device Name or Passkey
and you cannot
distinguish one from the
other, refer to it. When you change the device name or
Passkey, do the following.
27p321
1. Touch the “Bluetooth” switch.

234

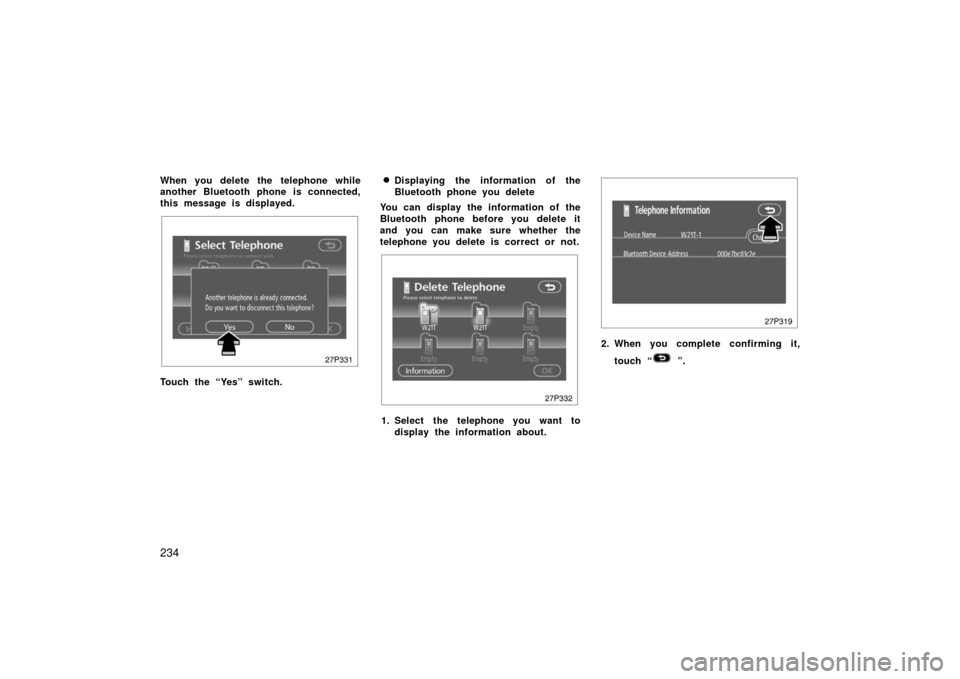

When you delete the telephone while
another Bluetooth phone is connected,
this message is displayed.
27p331
Touch the “Yes” switch.
Displaying the information of the
Bluetooth phone you delete
You can display the information of the
Bluetooth phone before you delete it
and you can make sure whether the
telephone you delete is correct or not.
27p332
1. Select the telephone you want to display the information about.
27p319
2. When you complete confirming it,
touch “
”.

235
The speech command system enables
you to operate the handsfree system
by giving a command.
27p335

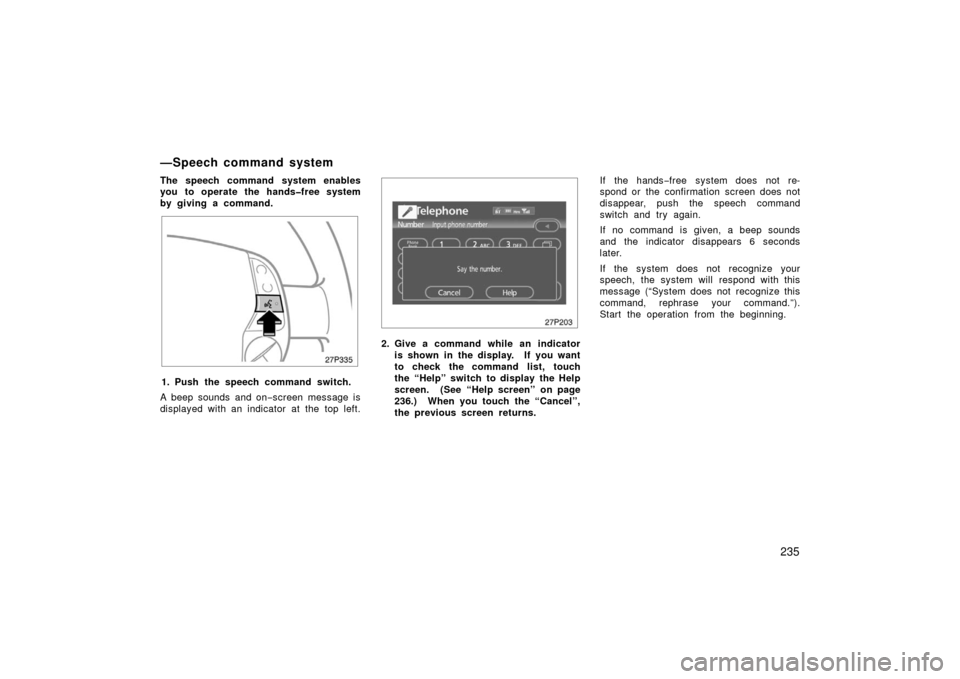

1. Push the speech command switch.
A beep sounds and on −screen message is
displayed with an indicator at the top left.
27p203
2. Give a command while an indicator is shown in the display. If you want
to check the command list, touch
the “Help” switch to display the Help
screen. (See “Help screen” on page
236.) When you touch the “Cancel”,
the previous screen returns. If the hands
−free system does not re-
spond or the confirmation screen does not
disappear, push the speech command
switch and try again.
If no command is given, a beep sounds
and the indicator disappears 6 seconds
later.
If the system does not recognize your
speech, the system will respond with this
message (“System does not recognize this
command, rephrase your command.”).
Start the operation from the beginning.
—Speech command system

237
Adjustment
26p024a
Type 1Type 2 and Type 3
Push the “DISPLAY” button to display
the “Display” screen.
27p142a
Type 1 and Type 2
26p026b
Ty p e 3
Contrast and brightness adjustment
CONTRAST “+”:
Strengthens the contrast of the screen.
CONTRAST “–”:
Weakens the contrast of the screen.
BRIGHTNESS “+”: Brightens the screen.
BRIGHTNESS “–”: Darkens the screen.
The screen turns off when you touch the
“SCREEN OFF”. To turn the display
screen back on, push any bezel switch
such as “INFO”, etc. The selected screen
appears.

238
27p146a
Type 1 and Type 2
26P051b
Ty p e 3

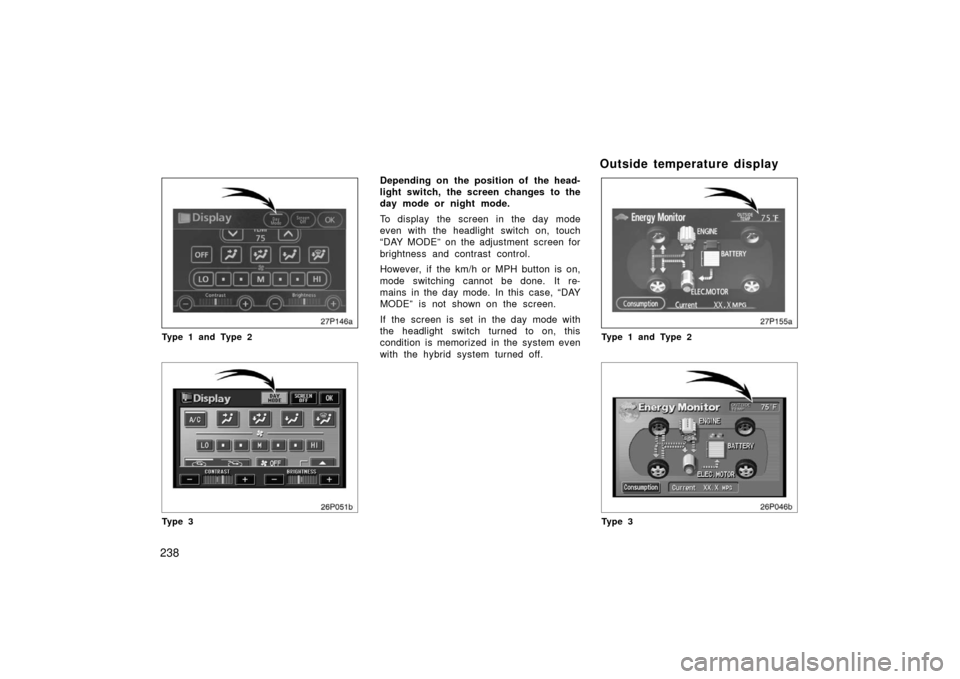

Depending on the position of the head-
light switch, the screen changes to the
day mode or night mode.
To display the screen in the day mode
even with the headlight switch on, touch
“DAY MODE” on the adjustment screen for
brightness and contrast control.
However, if the km/h or MPH button is on,
mode switching cannot be done. It re-
mains in the day mode. In this case, “DAY
MODE” is not shown on the screen.
If the screen is set in the day mode with
the headlight switch turned to on, this
condition is memorized in the system even
with the hybrid system turned off.
Outside temperature display
27p155a
Type 1 and Type 2
26p046b
Ty p e 3

242

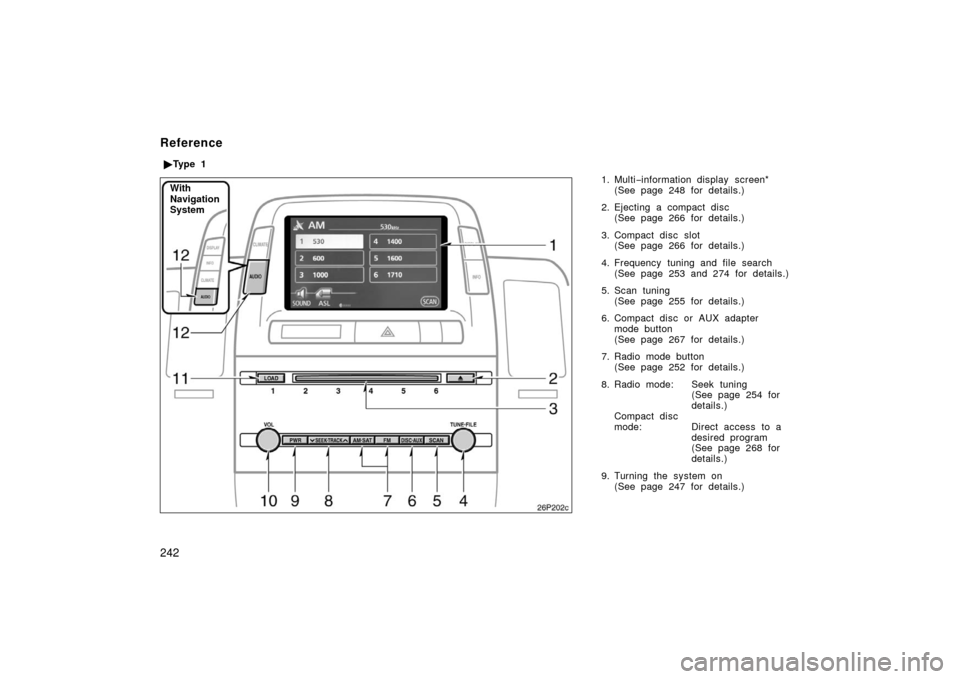

1. Multi−information display screen*
(See page 248 for details.)
2. Ejecting a compact disc (See page 266 for details.)
3. Compact disc slot (See page 266 for details.)
4. Frequency tuning and file search (See page 253 and 274 for details.)
5. Scan tuning (See page 255 for details.)
6. Compact disc or AUX adapter mode button
(See page 267 for details.)
7. Radio mode button (See page 252 for details.)
8. Radio mode: Seek tuning (See page 254 for
details.)
Compact disc
mode: Direct access to a desired program
(See page 268 for
details.)
9. Turning the system on (See page 247 for details.)
Reference
Ty p e 1
26p202c
With
Navigation
System
