2006 TOYOTA PRIUS display

1
FEATURES ON NEW TOYOTA VEHICLE
Overview of instruments and controls
Instrument panel overvieww2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument cluster and multi −information display overview 5
. . . . . . . .
Indicator symbols on the instrument cluster and multi −information
display 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
SECTION 1– 1

3
1. Headlight and turn signal switches 110 . . . . . . . . . . . . . . . . . . . . . . . . .
2. Wiper and washer switches 117 . . . . . . .
3. “POWER” switch 139 . . . . . . . . . . . . . . . . .
4. Clock 302 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5. Multi −information display or
navigation system including
multi −information display
(For the navigation system,
see the separate “Navigation
System Owner ’s Manual”.) 160 . . . . . . . .
6. Emergency flasher switch 114 . . . . . . . . .
7. Trip meter reset button 123 . . . . . . . . . . .
8. Km/h or MPH button 124 . . . . . . . . . . . . .
9. Audio system 242 . . . . . . . . . . . . . . . . . . . .
10. Power outlet 305 . . . . . . . . . . . . . . . . . . . . .
11. “P” position switch 144 . . . . . . . . . . . . . . .
12. Electronic shift lever (R, N, D, B) 144 . . . . . . . . . . . . . . . . . . . . .
13. Key slot 138 . . . . . . . . . . . . . . . . . . . . . . . . .
14. Cruise control switch 157 . . . . . . . . . . . . .
15. Tire pressure warning system reset switch 150 . . . . . . . . . . . . . . . . . . . . .
16. Smart entry and start system cancel switch 34 . . . . . . . . . . . . . . . . . . . . .
11p019

5
1. Service reminder indicators and indicator lights 125, 132 . . . . . . . . . .
2. Speedometer
3. Fuel gauge 122 . . . . . . . . . . . . . . . . . . . . . .
4. Odometer and trip meter 123 . . . . . . . . .
Instrument cluster and multiinformation display overview
11p002k

6
Indicator symbols on the instrument cluster and multiinformation display
orand
Brake system warning lights∗1
Driver ’s seat belt reminder light∗1
Front passenger ’s seat belt reminder light∗1
Malfunction indicator lamp∗1
Low fuel level indicator light∗1
Open door warning light∗1
Master warning light∗1
Anti −lock brake system warning light∗
1
SRS warning light∗1
Engine oil replacement reminder light∗1
(for vehicles sold in U.S.A.)
Vehicle stability control system warning light∗1
Charging system warning light∗2
High coolant temperature warning light∗2
Low engine oil pressure warning light∗2
Hybrid battery warning light∗2
or
(U.S.A)
(Canada)
Low tire pressure warning light
∗1

8
∗1: For details, see “Service reminder indi-
cators and warning buzzers— —Instru-
ment cluster” on page 125.
∗2: For details, see “Service reminder indi-
cators and warning buzzers— —Multi −
information display” on page 132.
∗ 3: If this light flashes, see “Cruise con-
trol” on page 157.
∗4: For details, see “Hybrid transaxle” on
page 144.
∗5: For details, see “Smart entry and start
system” on page 24.

13
Drive your vehicle with a smooth accel-
eration and deceleration.
While driving, energy is recovered
through the regenerative brake as the
vehicle decelerates. However, for more
efficient use, do not accelerate or de-
celerate your vehicle more than neces-
sary.
Avoid abrupt acceleration and decelera-
tion.
The remaining capacity of the hybrid
battery can be confirmed on the energy
monitor screen of the multi−information
display. See “Information” on page 166
for details. Gradual or non −abrupt ac-
celeration or deceleration will more ef-
fectively use the benefits of an electric
motor without having to use gasoline
engine power. When parking, be sure to put the hy-
brid transaxle in “P”. While driving, use
the hybrid transaxle in “D”.
In “N”, the gasoline engine operates
but electricity cannot be generated. The
battery will be discharged requiring un-
necessary engine power to recharge.
The hybrid system automatically re-
charges the hybrid battery when the
remaining battery power is reduced.
However, the charging is not available
if the hybrid transaxle is “N”.
INFORMATION:
The gasoline engine starts and stops
automatically. (It stops during a low
load driving, deceleration or when the
vehicle is stopped.)
If the “READY” light remains on, you
can start your vehicle using the electric
motor even with the gasoline engine
stopped.
The gasoline engine may not stop auto-
matically in the following conditions:

During gasoline engine warmup
 During hybrid battery charging
 During low or high hybrid battery
temperature
For efficient use of your
vehicle

16

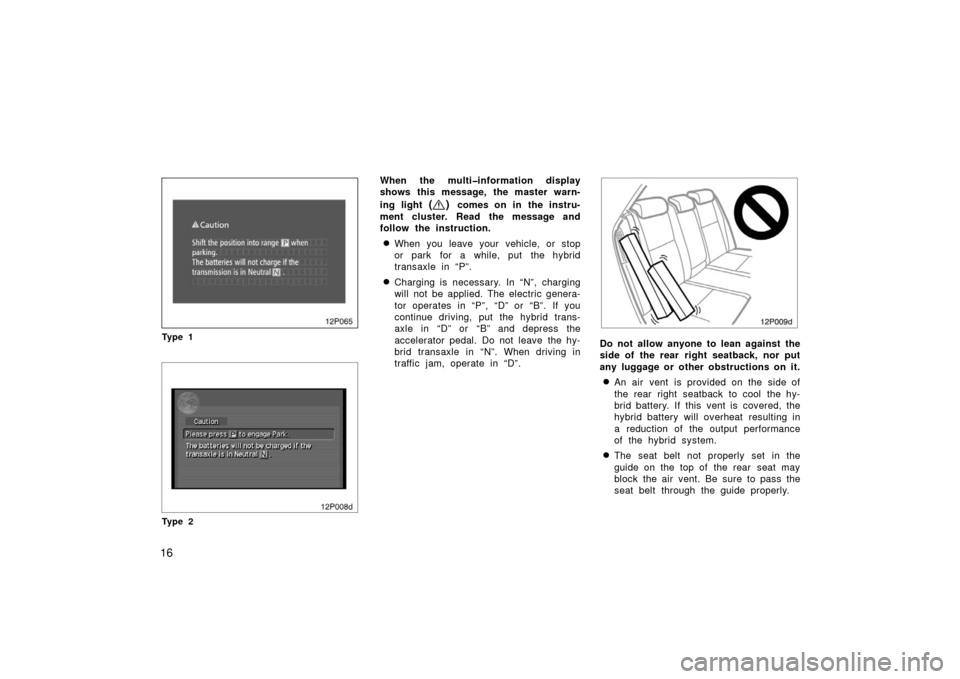

12p065
Ty p e 1
12p008d
Ty p e 2
When the multiinformation display
shows this message, the master warn-
ing light
() comes on in the instru-
ment cluster. Read the message and
follow the instruction.
When you leave your vehicle, or stop
or park for a while, put the hybrid
transaxle in “P”.
Charging is necessary. In “N”, charging
will not be applied. The electric genera-
tor operates in “P”, “D” or “B”. If you
continue driving, put the hybrid trans-
axle in “D” or “B” and depress the
accelerator pedal. Do not leave the hy-
brid transaxle in “N”. When driving in
traffic jam, operate in “D”.
12P009d
Do not allow anyone to lean against the
side of the rear right seatback, nor put
any luggage or other obstructions on it.
An air vent is provided on the side of
the rear right seatback to cool the hy-
brid battery. If this vent is covered, the
hybrid battery will overheat resulting in
a reduction of the output performance
of the hybrid system.
The seat belt not properly set in the
guide on the top of the rear seat may
block the air vent. Be sure to pass the
seat belt through the guide properly.

27
(a) The hybrid system was not turnedoff and the transaxle was in a posi-
tion other than “P”.
When the driver ’s door is opened with the
hybrid system in “ACC” or “IG −ON” and
with the transaxle in a position other than
“P”.
Inside alarm: Beeps continuously
Multiinformation display: Warning mes-
sage
Alarms will be turned off by any of the
following operations:
Closing the driver ’s door
Pressing the “P” position switch
Turning off the hybrid system (b) The smart key was brought outside
the vehicle with the transaxle in a
position other than “P”.
When the driver ’s door is opened or
closed with the hybrid system not to be
turned off and with the transaxle in a
position other than “P”, it is determined
that the smart key is not in the vehicle.
Inside alarm: Beeps continuously
Outside alarm: Beeps continuously
Warning light: On
Alarms will be turned off by any of the
following operations:
Pressing the “P” position switch
Bringing the smart key inside the ve-
hicle
Turning off the hybrid system
(c) The hybrid system was not turned off with the transaxle in “P”.
When the driver ’s door is opened with the
hybrid system in “ACC” and with the
transaxle in “P”.
Inside alarm: 3 beeps
In the “IG −ON” mode, an alarm will not
sound. (d) The smart key was brought outside
the vehicle.
When the driver ’s door is opened or
closed with the hybrid system not to be
turned off (and with the transaxle in “P”),
it is determined that the smart key is not
in the vehicle.
Inside alarm: One beep
Outside alarm: 3 beeps
Warning light: On
(e) Locking with smart function was at- tempted with the hybrid system not
to be turned off.
When you attempt to lock all the doors
using smart locking function with the hy-
brid system not to be turned off and with
the transaxle in a position other than “P”.
Outside alarm: One beep (sounds for 2
seconds.)
Warning light: On
At this time, the doors cannot be
locked.
