2006 TOYOTA PRIUS display

11 8
For instructions on adding washer fluid,
see “Adding washer fluid” on page 418.
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
24p116
Ty p e 1
23p009c
Ty p e 2

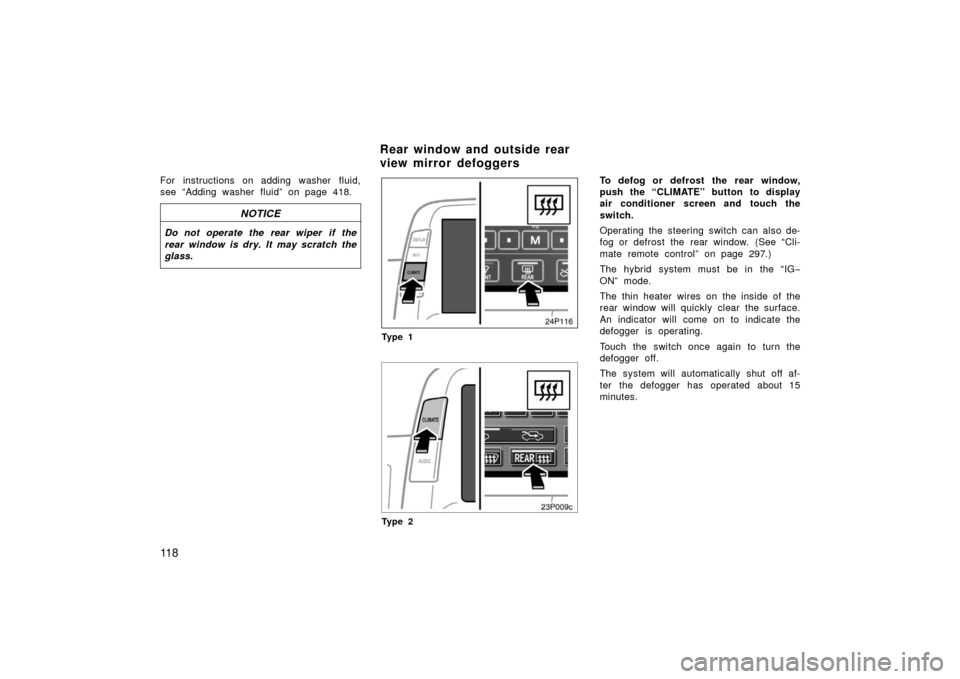

To defog or defrost the rear window,
push the “CLIMATE” button to display
air conditioner screen and touch the
switch.
Operating the steering switch can also de-
fog or defrost the rear window. (See “Cli-
mate remote control” on page 297.)
The hybrid system must be in the “IG−
ON” mode.
The thin heater wires on the inside of the
rear window will quickly clear the surface.
An indicator will come on to indicate the
defogger is operating.
Touch the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger has operated about 15
minutes.
Rear window and outside rear
view mirror defoggers

122
24p001b
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the “IGON” mode is enabled.
Nearly full–Indicator at “F”
Nearly empty–Indicator at “E”
It is a good idea to keep the tank over
1/4 full.
When you refuel on a slope, the indicator
may not show the correct level.
When you refuel less than about 11.4 L
(3.0 gal., 2.5 lmp.gal.), the fuel indicator
may not change.
After the 12 volt battery is reconnected,
one segment will flash for a while.Depending on the ambient temperature,
the fuel quantity is less than 45 L (11.9
gal., 9.9 lmp. gal.) even at “F”. However,
this does not affect the fuel consumption
and the remaining fuel ratio indicated on
the gauge. (For details, see “Fuel” on
page 318.)
If the fuel gauge display flashes, there
may be a problem in the system. In this
case, contact your Toyota dealer as soon
as possible.
24p002b
Low fuel level indicator light
Blink
If the fuel level approaches “E” or the low
fuel level indicator light blinks, fill the fuel
tank as soon as possible.
Fuel gauge

123
25p127a
Ty p e 1
24p109a
Ty p e 2
At the first blinking of the light, the master
warning light in the instrument cluster
comes on and the message appears on
the multi−information display to remind the
driver to fill fuel.
On inclines or curves, due to the move-
ment of fuel in the tank, the low fuel level
indicator light may come on earlier than
usual.
24p004e
This meter displays the odometer and
two trip meters.
1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.
Odometer and two trip
meters

124
3. Trip meter reset button—Resets thetwo trip meters to zero, and also
change the meter display.
To change the meter display, quickly
push and release the button. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the button until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
Km/h or MPH button
24p115
You can switch the display between
km/h and MPH by pressing the button.

125
If the indicator or buzzer comes on...Do this.
(a)
or
(red indicator and buzzer)If parking brake is off, stop immediately and contact Toyota dealer.
(yellow indicator)
Take vehicle to Toyota dealer. If red brake system warning light is also on, stop imme-
diately and contact Toyota dealer.
(b)
(indicator and buzzer)
Fasten driver ’s seat belt.
(c)
(indicator and buzzer)
Fasten front passenger ’s seat belt.
(d)orTake vehicle to Toyota dealer.
(e)See multi −information display.
(f)orTake vehicle to Toyota dealer. If red brake system warning light is also on, stop imme-
diately and contact Toyota dealer.
If any warning comes on, the hybrid system may not start by pu shing the “POWER” switch. In that case, push it once again.
Service reminder indicators and warning buzzers

129
Emissions inspection and maintenance
(I/M) programs
Your vehicle may not pass a state emis-
sion inspection if the malfunction indicator
lamp remains on. Contact your Toyota
dealer to check your vehicle’s emission
control system and OBD (On−Board Diag-
nostics) system before taking your vehicle
for the inspection.
For details, see “Emissions inspection and
maintenance (I/M) programs” on page 390.
(e) Master Warning Light
()
If the master warning light comes on, the
warning light for the faulty system is high-
lighted or the message such as “Please
press “P” to engage Park.” and “The bat-
teries will not be charged if the transaxle
is in Neutral N.” appears on the multi −in-
formation display. (See “Service reminder
indicators and warning buzzers— —Multi −
information display” on page 132 or “Pre-
cautions for use” on page 14 or “Fuel
gauge” on page 122 for instructions.) (f) “ABS” Warning Light
The light comes on when the “IG
−ON”
mode is enabled. If the anti −lock brake
system and the brake assist system work
properly, the light turns off after the
“READY” light comes on. Thereafter if the
system malfunctions, the light comes on
again.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system does not operate,
but the brake system still operates con-
ventionally.
When the “ABS” warning light is on (and
the brake system warning light is off), the
anti −lock brake system does not operate
but the brake assist system still operates.
In this case, the wheels could lock up
during a sudden braking or braking on
slippery road surfaces.
If any of the following conditions
occurs, this indicates a malfunction
somewhere in the parts monitored by
the warning light system. Contact your
Toyota dealer as soon as possible so
service the vehicle.
The light does not come on when the
“IG −ON” mode is enabled, or the light
remains on after the “READY” light
comes on.
The light comes on while you are driv-
ing.
A warning light turning on briefly during
operation does not indicate a problem.
CAUTION
If the “ABS” warning light remains on
together with the red brake system
warning light, immediately stop your
vehicle at a safe place and contact
your Toyota dealer.
In this case, not only the antilock
brake system will fail but also the
vehicle will become extremely unsta-
ble during braking.
Any of the following conditions may oc-
cur, but does not indicate the malfunc-
tion:
The light may stay on for about 60
seconds after the hybrid system is
started. It is normal if it turns off after
a whi l e.

130
Depressing the brake pedal repeatedly
may turn on the light. It is normal if
it turns off after a few seconds.
(g) SRS Warning Light
This indicator comes on when the “IG
ON” mode is enabled. It goes off after
about 6 seconds. This means the SRS
front airbags, side and curtain shield
airbags and seat belt pretensioners are
operating properly.
The warning light system monitors the air-
bag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors,
driver ’s seat position sensor, driver ’s seat
belt buckle switch, front passenger occu-
pant classification system and indicator
light, front passenger ’s seat belt buckle
switch, seat belt pretensioner assemblies,
interconnecting wiring and power sources.
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
“IG −ON” mode is enabled or remains
on for more than 6 seconds.
The light comes on while driving. The SRS warning light and “AIRBAG OFF”
indicator light will come on if there is a
malfunction in the front passenger occu-
pant classification system.
(h) Open Door Warning Light
This light remains on until all the doors
are completely closed.
(i) Low Fuel Level Indicator Light
This light blinks when the fuel level in the
tank becomes nearly empty. Fill up the
tank as soon as possible.
At the first blinking of the light, the mes-
sage appears on the display to remind the
driver to fill fuel.
Contact your Toyota dealer in the following
case:
All the segments blink.
(j) Engine Oil Replacement Reminder Light (for vehicles sold in U.S.A.)
This light acts as a reminder to replace
the engine oil.
This light will come on when the “IG −ON”
mode is enabled, and will go off after
about a few seconds. When you drive for about 7200 km (4500
miles) after engine oil replacement, this
light illuminates for about 3 seconds and
then flashes for about 12 seconds when
the hybrid system is in the “IG
−ON”
mode. If you continue driving without en-
gine oil replacement, and if the driving
range exceeds 8000 km (5000 miles), the
light will come on after the “IG −ON” mode
is enabled. The light will remain on there-
after.
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road conditions. If the light comes on,
replace the oil as soon as possible.
The system must be reset after the en-
gine oil replacement. Reset the system by
the following procedure:
1. Press the “POWER” switch to the “OFF” mode
with the odometer reading
shown. (For details, see “Odometer and
two trip meters” on page 123.)
2. Press the “POWER” switch twice to select the “IG −ON” mode while holding
down the trip meter reset button.

132
CHECKING SERVICE REMINDER INDICA-
TORS (except the low fuel level indica-
tor light)1. Apply the parking brake.
2. Open one of the doors. The open door warning light should
come on.
3. Close the door. The open door warning light should go
off.
4. Press the “POWER” switch twice with- out pressing the brake pedal to select
the “IG −ON” mode. At this time, all the
bulbs are checked in self −diagnosis
mode.
All the service reminder indicators ex-
cept the open door warning light come
on. The yellow brake system, “ABS”
and “VSC” warning lights turn off after
the “READY” light comes on.
There may be the case that the yellow
brake system, “ABS” and “VSC” warning
lights stay on for about 60 seconds after
the hybrid system is started. It is normal
if they go out after a while.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.
24p117
Ty p e 1
24p006e
Ty p e 2
If an error occurs in the system, the
warning message and icon appear.
For details on the warning display and
how to remedy the system, see the de-
scription on the following pages.
—Multiinformation display
