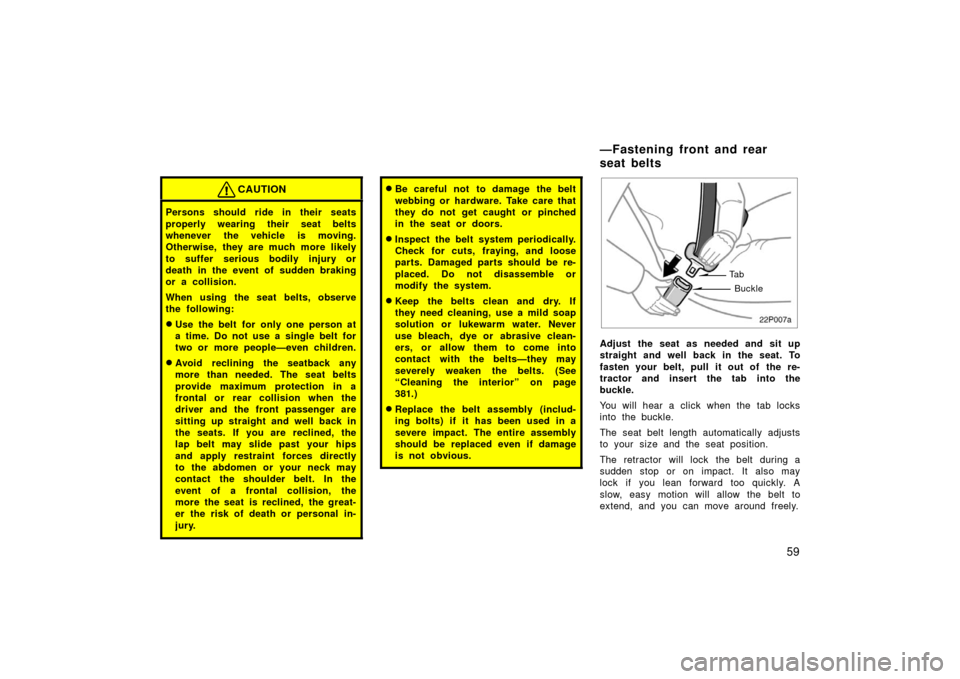

CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:
Use the belt for only one person at
a time. Do not use a single belt for
two or more people—even children.
Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal collision, the
more the seat is reclined, the great-
er the risk of death or personal in-
jury.
Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or doors.
Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye or abrasive clean-
ers, or allow them to come into
contact with the belts—they may
severely weaken the belts. (See
“Cleaning the interior” on page
381.)
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.
22p007
Ta b
Buckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.
—Fastening front and rear
seat belts

148
The vehicle stability control system
helps provide integrated control of the
systems such as antilock brake sys-
tem, brake assist system, hybrid system
control, etc. This system automatically
controls the brakes and hybrid system
to help prevent the vehicle from skid-
ding when cornering on a slippery road
surface or operating steering wheel
abruptly.
This system activates when the vehicle
speed is more than about 15 km/h (9
mph).CAUTION
Do not rely exclusively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid death or serious injury. Reck-
less driving will result in an unex-
pected accident. If the slip indicator
light flashes, sounding an alarm,
special care should be taken while
driving.
Only use tires of specified size. The
size, manufacturer, brand and tread
pattern for all 4 tires should be the
same. If you use tires other than
specified, or mixed types or size,
the vehicle stability control system
may not function correctly. When
replacing the tires or wheels, con-
tact your Toyota dealer. (See
“Checking and replacing tires” on
page 407.)
25p115a
Slip indicator light
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light blinks in the follow-
ing conditions also.
The vehicle tires are racing. Utmost
care is required when driving.
When the anti−lock brake system is
operating. See “Brake system” on page
325 for details.
Vehicle stability control
system

151
Avoid abrupt maneuvering and bra-
king. If the vehicle tires deteriorate,
you could lose control of the steer-
ing wheel or the brakes.
The tire pressure warning light may turn
on due to natural causes such as natural
air leaks or tire inflation pressure changes
caused by temperature. In this case, ad-
justing the tire inflation pressure will turn
off the light.
Pushing the tire pressure warning reset
switch should not turn off the tire pressure
warning light. Adjusting the tire inflation
pressure will turn off the light.
The compact spare tire is not equipped
with the tire pressure warning valve and
transmitter. If a tire goes flat, the warn-
ing light will not turn off even though the
flat tire is replaced with the spare tire.
Replace the spare tire with the repaired
tire and adjust the proper tire inflation
pressure. The tire pressure warning light
will turn off after several minutes.
CAUTION
Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label (tire
and load information label). (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label
(tire and load information label), you
should determine the proper tire infla-
tion pressure for those tires.)
As an added safety feature, your ve-
hicle has been equipped with a tire
pressure monitoring system (TPMS–
tire pressure warning system) that il-
luminates a low tire pressure telltale
(tire pressure warning light) when one
or more of your tires is significantly
underinflated. Accordingly, when the
low tire pressure telltale (tire pres-
sure warning light) illuminates, you
should stop and check your tires as
soon as possible, and inflate them to
the proper pressure. Driving on a sig-
nificantly underinflated tire causes
the tire to overheat and can lead to
tire failure. Underinflation also re-
duces fuel efficiency and tire tread
life, and may affect the vehicle’s han-
dling and stopping ability.
Please note that the TPMS (tire pres-
sure warning system) is not a substi-
tute for proper tire maintenance, and
it is the driver ’s responsibility to
maintain correct tire pressure, even if
underinflation has not reached the
level to trigger illumination of the
TPMS low tire pressure telltale (tire
pressure warning light).

155
Tire pressure warning reset switch
25p122
When initializing the system, the present
tire inflation pressure is stored as stan-
dard. The tire pressure warning system
determines decreased air pressure by
comparing the present and the standard
tire inflation pressures. When you change
the set tire inflation pressure, it is neces-
sary to initialize the tire pressure warning
system.
When rotating the tires on vehicles dif-
fering with front and rear tire inflation
pressures.
When changing the tire size.To initialize the system, perform the fol-
lowing:
1. Park the vehicle in a safe place and the hybrid system is off.
2. Adjust the pressure of all the installed tires to the specified cold tire inflation
pressure level.(See “Tires” on page
429.)
3. Turn the “POWER” switch is selected in “IG −ON” mode.
4. Push and hold the tire pressure warn- ing reset switch until the tire pressure
warning light blinks slowly three times.
5. Wait for a few minutes with the “POW- ER” switch is selected in “IG −ON”
mode, and then turn the hybrid system
is off.
If you push the tire pressure reset switch
while vehicle is moving, initialization is not
performed.
If you push the tire pressure reset switch
accidentally and initialization is performed,
adjust the tire inflation pressure to the
specified level and initialize the system
again.
25p124
If the tire pressure warning light does not
blink slowly three times when you push
and hold the reset switch, initialization has
failed and the tire pressure warning sys-
tem may not work properly. In this case,
initialize the system again. If initialization
cannot be performed, have the system
checked at your Toyota dealer.

327
CAUTION
Do not overestimate the antilock
brake system: Although the antilock
brake system assists in providing ve-
hicle control, it is still important to
drive with all due care and maintain
a moderate speed and safe distance
from the vehicle in front of you, be-
cause there are limits to the vehicle
stability and effectiveness of steering
wheel operation even with the anti
lock brake system on.
If tire grip performance exceeds its
capability, or if hydroplaning occurs
during high speed driving in the rain,
the antilock brake system does not
provide vehicle control.
Antilock brake system is not de-
signed to shorten the stopping dis-
tance: Always drive at a moderate
speed and maintain a safe distance
from the vehicle in front of you.
Compared with vehicles without an
antilock brake system, your vehicle
may require a longer stopping dis-
tance in the following cases:
Driving on rough, gravel or snow
covered roads.
Driving with tire chains installed.
Driving over the steps such as the
joints on the road.
Driving on roads where the road
surface is pitted or has other differ-
ences in surface height.
Install all 4 tires of specified size at
appropriate pressure: The antilock
brake system detects vehicle speeds
using the speed sensors for respec-
tive wheels’ turning speeds. The use
of tires other than specified may fail
to detect the accurate turning speed,
resulting in a longer stopping dis-
tance.
30p002b
Vehicle sold in U.S.A.
30p007b
Vehicle sold in Canada

332This illustration indicates typical tire
symbols.
1. Tire size— For details, see “Tire
size” on page 336.
2. DOT and Tire Identification Number (TIN)— For details, see
“DOT and Tire Identification Num-
ber (TIN)” on page 335.
3. Location of tread wear indica- tors— For details, see “Checking
and replacing tires” on page 407.
4. Tire ply composition and materi- als— Plies mean a layer of rubber −
coated parallel cords. Cords mean
the strands forming the plies in the
tire.
5. Summer tire or all season tire— An all season tire has “M+S”
on the sidewall. A tire not marked
with “M+S” is a summer tire. For
details, see “Types of tires” on
page 345.
Tire information—
—Tire symbols (Standard tire)
30p101

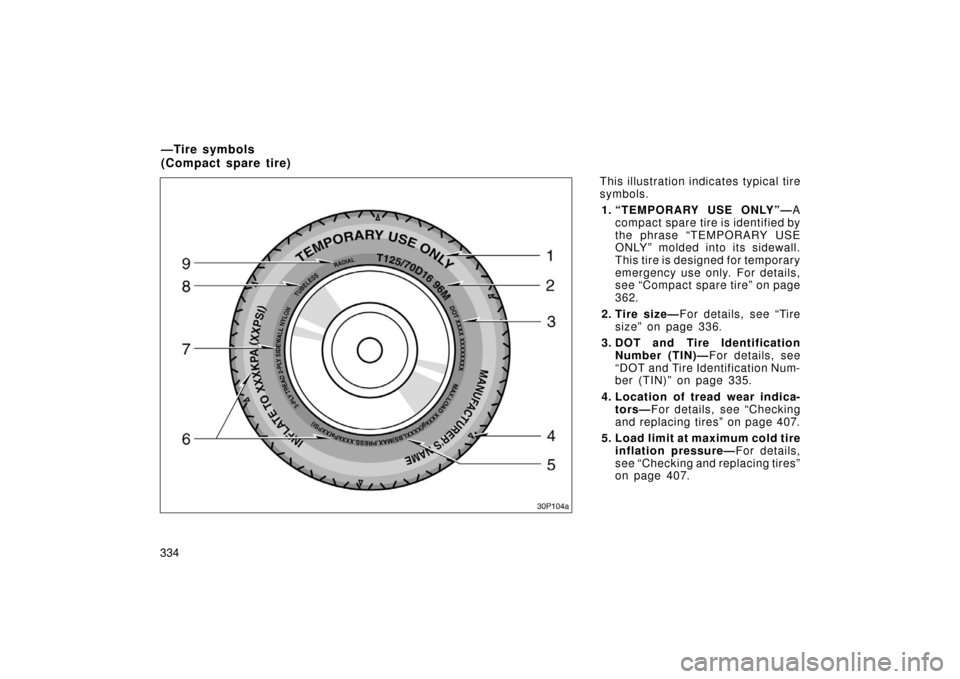

334This illustration indicates typical tire
symbols.
1. “TEMPORARY USE ONLY”— A
compact spare tire is identified by
the phrase “TEMPORARY USE
ONLY” molded into its sidewall.
This tire is designed for temporary
emergency use only. For details,
see “Compact spare tire” on page
362.
2. Tire size— For details, see “Tire
size” on page 336.
3. DOT and Tire Identification Number (TIN)— For details, see
“DOT and Tire Identification Num-
ber (TIN)” on page 335.
4. Location of tread wear indica- tors— For details, see “Checking
and replacing tires” on page 407.
5. Load limit at maximum cold tire inflation pressure— For details,
see “Checking and replacing tires”
on page 407.
— Tire symb o ls
(Compact spare tire)
30p104a

335
6. Maximum cold tire inflation
pressure— This means the pres-
sure to which a tire may be in-
flated. For recommended cold tire
inflation pressure, see “Tires” on
page 429.
7. Tire ply composition and materi- als— Plies mean a layer of rubber −
coated parallel cords. Cords mean
the strands forming the plies in the
tire.
8. “TUBELESS” or “TUBE TYPE” —A tubeless tire does not have a
tube inside the tire and air is direct-
ly filled in the tire. A tube type tire
has a tube inside the tire and the
tube maintains the air pressure.
9. Radial tires or biasply tires— A
radial tire has “RADIAL” on the
sidewall. The tire not marked with
“RADIAL” is a bias −ply tir e.
21A009a
This illustration indicates typical DOT
and Tire Identification Number (TIN).
1. “DOT” symbol
2. Tire Identification Number (TIN)
3. Tire manufacturer ’s identification mark
4. Tire size code
5. Manufacturer ’s optional tire type code (3 or 4 letters)
6. Manufacturing week
7. Manufacturing year The “DOT” symbol certifies that the
tire conforms to applicable Federal
Motor Vehicle Safety Standards.
—DOT and Tire Identification
Number (TIN)
