Downloaded from www.Manualslib.com manuals search engine 00-5 Precautions:
• When removing the battery, be sure to disconnect the
negative cable first and then the positive cable. When
reconnecting the battery, connect the positive cable
first and then the negative cable, and replace the
terminal cover.
• When removing parts that are to be reused, be sure to
keep them arranged in an orderly manner so that they
may be reinstalled in the proper order and position.
• Whenever you use oil seals, gaskets, packing, O-
rings, locking washers, split pins, self-locking nuts,
and certain other parts as specified, be sure to use
new ones. Also, before installing new gaskets,
packing, etc., be sure to remove any residual material
from the mating surfaces.• Make sure that all parts used in reassembly are
perfectly clean.
When use of a certain type of lubricant, bond or
sealant is specified, be sure to use the specified type.
“A”: Water tight sealant 99000–31250 (SUZUKI
Bond No.1207F)
• Be sure to use special tools when instructed.
Special tool
(A): 09917–98221
(B): 09916–58210
• When disconnecting vacuum hoses, attach a tag
describing the correct installation positions so that the
hoses can be reinstalled correctly.
I2RH01010027-01
I5RW0A000002-01
I2RH01010029-01
I2RH01010030-01
I2RH01010031-01
I2RH01010032-01

Downloaded from www.Manualslib.com manuals search engine 1D-22 Engine Mechanical:
Timing Chain Cover ComponentsS6RW0D1406014
I5RW0C140041-01
[A]: For engine with VVT 8. Timing chain cover mounting
nut17. Oil control valve
[B]: For engine without VVT 9. Oil gallery pipe No.1 18. Oil control valve mounting nut
1. Crankshaft pulley bolt 10. Copper washer 19. Cap
2. Crankshaft pulley 11. Oil gallery pipe No.1 bolt : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
3. Oil seal
: Apply engine oil to oil seal lip.12. Oil gallery pipe No.2 : 25 N⋅m (2.5 kgf-m, 18.0 lb-ft)
4. Timing chain cover
: Apply sealant 99000-31140 to the mating
surface of cylinder and cylinder head.
: Apply sealant 99000-31260 to the mating
surface of timing chain cover referring to the
figure of Step 4) of “Installation” under “Timing
Chain Cover Removal and Installation”.13. Oil gallery pipe No.2 bolt : 30 N⋅m (3.0 kgf-m, 22.0 lb-ft)
5. Pin 14. Oil gallery pipe No.3 : 150 N⋅m (15.0 kgf-m, 108.5 lb-ft)
6. Cap bolt 15. Oil gallery pipe No.3 bolt : Do not reuse.
7. Timing chain cover mounting bolts 16. O-ring
: Apply engine oil.

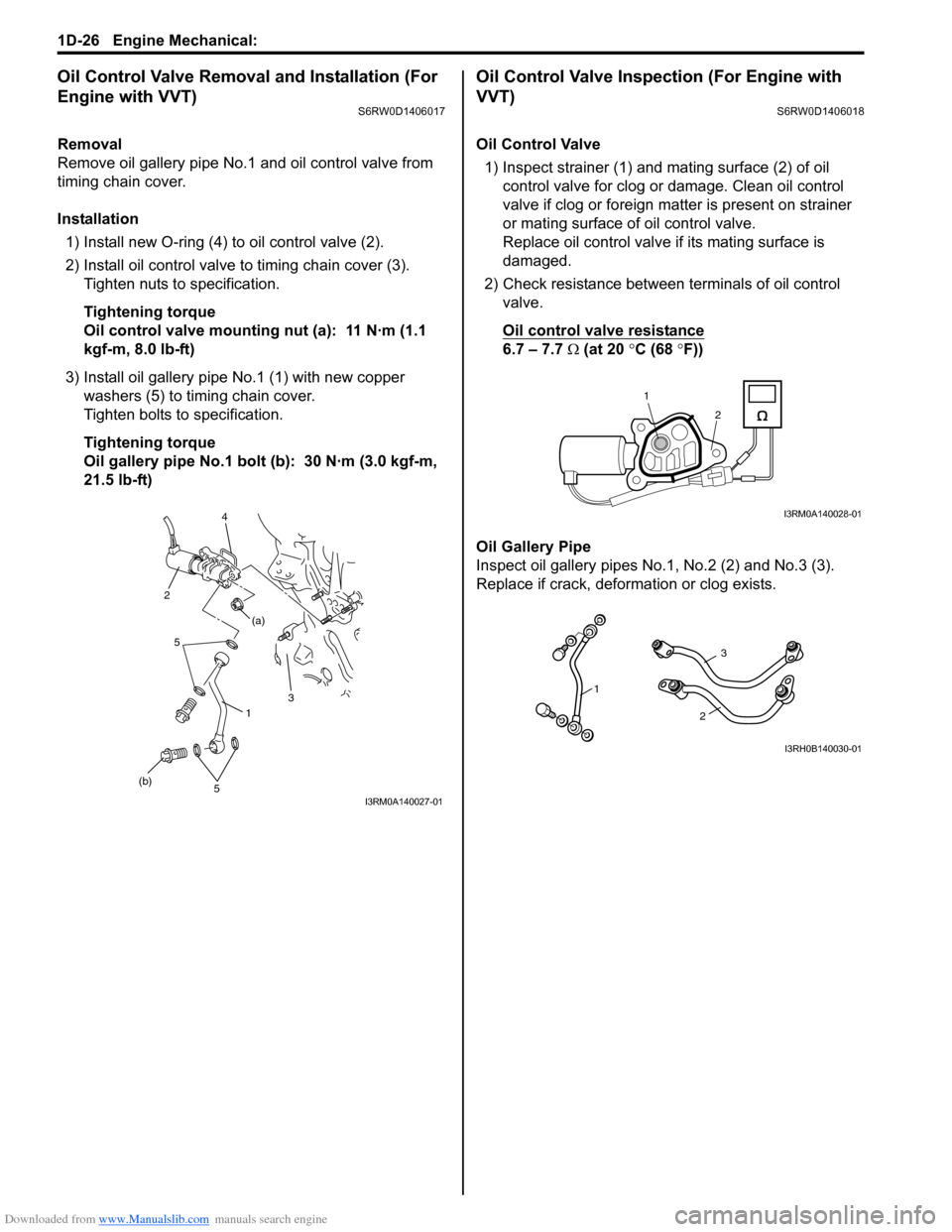

Downloaded from www.Manualslib.com manuals search engine 1D-26 Engine Mechanical:
Oil Control Valve Removal and Installation (For
Engine with VVT)
S6RW0D1406017
Removal
Remove oil gallery pipe No.1 and oil control valve from
timing chain cover.
Installation
1) Install new O-ring (4) to oil control valve (2).
2) Install oil control valve to timing chain cover (3).
Tighten nuts to specification.
Tightening torque
Oil control valve mounting nut (a): 11 N·m (1.1
kgf-m, 8.0 lb-ft)
3) Install oil gallery pipe No.1 (1) with new copper
washers (5) to timing chain cover.
Tighten bolts to specification.
Tightening torque
Oil gallery pipe No.1 bolt (b): 30 N·m (3.0 kgf-m,
21.5 lb-ft)
Oil Control Valve Inspection (For Engine with
VVT)
S6RW0D1406018
Oil Control Valve
1) Inspect strainer (1) and mating surface (2) of oil
control valve for clog or damage. Clean oil control
valve if clog or foreign matter is present on strainer
or mating surface of oil control valve.
Replace oil control valve if its mating surface is
damaged.
2) Check resistance between terminals of oil control
valve.
Oil control valve resistance
6.7 – 7.7 Ω (at 20 °C (68 °F))
Oil Gallery Pipe
Inspect oil gallery pipes No.1, No.2 (2) and No.3 (3).
Replace if crack, deformation or clog exists.
1
5 (b)3 (a) 24
5
I3RM0A140027-01
1
2
I3RM0A140028-01
1
3
2
I3RH0B140030-01

Downloaded from www.Manualslib.com manuals search engine Fuel System: 1G-10
Installation
Reverse removal procedure for installation noting the
following.
• Replace injector O-ring (1) with new one using care
not to damage it.
• Check if cushion (2) is scored or damaged. If it is,
replace with new one.
• Apply thin coat of fuel to O-rings (1), and then install
injectors (3) into delivery pipe (4) and cylinder head.
Make sure that injectors rotate smoothly (6). If not,
probable cause is incorrect installation of O-ring.
Replace O-ring with new one.
• Tighten delivery pipe bolts (5) to specified torque and
make sure that injectors rotate smoothly.
Tightening torque
Fuel delivery pipe bolt (a): 25 N·m (2.5 kgf-m, 18.0
lb-ft)
• After installation, with engine OFF and ignition switch
ON, check for fuel leaks around fuel line connection.Fuel Injector InspectionS6RW0D1706009
WARNING!
• Before starting the following procedure, be
sure to observe “Precautions on Fuel
System Service” in order to reduce the risk
of fire and personal injury.
• Put injector and battery as far away as
possible in order to reduce risk of fire and
personal injury when connecting/
disconnecting test lead to/from battery.

1) Relieve fuel pressure according to “Fuel Pressure
Relief Procedure” if equipped.
2) Disconnect fuel feed hose from delivery pipe.
3) Set special tools as follows.
Special tool
(A): 09912–58421
(B): 09930–88530
(C): 09912–57610
a) Fit washer (1) (inside diameter 13.5 – 14.5
mm(0.532 – 0.570 in.)) to injector (2), and then
install injector to special tool (A).
b) Connect special tool (B) to injector.
c) Install special tool (C) to special tool (A).
d) Connect fuel feed hose to special tool (A).
I3RM0A170011-01
(B)
(A)
(A)(C)
2
1
I6RW0B170014-01

Downloaded from www.Manualslib.com manuals search engine Fuel System: 1G-18
Special Tools and Equipment
Special ToolS6RW0D1708001
09912–57610 09912–58421
Injector checking tool plate Checking tool set
)This kit includes the
following items. 1. Tool body
and washer, 2. Body plug, 3.
Body attachment-1, 4.
Holder, 5. Return hose and
clamp, 6. Body attachment-2
and washer, 7. Hose
attachment-1, 8. Hose
attachment-2 )
09912–58432 09912–58442
Fuel pressure gauge hose Fuel pressure gauge
This tool is included in fuel
pressure gauge set (09912-
58413). )This tool is included in fuel
pressure gauge set (09912-
58413). )
09912–58490 09919–47020
3-way joint & hose Quick joint remover
))
09930–88530 SUZUKI scan tool (SUZUKI-
SDT)
Injector test lead —
)This kit includes following
items. 1. SUZUKI-SDT 2.
DLC3 cable 3. USB cable 4.
AC/DC power supply 5.
Voltage meter probe 6.
Storage case )
1
2
34
56

Downloaded from www.Manualslib.com manuals search engine 1J-10 Charging System:
Generator ComponentsS6RW0D1A06004
I4RS0A1A0004-01
1. Pulley nut 7. Bearing retainer 13. Seal plate 19. Brush holder cover : 3.6 N⋅m (0.36 kgf-m,
3.0 lb-ft)
2. Pulley 8. Rotor 14. Rectifier 20. Rear end cover : 2.0 N⋅m (0.2 kgf-m,
1.5 lb-ft)
3. Drive end frame 9. End housing bearing 15. Insulator 21. Terminal plate : 4.5 N⋅m (0.45 kgf-m,
3.5 lb-ft)
4. Stator 10. Bearing cover 16. Regulator : 111 N⋅m (11.1 kgf-m,
80.5 lb-ft):3.8 N⋅m (0.38 kgf-m,
3.0 lb-ft)
5. Stud bolt 11. Wave washer 17. Brush : 9.8 N⋅m (0.98 kgf-m,
7.0 lb-ft)
6. Drive end bearing 12. Rear end frame 18. Brush holder : 3.0 N⋅m (0.3 kgf-m, 2.5
lb-ft)

Downloaded from www.Manualslib.com manuals search engine Front Suspension: 2B-10
6) Pull out wheel hub (1) with special tools.
Special tool
(A): 09943–17912
(B): 09942–15511
CAUTION!
When wheel hub is removed, replace wheel
bearing with new one.

7) Disconnect tie-rod end (1) from steering knuckle (2)
with puller (3).
8) Remove wheel speed sensor (1) from knuckle.9) Loosen strut bracket nuts (1).
10) Remove ball joint bolt (4) and washer (3).
11) Remove strut bracket bolts (5) from strut bracket and
then steering knuckle (2).
12) Uncaulk and remove dust cover (1).
13) Remove circlip from knuckle.
14) Using hydraulic press (1) and special tool, remove
wheel bearing.
Special tool
(A): 09913–75510
(B): 09943–37910
I2RH01220028-01
1
2
3
1
I4RS0A220017-01
1
I5RW0A220013-01
F: Vehicle front
F
5
21
3
4
I7RW01220004-01
I2RH01220032-01
I5RW0A220014-01
