2006 SUZUKI SX4 Rear sensor

Downloaded from www.Manualslib.com manuals search engine ABS: 4E-36
Installation
1) Check that no foreign material is attached to sensor
(1) and wheel speed sensor encoder (included in
wheel hub assembly).
2) Install it by reversing removal procedure.
NOTE
Before fitting wheel speed sensor, be sure to
silicon grease to its O-ring.

Tightening torque
Front wheel speed sensor bolt (a): 11 N·m (1.1
kgf-m, 8.0 lb-ft)
Front wheel speed sensor harness clamp bolt
(b): 11 N·m (1.1 kgf-m, 8.0 lb-ft)
3) Check that there is no clearance between sensor
and knuckle.
Front and Rear Wheel Speed Sensor InspectionS6RW0D4506007
Check sensor for damage.
If any malcondition is found, replace.
Rear Wheel Speed Sensor Removal and
Installation (4WD Model)
S6RW0D4506008
CAUTION!
Rear wheel speed sensor is included in rear
wheel hub assembly. If rear wheel speed
sensor needs to be replaced, replace it as a
rear wheel hub assembly.

For removal and Installation of rear wheel speed sensor
(included in rear wheel hub), refer to “Rear Wheel Hub
Assembly Removal and Installation in Section 2C”.
Rear Wheel Speed Sensor Removal and
Installation (2WD Model)
S6RW0D4506009
CAUTION!
• Do not pull wire harness when removing
and installing rear wheel speed sensor.
• Do not cause damage to surface of rear
wheel speed sensor and do not allow dust,
etc. to enter its installation hole.

Removal
1) Disconnect negative (–) cable from battery.
2) Hoist vehicle, and remove wheel.
3) Disconnect rear wheel speed sensor connector.
4) Remove harness clamp.
5) Remove rear wheel speed sensor from wheel hub.
Installation
1) Check that no foreign material is attached to sensor
and encoder (included in wheel hub assembly).
2) Install it by reversing removal procedure.
NOTE
Before fitting wheel speed sensor, be sure to
silicon grease to its O-ring.

Tightening torque
Rear wheel speed sensor bolt: 11 N·m (1.1 kgf-
m, 8.0 lb-ft)
3) Check that there is no clearance between sensor
and wheel hub.[A]: OK [B]: NG
1
2
(b)
(a)
I5RW0A450025-01
[A][B]
11
I5RW0A450024-01
I5JB0A450031-01
[A]: OK [B]: NG
[A][B]
11
I5RW0A450024-01

Downloaded from www.Manualslib.com manuals search engine 4E-37 ABS:
Front Wheel Speed Sensor Encoder On-Vehicle
Inspection
S6RW0D4506010
Before inspecting front wheel speed sensor encoder,
remove front drive shaft referring to “Front Drive Shaft
Assembly Removal and Installation in Section 3A”.
• Check sensor encoder (1) for crack, damage or
deformation.
• Turn wheel and check if sensor encoder rotation is
free from eccentricity and looseness.
• Check that no foreign material is attached.
If any faulty is found, clean or replace. Refer to “Front
Wheel Hub, Steering Knuckle and Wheel Bearing
Removal and Installation in Section 2B”.
Front Wheel Speed Sensor Encoder Removal
and Installation
S6RW0D4506011
CAUTION!
Front wheel speed sensor encoder is
included in front wheel hub assembly. If front
wheel speed sensor encoder needs to be
replaced, replace it as a front wheel hub
assembly.

For removal and installation of front wheel hub
assembly, referring to “Front Wheel Hub, Steering
Knuckle and Wheel Bearing Removal and Installation in
Section 2B”.
Rear Wheel Speed Sensor Encoder On-Vehicle
Inspection
S6RW0D4506012
For 4WD model
Refer to “Rear Wheel Speed Sensor On-Vehicle
Inspection”.
For 2WD model
Before inspecting rear wheel speed sensor encoder,
remove rear wheel speed sensor referring to “Rear
Wheel Speed Sensor Removal and Installation (2WD
Model)”.
• Check encoder (1) for crack, damage or deformation.
• Turn wheel and check if encoder rotation is free from
eccentricity and looseness.
• Check that no foreign material is attached.
If any faulty is found, clean or replace. Refer to “Rear
Wheel Hub Assembly Removal and Installation in
Section 2C”.
Rear Wheel Speed Sensor Encoder Removal
and Installation
S6RW0D4506013
CAUTION!
Rear wheel speed sensor encoder is included
in rear wheel hub assembly. If rear wheel
speed sensor encoder needs to be replaced,
replace it as a rear wheel hub assembly.

For removal and installation of front wheel hub
assembly, referring to “Rear Wheel Hub Assembly
Removal and Installation in Section 2C”.
1
I5RW0A450026-01

Downloaded from www.Manualslib.com manuals search engine 4E-39 ABS:
Specifications
Tightening Torque SpecificationsS6RW0D4507001
NOTE
The specified tightening torque is also described in the following.
“ABS Hydraulic Unit / Control Module Assembly Components”

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fasteners Information in Section 0A”.
Special Tools and Equipment
Special ToolS6RW0D4508001
Fastening partTightening torque
Note
N⋅mkgf-mlb-ft
Brake pipe flare nut 16 1.6 11.5)
ABS hydraulic unit / control module assembly
bolt90.9 6.5)
ABS hydraulic unit / control module assembly
bracket bolt26 2.6 19.0)
Front wheel speed sensor bolt 11 1.1 8.0)
Front wheel speed sensor harness clamp bolt 11 1.1 8.0)
Rear wheel speed sensor bolt 11 1.1 8.0)
G sensor bolt 3.0 0.3 2.2)
09950–78220 SUZUKI scan tool
Flare nut wrench (10 mm) —
)This kit includes following
items. 1. Tech 2, 2. PCMCIA
card, 3. DLC cable, 4. SAE
16/19 adapter, 5. Cigarette
cable, 6. DLC loop back
adapter, 7. Battery power
cable, 8. RS232 cable, 9.
RS232 adapter, 10. RS232
loop back connector, 11.
Storage case, 12. ) / )

Downloaded from www.Manualslib.com manuals search engine 5-ii Table of Contents
DTC P1723: Range Select Switch
Malfunction ...................................................... 5A-68
DTC P1878: Torque Converter Clutch
Shudder .......................................................... 5A-69
DTC P2762: Torque Converter Clutch (TCC)
Pressure Control Solenoid Control Circuit
Range / Performance ...................................... 5A-70
DTC P2763: Torque Converter Clutch (TCC)
Pressure Control Solenoid Control Circuit
High ................................................................. 5A-72
DTC P2764: Torque Converter Clutch (TCC)
Circuit Pressure Control Solenoid Control
Circuit Low ...................................................... 5A-74
DTC U0073: Control Module Communication
Bus Off ............................................................ 5A-76
DTC U0100: Lost Communication with ECM /
PCM “A” .......................................................... 5A-76
Inspection of TCM and Its Circuits .................... 5A-76
TCM Power and Ground Circuit Check ............. 5A-80
Brake Interlock System Inspection .................... 5A-81
Repair Instructions ............................................5A-82
Learning Control Initialization ............................ 5A-82
A/T Fluid Level Check ....................................... 5A-82
A/T Fluid Change .............................................. 5A-83
Select Lever Components ................................. 5A-84
Select Lever Assembly Removal and
Installation ....................................................... 5A-84
Select Lever Knob Installation........................... 5A-84
Select Lever Inspection ..................................... 5A-85
“3” Position Switch Inspection ........................... 5A-85
Shift Lock Solenoid Inspection .......................... 5A-85
Shift Lock Solenoid Replacement ..................... 5A-85
Select Cable Components ................................ 5A-86
Select Cable Removal and Installation ............. 5A-86
Select Cable Adjustment ................................... 5A-86
Key Interlock Cable Removal and Installation... 5A-87
Transmission Range Sensor Inspection and
Adjustment ...................................................... 5A-89
Output Shaft Speed Sensor (VSS) Removal
and Installation ................................................ 5A-90
Output Shaft Speed Sensor (VSS) Inspection .. 5A-90
Input Shaft Speed Sensor Removal and
Installation ....................................................... 5A-91
Input Shaft Speed Sensor Inspection................ 5A-91
Transmission Fluid Temperature Sensor
Removal and Installation ................................. 5A-91
Transmission Fluid Temperature Sensor
Inspection ........................................................ 5A-92
Solenoid Valves (Shift Solenoid Valves and
Timing Solenoid Valve) Removal and
Installation ....................................................... 5A-92
Solenoid Valves (Shift Solenoid Valves and
Timing Solenoid Valve) Inspection .................. 5A-94
Pressure Control Solenoid Valves (Pressure
Control Solenoid and TCC Solenoid)
Removal and Installation ................................. 5A-95
Pressure Control Solenoid Valves Inspection ... 5A-96
Transmission Control Module (TCM)
Removal and Installation ................................. 5A-97
A/T Relay Inspection ......................................... 5A-97Differential Side Oil Seal Replacement ............. 5A-98
A/T Fluid Cooler Hoses Replacement ............... 5A-98
Automatic Transaxle Unit Components............. 5A-99
Automatic Transaxle Unit Dismounting and
Remounting ................................................... 5A-100
Automatic Transaxle Assembly Components . 5A-102
Automatic Transaxle Unit Disassembly........... 5A-104
Oil Pump Assembly Components ................... 5A-116
Oil Pump Assembly Disassembly and
Reassembly .................................................. 5A-116
Oil Pump Assembly Inspection ....................... 5A-117
Direct Clutch Assembly Components.............. 5A-119
Direct Clutch Assembly Preliminary Check ..... 5A-119
Direct Clutch Assembly Disassembly and
Reassembly .................................................. 5A-120
Direct Clutch Assembly Inspection.................. 5A-122
Forward and Reverse Clutch Assembly
Components .................................................. 5A-123
Forward and Reverse Clutch Assembly
Preliminary Check ......................................... 5A-123
Forward and Reverse Clutch Assembly
Disassembly and Reassembly ...................... 5A-124
Forward and Reverse Clutch Assembly
Inspection ...................................................... 5A-127
2nd Brake Piston Assembly Components ....... 5A-128
2nd Brake Piston Assembly Disassembly and
Reassembly .................................................. 5A-128
Transaxle Rear Cover (O/D and 2nd Coast
Brake Piston) Assembly Components........... 5A-129
Transaxle Rear Cover (O/D and 2nd Coast
Brake Piston) Assembly Disassembly and
Reassembly .................................................. 5A-130
Transaxle Rear Cover (O/D and 2nd Coast
Brake Piston) Assembly Inspection............... 5A-131
Countershaft Assembly Components.............. 5A-132
Countershaft Assembly Disassembly and
Reassembly .................................................. 5A-132
Valve Body Assembly Components ................ 5A-133
Valve Body Assembly Disassembly and
Reassembly .................................................. 5A-134
Differential Assembly Components ................. 5A-135
Differential Assembly Disassembly and
Reassembly .................................................. 5A-136
Differential Assembly Inspection ..................... 5A-137
Torque Converter Housing Disassembly and
Reassembly .................................................. 5A-138
Transaxle Case Disassembly and
Reassembly .................................................. 5A-140
Automatic Transaxle Unit Inspection and
Adjustment .................................................... 5A-141
Automatic Transaxle Unit Assembly ............... 5A-144
Specifications ...................................................5A-161
Tightening Torque Specifications .................... 5A-161
Special Tools and Equipment .........................5A-162
Recommended Service Material ..................... 5A-162
Special Tool .................................................... 5A-162
Manual Transmission/Transaxle ............ 5B-1
General Description .............................................5B-1
Manual Transaxle Construction .......................... 5B-1

Downloaded from www.Manualslib.com manuals search engine 5A-4 Automatic Transmission/Transaxle:
I5RW0C510070-01
1. Drive plate 11. 1st and reverse brake 21. Rear sun gear
2. Torque converter clutch (TCC) 12. Ring gear 22. Front sun gear
3. Torque converter 13. Long planet pinion 23. Short planet pinion
4. Input shaft 14. One-way No.2 clutch 24. Countershaft
5. Oil pump 15. 2nd brake 25. Reduction driven gear
6. Direct clutch drum (double as sensor rotor for input shaft
speed sensor)16. One-way No.1 clutch 26. Differential case assembly
7. Direct clutch 17. O/D and 2nd coast brake 27. Final gear
8. Parking lock gear 18. Intermediate shaft 28. Output shaft speed sensor (VSS) drive gear
9. Reduction drive gear 19. Forward clutch
10. Planet carrier 20. Reverse clutch

Downloaded from www.Manualslib.com manuals search engine 5A-32 Automatic Transmission/Transaxle:

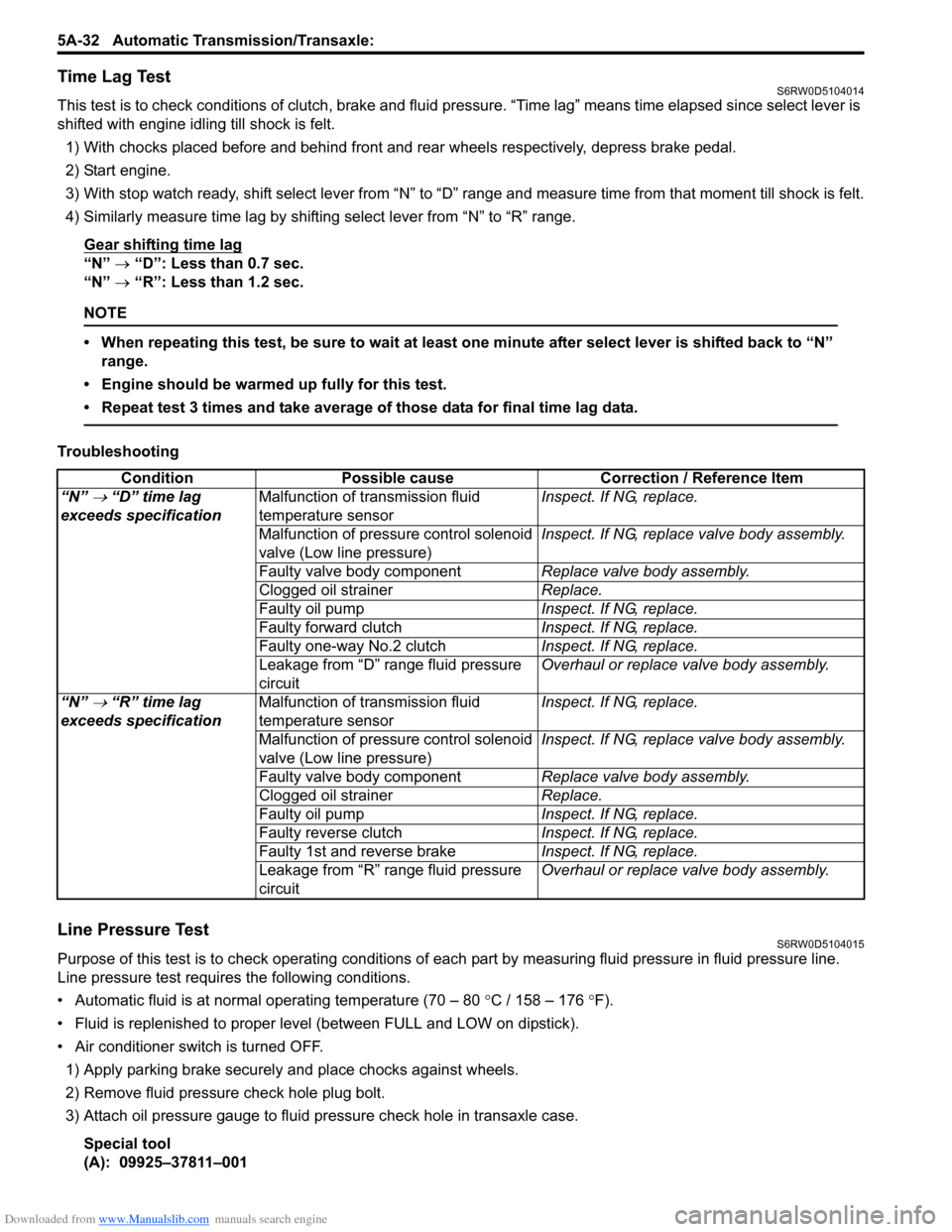

Time Lag TestS6RW0D5104014
This test is to check conditions of clutch, brake and fluid pressure. “Time lag” means time elapsed since select lever is
shifted with engine idling till shock is felt.
1) With chocks placed before and behind front and rear wheels respectively, depress brake pedal.
2) Start engine.
3) With stop watch ready, shift select lever from “N” to “D” range and measure time from that moment till shock is felt.
4) Similarly measure time lag by shifting select lever from “N” to “R” range.
Gear shifting time lag
“N” → “D”: Less than 0.7 sec.
“N” → “R”: Less than 1.2 sec.
NOTE
• When repeating this test, be sure to wait at least one minute after select lever is shifted back to “N”
range.
• Engine should be warmed up fully for this test.
• Repeat test 3 times and take average of those data for final time lag data.

Troubleshooting
Line Pressure TestS6RW0D5104015
Purpose of this test is to check operating conditions of each part by measuring fluid pressure in fluid pressure line.
Line pressure test requires the following conditions.
• Automatic fluid is at normal operating temperature (70 – 80 °C / 158 – 176 °F).
• Fluid is replenished to proper level (between FULL and LOW on dipstick).
• Air conditioner switch is turned OFF.
1) Apply parking brake securely and place chocks against wheels.
2) Remove fluid pressure check hole plug bolt.
3) Attach oil pressure gauge to fluid pressure check hole in transaxle case.
Special tool
(A): 09925–37811–001Condition Possible cause Correction / Reference Item
“N”
→ “D” time lag
exceeds specificationMalfunction of transmission fluid
temperature sensorInspect. If NG, replace.
Malfunction of pressure control solenoid
valve (Low line pressure)Inspect. If NG, replace valve body assembly.
Faulty valve body componentReplace valve body assembly.
Clogged oil strainerReplace.
Faulty oil pumpInspect. If NG, replace.
Faulty forward clutchInspect. If NG, replace.
Faulty one-way No.2 clutchInspect. If NG, replace.
Leakage from “D” range fluid pressure
circuitOverhaul or replace valve body assembly.
“N”
→ “R” time lag
exceeds specificationMalfunction of transmission fluid
temperature sensorInspect. If NG, replace.
Malfunction of pressure control solenoid
valve (Low line pressure)Inspect. If NG, replace valve body assembly.
Faulty valve body componentReplace valve body assembly.
Clogged oil strainerReplace.
Faulty oil pumpInspect. If NG, replace.
Faulty reverse clutchInspect. If NG, replace.
Faulty 1st and reverse brakeInspect. If NG, replace.
Leakage from “R” range fluid pressure
circuitOverhaul or replace valve body assembly.

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-103
1. Torque converter 37. Transmission range sensor 73. Rear planetary sun gear subassembly
2. Torque converter housing
: Apply sealant 99000-31230 to mating
surface to transaxle case.38. Cooler check valve 74. Rear sun gear thrust bearing race
3. Oil strainer assembly
: Replace oil strainer when overhauling.39. Spring 75. Rear sun gear thrust bearing
4. Parking lock pawl shaft 40. Transaxle case plug 76. Forward clutch hub
5. Parking lock pawl 41. Fluid filler tube 77. Intermediate shaft thrust bearing race
6. Parking lock pawl return spring 42. Fluid level gauge 78. Intermediate shaft thrust bearing
7. Parking lock pawl rod 43. Fluid cooler inlet pipe 79. 2nd brake piston snap ring
8. Parking lock pawl bracket 44. Fluid cooler outlet pipe 80. O/D and 2nd coast brake retaining
plate snap ring
9. Manual detent spring 45. 2nd brake gasket 81. O/D and 2nd coast brake retaining
plate
10. Manual valve lever 46. Brake drum gasket 82. O/D and 2nd coast brake disc
11. Manual valve lever pin 47. Pipe union 83. O/D and 2nd coast brake separator
plate
12. Manual shift shaft 48. Reduction drive gear nut
: After tightening nut so as rotational
torque of reduction drive gear to be in
specified value, caulk nut securely.84. O/D and 2nd coast brake rear plate
13. Manual shift shaft oil seal
: Apply grease 99000-25030 to oil seal
lip.49. Reduction drive gear 85. Rear cover seal ring
14. Differential side oil seal
: Apply grease 99000-25030 to oil seal
lip.50. Planetary ring gear subassembly 86. Reverse clutch drum thrust bearing
15. Torque converter housing plug 51. Breather hose 87. Rear cover plug
16. Lubrication LH tube 52. Breather union 88. Transaxle rear cover
: Apply sealant 99000-31230 to mating
surface.
17. Lubrication RH tube 53. Input shaft speed sensor 89. Harness bracket
18. Fluid reservoir RH plate 54. Valve body harness 90. Select cable clamp
19. Input shaft front thrust bearing 55. 1st and reverse brake piston 91. Governor apply No.1 gasket
20. Input shaft rear thrust bearing 56. O-ring 92. Output shaft speed sensor (VSS)
21. Input shaft rear thrust bearing race 57. 1st and reverse brake return spring
subassembly93. One-way clutch outer race retainer
22. Direct clutch hub 58. 1st and reverse brake disc 94. Select cable bracket
23. Lubrication tube clamp 59. 1st and reverse brake separator plate : Do not reuse.
24. Fluid reservoir LH plate 60. 1st and reverse brake retaining plate : Apply automatic transaxle fluid.
25. Governor apply No.2 gasket 61. 1st and reverse brake snap ring : 5.5 N⋅m (0.55 kgf-m, 4.0 lb-ft)
26. Automatic transaxle case 62. Planetary gear assembly : 7.0 N⋅m (0.7 kgf-m, 5.0 lb-ft)
27. Accumulator piston O-ring 63. Planetary carrier thrust washer
: Apply grease 99000-25030 to slide
contact face.: 7.5 N⋅m (0.75 kgf-m, 5.5 lb-ft)
28. Accumulator spring 64. One-way clutch No.2 assembly : 10 N⋅m (1.0 kgf-m, 7.5 lb-ft)
29. C2 accumulator piston 65. 2nd brake retaining plate : 13 N⋅m (1.3 kgf-m, 9.5 lb-ft)
30. C1 accumulator piston 66. 2nd brake disc : 17 N⋅m (1.7 kgf-m, 12.5 lb-ft)
31. B1 accumulator piston 67. 2nd brake separator plate : 35 N⋅m (3.5 kgf-m, 25.5 lb-ft)
32. Oil pan gasket 68. 2nd brake return spring subassembly : 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
33. Oil pan 69. Front sun gear thrust bearing race : 25 N⋅m (2.5 kgf-m, 18.0 lb-ft)
34. A/T fluid drain plug 70. Front planetary sun gear : 33 N⋅m (3.3 kgf-m, 24.0 lb-ft)
35. Manual select lever 71. Planetary gear thrust bearing
36. Lock washer 72. One-way clutch No.1 assembly

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-161
Specifications
Tightening Torque SpecificationsS6RW0D5107001
NOTE
The specified tightening torque is also described in the following.
“Select Cable Components”
“Automatic Transaxle Unit Components”
“Automatic Transaxle Assembly Components”
“Oil Pump Assembly Components”
“Transaxle Rear Cover (O/D and 2nd Coast Brake Piston) Assembly Components”
“Valve Body Assembly Components”
“Differential Assembly Components”

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fasteners Information in Section 0A”. Fastening partTightening torque
Note
N⋅mkgf-mlb-ft
A/T fluid drain plug 17 1.7 12.5) / ) / )
Transmission range sensor bolt 5.5 0.55 4.0) / )
Output shaft speed sensor (VSS) bolt 13 1.3 9.5) / )
Input shaft speed sensor bolt 5.5 0.55 4.0) / )
Valve body harness connector bolt 5.5 0.55 4.0) / )
Shift solenoid bolt 11 1.1 8.0)
Oil strainer bolt 10 1.0 7.5) / )
Oil pan bolt 7.0 0.7 5.0) / )
Engine oil pan bolt 55 5.5 40.0)
Transaxle and engine fastening bolt 85 8.5 61.5)
Transaxle and engine fastening nut 85 8.5 61.5)
Drive plate to torque converter bolt 19 1.9 14.0)
Transaxle housing lower plate bolt 11 1.1 8.0)
Oil pump subassembly bolt 10 1.0 7.5)
Rear cover plug 7.5 0.75 5.5)
Solenoid valve bolt 11 1.1 8.0)
Final gear bolt 78 7.8 56.5)
Torque converter housing plug 7.5 0.75 5.5)
Lubrication tube clamp bolt 5.5 0.55 4.0)
Fluid reservoir RH plate bolt 5.5 0.55 4.0)
Torque converter housing bolt 33 3.3 24.0) / ) / )
Manual detent spring bolt 10 1.0 7.5)
Parking lock pawl bracket bolt 7.5 0.75 5.5)
Rear cover bolt 25 2.5 18.0)
Fluid reservoir LH plate bolt 10 1.0 7.5)
Oil pump assembly bolt 25 2.5 18.0)
Transaxle case plug 7.5 0.75 5.5)
Valve body bolt 11 1.1 8.0)
Fluid cooler pipe union 25 2.5 18.0)
Fluid cooler pipe union bolt 35 3.5 25.5)
Fluid cooler pipe bracket bolt 10 1.0 7.5)
Fluid filler tube bolt 10 1.0 7.5)
Select cable bracket bolt 23 2.3 17.0)
Select cable clamp bolt 13 1.3 9.5)
Transmission range sensor lock nut 7 0.7 5.0)
Manual select lever nut 13 1.3 9.5)
