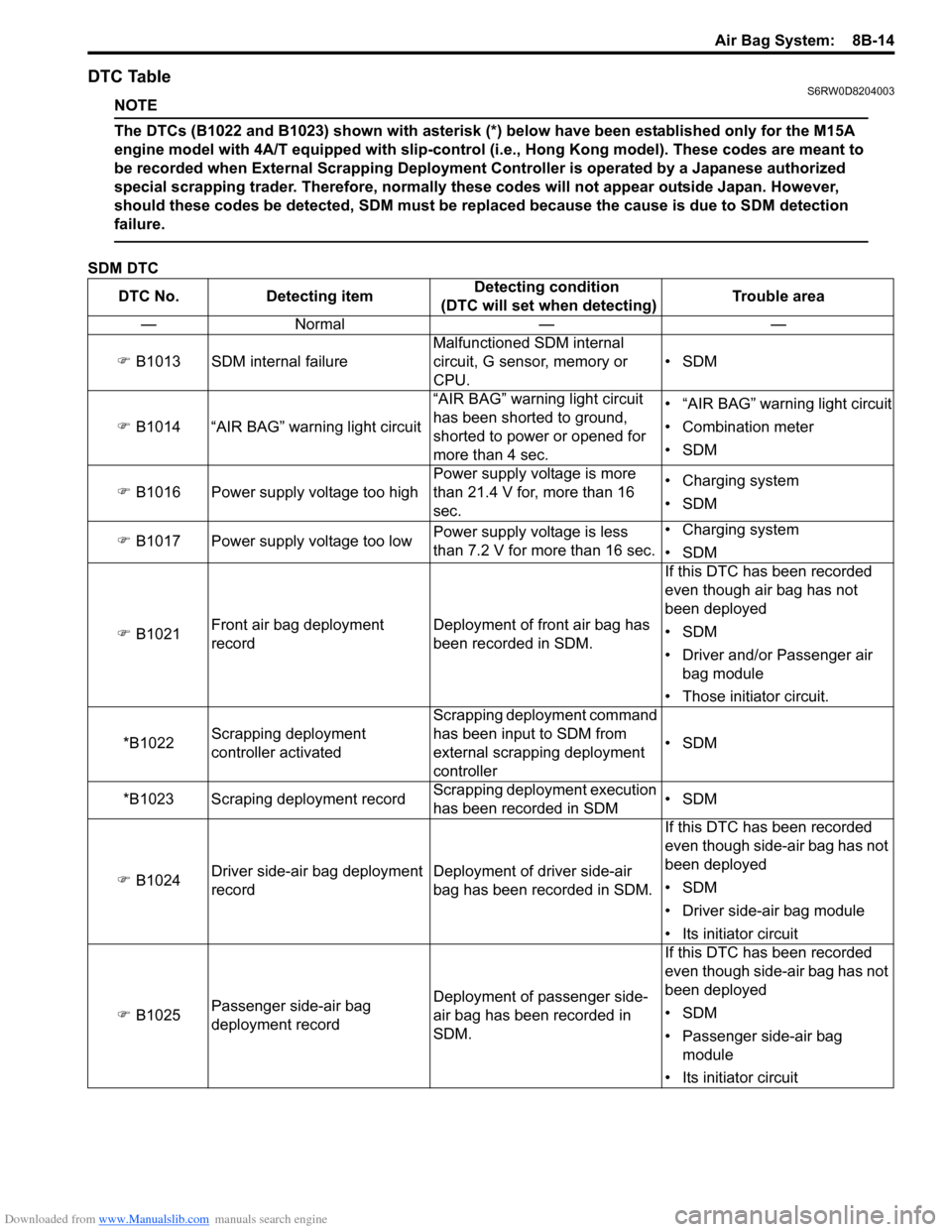

DTC TableS6RW0D8204003
NOTE
The DTCs (B1022 and B1023) shown with asterisk (*) below have been established only for the M15A
engine model with 4A/T equipped with slip-control (i.e., Hong Kong model). These codes are meant to
be recorded when External Scrapping Deployment Controller is operated by a Japanese authorized
special scrapping trader. Therefore, normally these codes will not appear outside Japan. However,
should these codes be detected, SDM must be replaced because the cause is due to SDM detection
failure.

SDM DTC
DTC No. Detecting itemDetecting condition
(DTC will set when detecting)Trouble area
—Normal — —
) B1013 SDM internal failureMalfunctioned SDM internal
circuit, G sensor, memory or
CPU.•SDM
) B1014 “AIR BAG” warning light circuit“AIR BAG” warning light circuit
has been shorted to ground,
shorted to power or opened for
more than 4 sec.• “AIR BAG” warning light circuit
• Combination meter
•SDM
) B1016 Power supply voltage too highPower supply voltage is more
than 21.4 V for, more than 16
sec.• Charging system
•SDM
) B1017 Power supply voltage too lowPower supply voltage is less
than 7.2 V for more than 16 sec.• Charging system
•SDM
) B1021Front air bag deployment
recordDeployment of front air bag has
been recorded in SDM.If this DTC has been recorded
even though air bag has not
been deployed
•SDM
• Driver and/or Passenger air
bag module
• Those initiator circuit.
*B1022Scrapping deployment
controller activatedScrapping deployment command
has been input to SDM from
external scrapping deployment
controller•SDM
*B1023 Scraping deployment recordScrapping deployment execution
has been recorded in SDM•SDM
) B1024Driver side-air bag deployment
recordDeployment of driver side-air
bag has been recorded in SDM.If this DTC has been recorded
even though side-air bag has not
been deployed
•SDM
• Driver side-air bag module
• Its initiator circuit
) B1025Passenger side-air bag
deployment recordDeployment of passenger side-
air bag has been recorded in
SDM.If this DTC has been recorded
even though side-air bag has not
been deployed
•SDM
• Passenger side-air bag
module
• Its initiator circuit

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-16
) B1057Passenger seat belt
pretensioner circuit shorted to
groundPassenger seat belt pretensioner
circuit has been shorted to
ground for more than 4 sec.• Passenger seat belt
pretensioner circuit
•SDM
) B1058Passenger seat belt
pretensioner circuit shorted to
power supplyPassenger seat belt pretensioner
circuit has been shorted to power
circuit for more than 4 sec.
) B1061Driver side-air bag circuit high
resistance Driver side-air bag circuit is more
than 3.7 Ω for more than 4 sec.• Driver side-air bag circuit
• Driver side-air bag module
•SDM ) B1062Driver side-air bag circuit low
resistance Driver side-air bag circuit is less
than 1.0 Ω for more than 4 sec.
) B1063Driver side-air bag circuit
shorted to groundDriver side-air bag circuit has
been shorted to ground for more
than 4 sec.• Driver side-air bag circuit
•SDM
) B1064Driver side-air bag circuit
shorted to power supplyDriver side-air bag circuit has
been shorted to power supply for
more than 4 sec.
) B1065Passenger side-air bag circuit
high resistance Passenger side-air bag circuit is
more than 3.7 Ω for more than 4
sec.• Passenger side-air bag circuit
• Driver side-air bag module
•SDM
) B1066Passenger side-air bag circuit
low resistance Passenger side-air bag circuit is
less than 1.0 Ω for more than 4
sec.
) B1067Passenger side-air bag circuit
shorted to groundPassenger side-air bag circuit
has been shorted to ground for
more than 4 sec.• Passenger side-air bag circuit
•SDM
) B1068Passenger side-air bag circuit
shorted to powerPassenger side-air bag circuit
has been shorted to power circuit
for more than 4 sec.
) B1071Driver forward impact-sensor
communication data
inconsistent Driver forward impact-sensor
has been communicated with no
response or inconsistent ID code
for more than 4 sec.• Driver forward impact-sensor
• Driver forward impact-sensor
circuit
•SDM
) B1072Driver forward impact-sensor
communication data invalid Driver forward impact-sensor
has been communicated with
invalid data for more than 4 sec.• Driver forward impact-sensor
•SDM
)
B1073Driver forward impact-sensor
circuit shorted to groundDriver forward impact-sensor
circuit has been shorted to
ground for more than 4 sec.• Driver forward impact-sensor
• Driver forward impact-sensor
circuit
•SDM ) B1074Driver forward impact-sensor
circuit openDriver forward impact-sensor
circuit has been shorted to power
circuit or opened for more than 4
sec.
) B1081Driver side impact-sensor no
responseDriver side impact-sensor has
been communicated with no
response for more than 4 sec.• Driver side impact-sensor
circuit
• Driver side impact-sensor
•SDM
) B1082Driver side impact-sensor
communication data invalidDriver side impact-sensor has
been communicated with invalid
data for more than 4 sec.• Driver side impact-sensor
•SDM
) B1083Driver side impact-sensor
circuit shorted to groundDriver side impact-sensor circuit
has been shorted to ground for
more than 4 sec.• Driver side impact-sensor
circuit
• Driver side impact-sensor
•SDM ) B1084Driver side impact-sensor
circuit openDriver side impact-sensor circuit
has been shorted to power circuit
or opened for more than 4 sec. DTC No. Detecting itemDetecting condition
(DTC will set when detecting)Trouble area

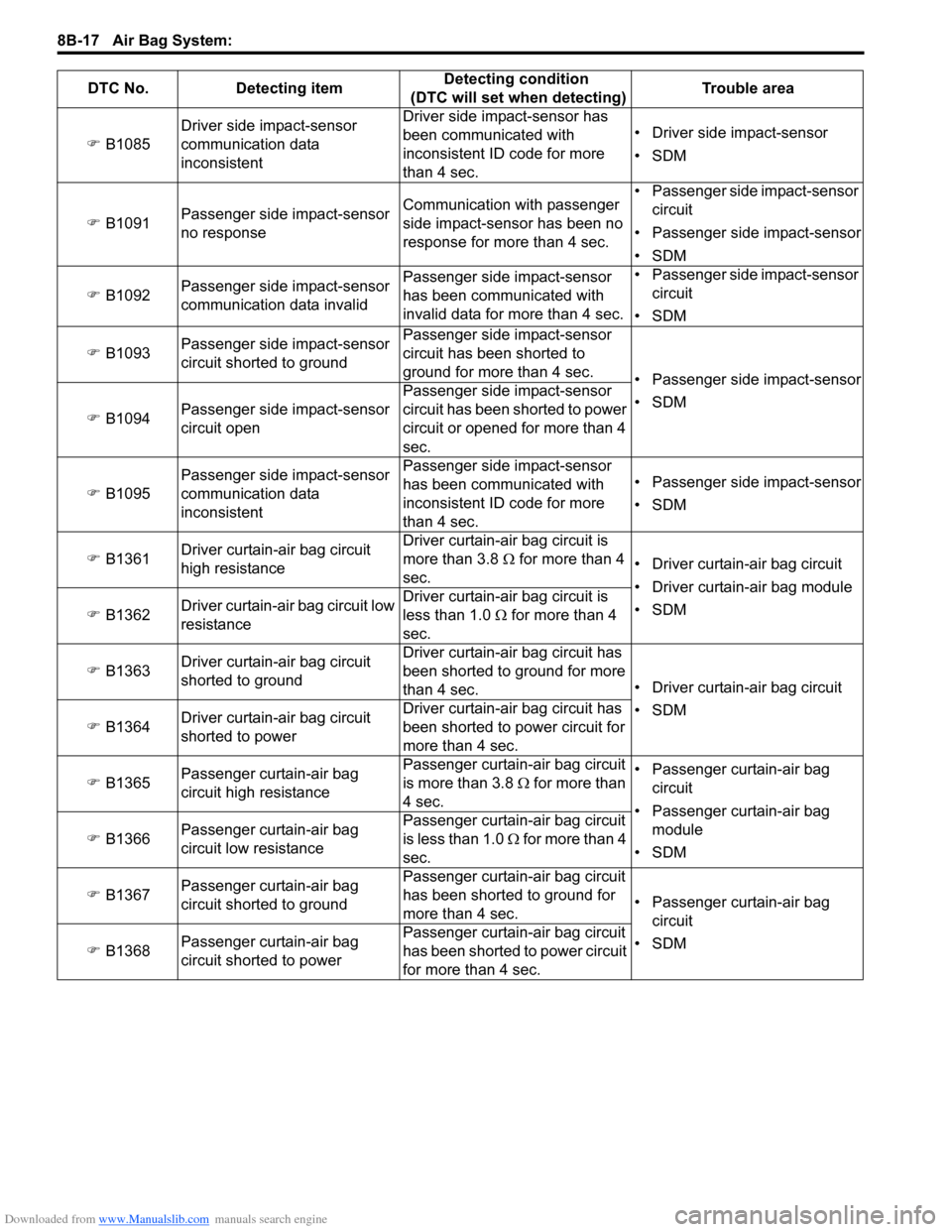

Downloaded from www.Manualslib.com manuals search engine 8B-17 Air Bag System:
) B1085Driver side impact-sensor
communication data
inconsistent Driver side impact-sensor has
been communicated with
inconsistent ID code for more
than 4 sec.• Driver side impact-sensor
•SDM
) B1091Passenger side impact-sensor
no responseCommunication with passenger
side impact-sensor has been no
response for more than 4 sec.• Passenger side impact-sensor
circuit
• Passenger side impact-sensor
•SDM
) B1092Passenger side impact-sensor
communication data invalidPassenger side impact-sensor
has been communicated with
invalid data for more than 4 sec.• Passenger side impact-sensor
circuit
•SDM
) B1093Passenger side impact-sensor
circuit shorted to groundPassenger side impact-sensor
circuit has been shorted to
ground for more than 4 sec.
• Passenger side impact-sensor
•SDM
) B1094Passenger side impact-sensor
circuit openPassenger side impact-sensor
circuit has been shorted to power
circuit or opened for more than 4
sec.
) B1095Passenger side impact-sensor
communication data
inconsistentPassenger side impact-sensor
has been communicated with
inconsistent ID code for more
than 4 sec.• Passenger side impact-sensor
•SDM
) B1361Driver curtain-air bag circuit
high resistanceDriver curtain-air bag circuit is
more than 3.8 Ω for more than 4
sec. • Driver curtain-air bag circuit
• Driver curtain-air bag module
•SDM
) B1362Driver curtain-air bag circuit low
resistanceDriver curtain-air bag circuit is
less than 1.0 Ω for more than 4
sec.
) B1363Driver curtain-air bag circuit
shorted to groundDriver curtain-air bag circuit has
been shorted to ground for more
than 4 sec.• Driver curtain-air bag circuit
•SDM
) B1364Driver curtain-air bag circuit
shorted to powerDriver curtain-air bag circuit has
been shorted to power circuit for
more than 4 sec.
) B1365Passenger curtain-air bag
circuit high resistancePassenger curtain-air bag circuit
is more than 3.8 Ω for more than
4 sec.• Passenger curtain-air bag
circuit
• Passenger curtain-air bag
module
•SDM ) B1366Passenger curtain-air bag
circuit low resistancePassenger curtain-air bag circuit
is less than 1.0 Ω for more than 4
sec.
) B1367Passenger curtain-air bag
circuit shorted to groundPassenger curtain-air bag circuit
has been shorted to ground for
more than 4 sec.• Passenger curtain-air bag
circuit
•SDM
) B1368Passenger curtain-air bag
circuit shorted to powerPassenger curtain-air bag circuit
has been shorted to power circuit
for more than 4 sec. DTC No. Detecting itemDetecting condition
(DTC will set when detecting)Trouble area

Downloaded from www.Manualslib.com manuals search engine 8B-25 Air Bag System:
DTC B1013: SDM Internal FailureS6RW0D8204010
DTC Detecting Condition and Trouble Area
NOTE
DTC B1013 can never be cleared once it has been set.

DTC Troubleshooting
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

7Serial communication circuit check
1) With ignition switch turned OFF, disconnect SDM
connector “L04” and check for proper connection at
SDM connector terminal.
2) If connections are OK, check that “Serial data circuit” is
as follows.
• Insulation resistance of “Serial data circuit” wire is
infinity between its terminal and other terminals at
SDM connector.
• Insulation resistance of “Serial data circuit” wire is
infinity between its terminal and vehicle body ground.
Is circuit in good condition?Go to Step 8. Repair or replace
defective circuit.
8Scan tool operation check
1) Check if communication is possible by making
communication with other vehicles.
Is it possible to communicate with the other vehicle?Scan tool is in good
condition, check
intermittent trouble
referring to “Intermittent
and Poor Connection
Inspection in Section
00”.Recheck PCMCIA card
and DLC cable for faulty
condition. If they are
OK, scan tool is faulty. Step Action Yes No
DTC detecting condition Trouble area
Malfunctioned SDM internal circuit, G sensor, memory or CPU. • SDM
Step Action Yes No
1Was “Air Bag Diagnostic System Check Flow” performed?Go to Step 2. Go to “Air Bag
Diagnostic System
Check Flow”
2DTC check
1) Clear DTC referring to “DTC Clearance”.
2) Turn OFF ignition switch.
3) Turn ON ignition switch and check DTC.
Is DTC B1013 still indicated?Go to Step 3. Intermittent trouble.
Check for intermittent
referring to “Intermittent
and Poor Connection
Inspection in Section
00”.
3SDM power supply and ground circuit check
1) Check SDM power supply and ground circuit referring to
“SDM Power Supply and Ground Circuit Check”.
Is SDM power supply and ground circuit in good condition?Substitute a known-
good SDM and recheck.Repair power supply
and ground circuit.

Downloaded from www.Manualslib.com manuals search engine 8B-31 Air Bag System:
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.
• Clear DTC B1157 (air bag deployed) of BCM referring to “DTC Clearance in Section 10B”, if any.

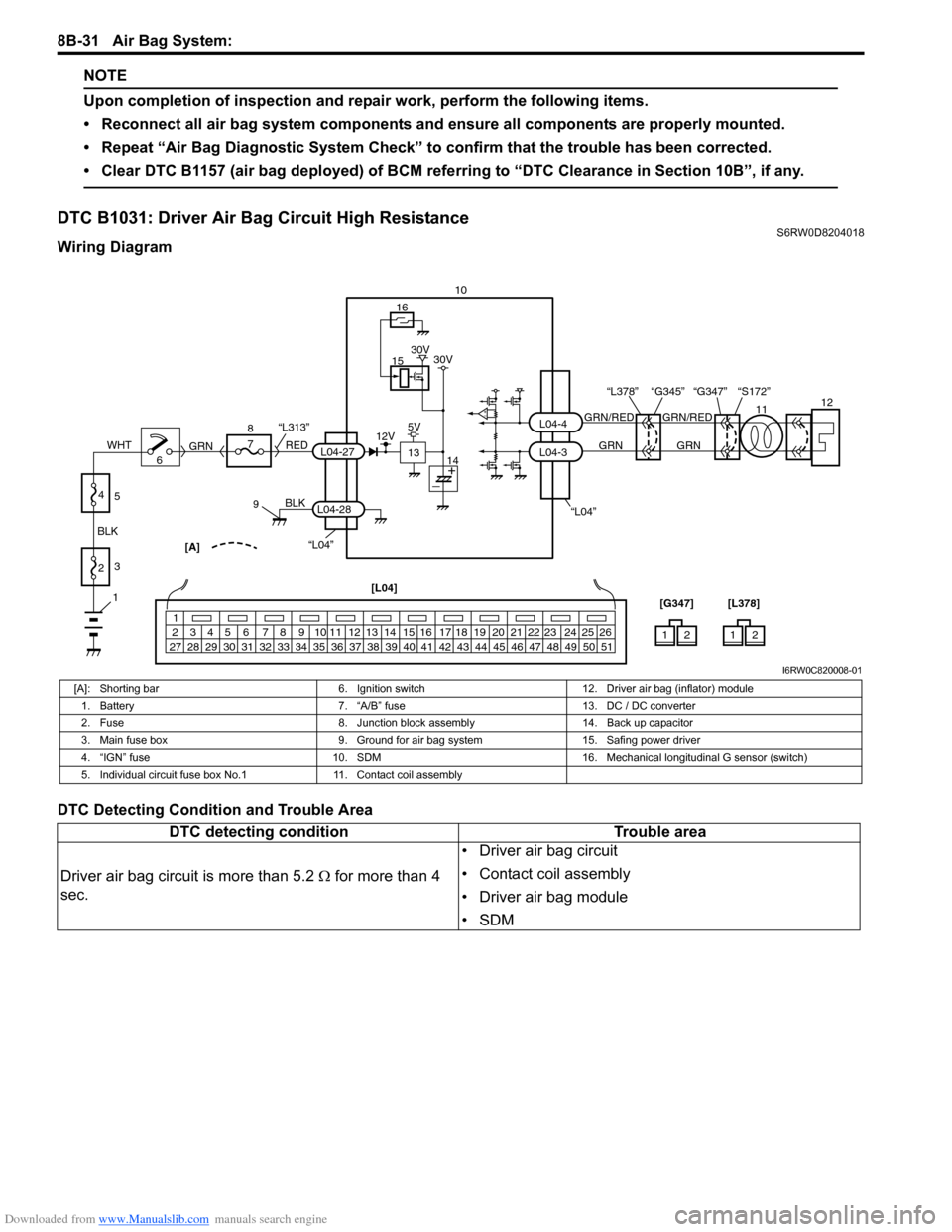

DTC B1031: Driver Air Bag Circuit High Resistance S6RW0D8204018
Wiring Diagram
DTC Detecting Condition and Trouble Area
“L04”“L04”[A]
BLK
L04-28
6 8
7
RED
GRN“L313”L04-27
910
L04-3 L04-4
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
12 [L04]
[G347]12 [L378]
15
13
16
12V5V30V 30V
141112
GRN/RED GRN/RED
GRN GRN
“G347” “S172” “L378” “G345”
1
2 BLKWHT3
4
5
I6RW0C820008-01
[A]: Shorting bar 6. Ignition switch 12. Driver air bag (inflator) module
1. Battery 7. “A/B” fuse 13. DC / DC converter
2. Fuse 8. Junction block assembly 14. Back up capacitor
3. Main fuse box 9. Ground for air bag system 15. Safing power driver
4. “IGN” fuse 10. SDM 16. Mechanical longitudinal G sensor (switch)
5. Individual circuit fuse box No.1 11. Contact coil assembly
DTC detecting condition Trouble area
Driver air bag circuit is more than 5.2 Ω for more than 4
sec.• Driver air bag circuit
• Contact coil assembly
• Driver air bag module
•SDM

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-40

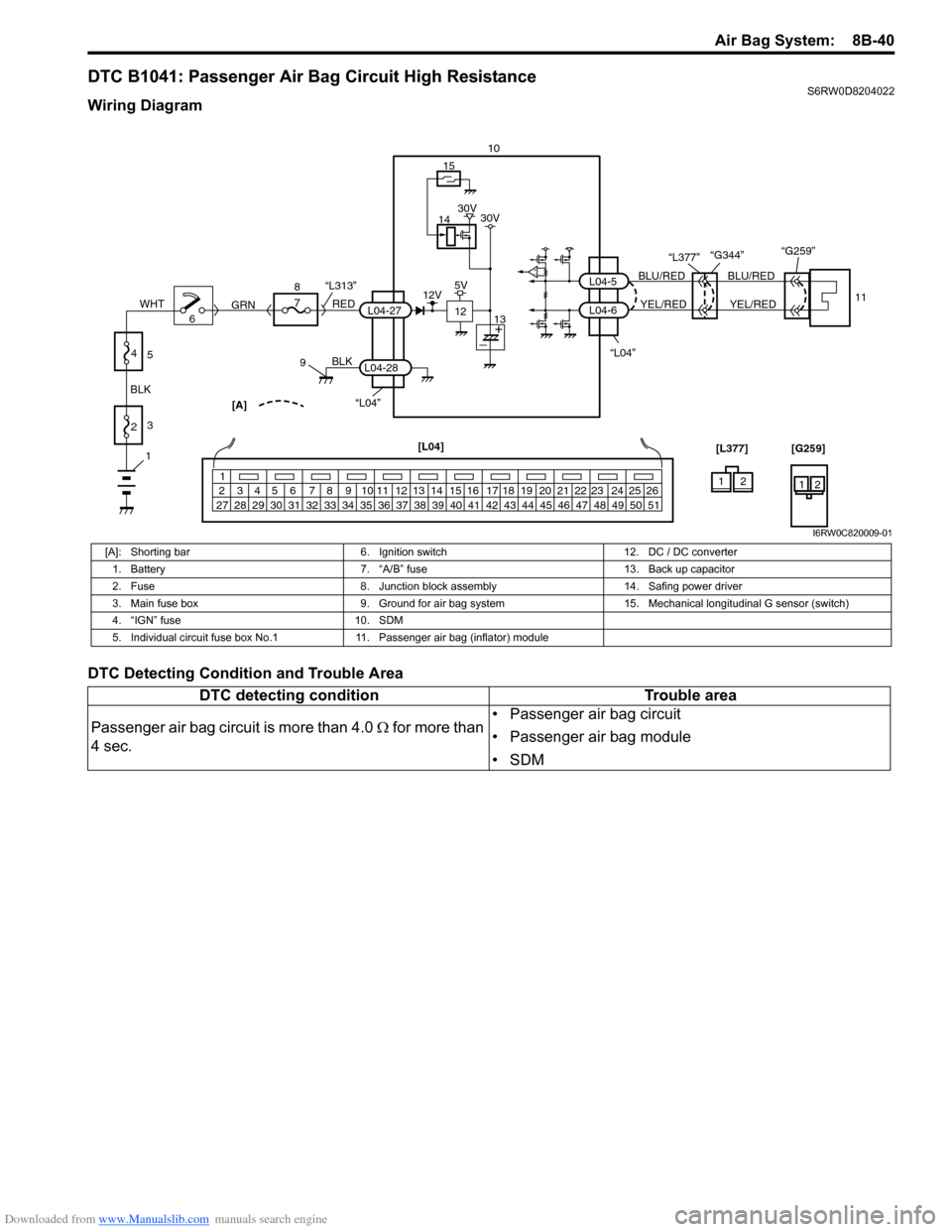

DTC B1041: Passenger Air Bag Circuit High ResistanceS6RW0D8204022
Wiring Diagram
DTC Detecting Condition and Trouble Area
“L04”[A]
BLK
L04-28
6 8
7
RED
GRN“L313”L04-27
910
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26
27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51
[L04]
14
12
15
12V5V30V 30V
13
11
BLU/RED
YEL/RED
L04-6 L04-5
“L377”
“L04”“G344”“G259”
BLU/RED
YEL/RED
1
2 BLKWHT3
4
5
12 [L377] [G259]
12
I6RW0C820009-01
[A]: Shorting bar 6. Ignition switch 12. DC / DC converter
1. Battery 7. “A/B” fuse 13. Back up capacitor
2. Fuse 8. Junction block assembly 14. Safing power driver
3. Main fuse box 9. Ground for air bag system 15.Mechanical longitudinal G sensor (switch)
4. “IGN” fuse 10. SDM
5. Individual circuit fuse box No.1 11. Passenger air bag (inflator) module
DTC detecting condition Trouble area
Passenger air bag circuit is more than 4.0 Ω for more than
4 sec.• Passenger air bag circuit
• Passenger air bag module
•SDM

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-48

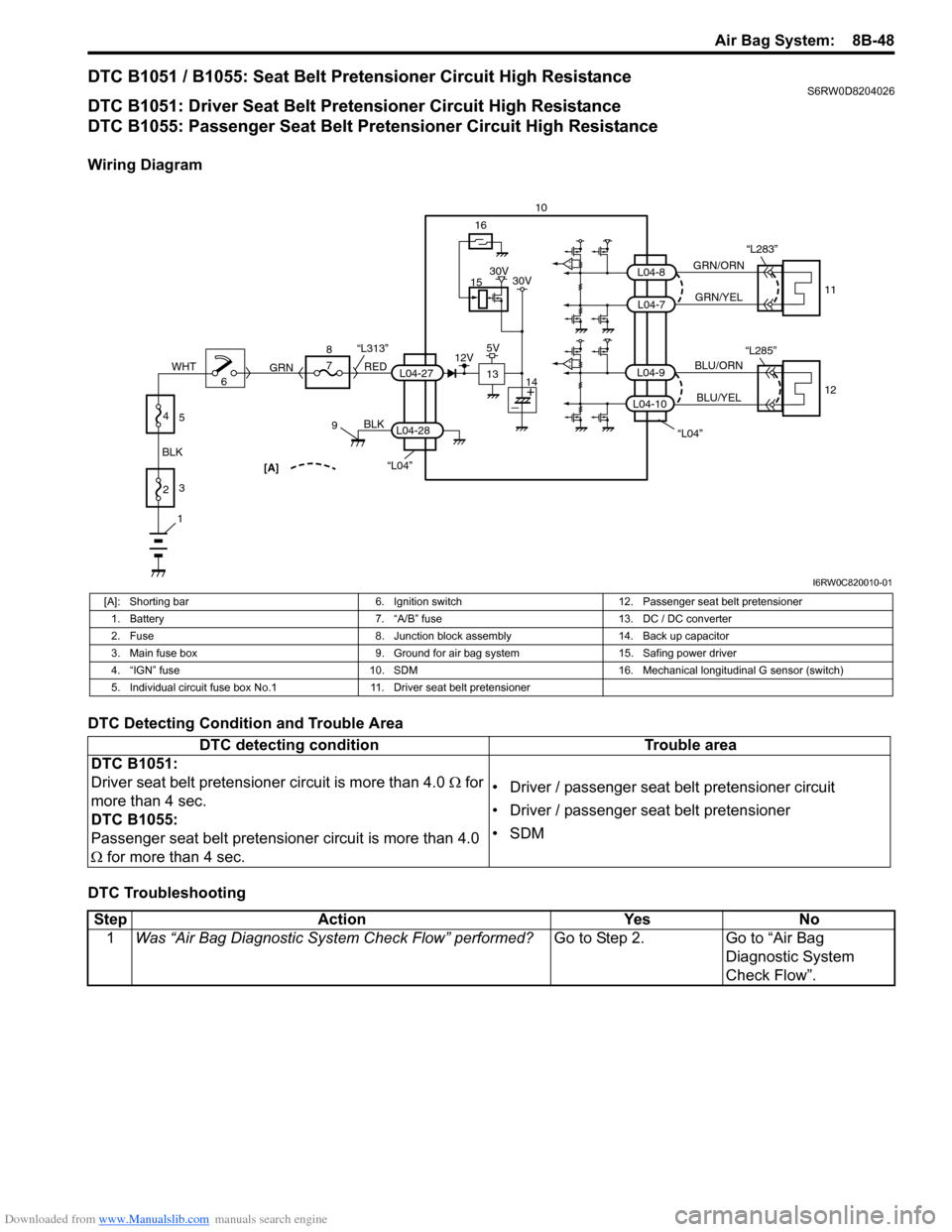

DTC B1051 / B1055: Seat Belt Pretensioner Circuit High ResistanceS6RW0D8204026
DTC B1051: Driver Seat Belt Pretensioner Circuit High Resistance
DTC B1055: Passenger Seat Belt Pretensioner Circuit High Resistance
Wiring Diagram
DTC Detecting Condition and Trouble Area
DTC Troubleshooting
“L04”[A]
BLK
L04-28
6 8
7
RED
GRN“L313”L04-27
910
15
13
16
12V5V30V 30V
14
1
2 BLKWHT3
4
5
“L04”
GRN/ORN
GRN/YEL
BLU/ORN
BLU/YEL
L04-9
L04-7
L04-8
11
12 “L283”
L04-10
“L285”
I6RW0C820010-01
[A]: Shorting bar 6. Ignition switch 12. Passenger seat belt pretensioner
1. Battery 7. “A/B” fuse 13. DC / DC converter
2. Fuse 8. Junction block assembly 14. Back up capacitor
3. Main fuse box 9. Ground for air bag system 15. Safing power driver
4. “IGN” fuse 10. SDM 16. Mechanical longitudinal G sensor (switch)
5. Individual circuit fuse box No.1 11. Driver seat belt pretensioner
DTC detecting condition Trouble area
DTC B1051:
Driver seat belt pretensioner circuit is more than 4.0 Ω for
more than 4 sec.
DTC B1055:
Passenger seat belt pretensioner circuit is more than 4.0
Ω for more than 4 sec.• Driver / passenger seat belt pretensioner circuit
• Driver / passenger seat belt pretensioner
•SDM
Step Action Yes No
1Was “Air Bag Diagnostic System Check Flow” performed?Go to Step 2. Go to “Air Bag
Diagnostic System
Check Flow”.

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-66
DTC B1071: Driver Forward Impact-Sensor Communication Data InconsistentS6RW0D8204034
DTC Detecting Condition and Trouble Area
DTC Troubleshooting
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

DTC B1072: Driver Forward Impact-Sensor Communication Data InvalidS6RW0D8204035
DTC Detecting Condition and Trouble Area
DTC Troubleshooting
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

DTC detecting condition Trouble area
Forward impact-sensor has been communicated with no
response or inconsistent ID code for more than 4 sec.• Forward impact-sensor
• Forward impact-sensor circuit
•SDM
Step Action Yes No
1Was “Air Bag Diagnostic System Check Flow” performed?Go to Step 2. Go to “Air Bag
Diagnostic System
Check Flow”.
2DTC check
1) Connect scan tool to DLC with ignition switch turned
OFF.
2) Turn ON ignition switch and check SDM for DTC.
Are there any DTC(s) B1073, B1074?Go to applicable DTC
diag. flow.Replace defective
forward impact-sensor
and recheck.
If this DTC still detected,
replace SDM.
DTC detecting condition Trouble area
Forward impact-sensor has been communicated with
invalid data for more than 4 sec.• Forward impact-sensor
•SDM
Step Action Yes No
1Was “Air Bag Diagnostic System Check Flow” performed?Go to Step 2. Go to “Air Bag
Diagnostic System
Check Flow”.
2DTC check
1) Connect scan tool to DLC with ignition switch turned
OFF.
2) Turn ON ignition switch and check SDM for DTC.
Are there any DTC(s) B1071, B1073, B1074?Go to applicable DTC
diag. flow.Replace defective
forward impact-sensor
and recheck.
If this DTC still detected,
replace SDM.
