Downloaded from www.Manualslib.com manuals search engine Differential: 3B-22
DTC C1252: Coupling Assembly Circuit OpenS6RW0D3204019
Wiring Diagram
DTC Detecting Condition and Trouble Area3Coupling assembly ground circuit check
1) Disconnect connector from 4WD control module with
ignition switch turned OFF.
2) Measure resistance between “ORN” terminal of coupling
air temperature sensor connector and “G26-24” terminal
of 4WD control module connector with ignition switch
turned OFF.
Is resistance above 1 M
Ω?Go to Step 4. “ORN” wire is shorted to
ground circuit.
4Coupling air temperature sensor check
1) Check coupling air temperature sensor referring to
“Coupling Air Temperature Sensor Inspection”.
Is it in good condition?Substitute a known-
good 4WD control
module and recheck.Replace coupling air
temperature sensor.
5Coupling assembly circuit check
1) Disconnect connector from 4WD control module with
ignition switch turned OFF.
2) Check for proper connection to “G26-25” and “G26-24”
terminals of 4WD control module connector.
3) If connection is OK, measure resistance between “G26-
25” terminal of 4WD control module connector and
vehicle body ground.
Is resistance above 1 M
Ω?“BRN” wire is shorted to
ground circuit.Substitute a known-
good 4WD control
module and recheck. Step Action Yes No
12V
G26-3
YEL GRY
G26-2
L102-1
L102-4 12
1 2 3
4 5
6 7 8 9 10 11
12
13
14 15 16
17 18 19
20
21 22
23
24 25 26
[A]
21
[B]
I7RW01320007-01
[A]: 4WD control module connector “G26” (viewed from harness side) 1. Coupling assembly
[B]: Coupling assembly connector “L102” (viewed from harness side) 2. 4WD control module
DTC detecting condition Trouble area
2WD/4WD switch is changed of 4WD lock position, and then
vehicle is not changed for more than 5 seconds.• Coupling assembly
• Coupling assembly circuit
• 4WD control module

Downloaded from www.Manualslib.com manuals search engine 3B-29 Differential:
Reference waveform No.1
Coupling assembly signalReference waveform No.2
CAN communication signal G26-24 ORNCoupling air
temperature sensor
(ground)About 2.5 V Ignition switch turned ON position
G26-25 BRNCoupling air
temperature sensor
(power)About 2.5 V Ignition switch turned ON position
G26-26 — — — — Terminal
NumberWire Color CircuitNormal
Vo l ta g eCondition
Measurement terminal CH1: “G26-3” to “G26-2”
Oscilloscope setting CH1: 5 V / DIV
TIME: 400 µs / DIV
Measurement condition • Run engine at idle speed
and 2WD/4WD switch at
4WD lock position
• Selector lever at other than
“P” or “N” range (A/T model)
• Depress accelerator pedal
(M/T model)
I7RW01320011-01
Measurement terminal CH1: “G26-22” to “G26-10”
CH2: “G26-23” to “G26-10”
Oscilloscope setting CH1: 1 V / DIV, CH2: 1 V / DIV
TIME: 400 µs / DIV
Measurement condition Ignition switch ON position
1. CAN communication line signal (high)
2. CAN communication line signal (low)
I7RW01320012-01

Downloaded from www.Manualslib.com manuals search engine 3B-31 Differential:
2WD/4WD Switch Removal and InstallationS6RW0D3206003
Removal
1) Disconnect negative cable at battery.
2) Remove console box (2).
3) Remove 2WD/4WD switch (1) from console box.
Installation
Reverse removal procedure for installation.
2WD/4WD Switch InspectionS6RW0D3206004
Check 2WD/4WD switch for continuity between
terminals at each switch position.
If check result is not as specified, replace switch.
4WD Control Module Removal and InstallationS6RW0D3206005
Removal
1) Disconnect negative cable at battery.
2) Remove center ventilation louver referring to “Center
Ventilation Louver Removal and Installation in
Section 7A”.
3) Disconnect connector (1) from 4WD control module.
4) Remove 4WD control module (2).
Installation
Reverse removal procedure for installation.
Coupling Air Temperature Sensor Removal and
Installation
S6RW0D3206006
Removal
1) Dismount rear differential referring to “Rear
Differential Dismounting and Remounting”.
2) Remove coupling air temperature sensor (1) from
rear differential (2).
Installation
Reverse removal procedure for installation, noting the
following point.
• Tighten coupling air temperature sensor to specified
torque.
Tightening torque
Coupling air temperature sensor: 18 N·m (1.8 kgf-
m, 13.0 lb-ft)
1
2
I5RW0A320017-02
Terminal
Switch position
2WD
AUTO
LOCK
11
22
3 3
4 4
5 5
I5RW0A320018-02
2
1
I5RW0A320019-01
12
I5RW0A320020-02

Downloaded from www.Manualslib.com manuals search engine Differential: 3B-32

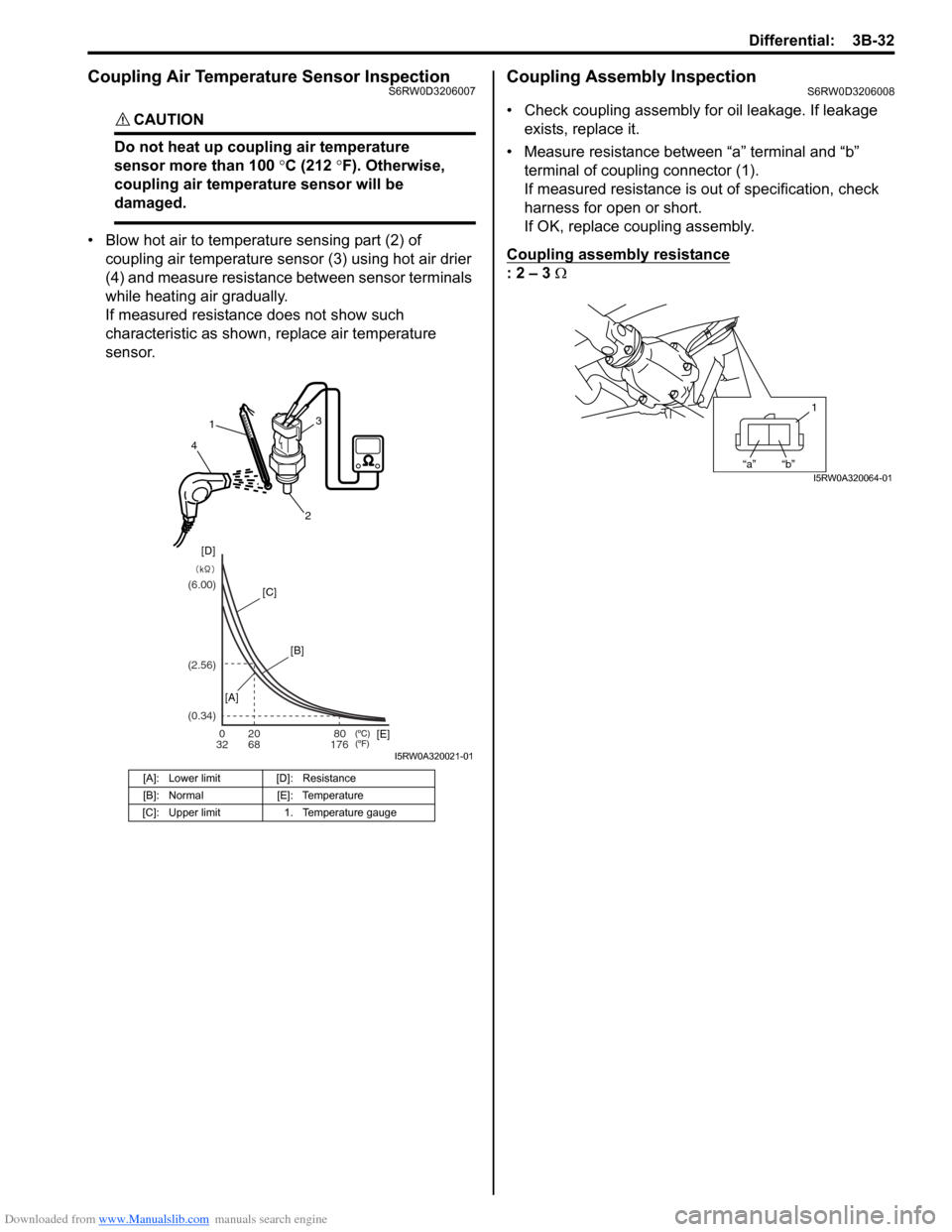

Coupling Air Temperature Sensor InspectionS6RW0D3206007
CAUTION!
Do not heat up coupling air temperature
sensor more than 100 °C (212 °F). Otherwise,
coupling air temperature sensor will be
damaged.

• Blow hot air to temperature sensing part (2) of
coupling air temperature sensor (3) using hot air drier
(4) and measure resistance between sensor terminals
while heating air gradually.
If measured resistance does not show such
characteristic as shown, replace air temperature
sensor.
Coupling Assembly InspectionS6RW0D3206008
• Check coupling assembly for oil leakage. If leakage
exists, replace it.
• Measure resistance between “a” terminal and “b”
terminal of coupling connector (1).
If measured resistance is out of specification, check
harness for open or short.
If OK, replace coupling assembly.
Coupling assembly resistance
: 2 – 3 Ω
[A]: Lower limit [D]: Resistance
[B]: Normal [E]: Temperature
[C]: Upper limit 1. Temperature gauge
020
32 68 17680 (6.00)
(0.34) (2.56)
1
4
23
[D]
[C]
[B]
[A]
[E]
I5RW0A320021-01
1
“a” “b”I5RW0A320064-01

Downloaded from www.Manualslib.com manuals search engine 3B-35 Differential:
Rear Differential ComponentsS6RW0D3206013
4 5
9
2
30
6
(a)13
12
(a)
3
A
3A
141617 2118
29
3A
1(b)
22
1217G
101217G
11
8OIL
15OIL
19 20OIL
23OIL
25OIL27OIL
27OIL
25OIL
19OIL18
26 28
OIL
26OIL23OIL
24OIL
(c)
14
7
I5RW0A320026-02
1. Flange nut 13. Differential cover bolt 25. Differential gear
2. Companion flange 14. Spacer 26. Spring washer
3. Oil seal
: Apply grease 99000-25010 to oil seal lip.15. Rear bearing 27. Thrust washer
4. Coupling front bearing 16. Shim 28. Pinion shaft
5. Coupling case
: Apply sealant 99000-31260 to mating surface of carrier and coupling
case.17. Bevel pinion 29. Pinion shaft pin
6. Coupling assembly
: Never disassemble.18. Shim 30. Coupling case bolt
7. Snap ring 19. Differential side bearing : 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
8. Bevel pinion nut
: Tighten nut so as rotation torque of bevel pinion to be in specified value.20. Bevel gear : 125 N⋅m (12.5 kgf-m, 90.5 lb-ft)
9. Front bearing 21. Differential case : 78 N⋅m (7.8 kgf-m, 56.5 lb-ft)
10. Differential carrier
: Apply sealant 99000-31260 to mating surface of carrier and rear cover.22. Bevel gear bolt : Do not reuse.
11. Coupling air temperature sensor 23. Pinion washer : Apply differential oil.
12. Differential cover 24. Pinion

Downloaded from www.Manualslib.com manuals search engine Differential: 3B-48
Specifications
Tightening Torque SpecificationsS6RW0D3207001
NOTE
The specified tightening torque is also described in the following.
“Rear Differential Mountings Components”
“Rear Differential Components”

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fasteners Information in Section 0A”.
Special Tools and Equipment
Recommended Service MaterialS6RW0D3208001
NOTE
Required service material is also described in the following.
“Rear Differential Components”

Fastening partTightening torque
Note
N⋅mkgf-mlb-ft
Differential oil level / filler plug 23 2.3 17.0) / )
Differential oil drain plug 23 2.3 17.0)
Coupling air temperature sensor 18 1.8 13.0)
Bevel gear bolt 73 7.3 52.0)
Bevel pinion nut 230 – 340 23.0 – 34.0 166.5 – 246.0)
Differential cover bolt 23 2.3 17.0)
Flange nut 110 11.0 79.5)
Coupling case bolt 23 2.3 17.0)
Material SUZUKI recommended product or Specification Note
Grease SUZUKI Super Grease A P/No.: 99000–25010) / ) / )
Sealant SUZUKI Bond No.1217G P/No.: 99000–31260) / ) / ) / ) / )

Downloaded from www.Manualslib.com manuals search engine 4-ii Table of Contents
Specifications .......................................................4D-4
Tightening Torque Specifications ........................4D-4
ABS ............................................................4E-1
Precautions........................................................... 4E-1
Precautions in Diagnosing Troubles ................... 4E-1
Precautions in On-Vehicle Service...................... 4E-1
General Description ............................................. 4E-2
ABS Description .................................................. 4E-2
ABS Hydraulic Unit / Control Module
Assembly Description ....................................... 4E-3
CAN Communication System Description........... 4E-3
Schematic and Routing Diagram ........................ 4E-4
ABS Schematic ................................................... 4E-4
ABS Wiring Circuit Diagram ................................ 4E-5
Component Location ........................................... 4E-8
ABS Components Location ................................. 4E-8
Diagnostic Information and Procedures ............ 4E-8
ABS Check .......................................................... 4E-8
ABS Warning Light Check................................. 4E-10
EBD Warning Light (Brake Warning Light)
Check .............................................................. 4E-10
DTC Check........................................................ 4E-11
DTC Table ......................................................... 4E-11
DTC Clearance ................................................. 4E-11
Scan Tool Data ................................................. 4E-12
ABS Warning Light Does Not Come ON at
Ignition Switch ON .......................................... 4E-13
ABS Warning Light Comes ON Steady ............. 4E-15
EBD Warning Light (Brake Warning Light)
Comes ON Steady .......................................... 4E-16
Serial Data Link Circuit Check .......................... 4E-17
DTC C1013: Control Module Mismatch ............ 4E-20
DTC C1015: G Sensor Circuit (4WD Model)..... 4E-21
DTC 1016: Brake Light Switch .......................... 4E-22
DTC C1021 / C1022 / C1025 / C1026 / C1031
/ C1032 / C1035 / C1036: Wheel Speed
Sensor Circuit / Sensor or Encoder ................ 4E-23
DTC C1033: Wheel Speed Sensor Deviation ... 4E-25
DTC C1041 / C1042 / C1045 / C1046 / C1051
/ C1052 / C1055 / C1056: Inlet / Outlet
Solenoid .......................................................... 4E-26DTC C1057: Power Supply Voltage Too High
/ Too Low ........................................................ 4E-27
DTC C1061: Pump Motor Circuit ...................... 4E-28
DTC C1063: Solenoid Valve Power Supply
Driver Circuit ................................................... 4E-29
DTC C1071: Control Module Internal Defect .... 4E-30
ABS Hydraulic Unit / Control Module
Assembly Power and Ground Circuit Check ... 4E-30
Repair Instructions ............................................ 4E-31
ABS Hydraulic Unit Operation Check................ 4E-31
ABS Hydraulic Unit / Control Module
Assembly Components ................................... 4E-32
ABS Hydraulic Unit / Control Module
Assembly On-Vehicle Inspection .................... 4E-33
ABS Hydraulic Unit / Control Module
Assembly Removal and Installation ................ 4E-33
Front and Rear Wheel Speed Sensor On-
Vehicle Inspection ........................................... 4E-34
Front Wheel Speed Sensor Removal and
Installation ....................................................... 4E-35
Front and Rear Wheel Speed Sensor
Inspection ........................................................ 4E-36
Rear Wheel Speed Sensor Removal and
Installation (4WD Model) ................................. 4E-36
Rear Wheel Speed Sensor Removal and
Installation (2WD Model) ................................. 4E-36
Front Wheel Speed Sensor Encoder On-
Vehicle Inspection ........................................... 4E-37
Front Wheel Speed Sensor Encoder Removal
and Installation ................................................ 4E-37
Rear Wheel Speed Sensor Encoder On-
Vehicle Inspection ........................................... 4E-37
Rear Wheel Speed Sensor Encoder Removal
and Installation ................................................ 4E-37
G Sensor Removal and Installation (4WD
Model) ............................................................. 4E-38
G Sensor Inspection (4WD Model) ................... 4E-38
Specifications ..................................................... 4E-39
Tightening Torque Specifications ...................... 4E-39
Special Tools and Equipment ........................... 4E-39
Special Tool ...................................................... 4E-39

Downloaded from www.Manualslib.com manuals search engine 4E-1 ABS:
Brakes
ABS
Precautions
Precautions in Diagnosing TroublesS6RW0D4500001
To ensure that the trouble diagnosis is done accurately
and smoothly, observe the following and follow “ABS
Check”.
• Diagnostic information stored in ABS control module
memory can be cleared as well as checked by using
SUZUKI scan tool. Before using scan tool, read its
Operator's (Instruction) Manual carefully to have good
understanding as to what functions are available and
how to use it.
• If the vehicle was operated in any of the following
ways, ABS warning light may light momentarily but
this does not indicate anything abnormal in ABS.
– The vehicle was driven with parking brake pulled.
– The vehicle was driven with brake dragging.
– The vehicle was stuck in mud, sand, etc.
– Wheel spin occurred while driving.
– Wheel(s) was rotated while the vehicle was jacked
up.
• Be sure to read “Precautions for Electrical Circuit
Service in Section 00” and “Precaution for CAN
Communication System in Section 00” before
inspection and observe what is written there.
• Be sure to use the trouble diagnosis procedure as
described in “ABS Check”. Failure to follow it may
result in incorrect diagnosis. (Some other diagnosis
trouble code may be stored by mistake in the memory
of ABS control module during inspection.)• When disconnecting ABS hydraulic unit / control
module connector (1), pull up lock lever (2) of
connector.
When connecting, set the connector on ABS hydraulic
unit / control module assembly and pull down the lock
lever (2) until it locks.
• Communication of ECM, BCM, combination meter,
4WD control module (if equipped), keyless start
control module (if equipped), TCM (if equipped), data
link connector and ABS control module is established
by CAN (Control Area Network).
Therefore, be sure to read “Precautions for Installing
Mobile Communication Equipment in Section 00”
before inspection and handling CAN communication
line.
Precautions in On-Vehicle ServiceS6RW0D4500002
When connector is connected to ABS hydraulic unit /
control module assembly, do not disconnect connectors
of sensors with ignition switch ON. Otherwise, DTC will
be set in ABS control module.
[A]: Disconnect C: Pull up to disconnect
[B]: Connect D: Pull down to connect
2 1
CD
[A]
[B]
I5RW0A450001-01
