Maintenance and service 11 - 1 5
– CONTINUED –
T
Changing the coolant
Always add genuine Subaru cooling sys-
tem conditioner whenever the coolant is
replaced.
Change the engine coolant and add gen-
uine Subaru cooling system conditioner
using the following procedures according
to the maintenance schedule in the “War-
ranty and Maintenance Booklet”.
1. Remove the under cover.
2.5-liter models
1) Drain plug 3.0-liter models
1) Drain plug
2. Place a proper container under the
drain plug and loosen the drain plug.
3. Loosen the radiator cap to drain the
coolant from the radiator. Then drain the
coolant from the reserve tank. Tighten the
drain plug securely.
4. Install the under cover.
Non-turbo models
1) Fill up to here
Turbo models
1) Fill up to here
1
B00422
Never attempt to remove the radia-
tor cap until the engine has been
shut off and has cooled down com-
pletely. Since the coolant is under
pressure, you may suffer serious
burns from a spray of boiling hot
coolant when the cap is removed.
B00423
1
1
B00424
1
B00425

11 - 1 6 Maintenance and service
5. Slowly pour the coolant and fill up to
just below the filler neck, allowing enough
room to add genuine Subaru cooling sys-
tem conditioner in the radiator. Add genu-
ine Subaru cooling system conditioner un-
til the coolant level reaches the filler neck.
Do not pour the coolant too quickly, as this
may lead to insufficient air bleeding and
trapped air in the system.
Coolant capacity (Guideline):
2.5-liter non-turbo models: MT. 6.8 US qt (6.4 liters, 5.6 Imp qt)
AT. 6.7 US qt (6.3 liters, 5.5 Imp qt)
2.5-liter turbo models: MT. 7.7 US qt (7.3 liters, 6.4 Imp qt)
AT. 7.6 US qt (7.2 liters, 6.3 Imp qt)
3.0-liter models:
7.6 US qt (7.2 liters, 6.3 Imp qt)6. Pour the coolant and fill to the reservoir
tank’s “FULL” level mark. 7. Put the radiator cap back on and tight-
en firmly. At this time
, make sure that the
rubber gasket in the radiator cap is cor-
rectly in place.
8. Start and run the engine for more than
five minutes at 2,000 to 3,000 rpm.
9. Stop the engine and wait until the cool-
ant cools down (122 to 140 °F [50 to
60 °C]). If there is any loss of coolant, add
coolant to the radiator’s filler neck and to
the reserve tank’s “FULL” level.
10.Put the radiator cap and reservoir cap
back on and tighten firmly.
y
Be careful not to spill engine cool-
ant when adding it. If coolant
touches the exhaust pipe, it may
cause a bad smell, smoke, and/or
a fire. If engine co olant gets on the
exhaust pipe, be sure to wipe it off.
y Do not splash the engine coolant
over painted parts. The alcohol
contained in the engine coolant
may damage the paint surface.
FULL LOW
600151
B00018

Maintenance and service 11 - 1 7
– CONTINUED –
Air cleaner element
The air cleaner element functions as a fil-
ter screen. When the element is perforat-
ed or removed, engine wear will be exces-
sive and engine life shortened.
The air cleaner element is a dry type. It is
unnecessary to clean or wash the ele- ment. „Replacing the air cleaner ele- ment
Replace the air cleaner element according
to the maintenance schedule in the “War-
ranty and Maintenance Booklet”. Under
extremely dusty conditions, replace it
more frequently. It is recommended that
you always use genuine SUBARU parts. T
Non-turbo models
0
1) Connector
2) Duct
3) Clamp
1. Unplug the connector that is attached
to the top of the air cleaner case.
2. Remove the hose that is located at the
bottom of the side surface of the air clean-
er case.
3. Undo the screw and pull the air duct
out of the air cleaner case.
4. Unsnap the two clamps holding the air
cleaner case cover. 5. Open the air cleaner case cover and
remove the air cleaner element.
6. Clean the inside of the air cleaner cov-
er and case with a damp cloth and install
a new air cleaner element.
Do not operate the engine with the
air cleaner element
removed. The air
cleaner element not only filters in-
take air but also stops flames if the
engine backfires. If the air cleaner
element is not installed when the en-
gine backfires, you could be burned.
1
3
2B00426
B00114
B00115

11 - 1 8 Maintenance and service
7. To install the air cleaner case cover, in-
sert the three projections on the air clean-
er case cover into the slits on the air clean-
er case and then snap the two clamps on
the air cleaner case cover. T Turbo models
0

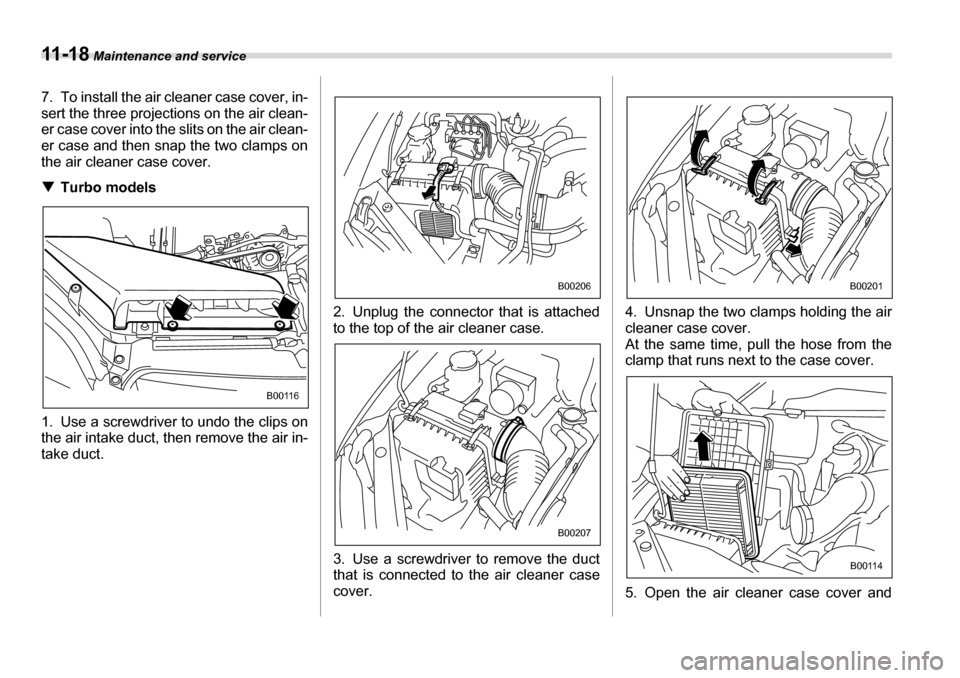

1. Use a screwdriver to undo the clips on
the air intake duct, then remove the air in- take duct. 2. Unplug the connector that is attached
to the top of the air cleaner case.
3. Use a screwdriver to remove the duct
that is connected to the air cleaner case cover. 4. Unsnap the two clamps holding the air
cleaner case cover.
At the same time, pu
ll the hose from the
clamp that runs next to the case cover.
5. Open the air cleaner case cover and
B00116
B00206
B00207
B00201
B00114

Maintenance and service 11 - 1 9
remove the air cleaner element.
6. Clean the inside of the air cleaner cov-
er and case with a damp cloth and install
a new air cleaner element.
7. To install the air cleaner case cover, in-
sert the three projections on the air clean-
er case cover into the slits on the air clean-
er case and then snap the two clamps on
the air cleaner case cover.Spark plugs
It may be difficult to replace the spark
plugs. It is recommended that you have
the spark plugs replaced by your
SUBARU dealer.
The spark plugs should be replaced ac-
cording to the maintenance schedule in
the “Warranty and Maintenance Booklet”. „
Recommended spark plugs
2.5-liter non-turbo models:
FR5AP-11 (NGK)
2.5-liter turbo and 3.0-liter models:
ILFR6B (NGK)
B00115
y When disconnecting the spark
plug cables, always grasp the
spark plug cap, not the cables.
y Make sure the cables are replaced
in the correct order.
B00027

11 - 2 0 Maintenance and service
Drive belts
The alternator, power steering pump, and
air conditioner compressor depend on
drive belts. Satisfactory performance re-
quires that belt tension be correct. „2.5-liter models
1) Power steering pump pulley
2) Air conditioner compressor pulley
3) Crank pulley in (mm)
To check belt tensi on, place a straight-
edge (ruler) across two adjacent pulleys
and apply a force of 22 lbs (98 N, 10 kg)
midway between the pulleys by using a
spring scale. Belt deflection should be the
amount specified. „ 3.0-liter models
It is unnecessary to check belt tension pe-
riodically because your engine is
equipped with an autom atic belt tension
adjuster. However, replacement of the
belt should be done according to the
maintenance schedule in the “Warranty
and Maintenance Booklet”. Consult your
SUBARU dealer for replacement.
If a belt is loose, cr acked, or worn, contact
your SUBARU dealer.Manual transmission oil „ Checking the oil level
Non-turbo models
1) Yellow handle
A
B
2
3
1
B00365
Deflection
New belt Used belt
A 0.28 – 0.35
(7.0 – 9.0) 0.35 – 0.43
(9.0 – 11.0)
B 0.30 – 0.33
(7.5 – 8.5) 0.35 – 0.40
(9.0 – 10.0)
1
B00427

Maintenance and service 11 - 2 1
Turbo models
1. Park the vehicle on a level surface and
stop the engine.
2. Pull out the dipstick, wipe it clean, and
insert it again. 1) Upper level
2) Lower level
3. Pull out the dipstick again and check
the oil level on it. If it is below the lower
level, add oil through the dipstick hole to
bring the level up to the upper level.
„ Recommended grade and
viscosity
Each oil manufacturer has its own base
oils and additives. Never use different
brands together.
Oil grade:
API classification GL-5
SAE viscosity No. and applicable tem- perature
B00196
Be careful not to spill manual trans-
mission oil when adding it. If oil
touches the exhaus t pipe, it may
cause a bad smell, smoke, and/or a
fire. If oil gets on the exhaust pipe,
be sure to wipe it off.
L F
F
L1
2 1
2
B00368-30 -20 -10 0 10 20 30 40-20 0 60 20
80W 75W/90 80 100
40
85W 90
B00032

11 - 2 2 Maintenance and service
Automatic transmission fluid „Checking the fluid level
The automatic transmission fluid expands
largely as its temperature rises; the fluid
level differs according to fluid tempera-
ture. Therefore, there are two different
scales for checking the level of hot fluid
and cold fluid on the dipstick.
Though the fluid level can be checked
without warming up the fluid on the
“COLD” range, we recommend checking
the fluid level when the fluid is at operating
temperature. T Checking the fluid level when the
fluid is hot
Check the fluid level monthly.
1. Drive the vehicle se veral miles to raise
the temperature of the transmission fluid
up to normal operating temperature; 158 to 176 °F (70 to 80 °C) is normal.
2. Park the vehicle on a level surface and
set the parking brake.
3. First shift the selector lever in each po-
sition. Then shift it in the “P” position, and
run the engine at idling speed. 4-speed automatic transmission
1) Yellow handle
5-speed automatic transmission
1) Yellow handle1) HOT range
2) COLD range
3) Upper level
4) Lower level
4. Pull out the dipstick and check the fluid
level on the gauge. If it is below the lower
level on the “HOT” range, add the recom-
mended automatic transmission fluid up to
the upper level. T Checking the fluid level when the
fluid is cold
When the fluid level has to be checked
without time to warm up the automatic
transmission, check to see that the fluid
level is between the lower level and upper
level on the “COLD” range. If it is below
that range, add fluid up to the upper level.
Be careful not to overfill.1
B00428
1
B00429
3 4
3 4 2
1
B00370
